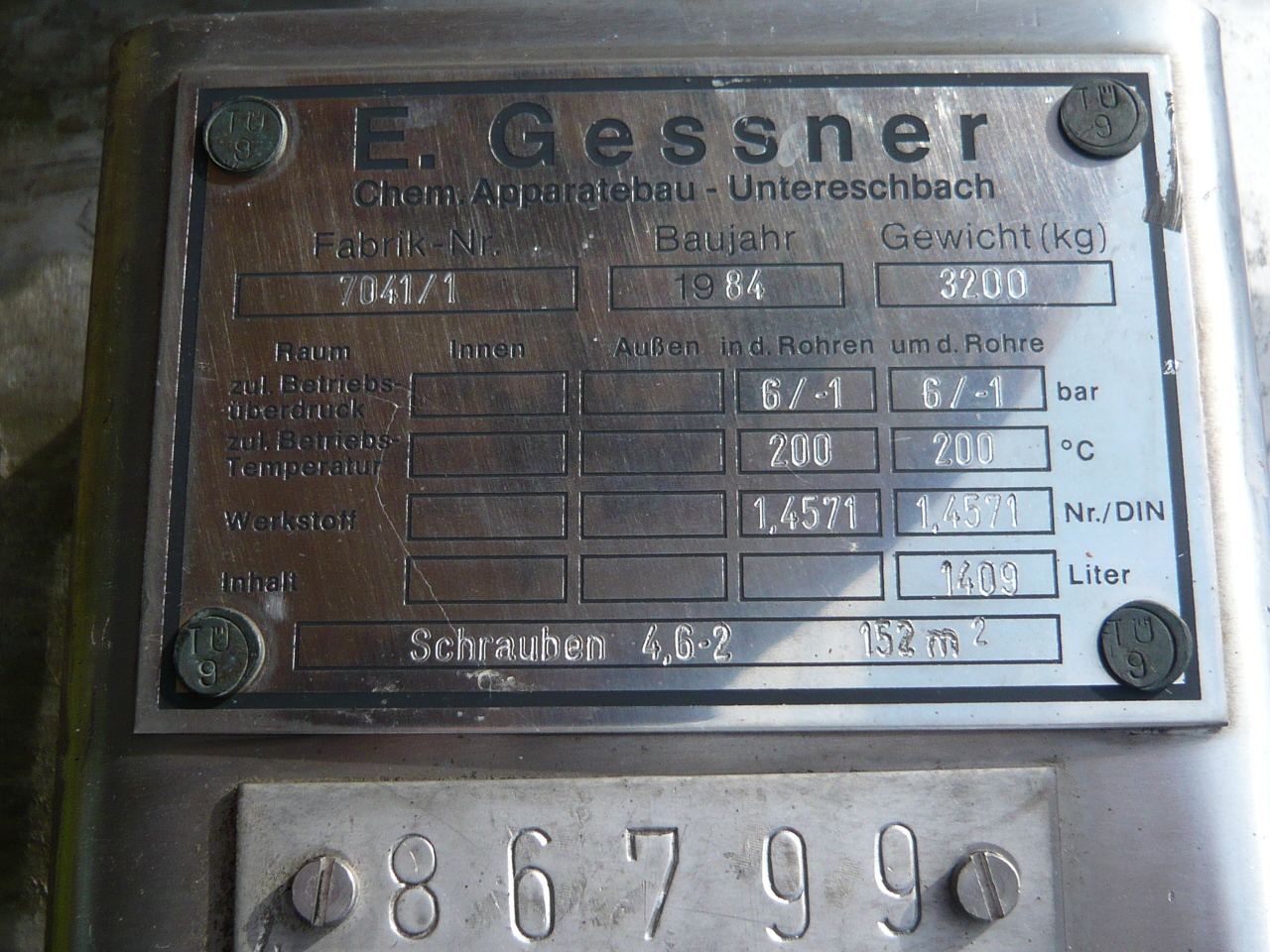

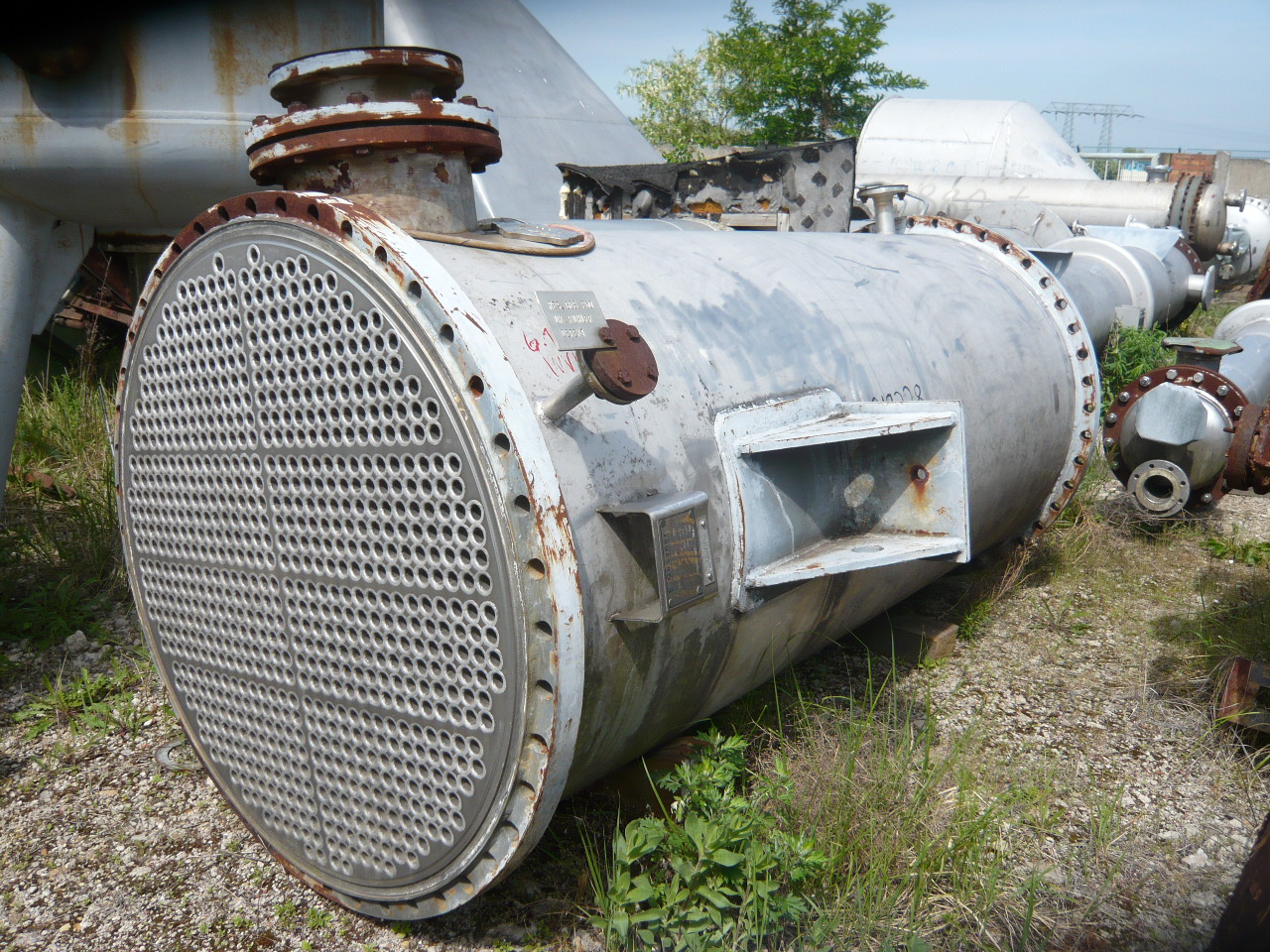

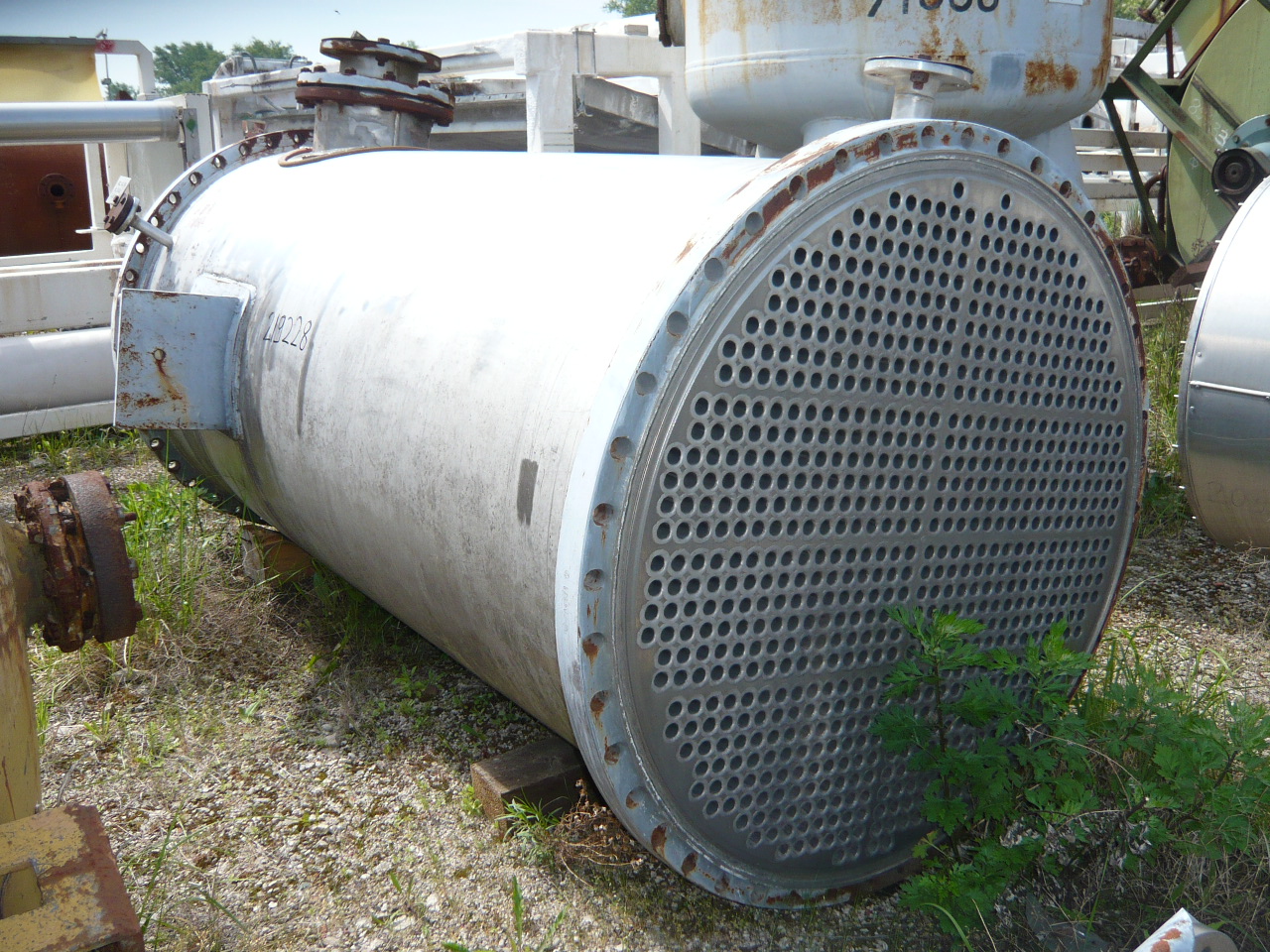

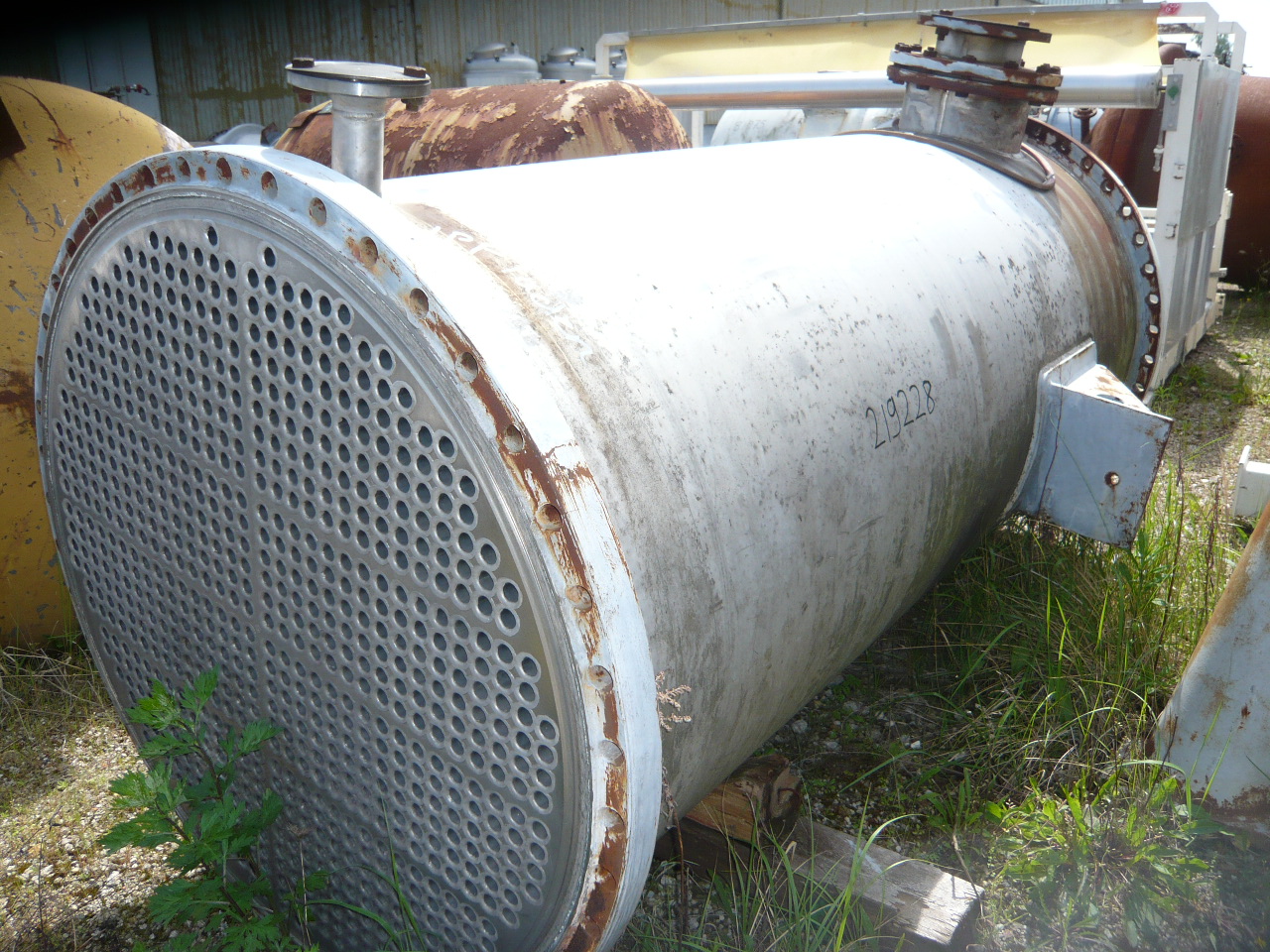

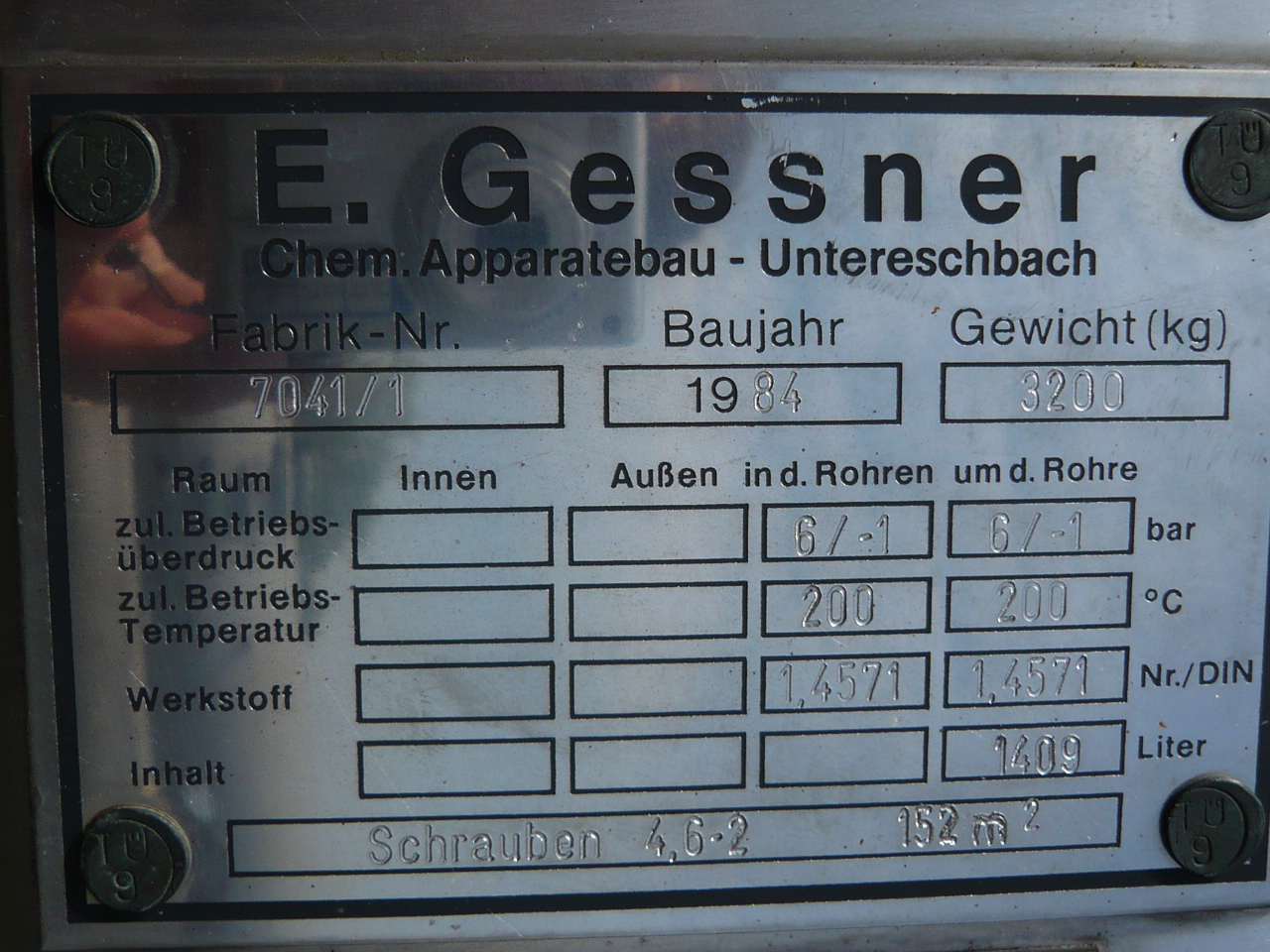

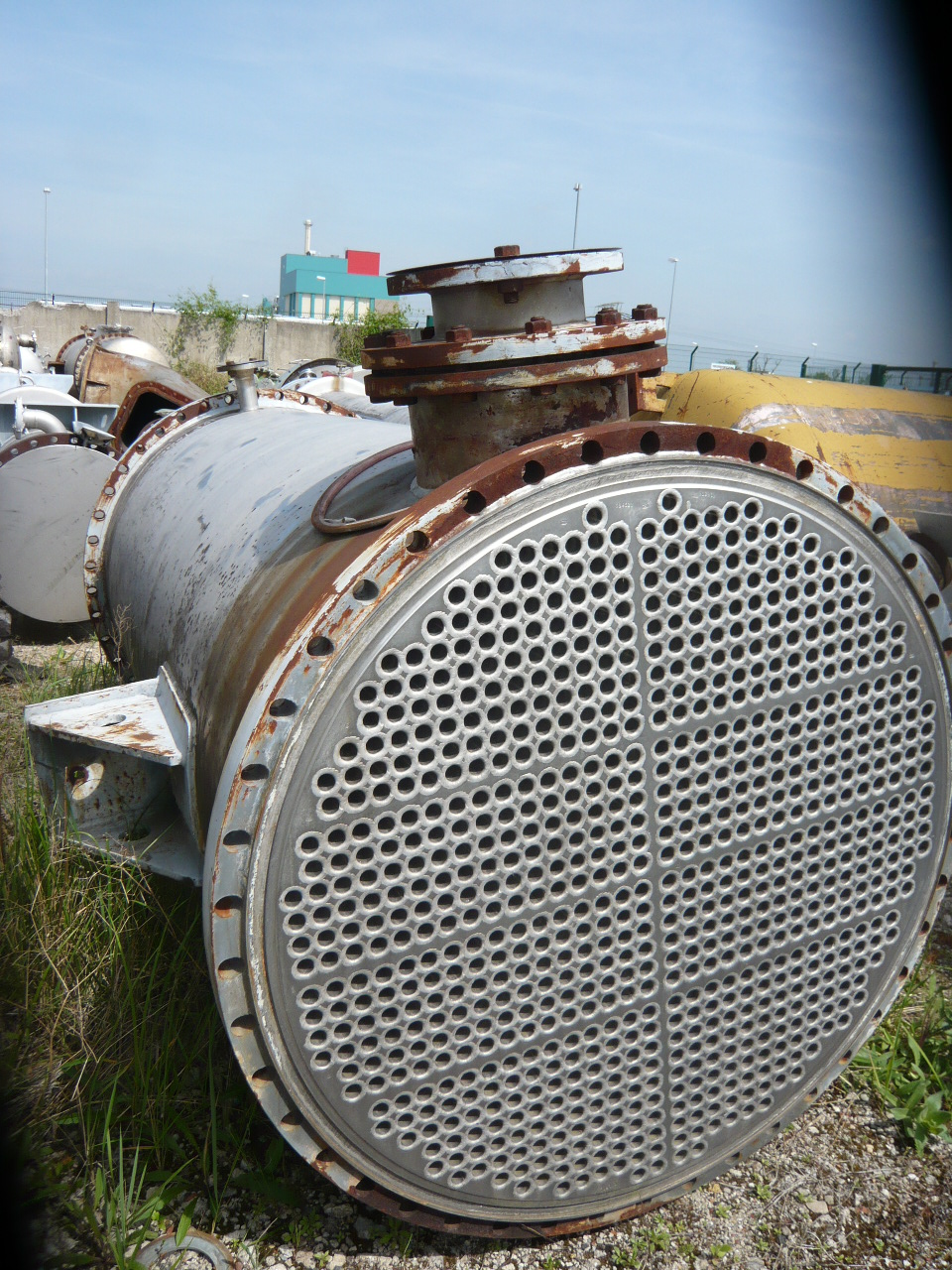

IPP# 219228 - Shell and Tube Heat Exchanger 152 m² (1,636 ft²) Stainless Steel Austenitic For Sale

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: GESSNER

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 17 m² (183 ft²)

Shell Pressure: 7 bar (102 psi)

horizontal or vertical heat exchanger
Tube side: Multi-pass
(total volume 113 Liter)
(total volume 216 Liter)
(2) 316Ti (1.4571) stainless steel dished heads

Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 7 bar (102 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 400 mm (15.7 in). Head Material: Stainless Steel Austenitic. Tube Number: 88. Tube Diameter: 25 mm (0.984 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.0787 in). Nozzle Schedule: - Openings Shell side: (2) DN100, (1) DN150, (1) DN250 - Openings first head: (1) DN100, (1) DN200 - Openings second head: (1) DN200. Capacity: 216 L (57.1 gallons).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: GESSNER

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 38 m² (409 ft²)

Orientation: Vertical

Heads: None
pressure tubeside -1/6 bar @ 250 deg C (169 liter)
shell side -1/6 bar @ 250 deg C (455 liter)
Expansion bellows
TUV

Shell Pressure: 6 bar (87 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Tube-side Passes: 4. Tube Number: 196. Tube Diameter: 25 mm (0.984 in). Tube Length: 2,470 mm (97.2 in). Tube Thickness: 2 mm (0.0787 in). Nozzle Schedule: - Openings: Shell 2-150mm, 1-80mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: GESSNER

Condition: Used

Material: Stainless Steel Austenitic

Clad: Yes

Heat Transfer Surface Area: 5.1 m² (54.9 ft²)

Orientation: Horizontal

pressure tube side -1/6 bar @ -10/200 degrees C (33 liter), shell -1/6 bar @ -10/200 degrees C (55 liter)
Fully insulated and cladded
Built to TUV standards

Shell Pressure: 6 bar (87 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 219 mm (8.62 in). Head Material: Stainless Steel Austenitic. Length: 3,177 mm (125 in). Tube-side Passes: 2. Tube Number: 26. Tube Diameter: 25 mm (0.984 in). Tube Length: 2,800 mm (110 in). Nozzle Schedule: openings tube side (1) head with 2-100mm, (1) head with 1-25mm (drain), shel side 2-100mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: GESSNER

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 11.8 m² (127 ft²)

Shell Material: Stainless Steel Austenitic

Tube Pressure: 6 bar (87 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 300 mm (11.8 in).
