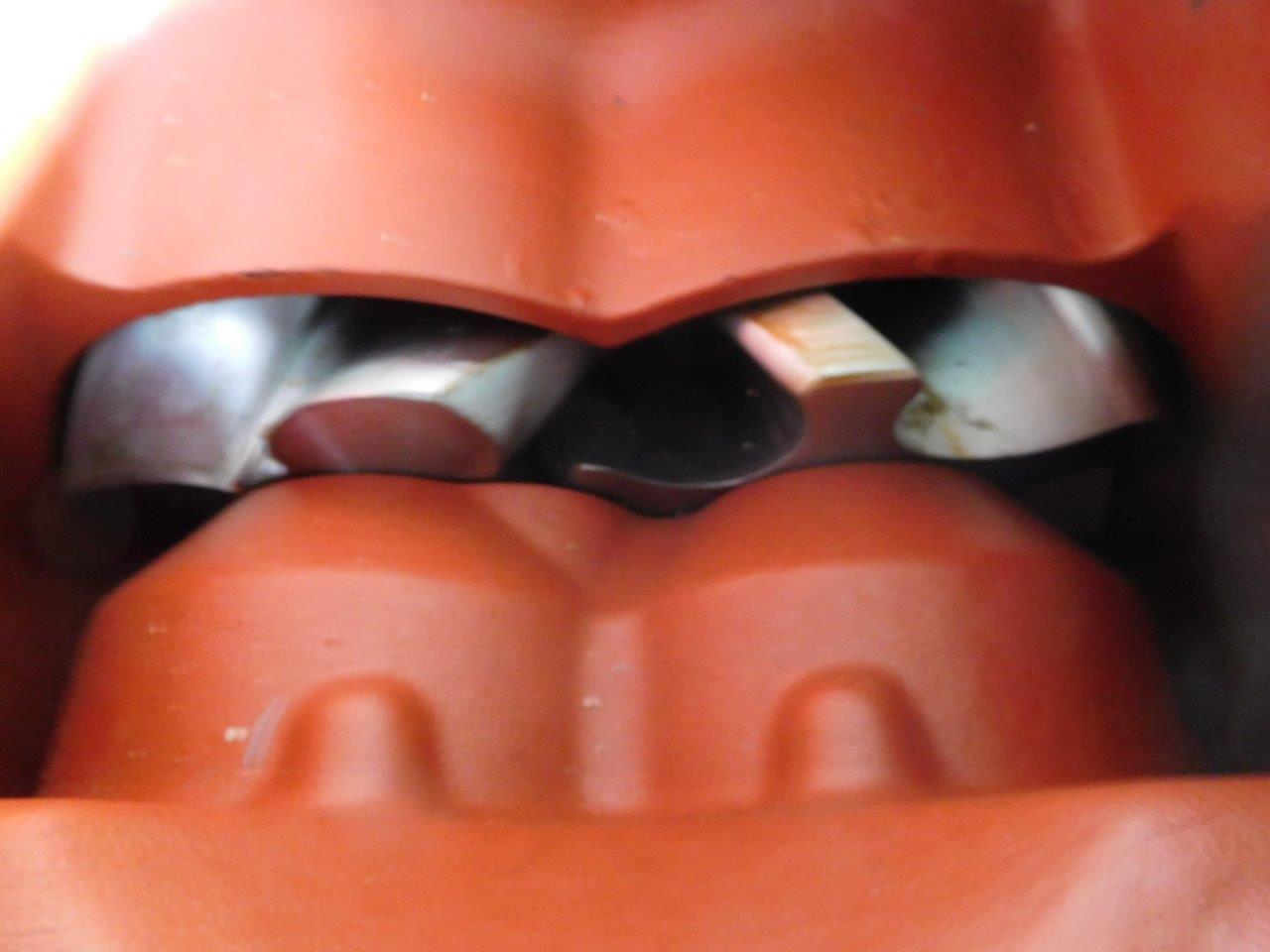

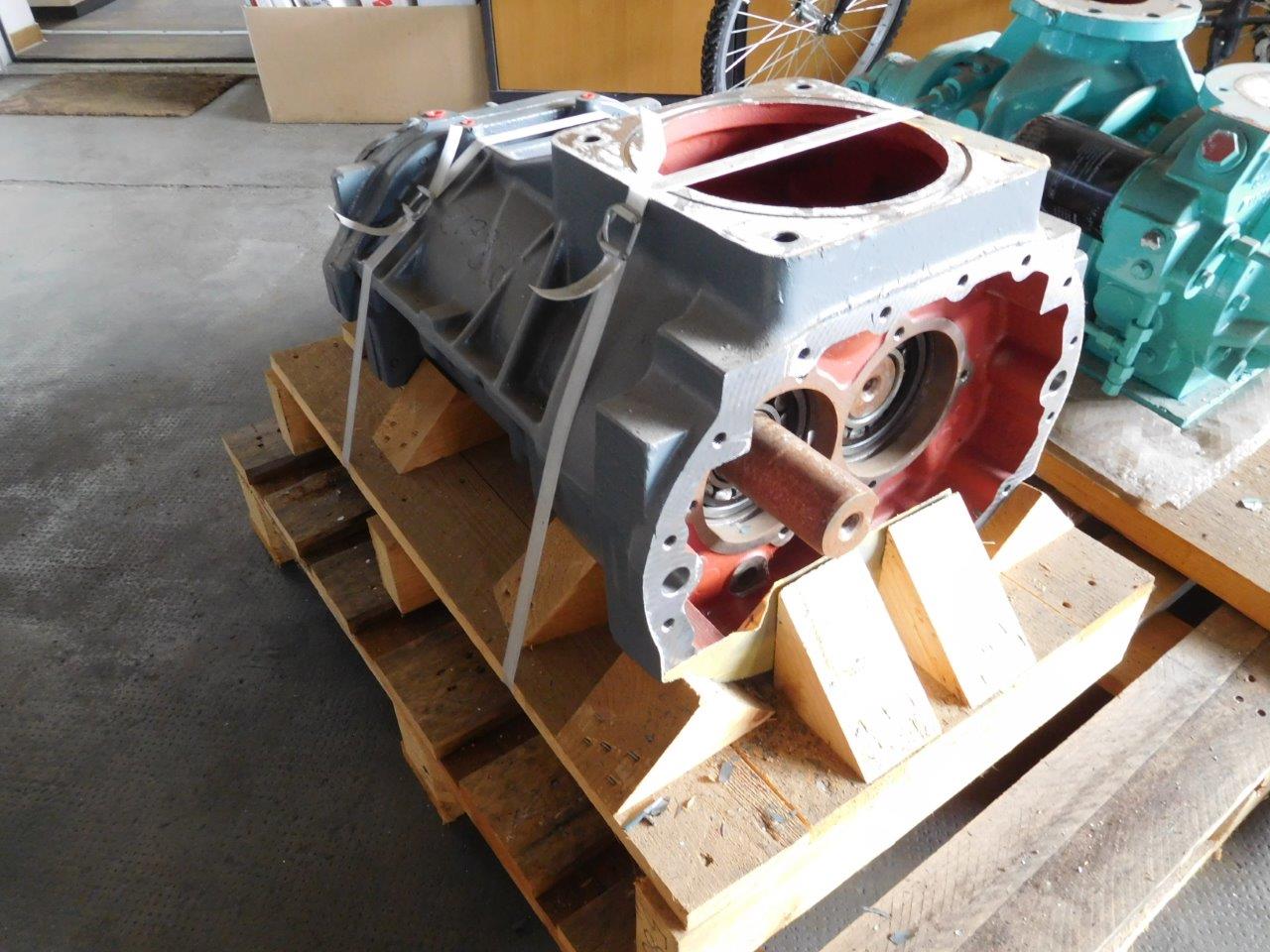

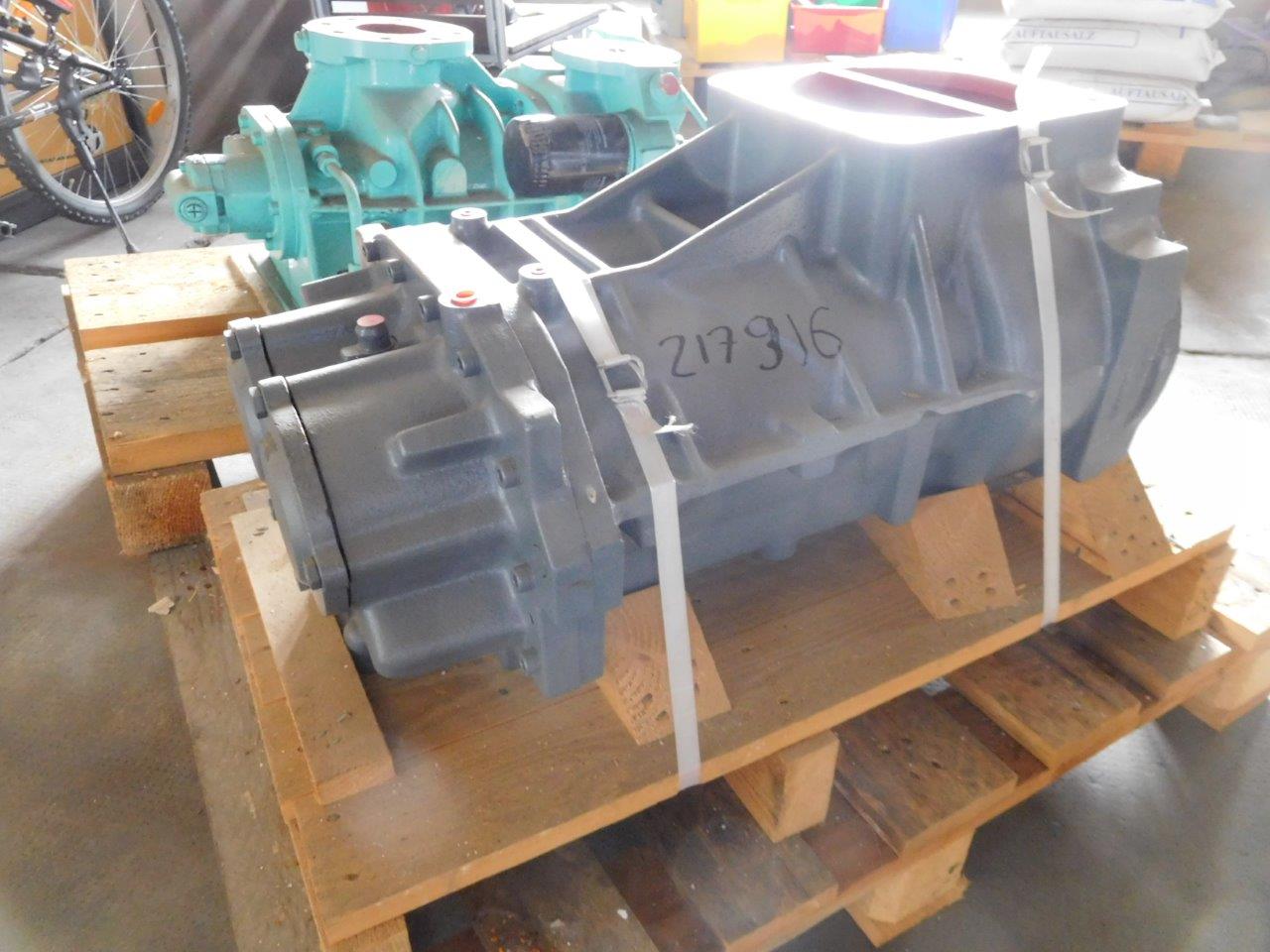

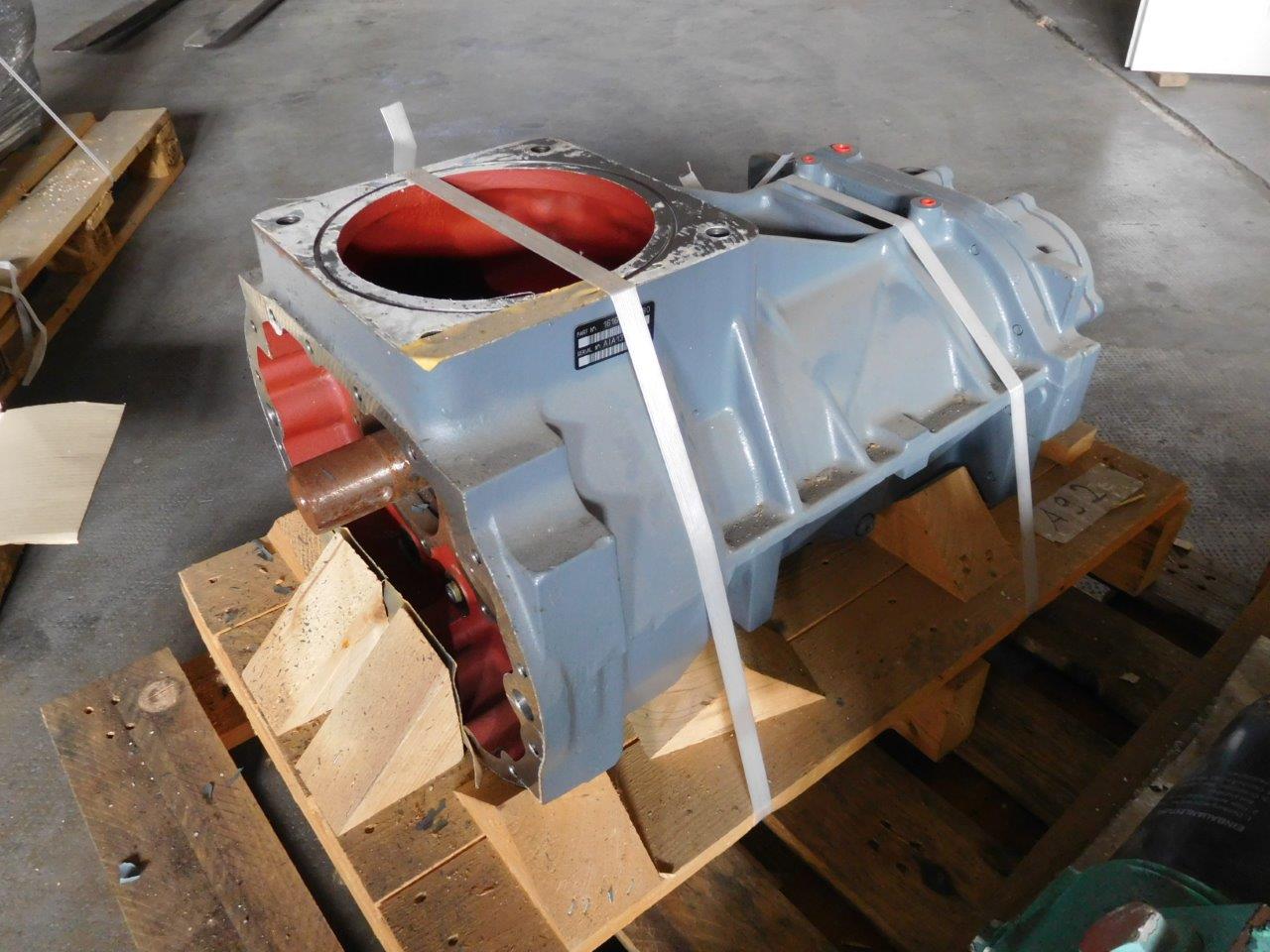

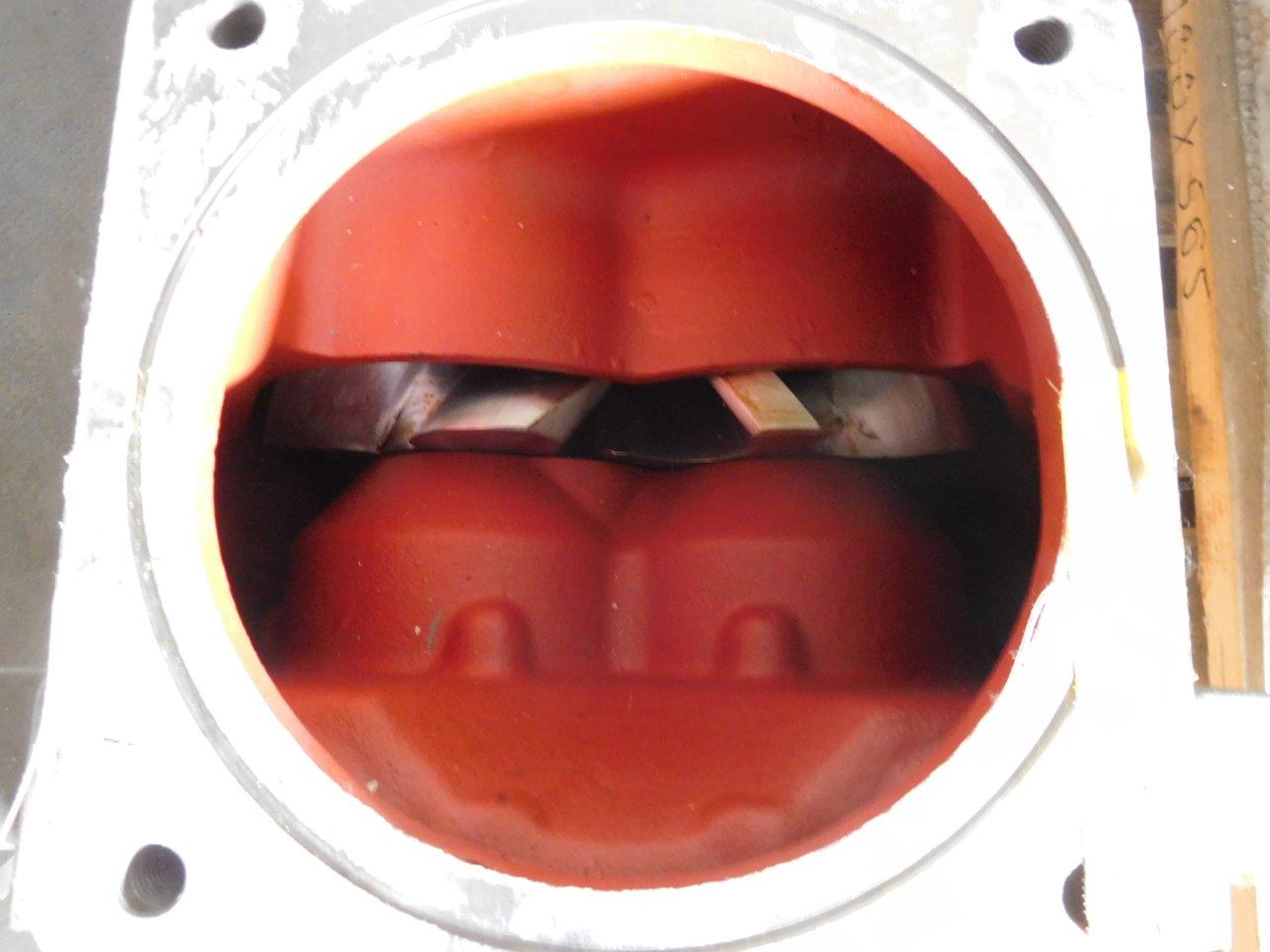

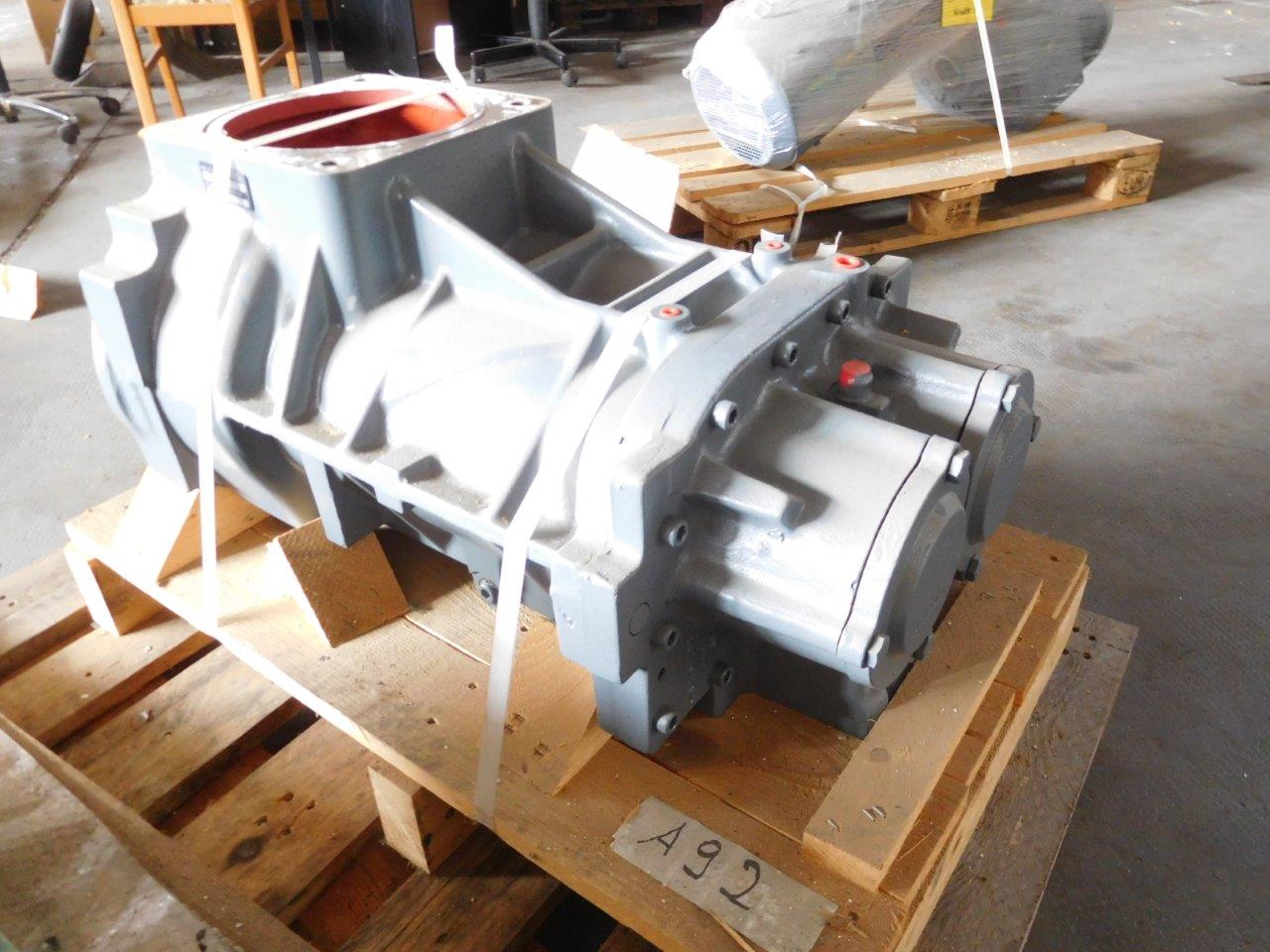

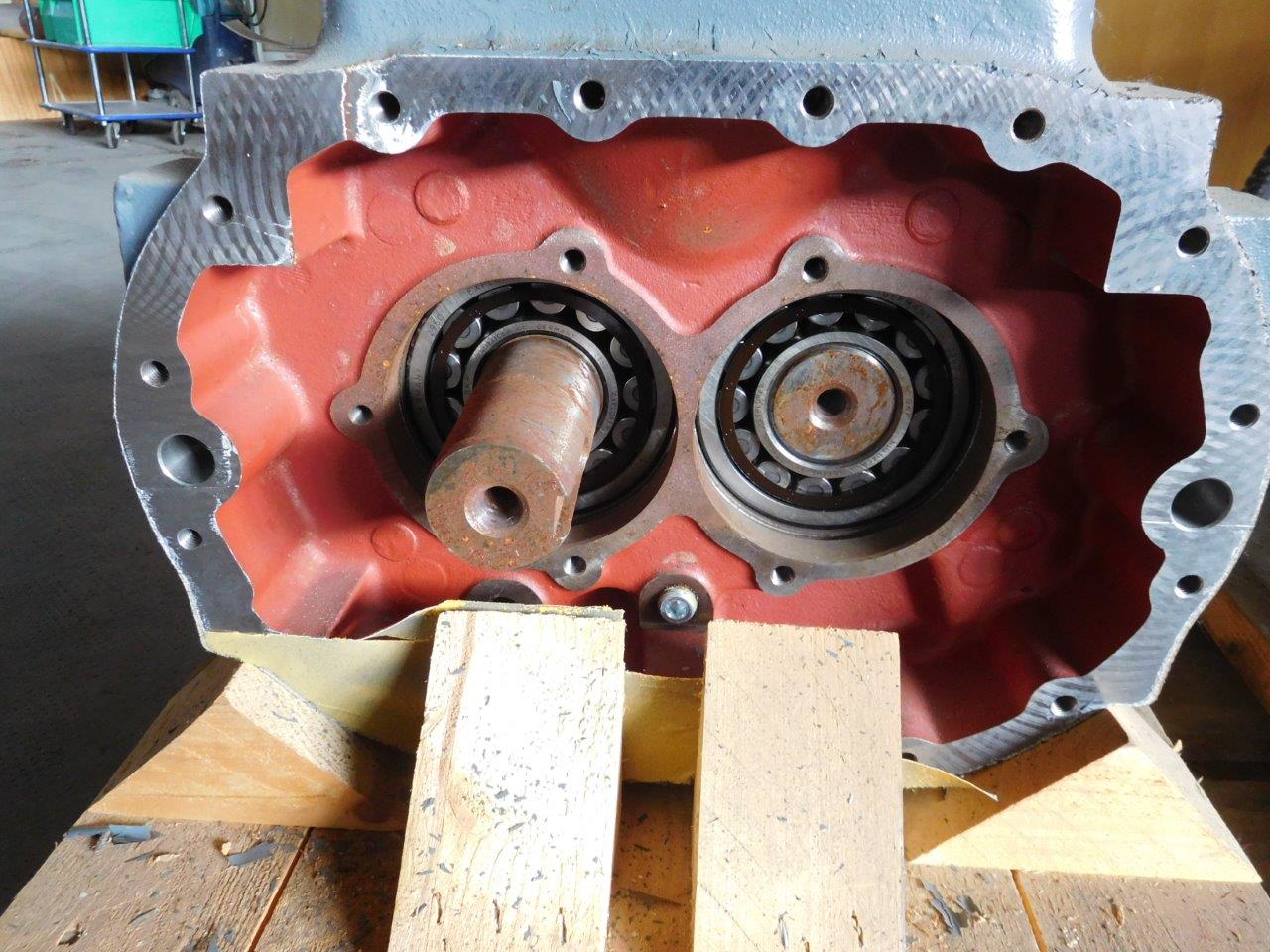

Air end compressor head

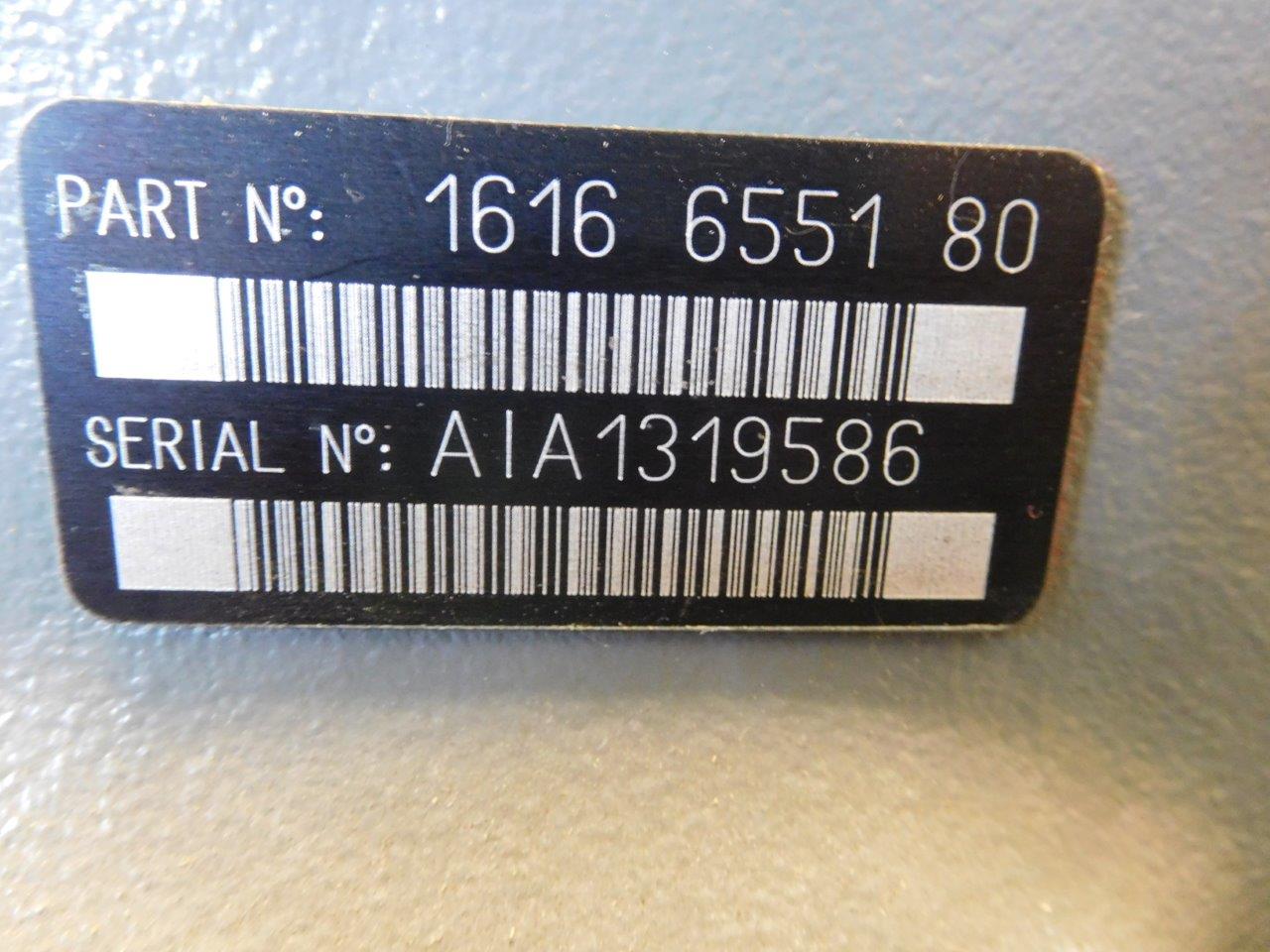

Part # 1616 6551
GA55 GBD-

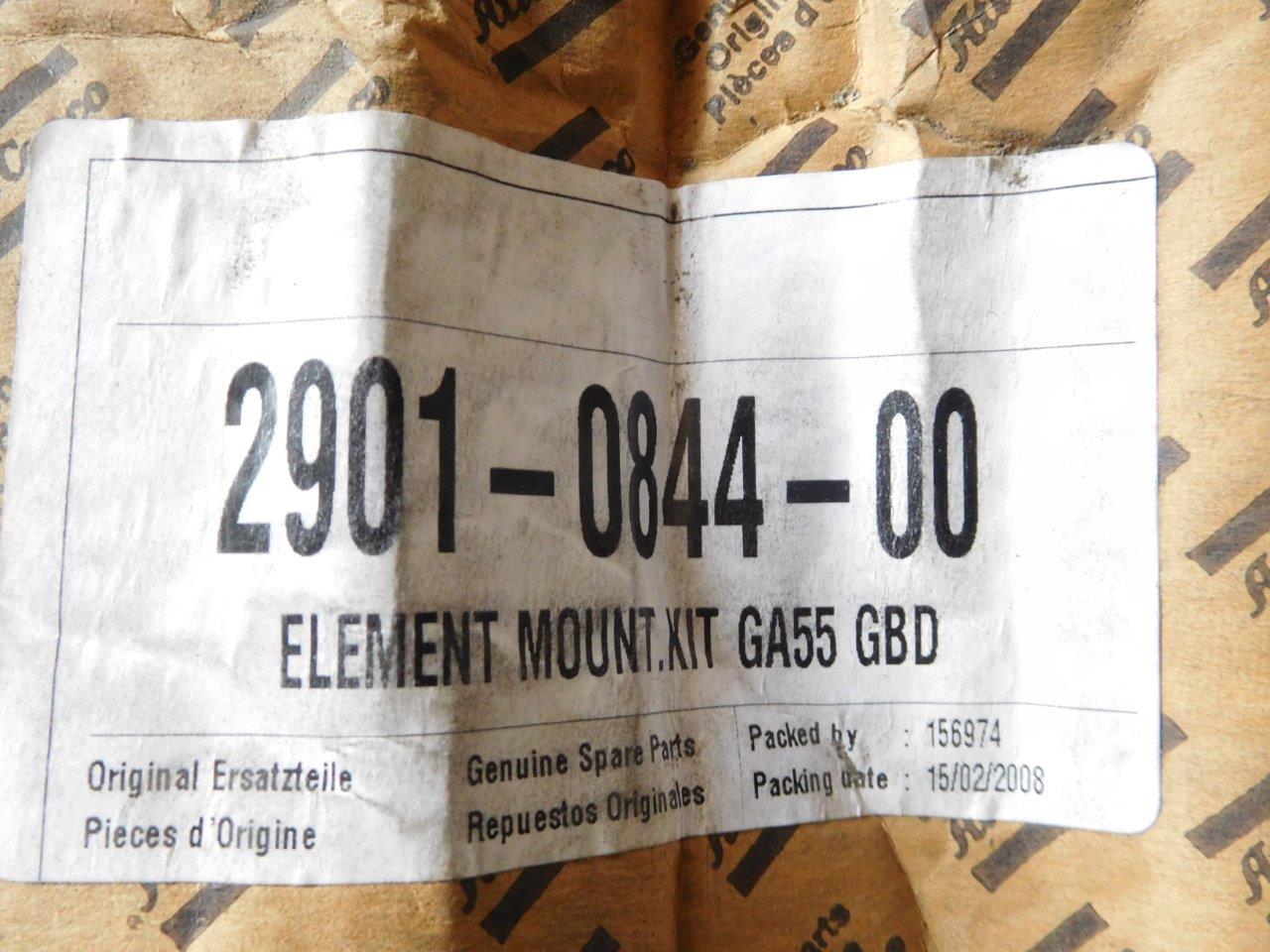

part # 2901-0844-00.
Type: Compressor
Subtype: Centrifugal
Manufacturer: Atlas Copco

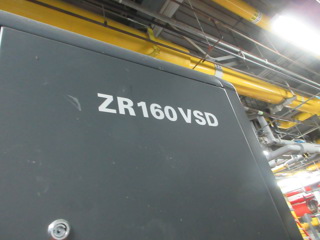

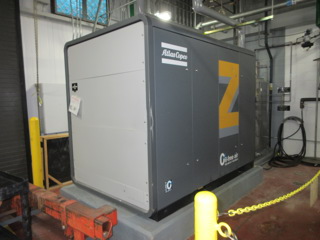

Model: ZR160VSD
Material: Carbon Steel
Compressor Type: Centrifugal
Inlet Pressure: 0.965 bar (14 psi)
Discharge Pressure: 8.62 bar (125 psi). Flow Rate: 1,628 m3/h (958 CFM). Oil Free: Yes.
Type: Compressor
Subtype: Centrifugal
Manufacturer: Clark
Model: 2M8-6
Condition: Used
Material: Carbon Steel
Compressor Type: Rotary
Inlet Pressure: 0.97 bar (14.1 psi)
4,079 acfm
rotary air compressor
Direct driven by a steam turbine (IPP# 212810) through a gear reducer (IPP# 212811)
Pressure Suction 14.07
6400 rpm critical speed
12"" inlet X 10"" discharge
Nozzle orientation is up
Discharge Pressure: 33.8 bar (490 psi). Flow Rate: 6,930 m3/h (4,079 CFM). Inlet Diameter: 305 mm (12 in). Speed (RPM): 10,211.
Type: Compressor
Subtype: Centrifugal
Manufacturer: Clark
Model: 4M8-7
Condition: Used
Material: Carbon Steel
Compressor Type: Centrifugal
Inlet Pressure: 2 bar (29 psi)
11,763 ACFM
with seven impellers
inlet temperature is 24 degrees F. The average compressibility factor is 0.979.
The nozzle orientation up
The compressor rpm is 5,875 rpm, with a maximum speed of 6,220 rpm and a first critical speed of 3,000 rpm. Compressor HP is 1,574.
Designed to be driven by a steam turbine (IPP# 212817) with a speed increaser (IPP # 212818).
Discharge Pressure: 4.14 bar (60 psi). Flow Rate: 19,985 m3/h (11,763 CFM). Speed (RPM): 6,220.
Type: Compressor
Subtype: Centrifugal
Manufacturer: Clark
Model: 2M8-5
Condition: Used
Material: Carbon Steel
Compressor Type: Centrifugal
Inlet Pressure: 9.65 bar (140 psi)
4284 ACFM
Rated for 9185 hp
Pressure Suction 140
Nozzle orientation up.
Rpm 10483
Driven by a steam turbine (IPP# 212817) and speed increaser (IPP # 212818).
Molecular weight, 17.03
5 Stages, 10,438 rpm speed.
6650 critical speed.
MAWP rated for 450 psi at 385 degrees F.
Discharge Pressure: 15.9 bar (230 psi). Flow Rate: 7,279 m3/h (4,284 CFM). Speed (RPM): 11,000.
