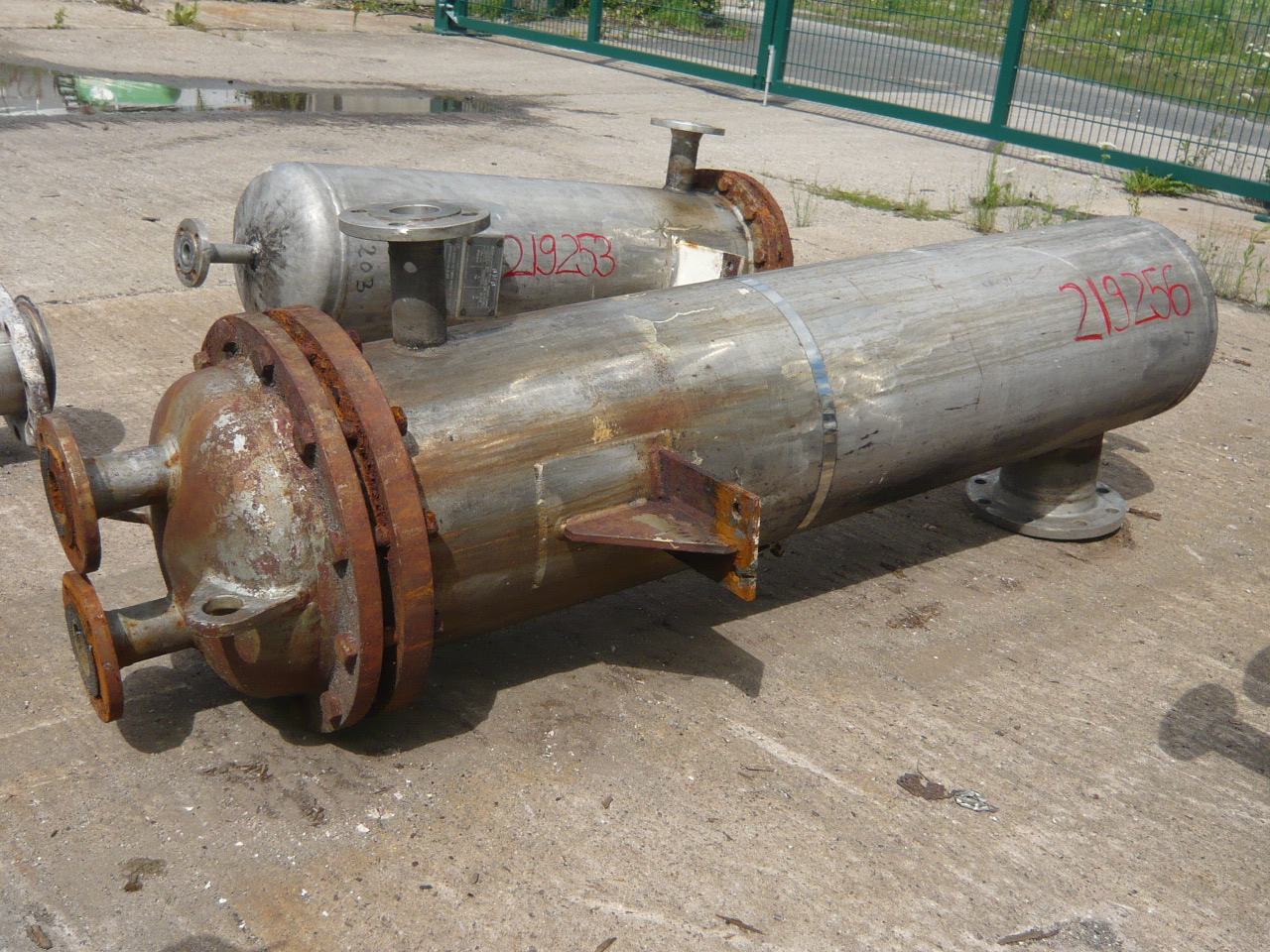

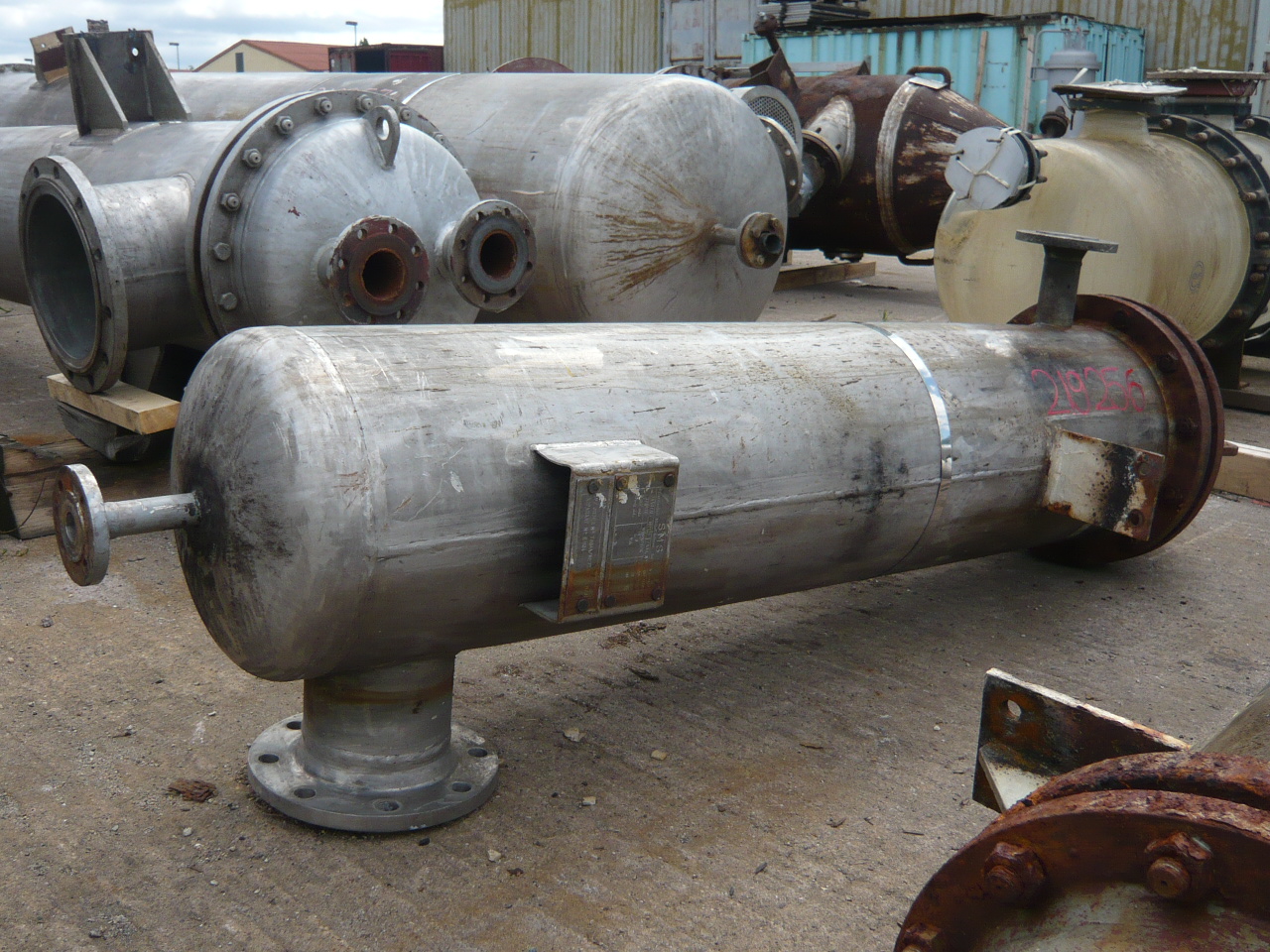

Shell and Tube Heat Exchanger 6 m² (64.6 ft²) Stainless Steel Austenitic For Sale - IPP# 219256

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: SMS Butzbach/Germany

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 137 m² (1,450 ft²)

Orientation: Vertical

carbon steel heads pressure tubeside 6 bar @ 120 deg C (755 liter), shell vacuum/0.5 @ 120 deg C (1890 liter) (1) 321 (1.4541) stainless steel dished head

Shell Pressure: 0.5 bar (7.3 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel 321. Tube Pressure: 6 bar (87 psi). Tube Temperature: 120 °C (248 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 800 mm (31.5 in). Head Material: Stainless Steel 321. Length: 6,400 mm (252 in). Tube Type: U-Tube. Tube Number: 184. Tube Diameter: 25 mm (0.98 in). Tube Length: 5,000 mm (196.9 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings tube side: dished head with 2-100mm, shell: 1-400mm, 1-150mm, 1-32mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: SMS Butzbach/Germany

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 58 m² (624 ft²)

Orientation: Vertical

(1) 321 (1.4541) stainless steel head

Shell Pressure: 1 bar (14.5 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel 321. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 120 °C (248 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Stainless Steel 321. Length: 6,100 mm (239.8 in). Tube Type: U-Tube. Tube Number: 78. Nozzle Schedule: openings tubeside: dished head with 2-80mm, shell: 1-300mm, 1-100mm, 1-32mm, top 2 x 80 mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K.Ley

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 32 m² (344.4 ft²)

Orientation: Vertical

• Heads: Without heads
• Pressure (tube side): -1/6 bar @ -10/300 deg C
• Volume (tube side): 145 liter
• Pressure (shell side): -1/6 bar @ -10/300 deg C
• Volume (shell side): 275 liter

Shell Pressure: 6 bar (87 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Tube Number: 164. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings shell: 3-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K.Ley

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 32 m² (344.4 ft²)

Orientation: Horizontal

• Pressure:
  • Tubeside: -1/6 bar @ 300 deg C (203 liter)
  • Shell side: -1/6 bar @ 300 deg C (310 liter) Multi-pass shell with expansion joint.

Shell Pressure: 6 bar (87 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Head Material: Stainless Steel Austenitic. Length: 3,000 mm (118.1 in). Tube Number: 164. Tube Diameter: 25 mm (0.98 in). Tube Length: 2.5 mm (0.1 in). Nozzle Schedule: - Openings: 2-15mm - Openings: - Shell: 2-80 mm, 1-250, 1-300 - Head 1: 2-150mm - Head 2: No openings.
