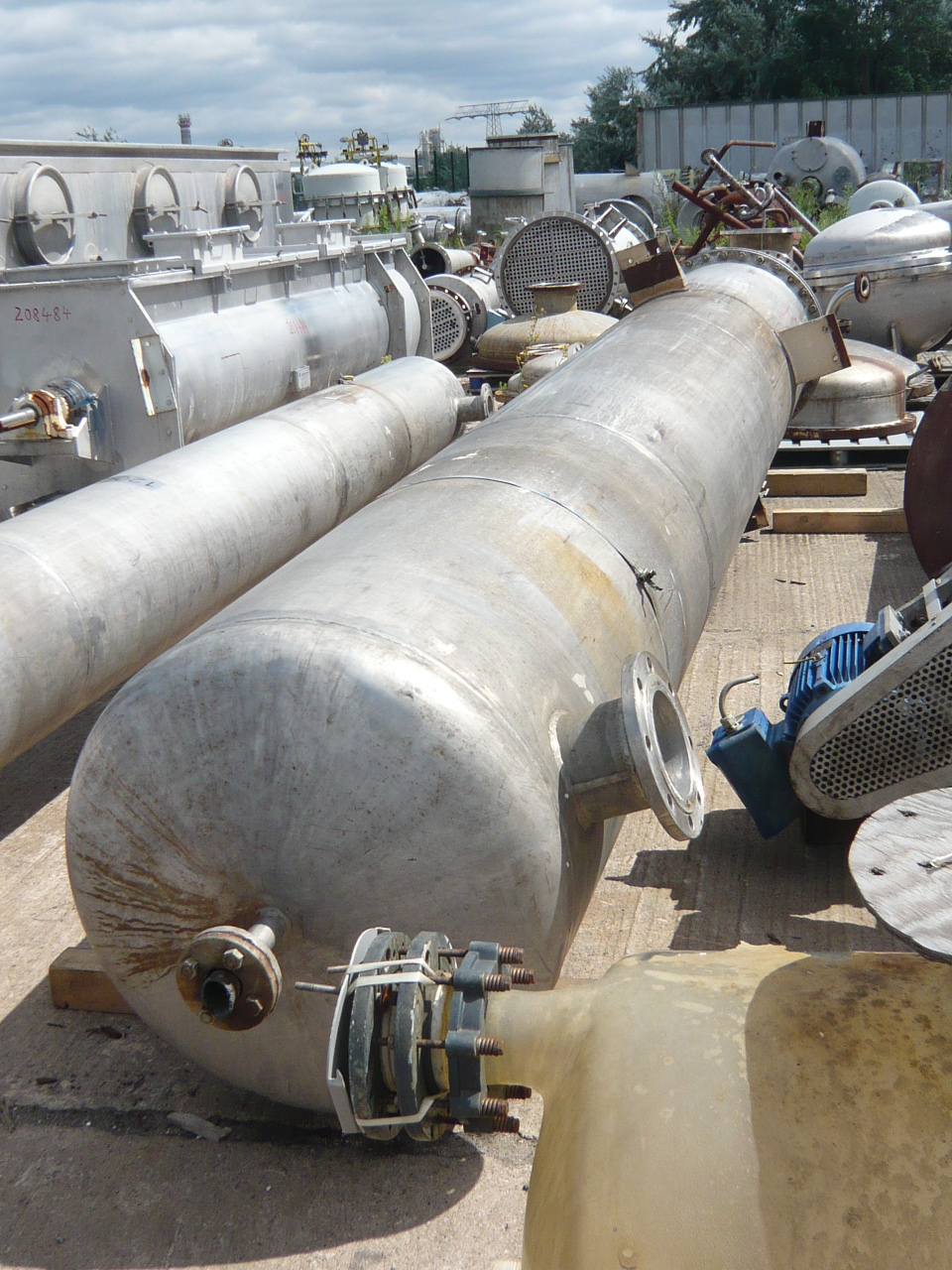

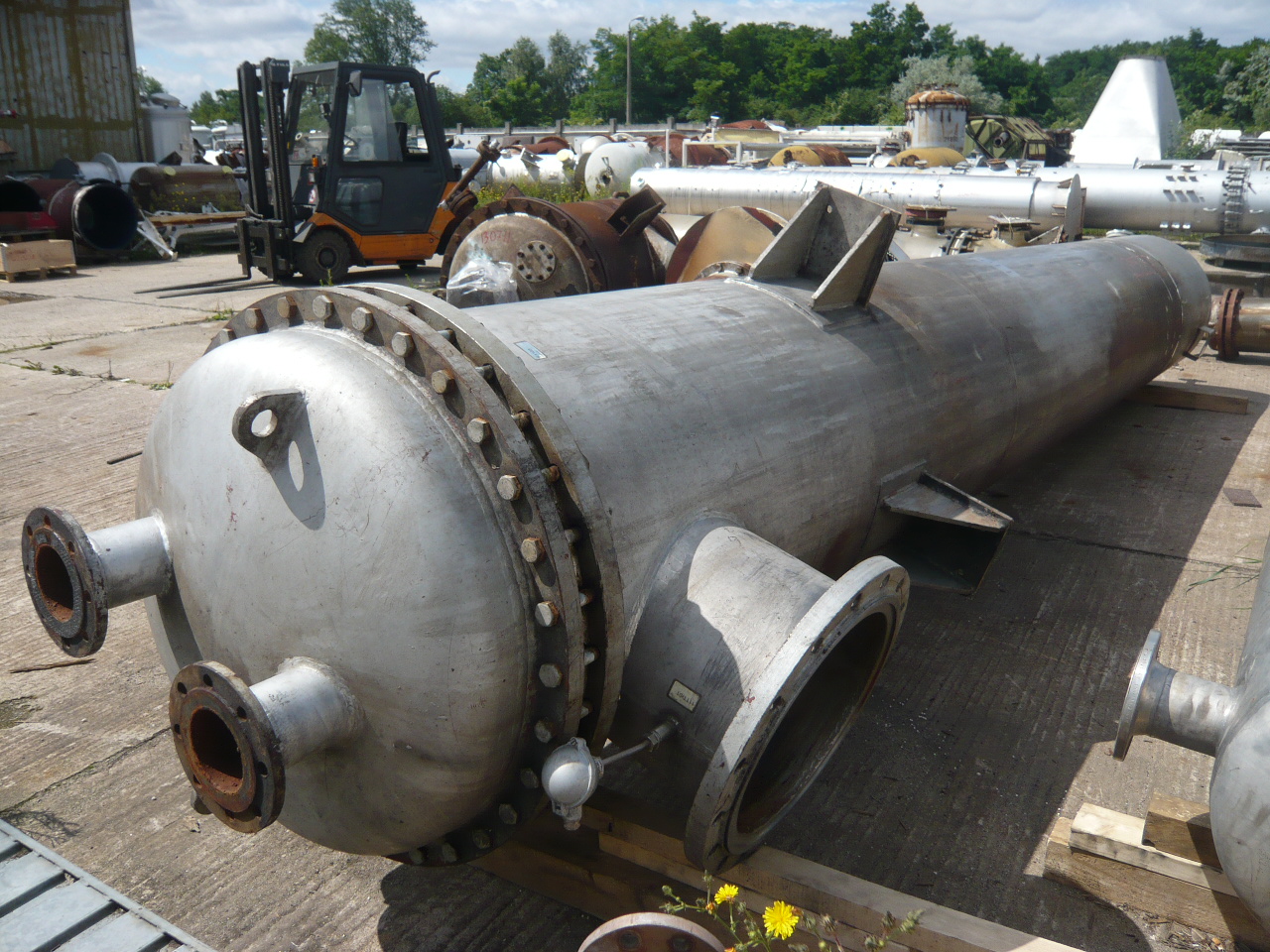

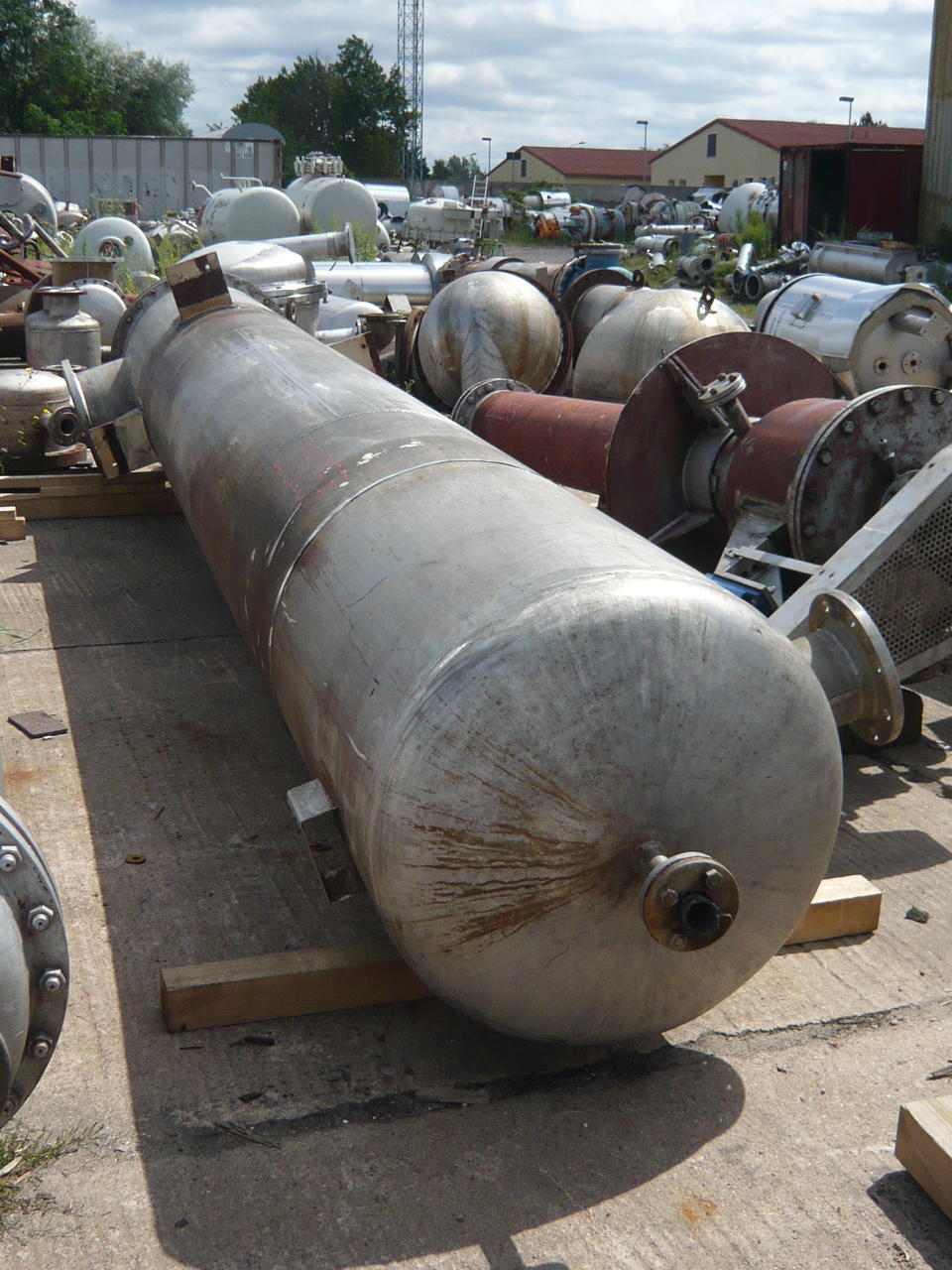

Shell and Tube Heat Exchanger 137 m² (1,450 ft²) Stainless Steel 321 For Sale - IPP# 219257

Type: Heat Exchanger

Subtype: Shell and Tube

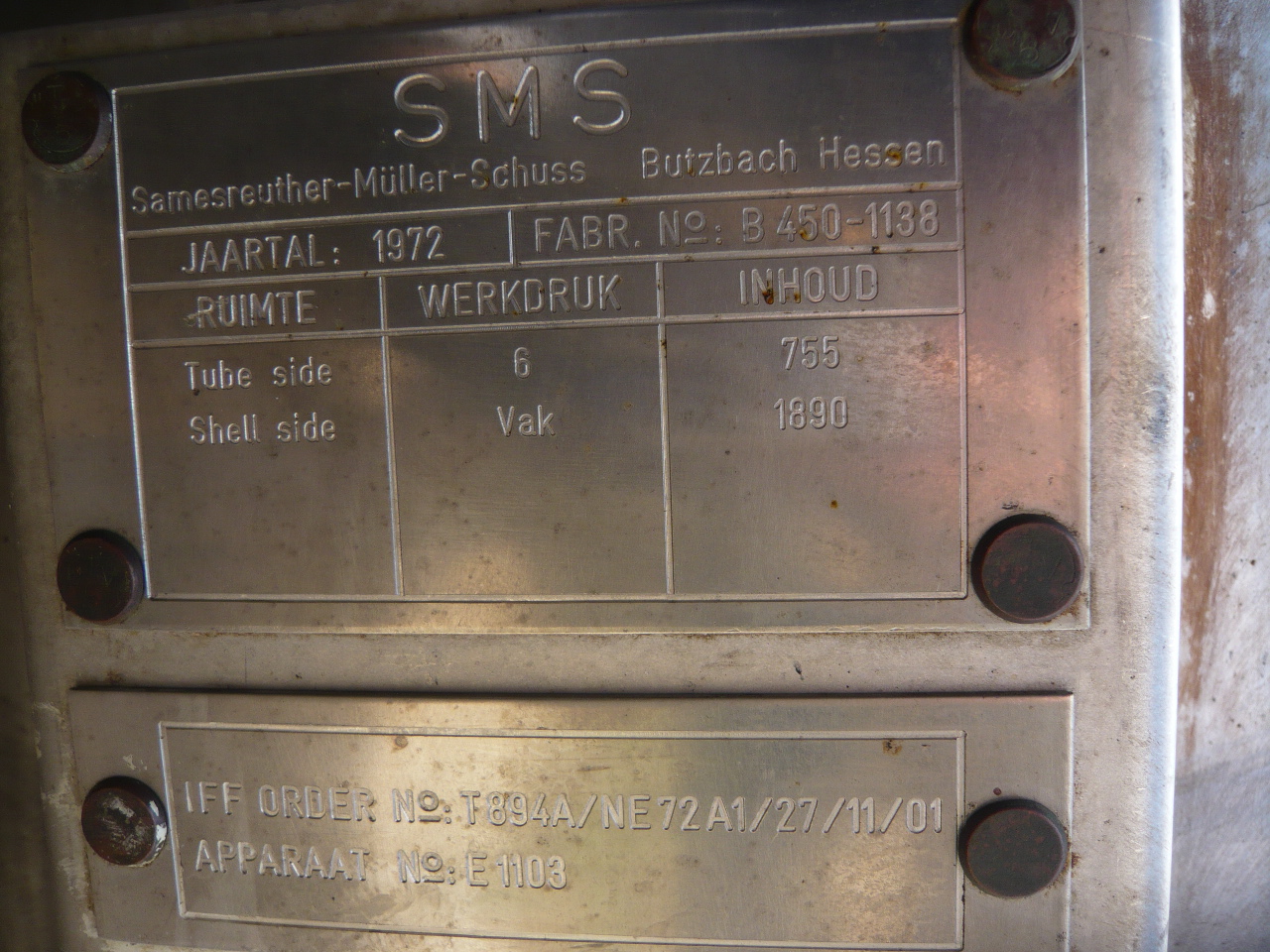

Manufacturer: SMS Butzbach/Germany

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 58 m² (624 ft²)

Orientation: Vertical

(1) 321 (1.4541) stainless steel head

Shell Pressure: 1 bar (14.5 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel 321. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 120 °C (248 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Stainless Steel 321. Length: 6,100 mm (239.8 in). Tube Type: U-Tube. Tube Number: 78. Nozzle Schedule: openings tubeside: dished head with 2-80mm, shell: 1-300mm, 1-100mm, 1-32mm, top 2 x 80 mm.

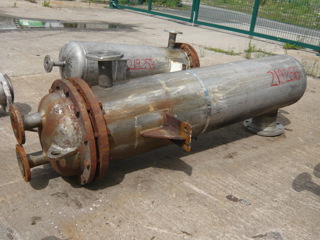

Type: Heat Exchanger

Subtype: Shell and Tube

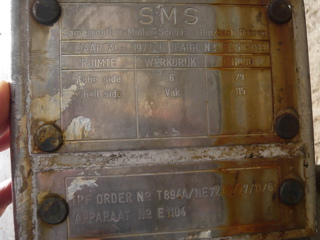

Manufacturer: SMS Butzbach/Germany

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 6 m² (64.6 ft²)

Orientation: Vertical

(1) 316Ti (1.4571) stainless steel dished head

Shell Pressure: 0.5 bar (7.3 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 120 °C (248 °F). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 368 mm (14.5 in). Head Material: Stainless Steel Austenitic. Length: 2,000 mm (78.7 in). Tube Type: U-Tube. Tube Number: 33. Tube Diameter: 25 mm (0.98 in). Tube Length: 1,100 mm (43.3 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings: tubeside: dished head with 2-50mm, shell: 1-150mm, 1-50mm, 1-25mm.

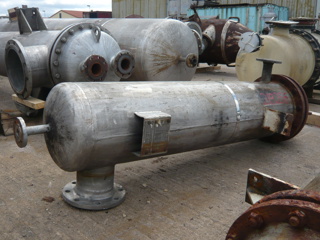

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Paul Schwingel GmbH

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 20 m² (215.3 ft²)

Orientation: Vertical

pressure tube side -1/6,2 bar @ 250 deg C, volume 330 liter shell side -1/6,2 bar @ 250 deg C, volume 218 liter (1) bonnet head, (1) dished head

Shell Pressure: 6.2 bar (89.9 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 321. Tube Pressure: 6.2 bar (89.9 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Head Material: Stainless Steel 321. Tube Number: 110. Tube Diameter: 30 mm (1.18 in). Tube Length: 2,500 mm (98.6 in). Tube Thickness: 2.5 mm (0.1 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Buhler AG

Model: OTW-500-A-32280

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 38 m² (409 ft²)

Shell Material: Stainless Steel 321

tube chamber 1760mm wide x 1224mm long x 360mm deep with welded on top and bottom cone section

Tube Pressure: 23 bar (333.6 psi). Tube Temperature: 400 °C (752 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Tube Number: 540. Tube Diameter: 14 mm (0.55 in). Tube Length: 1,650 mm (65 in). Nozzle Schedule: - Tube openings: 2-25mm, 1-15mm, 1 x cone with 1-700mm, 1 x cone with 1-700mm. Capacity: 123 L (32.5 gallons).
