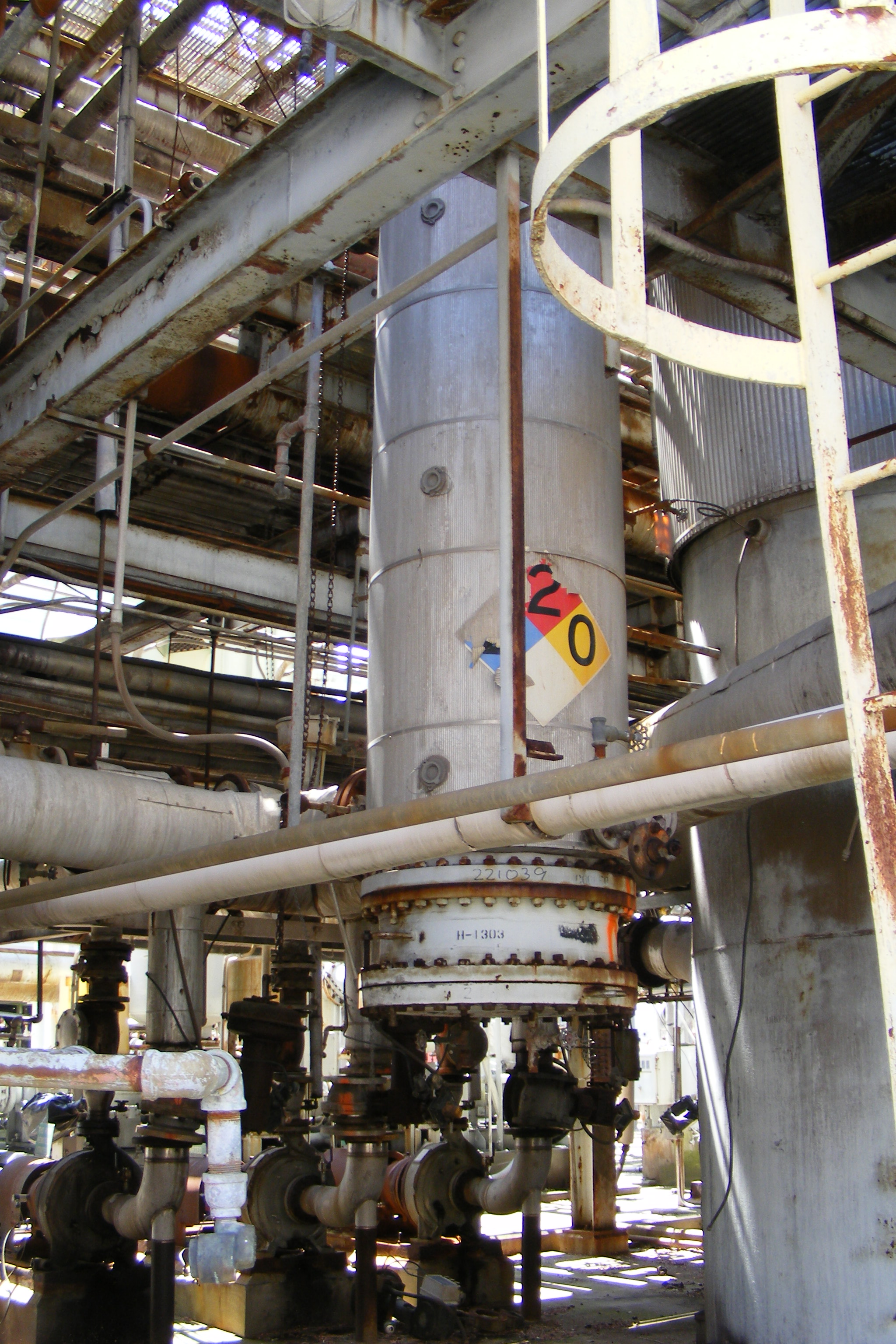

Stainless Steel 304 Western Supply Shell and Tube Heat Exchanger - IPP# 221039

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Western Supply

Model: AEL

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 123.5 m² (1,350 ft²)

Orientation: Vertical

4,170,000 BTU/Hr.

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 92.8 °C (199 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 92.8 °C (199 °F). Tube Material: Stainless Steel 304. Shell Diameter: 635 mm (25 in). Head Material: Carbon Steel. Length: 6,100 mm (240 in). Tube-side Passes: 4. Tube Number: 254. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,100 mm (240 in). Tube Thickness: 1.52 mm (0.06 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Western Supply

Model: BEM

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 299.1 m² (3,200 ft²)

Orientation: Horizontal

Pitch: 1.25" Triangular

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 914 mm (36 in). Head Material: Carbon Steel. Length: 7,250 mm (286 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 625. Tube Diameter: 3,450 mm (135 in). Tube Length: 6,100 mm (240 in). Capacity: 56,800 L (15,000 gallons).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Western Supply

Model: BHM

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 412.9 m² (4,450 ft²)

Orientation: Horizontal

Expansion joint. Shell is 3/8" thick; Channels 7/16" thick.

Shell Pressure: 1.72 bar (25 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 1,050 mm (42 in). Head Material: Carbon Steel. Length: 4,900 mm (192 in). Tube-side Passes: 4. Tube Number: 1,446. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 4,900 mm (192 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Openings include: Shell - (4) 12", (2) 3"; One head - (2) 8".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kimura Kakoki

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 149.9 m² (1,600 ft²)

Shell Pressure: 5 bar (72 psi)

(2) 304LSS cone heads

Shell Temperature: -5 °C (23 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: -8.9 °C (16 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,200 mm (48 in). Head Material: Stainless Steel 304. Length: 2,000 mm (78 in). Tube Number: 806. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 2,000 mm (78 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Openings: tube side 2-8"; shell side 2-4", 1-1", 1-1 1/2"..
