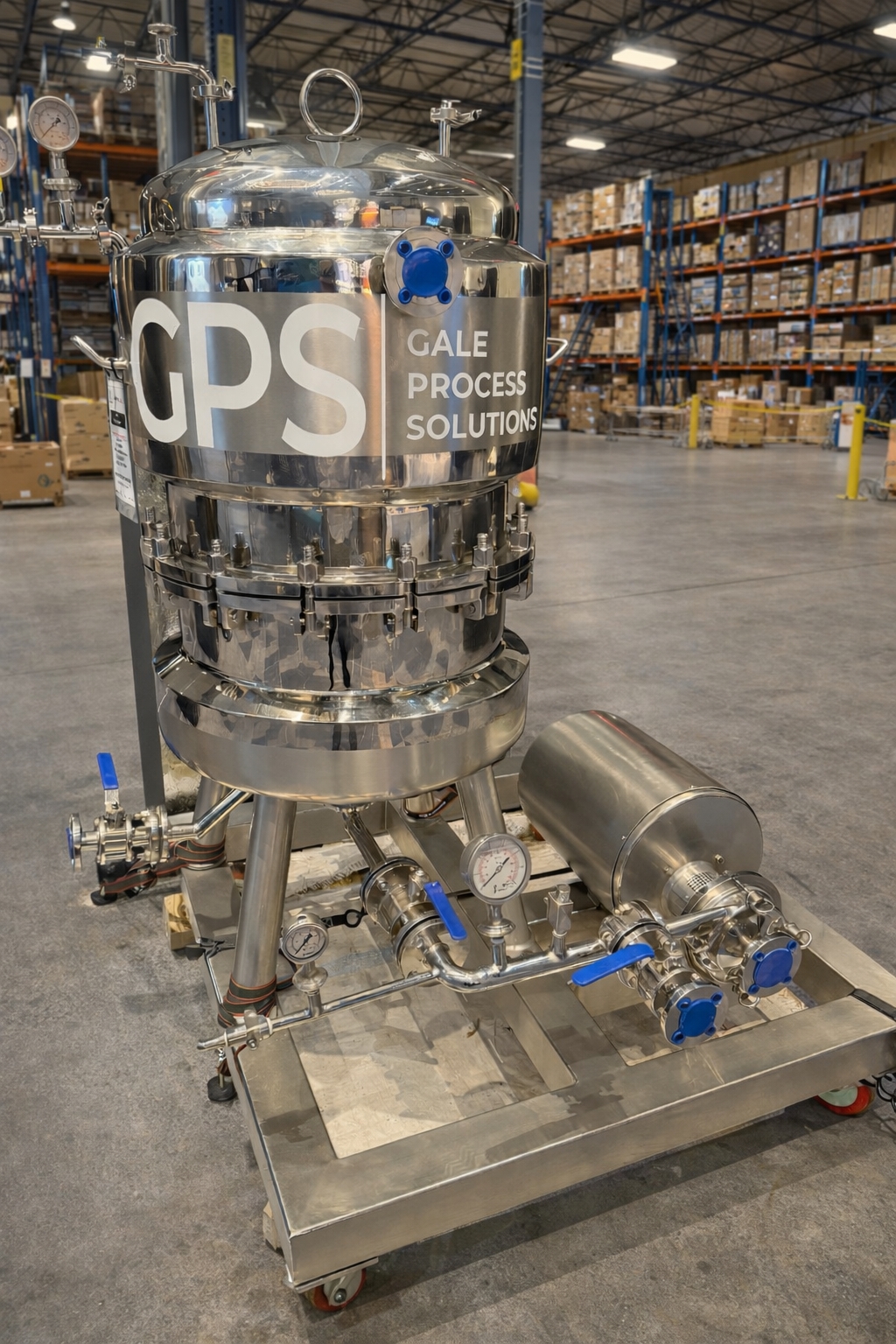

New 316 Stainless Steel Gale Process Solutions Model BPEFP Pressure Leaf Filter - IPP# 222032

  • New 316 Stainless Steel Gale Process Solutions Model BPEFP Pressure Leaf Filter - IPP# 222032 New 316 Stainless Steel Gale Process Solutions Model BPEFP Pressure Leaf Filter - IPP# 222032
  • New 316 Stainless Steel Gale Process Solutions Model BPEFP Pressure Leaf Filter - IPP# 222032
Overview
Filter
Pressure Leaf
Gale Process Solutions
BPEFP
New
Stainless Steel 316
Capacity
2.4 m² (25.8 ft²)
0.06 m3 (2.3 ft3)
64 L (16.9 gallons)
Dimensions
718 mm (28.3 in)
Vertical
1,450 mm (56.7 in)
1,750 mm (69.7 in)
450 mm (17.7 in)
Other Specifications
3.4 bar (49.7 psi)
120 °C (248 °F)
Nozzle schedule is 1.5" inlet, bypass, and outlet. Jacket inlet, outlet and drains are 1". Nitrogen line 1", sampler valve 3/8" and air valve 3/8".
Skid
Mounted on a cart with casters
15
Yes
1
15 Horizontal plates, with bottom mounted scavenger
Jacket
Yes
6 bar (87 psi)
Standard
Stainless Steel 304
150 °C (302 °F)
Top Head
Dish
Stainless Steel 316
Clamped
Bottom Head
Dish
Stainless Steel 316
Welded
Motor
2.2 kW (3 HP)
Thickness
3 mm (0.12 in)
3 mm (0.12 in)
3 mm (0.12 in)
Additional Information
  • Vertical pressure leaf filter, cGMP rated and sanitary construction buff polished to a mirror finish
  • Rated for 3.5 kg/cm2-With a cake holding capacity of 64 Liters
  • 18" x 15. (15 plates) Main filter body bolts together (2 sections)
  • On board centrifugal pump with 2.2 kw drive motor.
  • Overall dimensions: 1521 mm wide x 1440 mm deep x 1771 high
  • Pump Capacity 25,000 hr.
  • Pump inlet 38mm
  • Pump discharge 38mm
