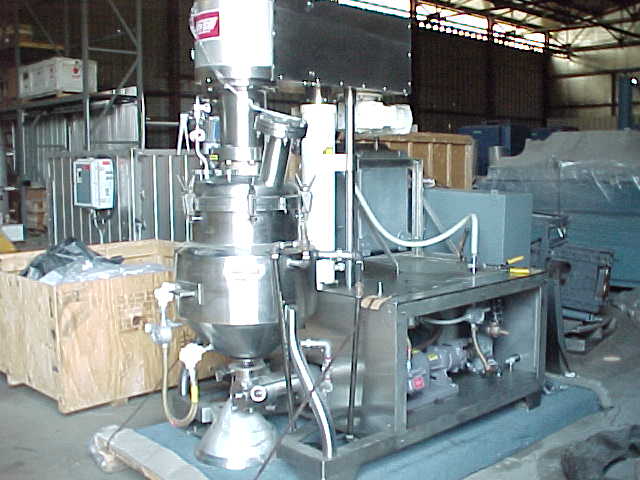

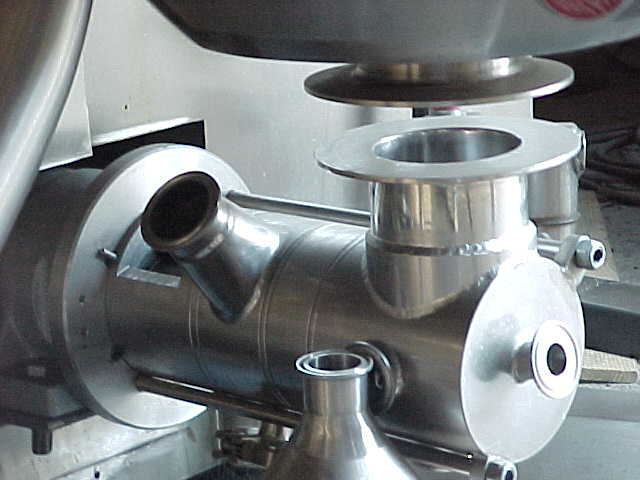

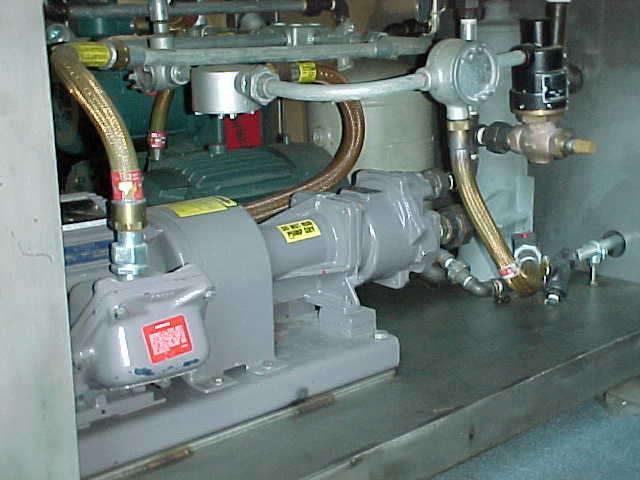

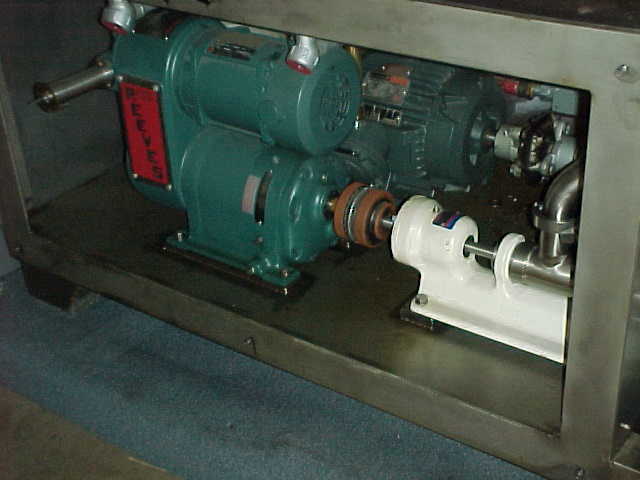

Jaygo vacuum dispersion and homogenizing mixer system Mixing chamber rated 20 psi and full vacuum @ 350 degree F to -20 degree F minimum. All fittings sanitary. Unit measures 20" diameter x 20" straight side x 8" cone bottom clamped dished top. Gate design agitator with teflon scraper blades 5 rpm minimum, 34 rpm maximum. Drive has automatic hydraulic lift mechanism with 24" lift capacity System includes: (1) 3 HP Nash brass vacuum pump, Model #AT34. (1) 1 HP Moyno pump, Model #IFF4SSV, driven by 1 HP Reeves varidrive. (1) approx 5 HP inline disperser. Includes all controls and power box, temperature probes and capacitance probes.
Type: Mixer-Intensive
Manufacturer: Jaygo
Model: DISHO V180/1300
Condition: Used
Material: Stainless Steel 316
Capacity (Design): 1,300 L (343.4 gallons)
Motor Power: 14.9 kW (20 HP)
(317gallons) Vacuum Mixing, Dispersing and Homogenizing Unit with bolted dished top, cone bottom Dispersing and Homogenizing Unit Manufactured by Stainless Fabricators Inc rated FV/25 psi @ 300 degrees F internal fully insulated with SS shroud over insulation. With Top mounted dual motion agitator manufactured by Jaygo, has wide sweep with pitched blades and center shaft with pitched blades that intermesh with counter rotating wide sweep agitator. 3/60/230/460 volt motor Vessel openings include: Top -14" manway with hinged cover, (3) 4"; (3) 1". Vessel discharges into a horizontal DISHO homogenizing mill, multi chamber, driven by a 60 HP 3/60/230/460 volt motor. Complete skid mounted system with Intervac 5 HP water seal vacuum pump, controls and stainless steel enclosure for pump and mill drive.
Bowl Diameter: 1,118 mm (44 in). Bowl Depth: 1,829 mm (72 in). Blade Type: wide sweep & pitched perforated blade w/ side wall scraper. Pressure: 1.72 bar (25 psi). Temperature: 148.9 °C (300 °F). Bowl Jacket: Yes. Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 148.9 °C (300 °F). Vacuum: Yes. Controls: Yes.
Type: Mixer-Intensive
Manufacturer: Plastechnik Greiz
Model: MSHK750/2000
Condition: Unused
Material: Stainless Steel 304
Capacity (Design): 780 L (206.1 gallons)
Motor Power: 105 kW (140.8 HP)
750/2000 liter fluidizing intensive mixer/cooler system Mixer Mdl 750-4 cooler mixer Mdl 2000-2 Mixer/heater is 780 liter total capacity, 600 liter working capacity. Shell 1.0m dia. Load 235 Kg. W/200mm discharge valve. W/double jkt for heating and cooling rated 0.05 MPa mixer blades output speed 450/900 rpm. Motor type AHR355-8/4. Mixer/cooler is 2000 liter total capacity, 1600 liter working capacity. Load 580 kg. W/jkt for cooling. Shell 1.8m dia. W/300mm dia discharge valve. Driven by 18.5 KW, 3/50/380 volt, 1460 rpm motor, 75 rpm output speed. W/side entering chopper, driven by 11.0 KW, 3/50/380 volt, 1790 rpm motor.
Bowl Diameter: 1,000 mm (39.4 in). Blade Speed (RPM): 900. Bowl Jacket: Yes. Vacuum: Yes.
Type: Mixer-Intensive
Manufacturer: Plastechnik Greiz
Model: MSHK750/2000
Condition: Unused
Material: Stainless Steel 304
Capacity (Design): 780 L (206.1 gallons)
Motor Power: 105 kW (140.8 HP)
750/2000 liter fluidizing intensive mixer/cooler system. Mixer Mdl 750-4, cooler mixer Mdl 2000-2. Mixer/heater is 780 liter total capacity, Shell 1.0m dia. Load 235 Kg. W/200mm discharge valve. W/double jkt for heating and cooling rated 0.05 MPa. mixer blades output speed 450/900 rpm. Motor type AHR355-8/4. Mixer/cooler is 2000 liter total capacity, 1600 liter working capacity. Load 580 kg. W/jkt for cooling. Shell 1.8m dia. W/300mm dia discharge valve. Driven by 18.5 KW, 3/50/380 volt, 1460 rpm motor, 75 rpm output speed. W/side entering chopper, driven by 0.55 KW, 3/50/380 volt, 1790 rpm motor.
Bowl Diameter: 1,000 mm (39.4 in). Bowl Depth: . Blade Speed (RPM): 900. Bowl Jacket: Yes. Vacuum: Yes.
Type: Mixer-Intensive
Manufacturer: Petzholdt
Model: PKM4800
Condition: Used
Material: Stainless Steel 304
Capacity (Design): 4,800 L (1,268 gallons)
Motor Power: 55 kW (73.8 HP)
jacketed high intensity mixer/disperser/homogenizer/emulsifier Double jacketed for heating and cooling Underdriven Top openings for liquid and powder feed Cover opens with a pneumatic operated cylinder. 120mm side bottom discharge with pneumatic operated valve
Bowl Diameter: 2,500 mm (98.4 in). Bowl Depth: 1,410 mm (55.5 in). Bowl Jacket: Yes.
