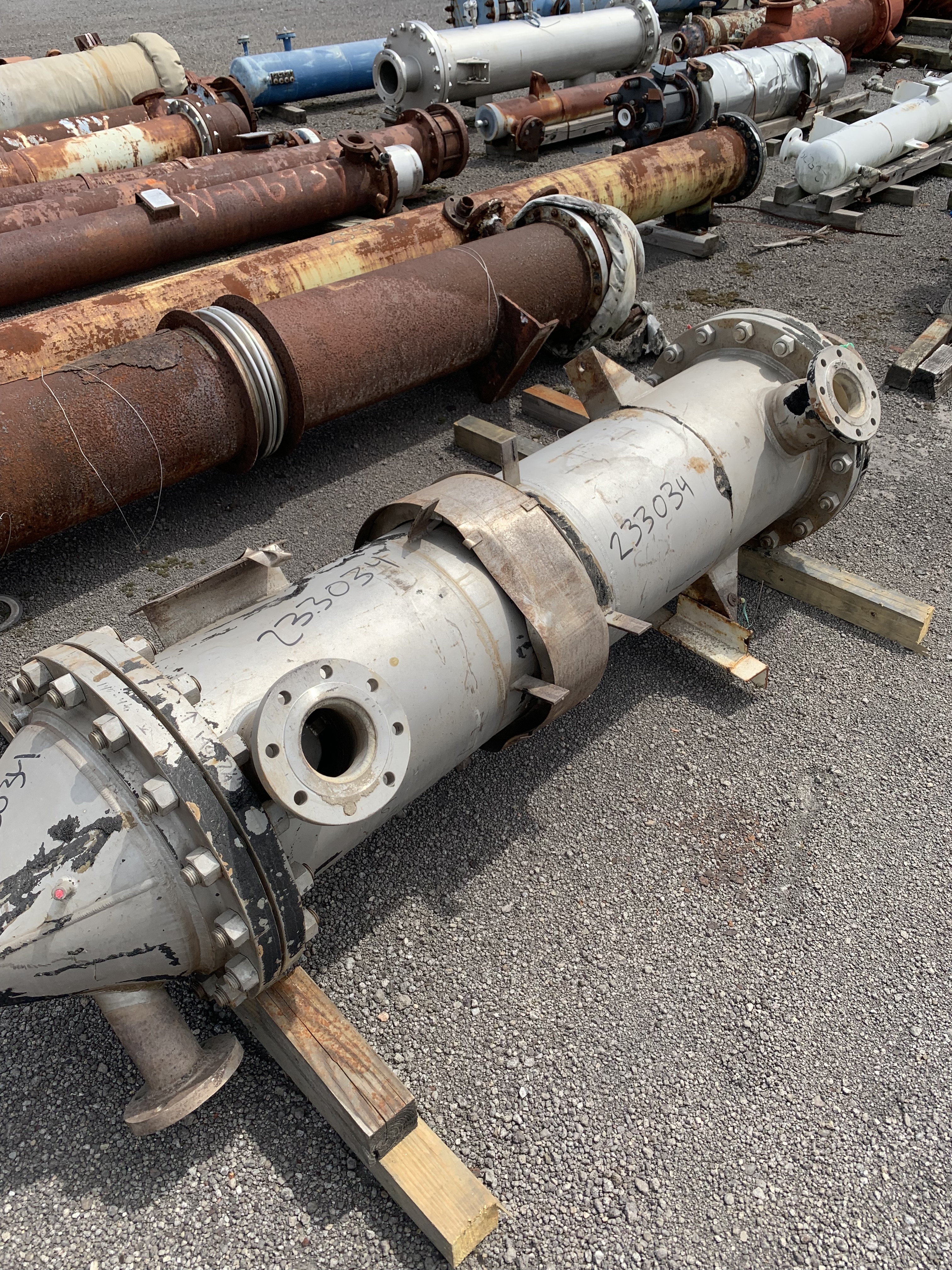

Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Astro Cosmos
Model: BEM 12-1-66
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 8.4 m² (90.4 ft²)
Orientation: Inclined
Tantalum tube, 316L stainless steel with Tantalum lined head, tubesheet and 316L stainless steel shell,
Working pressure tube side 10 bar + full vacuum @ -20/148 degrees C (150 psig + full vacuum @ -20/300 degrees F),
shell side 10 bar + full vacuum @ -20/148 degrees C (150 psig + full vacuum @ -20/300 degrees F),
shell with expansion bellow, 2160mm overall length,
1- Tantalum lined reduction head, 1-Tantalum lined flat bonnet head
design code: ASME Sect. VIII, Div 1 1995 and 1996 Addenda
Shell Pressure: 10.3 bar (149.4 psi). Shell Temperature: 149 °C (300.2 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 10.3 bar (149.4 psi). Tube Temperature: 149 °C (300.2 °F). Tube Material: Tantalum. Tubesheet Material: 316L SS with Tantalum Lining. Vacuum: Yes. Shell Diameter: 375 mm (14.8 in). Head Material: 316L SS with Tantalum Lining. Length: 2,150 mm (85 in). Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 85. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,700 mm (66.1 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: Tube side : (1) head with 1-200mm, (1) head with 1-75mm, 1-50mm, shell 2-150mm.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Astro Cosmos
Model: BEM 12-1-66
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 8.4 m² (90.4 ft²)
Orientation: Inclined
Tantalum tube, 316L stainless steel with Tantalum lined head, tubesheet and 316L stainless steel shell,
Working pressure tube side 10 bar + full vacuum @ -20/148 degrees C (150 psig + full vacuum @ -20/300 degrees F),
shell side 10 bar + full vacuum @ -20/148 degrees C (150 psig + full vacuum @ -20/300 degrees F),
shell with expansion bellow, 2160mm overall length,
1- Tantalum lined reduction head, 1-Tantalum lined flat bonnet head
design code: ASME Sect. VIII, Div 1 1995 and 1996 Addenda
Shell Pressure: 10.3 bar (149.4 psi). Shell Temperature: 149 °C (300.2 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 10.3 bar (149.4 psi). Tube Temperature: 149 °C (300.2 °F). Tube Material: Tantalum. Tubesheet Material: 316L SS with Tantalum Lining. Vacuum: Yes. Shell Diameter: 375 mm (14.8 in). Head Material: 316L SS with Tantalum Lining. Length: 2,150 mm (85 in). Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 85. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,700 mm (66.1 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: tube side: 1 head with 1-800mm, 1 head with 1-75mm, 1-50mm, shell: 2-150mm.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Astro Cosmos
Model: BEM 12-1-66
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 8.4 m² (90.4 ft²)
Orientation: Inclined
Tantalum tube, 316L stainless steel with Tantalum lined head, tubesheet and 316L stainless steel shell,
Working pressure tube side 10 bar + full vacuum @ -20/148 degrees C (150 psig + full vacuum @ -20/300 degrees F),
shell side 10 bar + full vacuum @ -20/148 degrees C (150 psig + full vacuum @ -20/300 degrees F),
shell with expansion bellow, 2160mm overall length,
1- Tantalum lined reduction head, 1-Tantalum lined flat bonnet head
design code: ASME Sect. VIII, Div 1 1995 and 1996 Addenda
Shell Pressure: 10.3 bar (149.4 psi). Shell Temperature: 149 °C (300.2 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 10.3 bar (149.4 psi). Tube Temperature: 149 °C (300.2 °F). Tube Material: Tantalum. Tubesheet Material: 316L SS w/TA. Vacuum: Yes. Shell Diameter: 375 mm (14.8 in). Head Material: 316L SS w/TA. Length: 2,150 mm (85 in). Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 85. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,700 mm (66.1 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: tube side: 1 head with 1-800mm, 1 head with 1-75mm, 1-50mm, shell: 2-150mm.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Astro Cosmos
Model: BEM 12-1-66
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 8.4 m² (90.4 ft²)
Orientation: Inclined
Tantalum tube, 316L stainless steel with Tantalum lined head, tubesheet and 316L stainless steel shell,
Working pressure tube side 10 bar + full vacuum @ -20/148 degrees C (150 psig + full vacuum @ -20/300 degrees F),
shell side 10 bar + full vacuum @ -20/148 degrees C (150 psig + full vacuum @ -20/300 degrees F),
shell with expansion bellow, 2160mm overall length,
1- Tantalum lined reduction head, 1-Tantalum lined flat bonnet head
design code: ASME Sect. VIII, Div 1 1995 and 1996 Addenda
Shell Pressure: 10.3 bar (149.4 psi). Shell Temperature: 149 °C (300.2 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 10.3 bar (149.4 psi). Tube Temperature: 149 °C (300.2 °F). Tube Material: Tantalum. Tubesheet Material: 316L SS w/TA. Vacuum: Yes. Shell Diameter: 375 mm (14.8 in). Head Material: 316L SS w/TA. Length: 2,150 mm (85 in). Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 85. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,700 mm (66.1 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: tube side: 1 head with 1-800mm, 1 head with 1-75mm, 1-50mm, shell: 2-150mm.
