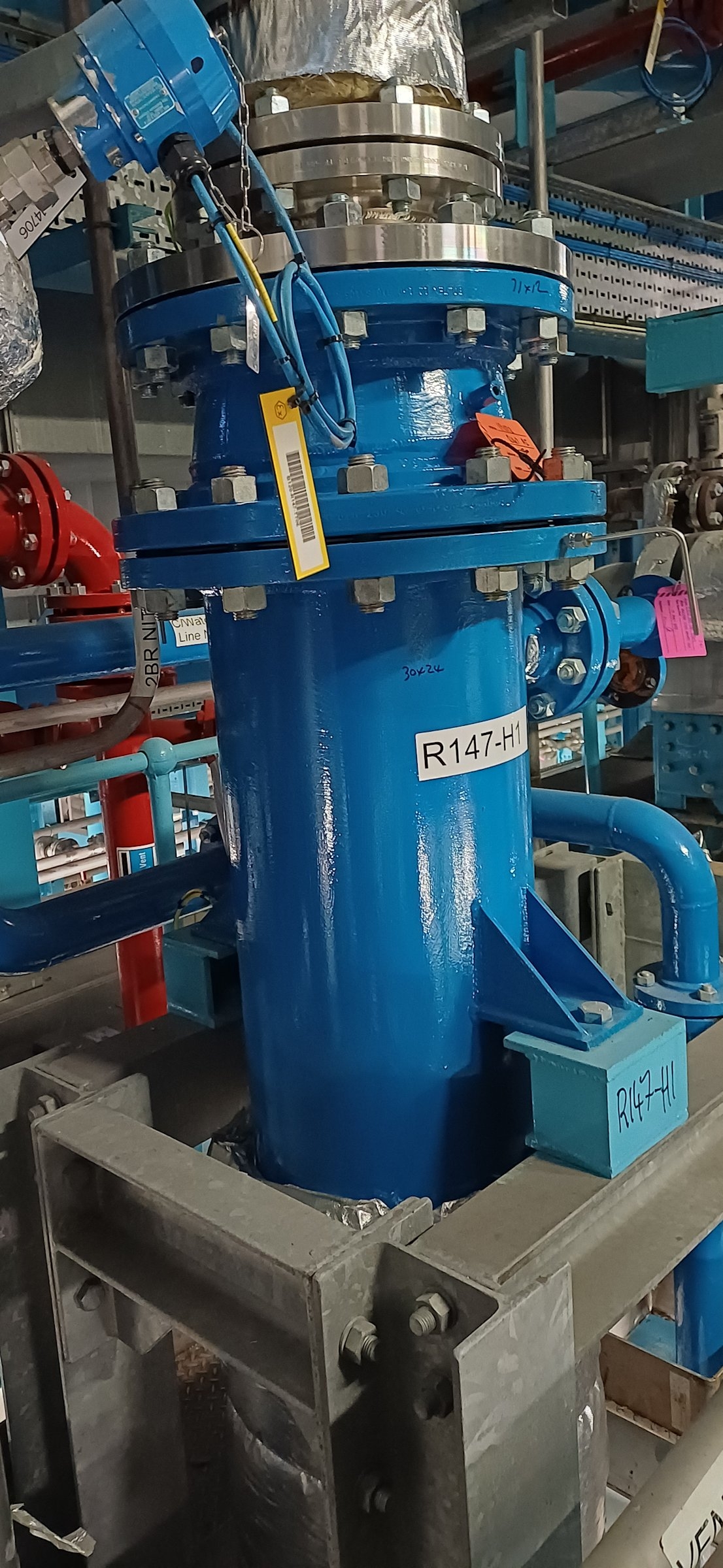

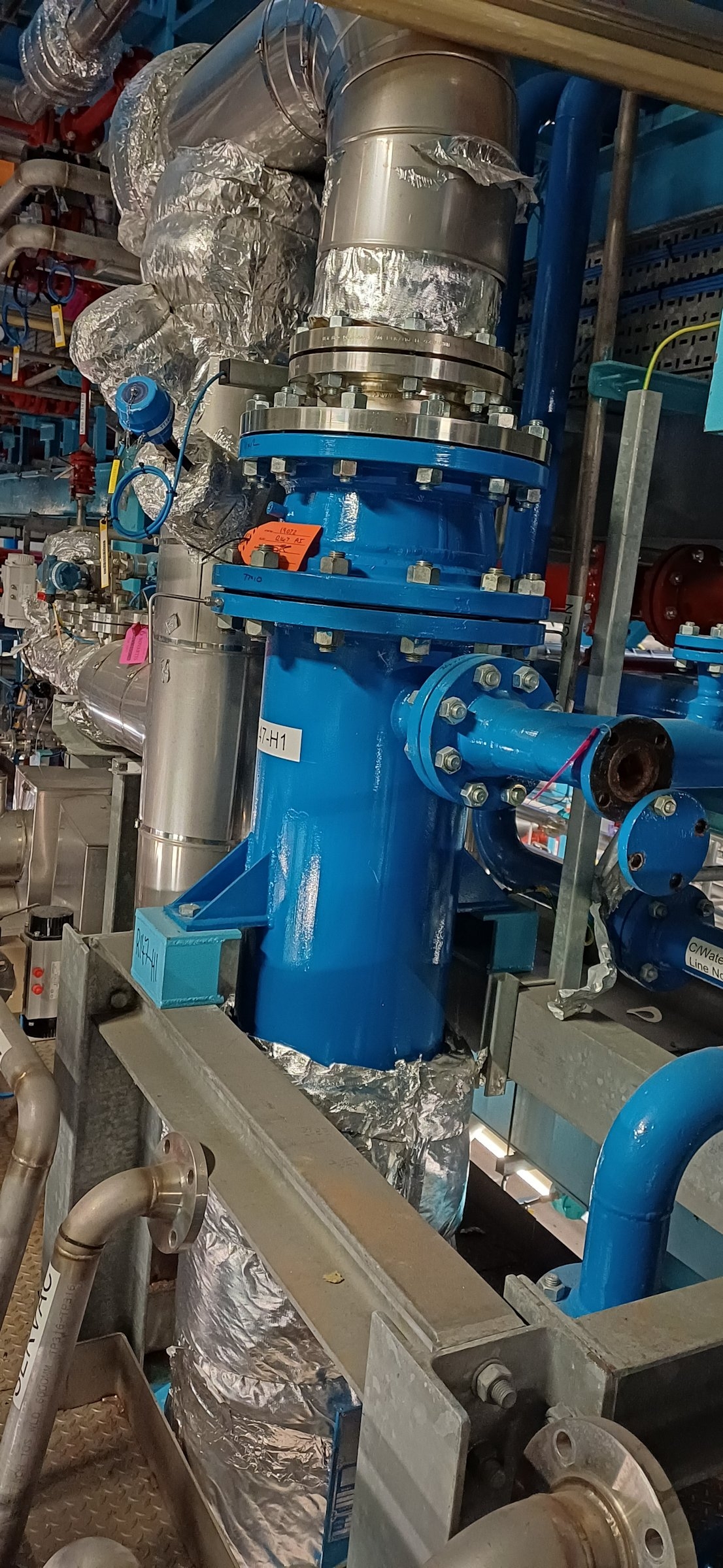

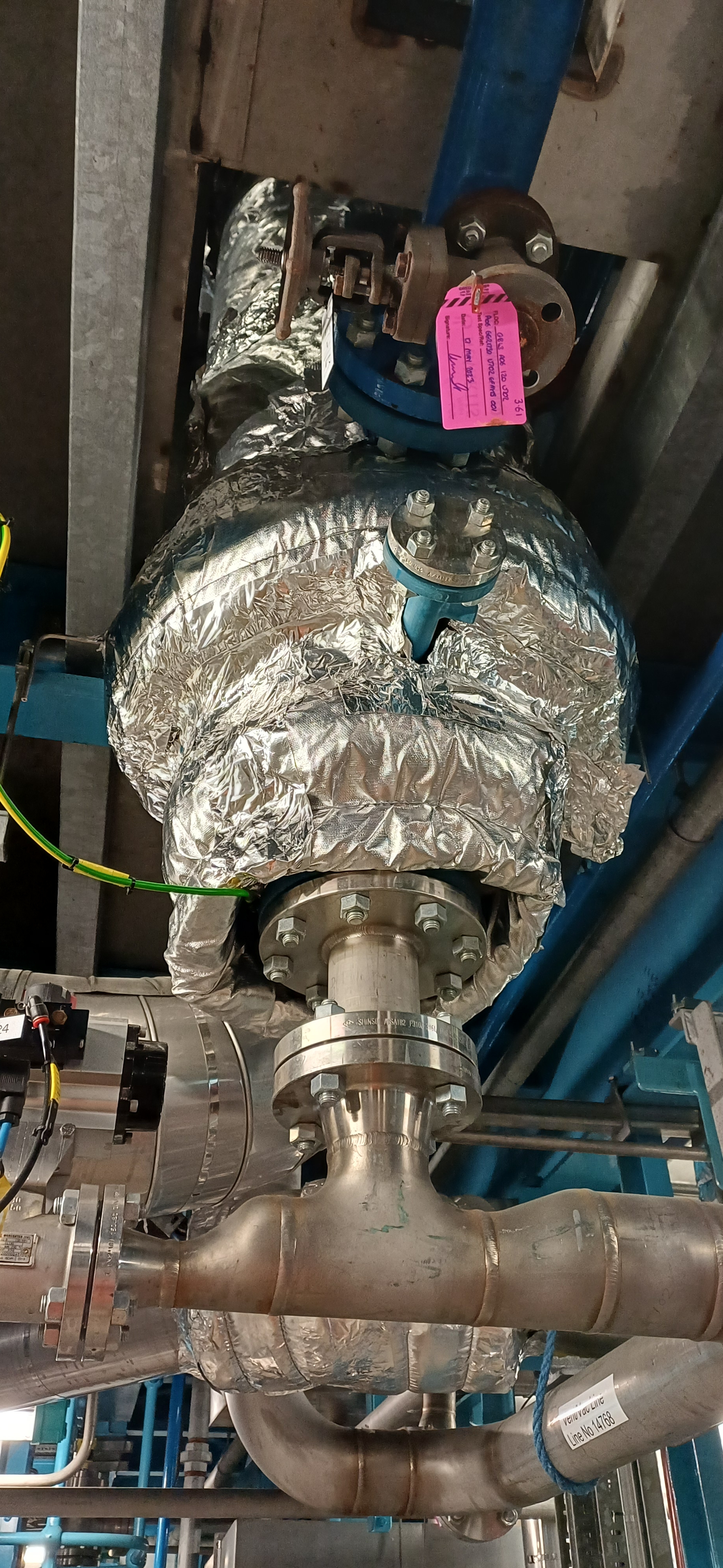

11.4 m² Tantalum Shell & Tube Heat Exchanger – ASME Vertical Design - IPP# 242723

Type: Heat Exchanger

Subtype: Shell and Tube

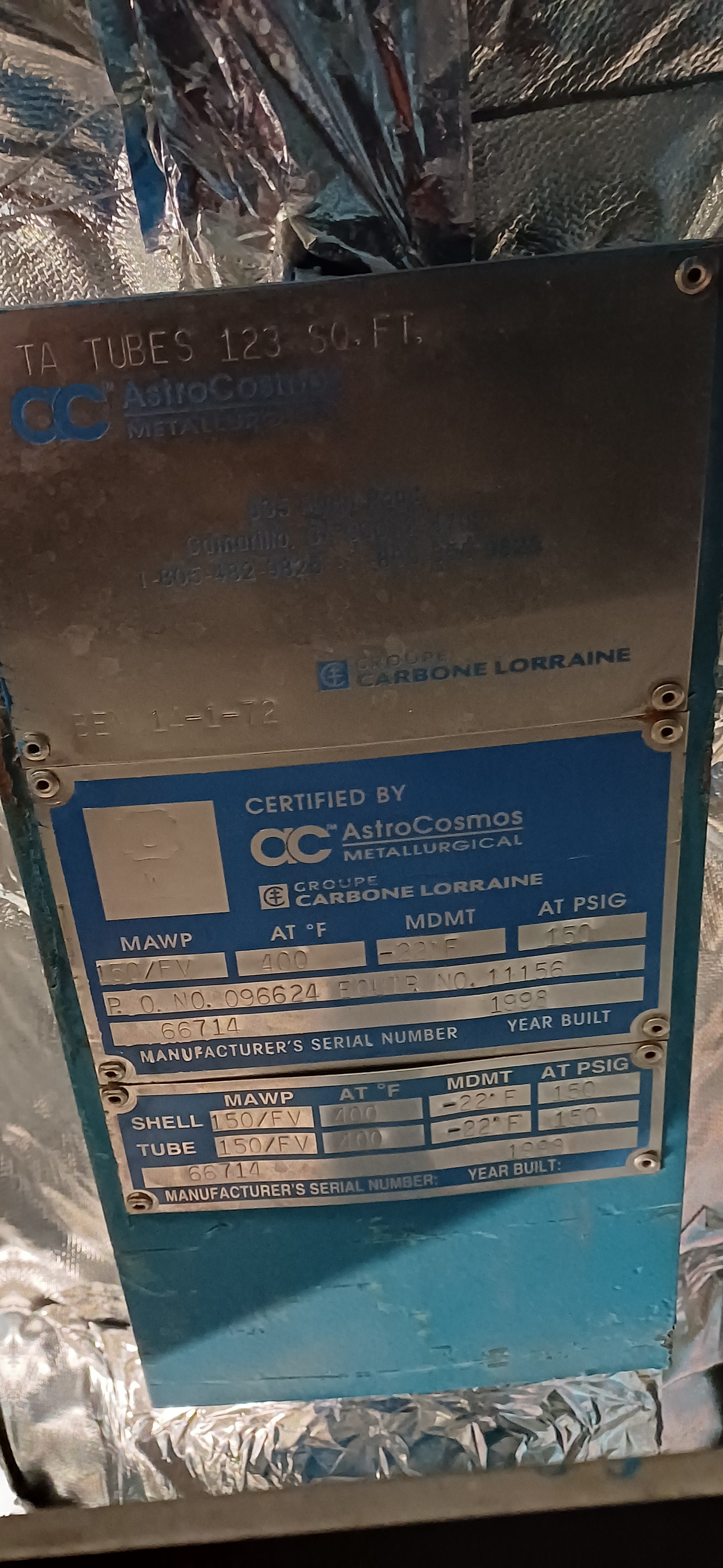

Manufacturer: Astro Cosmos

Model: BEM-18-1-72

Condition: Used

Material: Tantalum

Clad: Yes

Heat Transfer Surface Area: 19.8 m² (213 ft²)

Orientation: Vertical

• Tantalum Clad 304 SS cone heads18" diameter x 72" face to face. (105" overall length)

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 457.2 mm (18 in). Head Material: Stainless Steel 304. Length: 1,850 mm (72 in). Tube Type: Straight Tube. Tube Number: 181. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,850 mm (72 in). Tube Thickness: 0.25 mm (0.01 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Astro Cosmos

Model: BEM 12-1-66

Condition: Used

Material: Tantalum

Heat Transfer Surface Area: 8.4 m² (90.4 ft²)

Orientation: Inclined

Tantalum tube, 316L stainless steel with Tantalum lined head, tubesheet and 316L stainless steel shell,

Working pressure tube side 10 bar + full vacuum @ -20/148 degrees C (150 psig + full vacuum @ -20/300 degrees F),

shell side 10 bar + full vacuum @ -20/148 degrees C (150 psig + full vacuum @ -20/300 degrees F),

shell with expansion bellow, 2160mm overall length,

1- Tantalum lined reduction head, 1-Tantalum lined flat bonnet head

design code: ASME Sect. VIII, Div 1 1995 and 1996 Addenda

Shell Pressure: 10.3 bar (149.4 psi). Shell Temperature: 149 °C (300.2 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 10.3 bar (149.4 psi). Tube Temperature: 149 °C (300.2 °F). Tube Material: Tantalum. Tubesheet Material: 316L SS with Tantalum Lining. Vacuum: Yes. Shell Diameter: 375 mm (14.8 in). Head Material: 316L SS with Tantalum Lining. Length: 2,150 mm (85 in). Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 85. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,700 mm (66.1 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: Tube side : (1) head with 1-200mm, (1) head with 1-75mm, 1-50mm, shell 2-150mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Astro Cosmos

Model: BEM 12-1-66

Condition: Used

Material: Tantalum

Heat Transfer Surface Area: 8.4 m² (90.4 ft²)

Orientation: Inclined

Tantalum tube, 316L stainless steel with Tantalum lined head, tubesheet and 316L stainless steel shell,

Working pressure tube side 10 bar + full vacuum @ -20/148 degrees C (150 psig + full vacuum @ -20/300 degrees F),

shell side 10 bar + full vacuum @ -20/148 degrees C (150 psig + full vacuum @ -20/300 degrees F),

shell with expansion bellow, 2160mm overall length,

1- Tantalum lined reduction head, 1-Tantalum lined flat bonnet head

design code: ASME Sect. VIII, Div 1 1995 and 1996 Addenda

Shell Pressure: 10.3 bar (149.4 psi). Shell Temperature: 149 °C (300.2 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 10.3 bar (149.4 psi). Tube Temperature: 149 °C (300.2 °F). Tube Material: Tantalum. Tubesheet Material: 316L SS with Tantalum Lining. Vacuum: Yes. Shell Diameter: 375 mm (14.8 in). Head Material: 316L SS with Tantalum Lining. Length: 2,150 mm (85 in). Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 85. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,700 mm (66.1 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: tube side: 1 head with 1-800mm, 1 head with 1-75mm, 1-50mm, shell: 2-150mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Astro Cosmos

Model: BEM 12-1-66

Condition: Used

Material: Tantalum

Heat Transfer Surface Area: 8.4 m² (90.4 ft²)

Orientation: Inclined

Tantalum tube, 316L stainless steel with Tantalum lined head, tubesheet and 316L stainless steel shell,

Working pressure tube side 10 bar + full vacuum @ -20/148 degrees C (150 psig + full vacuum @ -20/300 degrees F),

shell side 10 bar + full vacuum @ -20/148 degrees C (150 psig + full vacuum @ -20/300 degrees F),

shell with expansion bellow, 2160mm overall length,

1- Tantalum lined reduction head, 1-Tantalum lined flat bonnet head

design code: ASME Sect. VIII, Div 1 1995 and 1996 Addenda

Shell Pressure: 10.3 bar (149.4 psi). Shell Temperature: 149 °C (300.2 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 10.3 bar (149.4 psi). Tube Temperature: 149 °C (300.2 °F). Tube Material: Tantalum. Tubesheet Material: 316L SS w/TA. Vacuum: Yes. Shell Diameter: 375 mm (14.8 in). Head Material: 316L SS w/TA. Length: 2,150 mm (85 in). Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 85. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,700 mm (66.1 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: tube side: 1 head with 1-800mm, 1 head with 1-75mm, 1-50mm, shell: 2-150mm.
