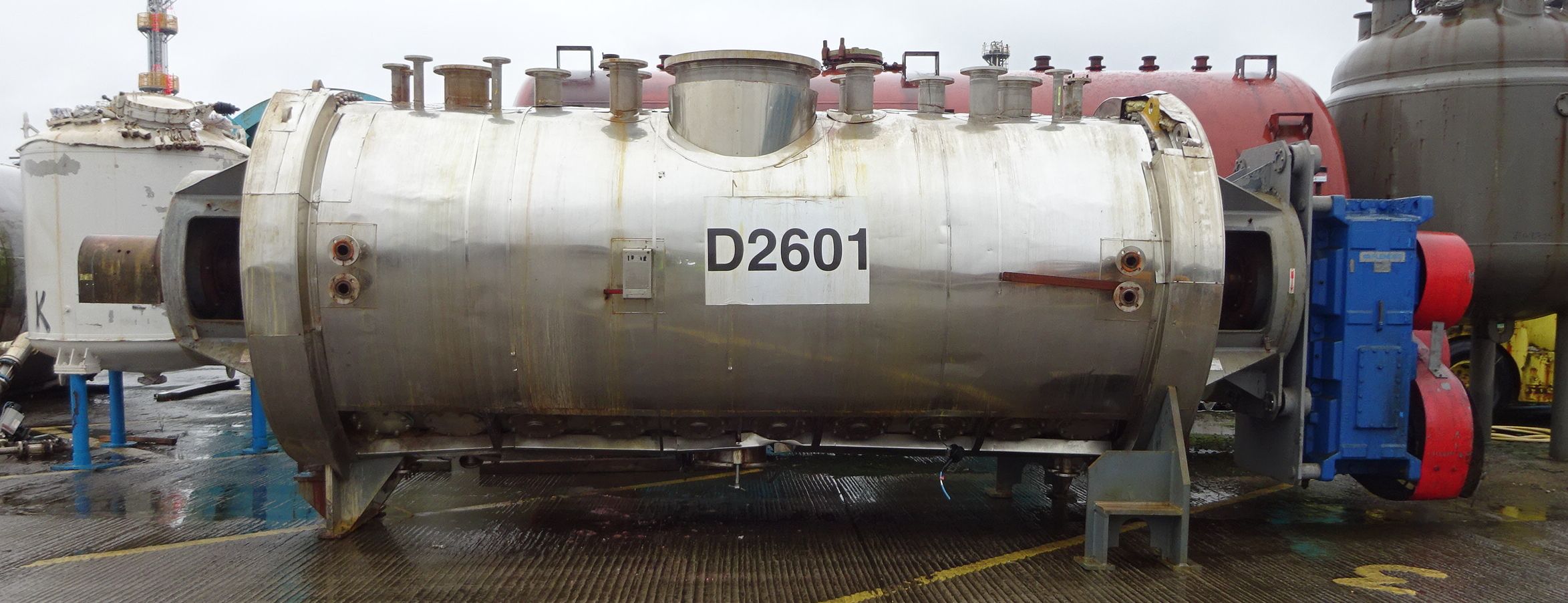

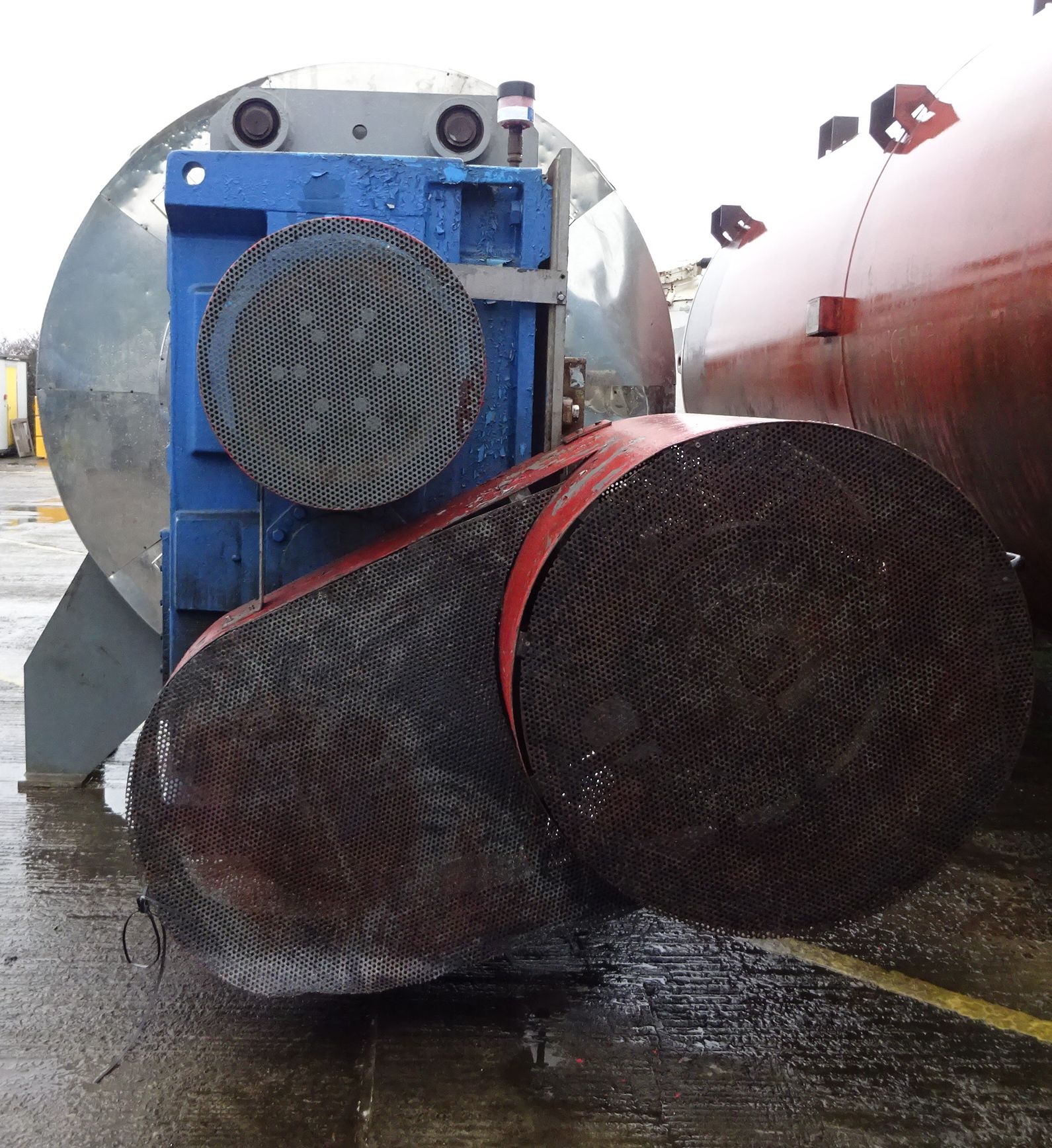

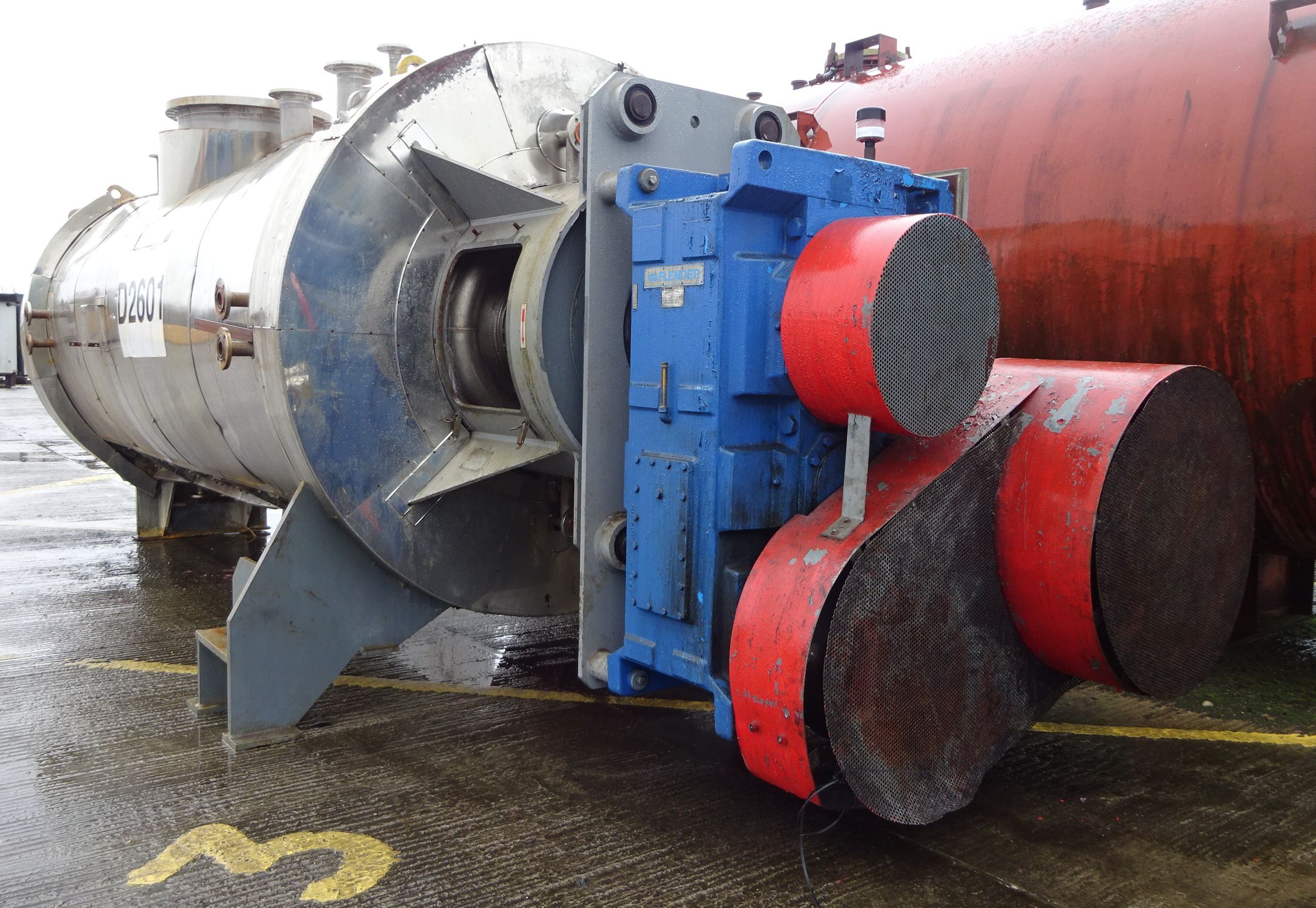

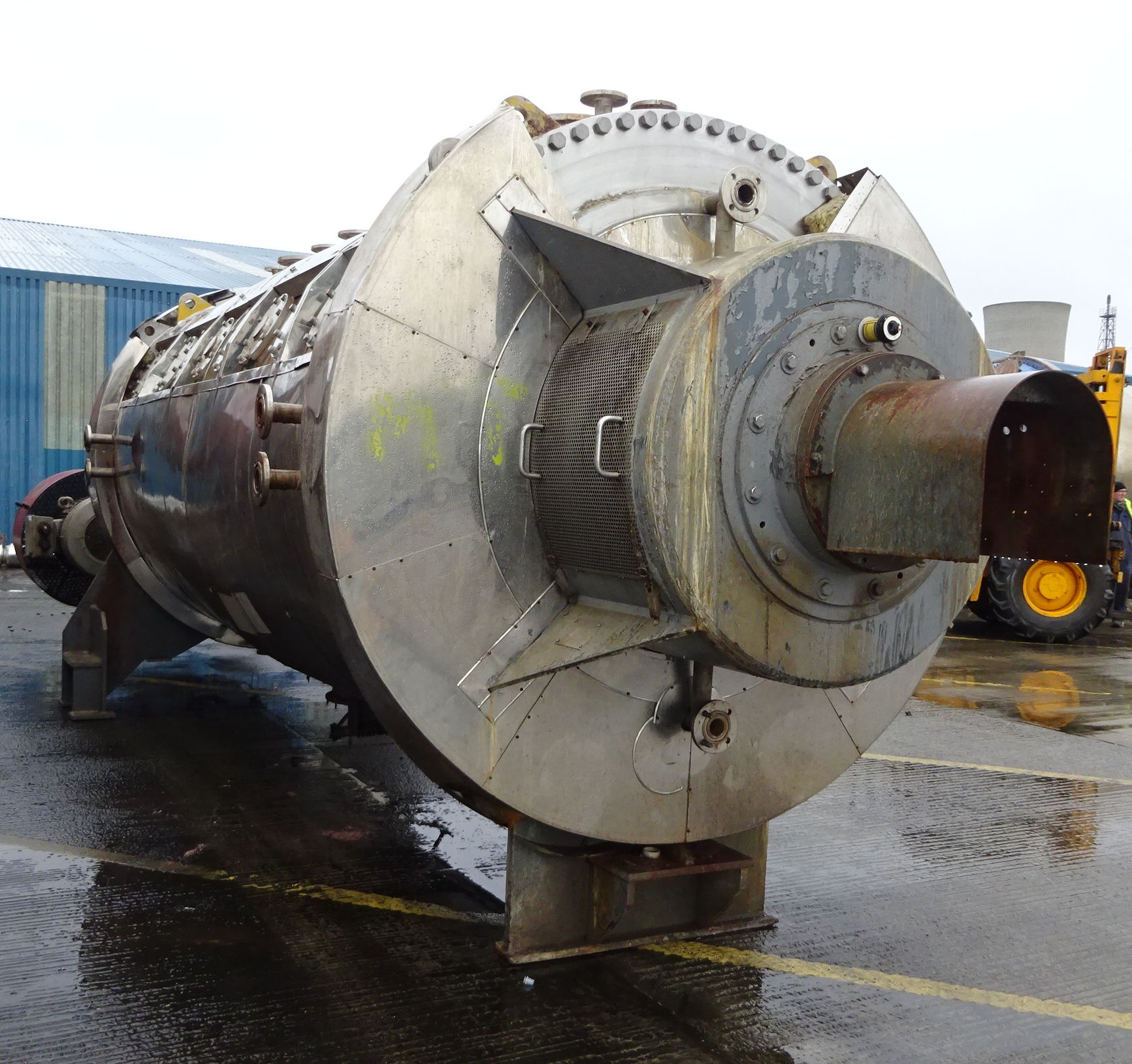

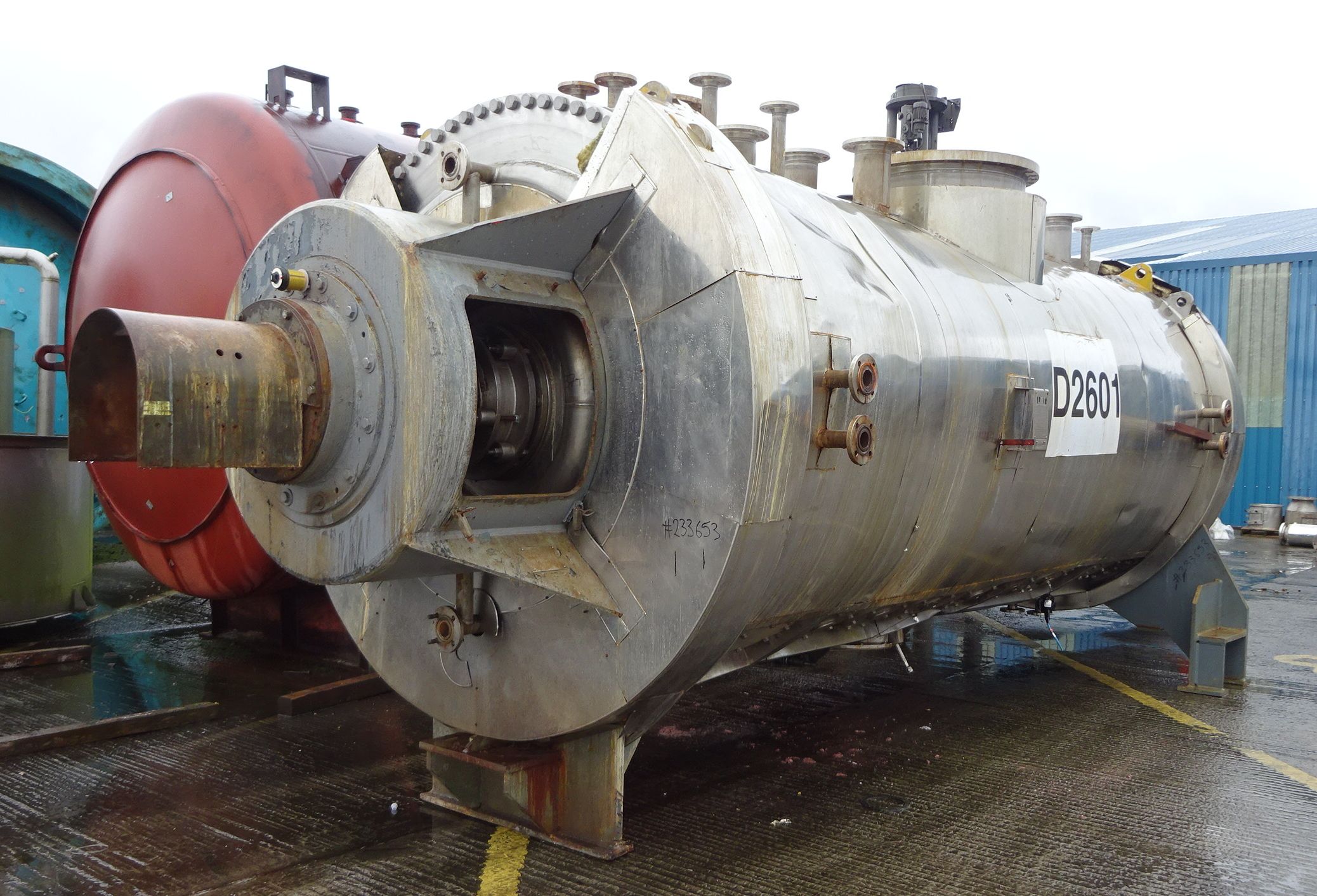

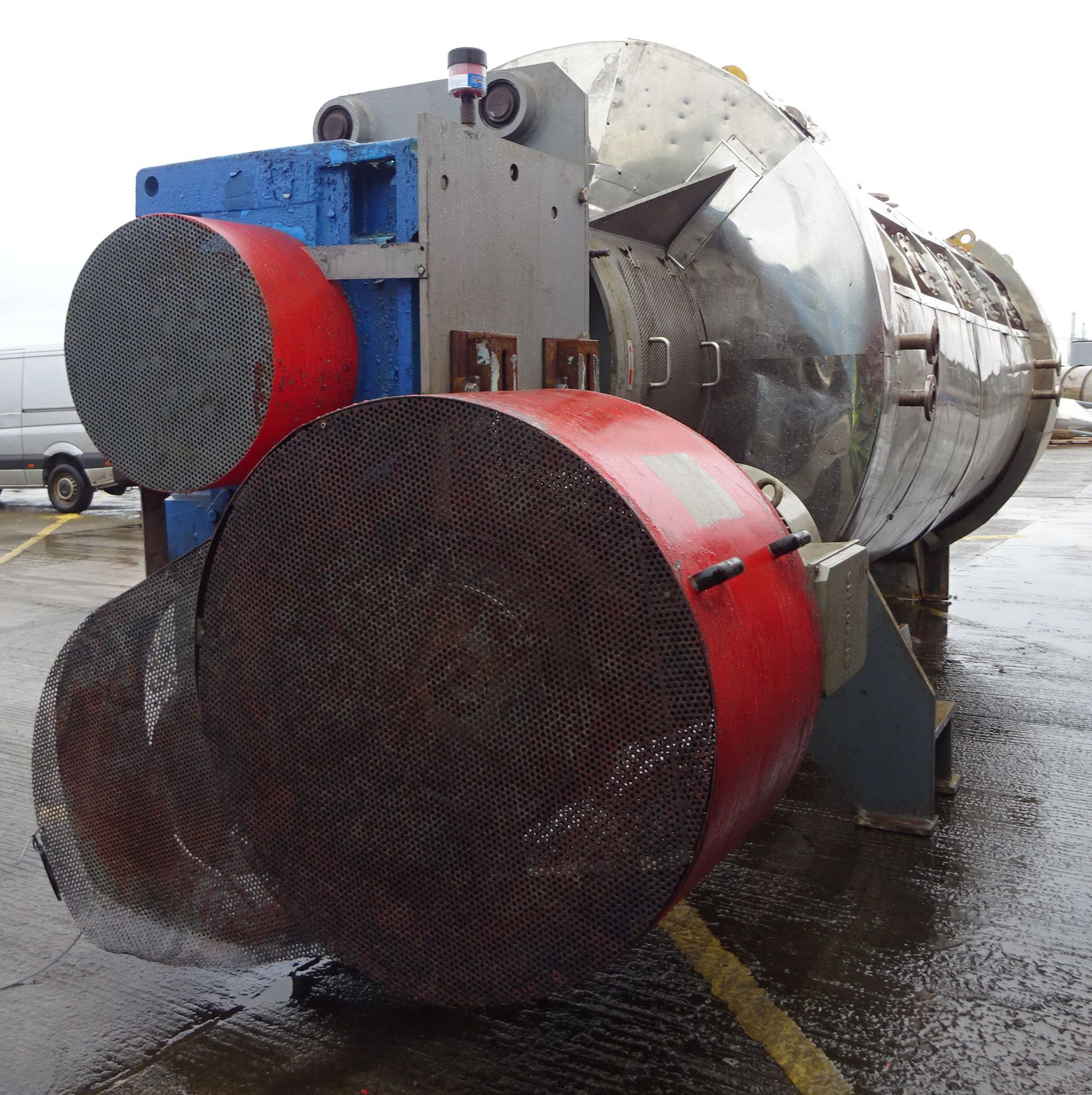

Jacketed rotary vacuum batch paddle dryer with static chopper blades Patent and designed by List DTB manufacturing #3000.01.01.01.3000, working pressure internal -1/6 bar @ 260 degrees C (11000 liter), jacket 6 bar @ 260 degrees C (511 liter), shaft 6 bar @ 260 degrees C (560 liter), bolt flat ends, 316Ti stainless steel (1.4571) half pipe coil jacket on straight side and both ends, paddle driven by a 110/112w, 3 phase, 50/60 Hz, 400-690/460 volt, 1488/1791 rpm, IP 55 siemens CE motor via a Flender 906/9.4 rpm reduction gearbox paddle speed 9.4 rpm openings top: 1-800mm (filter), 4-250mm, 4-150mm (product inlet), 2-150mm, 2-50mm, 4-50mm (jacket), side: 8-50mm (jacket), bottom: 1-150mm (center discharge), 1-80mm, 4-50mm, both flat ends: 2-50mm (jacket) dryer with dust filter, cyclone
Type: Dryer-Rotary Vacuum
Manufacturer: Blaw Knox
Condition: Used
Material: Stainless Steel 316
Capacity Design: 7.9 m3 (280 ft3)
Capacity Working: 5.4 m3 (190 ft3)
Shell rated full vac @ 300 deg F Has 24" dia removable cored rotor w/SS paddles and teflon scrapers Openings: top 2-24"; btm 1-24" No drive grearbox or rotary joint
Diameter: 1,219 mm (48 in). Length: 9,144 mm (360 in). Temperature: 148.9 °C (300 °F). Jacket Material: Carbon Steel. Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 148.9 °C (300 °F).
Type: Dryer-Rotary Vacuum
Manufacturer: Krauss Maffei
Model: DTB630C-List-Discotherm
Condition: Used
Material: Stainless Steel 316
Capacity Design: 0.72 m3 (25.4 ft3)
Capacity Working: 0.63 m3 (22.2 ft3)
vac dryer (cooler). 316SS shell Total capacity 0.72 cbm Shell 600mm (24") dia x 3.8m (12'6") long Has 18" dia removable cored rotor. Has 9" long scraper blades on shaft. Has (17) fixed delumpers on str side of vessel. Openings: top 2-24" w/bolt cover; btm 3-2", 2-8".
Diameter: 600 mm (23.6 in). Length: 3,800 mm (149.6 in). Height: 2,500 mm (98.4 in). Temperature: 50 °C (122 °F). Pressure: 6 bar (87 psi). Heat Transfer Surface Area: 14.3 m² (153.9 ft²). Orientation: Horizontal. Operational Mode: Continuous. Agitation: Yes. Jacket Material: Stainless Steel 304. Jacket Pressure: 7 bar (101.5 psi). Jacket Temperature: 50 °C (122 °F).
Type: Dryer-Rotary Vacuum
Manufacturer: Stokes
Model: 900-59-125
Condition: Used
Material: Stainless Steel 316
Capacity Design: 7 m3 (247.2 ft3)
Diameter: 1,219 mm (48 in)
jacketed rotary vacuum dryer 3/50/380 volt Cleveland 63-55:1 ratio 3.8 HP, 1750 rpm gearbox shaft cored for steam heating, no national board, rated 50 psi @ 300 degrees F (1-straight side and 1-each end) Rotary union joint, outboard bearings. Unit with dust collector. Openings: top (2) 3' x 18 1/2" hinged access covers with counter balanced mechanism, 2-12"; end 1-8"; bottom 1-10" with manual open/close mechanism; jacket 4-6", 4-2", 4-1", 4-3/4"; shaft 1-2", 1-1 1/2".
Length: 6,096 mm (240 in). Temperature: 148.9 °C (300 °F). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Agitation: Yes. Dust Collection: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 148.9 °C (300 °F).
Type: Dryer-Rotary Vacuum
Manufacturer: Devine
Condition: Used
Material: Stainless Steel 316
Capacity Design: 2.8 m3 (100 ft3)
Capacity Working: 1.98 m3 (70 ft3)
Rotary vacuum dryer Vessel rated for Full vacuum 12.5" diameter cored shaft with 24 fixed plows. Outboard bearings with packing glands.
Diameter: 1,219 mm (48 in). Length: 3,048 mm (120 in). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Agitation Seal Type: Packing. Jacket Pressure: 2.4 bar (35 psi). Jacket Temperature: 104.4 °C (220 °F).
