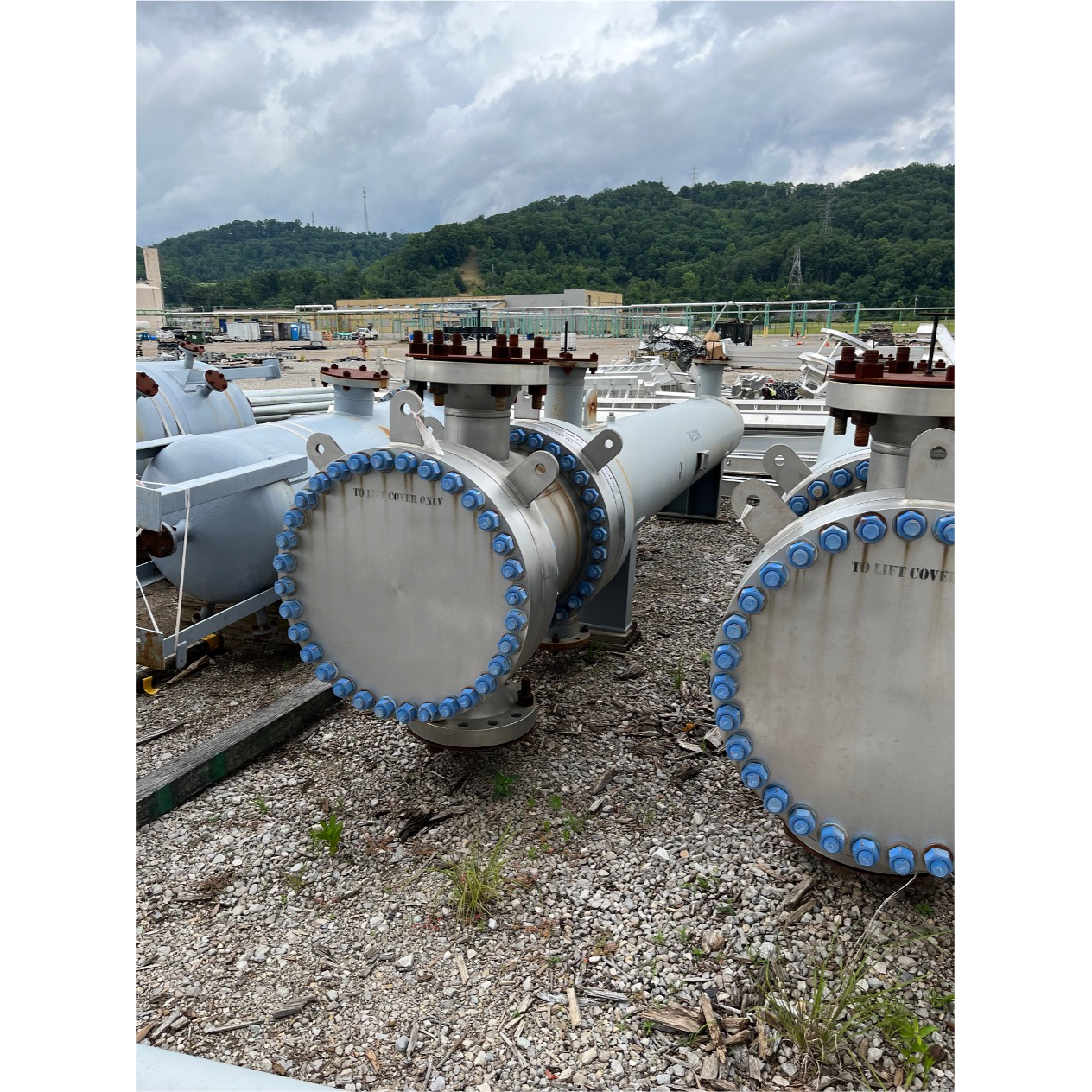

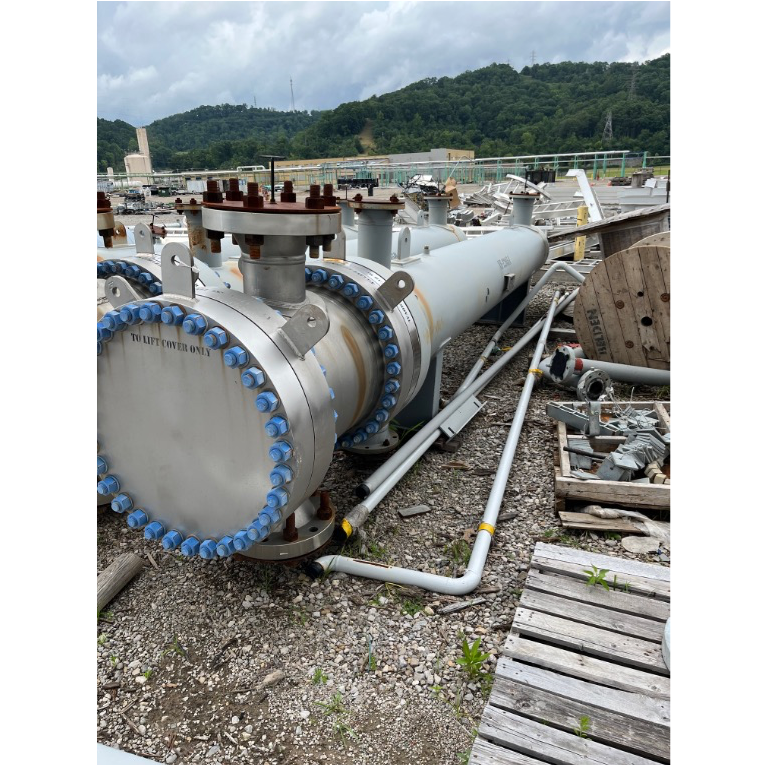

NEW/ UNUSED Perry AEU Shell and Tube Heat Exchanger - IPP# 233988

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Perry Products Co.

Model: FTSSX

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 1.9 m² (20.5 ft²)

Orientation: Vertical

Tubes rated FV

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Stainless Steel 304. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 160 °C (320 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 219.1 mm (8.6 in). Head Material: Stainless Steel 316L. Length: 606 mm (23.9 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 55. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 606 mm (23.9 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: Two 2", two 1.5".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Perry Products Co.

Model: 14-143 FTSX

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 13.3 m² (143 ft²)

Orientation: Horizontal

Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 355.6 mm (14 in). Head Material: Hastelloy - C276. Length: 1,500 mm (60 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 146. Tube Diameter: 1.91 mm (0.08 in). Tube Length: 1,500 mm (60 in). Tube Thickness: 457.2 mm (18 in). Nozzle Schedule: (1) 6" inlet, (2) 2" inlet/outlet, (1) 2" outlet.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Perry Products Co.

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 13.1 m² (141 ft²)

Orientation: Horizontal

10" diameter x 11'2" face to face. Overall length13' 3"

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 160 °C (320 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: Stainless Steel 316. Length: 3,400 mm (134 in). Tube Number: 72. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,350 mm (132 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: One 6" nozzle, Two 3" nozzles, and one 2" nozzle..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kimura Kakoki

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 149.9 m² (1,600 ft²)

Shell Pressure: 5 bar (72 psi)

(2) 304LSS cone heads

Shell Temperature: -5 °C (23 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: -8.9 °C (16 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,200 mm (48 in). Head Material: Stainless Steel 304. Length: 2,000 mm (78 in). Tube Number: 806. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 2,000 mm (78 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Openings: tube side 2-8"; shell side 2-4", 1-1", 1-1 1/2"..
