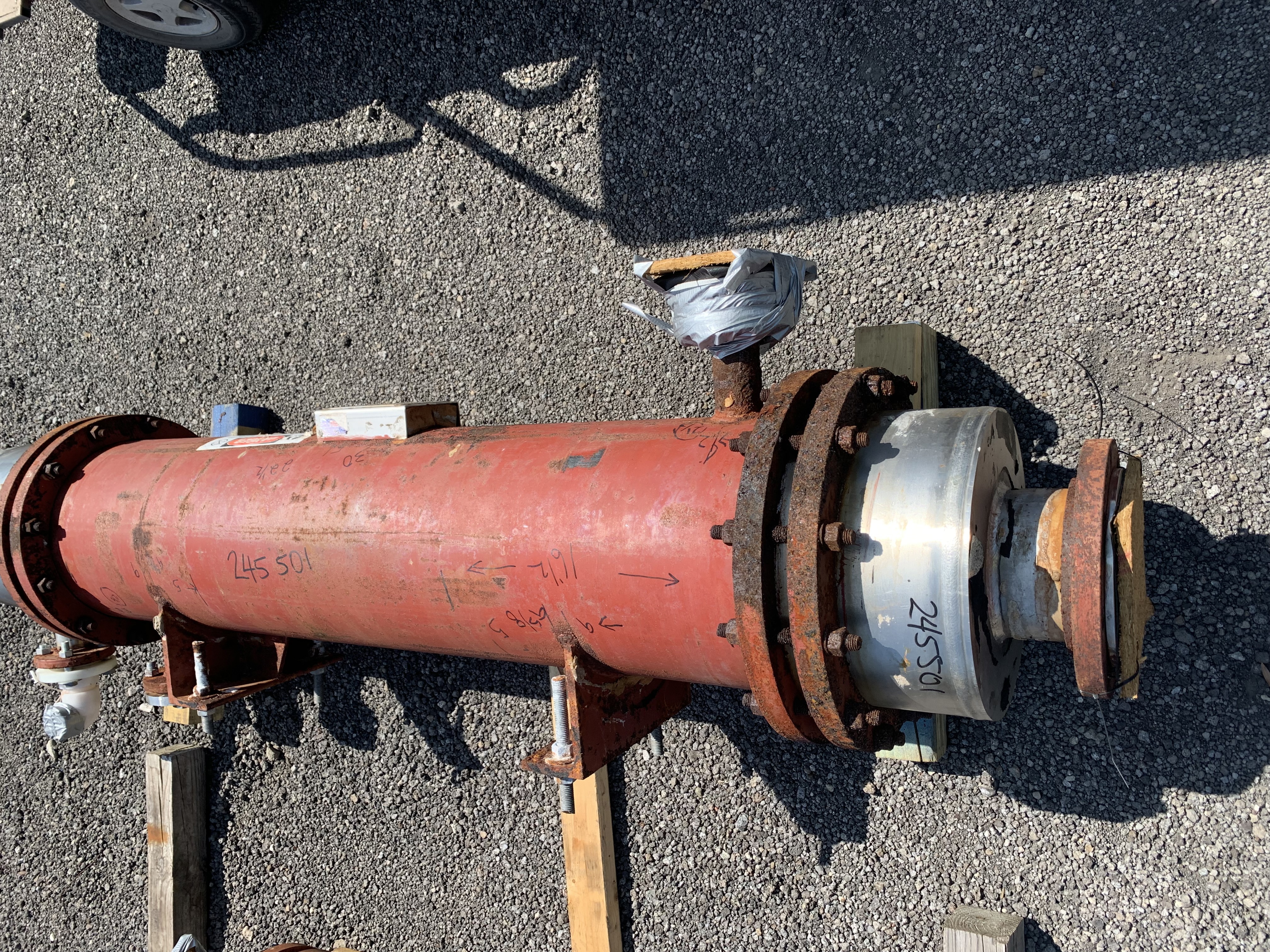

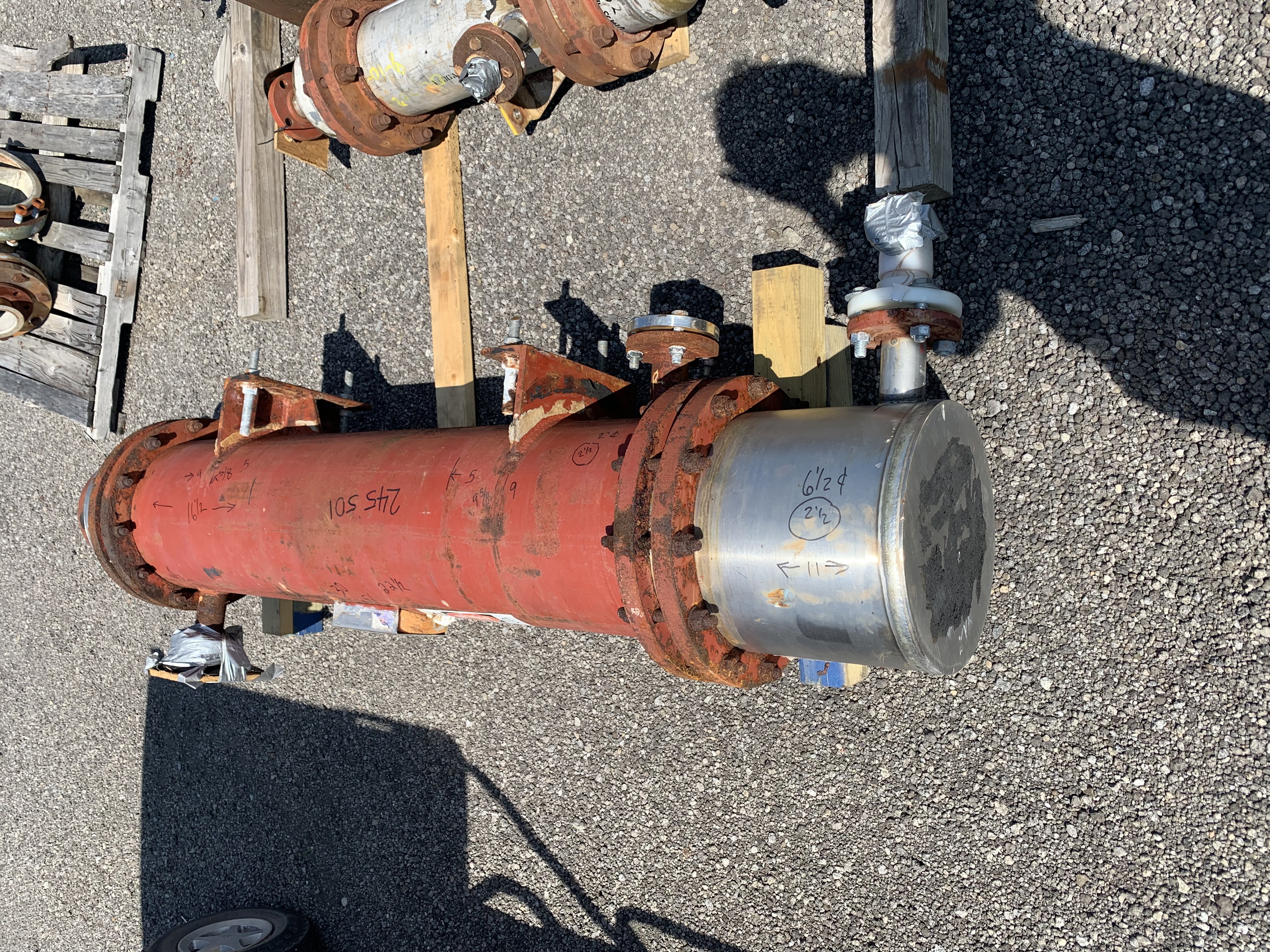

Hastelloy - C276 Shell and Tube Heat Exchanger - IPP# 245501

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Perry Products Co.

Model: 16-166 FTSX

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 15.4 m² (166 ft²)

Orientation: Vertical

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 160 °C (320 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 355.6 mm (14 in). Head Material: Hastelloy - C276. Length: 1,550 mm (61 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 212. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,200 mm (47.8 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: one-8", two 3", two 2" and two 1".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Perry Products Co.

Model: AEU

Condition: New

Material: Stainless Steel 304

Heat Transfer Surface Area: 105.1 m² (1,150 ft²)

Orientation: Horizontal

• Quantity of Three (3) Design duty 5424115 BTU/HR. Horizontal "U" tube heat exchanger.
• TEMA type AEU. 1" triangular pitch

Shell Pressure: 15.7 bar (228 psi). Shell Temperature: 60 °C (140 °F). Shell Material: Carbon Steel. Tube Pressure: 75.6 bar (1,100 psi). Tube Temperature: 190 °C (374 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 610 mm (24 in). Head Material: Stainless Steel 304. Length: 6,200 mm (244.4 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 197. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 4,250 mm (168 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Four (4) 8" nozzles, (inlet/outlet) one 6" nozzles as a rupture disk.. Capacity: 897 L (237 gallons). Heat Exchanger Tube Capacity: 579 L (153 gallons).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Perry Products Co.

Model: FTSSX

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 1.9 m² (20.5 ft²)

Orientation: Vertical

Tubes rated FV

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Stainless Steel 304. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 160 °C (320 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 219.1 mm (8.6 in). Head Material: Stainless Steel 316L. Length: 606 mm (23.9 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 55. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 606 mm (23.9 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: Two 2", two 1.5".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Perry Products Co.

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 13.1 m² (141 ft²)

Orientation: Horizontal

10" diameter x 11'2" face to face. Overall length13' 3"

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 160 °C (320 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: Stainless Steel 316. Length: 3,400 mm (134 in). Tube Number: 72. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,350 mm (132 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: One 6" nozzle, Two 3" nozzles, and one 2" nozzle..
