system includes:

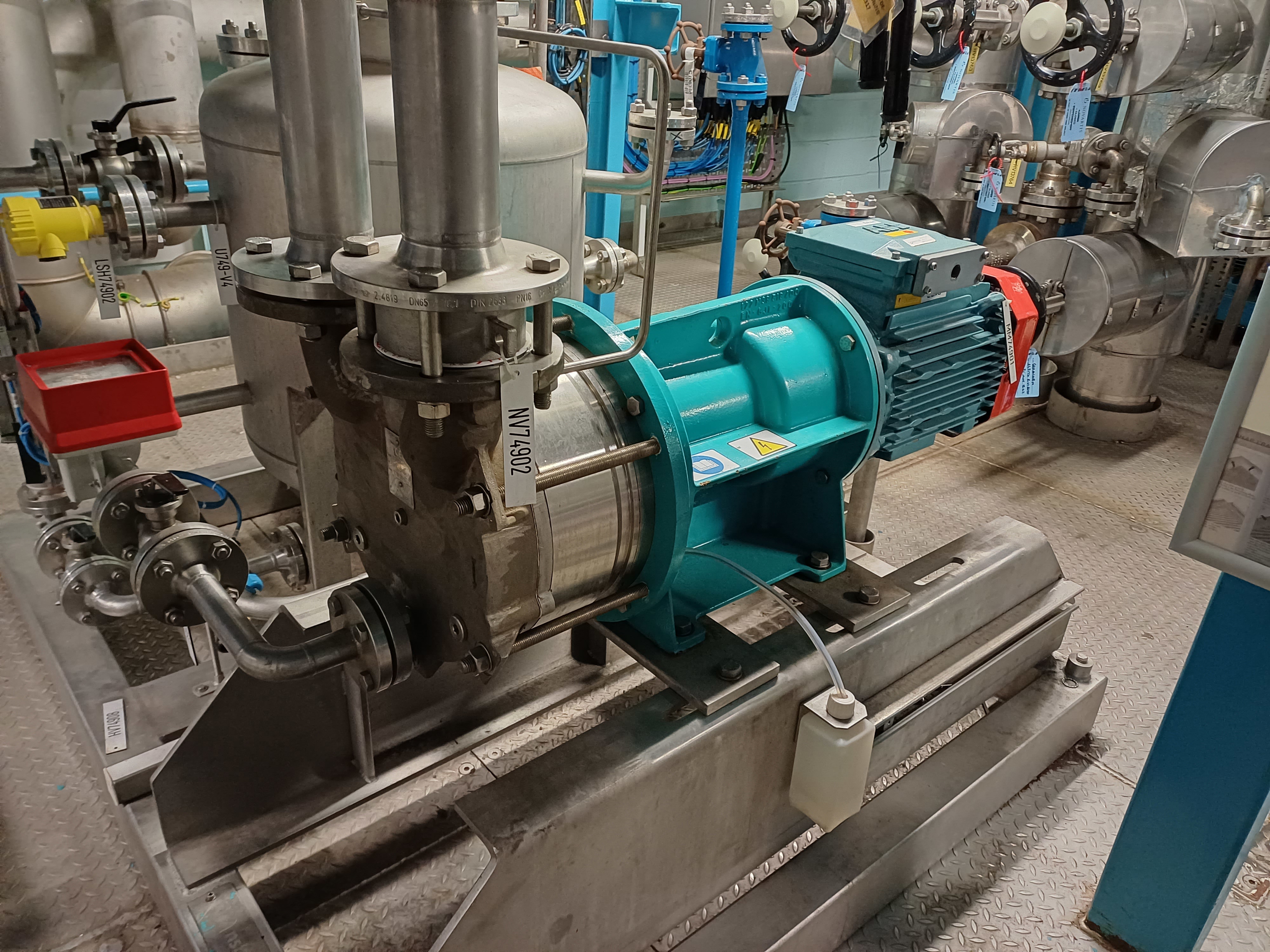

(1) 260m3/hr 316 stainless steel liquid ring vacuum pump, manufactured by NSB Gas Processing, type PMZF 2510, driven by 7.5/8.6kw 3/50-60/690-400/660-380/415-440 volt 1447/1439/1454/1739 rpm IP55, ATEX EEx de IIB T4 motor,
(1) 80 liter 316 stainless steel liquid ring tank, manufactured by Messer Schweisstechnik Ag, design pressure 4 bar @ 175 degrees C (190 liter), weld flat top, weld dished bottom, (1) 3.2 square meter 316 stainless steel tube head and shell vertical heat exchanger, design pressure tube side: 4 bar @ 175 degrees C, shell 10 bar @ 175 degrees C, (54) 25mm diameter x 1.5 x 848mm long 316 stainless steel tubes, single pass tube side,
(1) 316 stainless steel bonnet head, 273mm diameter 316 stainless steel shell, all parts mounted on a carbon steel skid
Type: Pump-Vacuum
Manufacturer: Kinney/Tuthill
Model: KLRC125KC53
Condition: Used
Material: Stainless Steel 316L
Air Flow: 239.6 m3/h (141 CFM)
Orientation: Horizontal
Inlet Diameter: 38.1 mm (1.5 in). Outlet Diameter: 38.1 mm (1.5 in). Seal Type: Liquid Ring. Cooling or Seal Water: Yes. Cooling or Seal Water Flow: 1,600 L/h (7 GPM).
Type: Pump-Vacuum
Manufacturer: Nash
Model: TCM-2
Condition: Used
Material: Stainless Steel 316L
Air Flow: 380 m3/h (223.7 CFM)
Discharge Pressure: 0.1 bar (1.45 psi)
double stage design, 0.098 barg (45mm vacuum), 16kW absorbed power, John Crane double mechanical seal
With (1) 240 liter carbon steel vertical separator tank, manufactured by , pressure 5 bar + full vacuum @ -13/150 degrees C, 500mm diameter x 1.2m straight side, weld dished top and bottom, mounted on legs,
(1) 3.92 square meter carbon steel tube, head and shell heat exchanger (seal water cooler), manufactured by , design pressure tube side 5 bar @ 80 degrees C, shell 6.5 bar @ 80 degrees C, (26) 16mm diameter x 1.5mm x 3m long carbon steel tubes, 4 pass tubeside, 1 pass shell side, 150mm diameter carbon steel shell, 3464mm overall length, (1) carbon steel bonnet head, (1) carbon steel channel head with flat end plate, mounted on fixed saddles
(1) 3.8m3/hr @ 20m head carbon steel centrifugal seal water pump, manufactured by Worthington Simpson, type 1 HNN 111, mechanical seal, mounted on a baseplate
(1) 3.92 square meter carbon steel tube, head and shell heat exchanger (pre-condenser), manufactured by , design pressure tube side 6 bar @ 70 degrees C, shell 5 bar @ 120 degrees C, (69) 19.05mm diameter x 1.5mm x 2300mm long carbon steel tubes, 4 pass tubeside, 1 pass shell side, 250mm diameter carbon steel shell, mounted on fixed saddles
Orientation: Horizontal. Inlet Diameter: 50 mm (1.97 in). Outlet Diameter: 50 mm (1.97 in). Seal Type: Liquid Ring. Temperature: 50 °C (122 °F). Cooling or Seal Water: Yes. Cooling or Seal Water Flow: 6,000 L/h (26.4 GPM).
Type: Pump-Vacuum
Manufacturer: SIHI
Model: LEHA 1800 AB X3X WU P
Condition: Used
Material: Stainless Steel 316L
Air Flow: 1,450 m3/h (868 CFM)
Discharge Pressure: 1.01 bar (14.7 psi)
583 m3/hr @ 33 mbar, 1474 m3/hr @ 900 mbar, 980 rpm, ATEX Ex II 2G c/k classification, pump driven by approx 45kW, 3/50/400 volt 980 rpm Ex motor,
including (1) 270 liter 316L stainless steel vertical liquid separator, manufactured by HS ApparateTechnik Gmbh, serial #048/11936/2.1+2.2, internal pressure -1/0.5 bar @ -20/90 degrees C, weld dished top and bottom, 500mm diameter x 1210mm straight side, mounted on legs,
(1) 4 square meter 316L stainless steel tube, head and shell horizontal condenser, manufactured by E.Prang & Co, serial #53779-53780, pressure tube side -1/0.5 bar @ 0/150 degrees C (23.8 liter), shell side 0/10 bar @ 0/90 degrees C (49 liter),
also includes interconnecting pipework, valves etc,
Orientation: Horizontal. Inlet Diameter: 125 mm (4.9 in). Outlet Diameter: 125 mm (4.9 in). Seal Type: Liquid Ring. Temperature: 15 °C (59 °F).
Type: Pump-Vacuum
Manufacturer: Nash
Model: TCM-2
Condition: Used
Material: Stainless Steel 316L
Air Flow: 380 m3/h (223.7 CFM)
Discharge Pressure: 0.1 bar (1.45 psi)
double stage design, 0.098 barg (45mm vacuum), 16kW absorbed power, John Crane double mechanical seal
With (1) 240 liter carbon steel vertical separator tank, manufactured by , pressure 5 bar + full vacuum @ -13/150 degrees C, 500mm diameter x 1.2m straight side, weld dished top and bottom, mounted on legs,
(1) 3.8m3/hr @ 20m head carbon steel centrifugal seal water pump, manufactured by Worthington Simpson, type 1 HNN 111, mechanical seal, mounted on a baseplate
Orientation: Horizontal. Inlet Diameter: 50 mm (1.97 in). Outlet Diameter: 50 mm (1.97 in). Seal Type: Liquid Ring. Temperature: 50 °C (122 °F). Cooling or Seal Water: Yes. Cooling or Seal Water Flow: 6,000 L/h (26.4 GPM).
