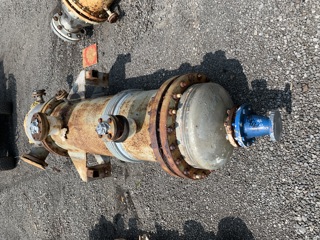

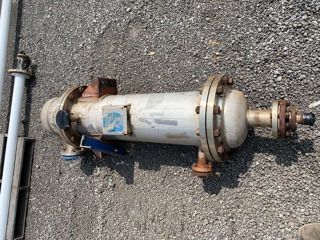

Type: Heat Exchanger
Subtype: Shell and Tube

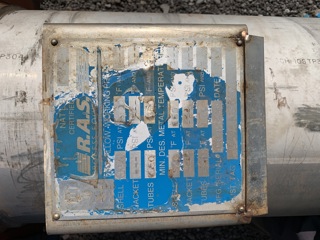

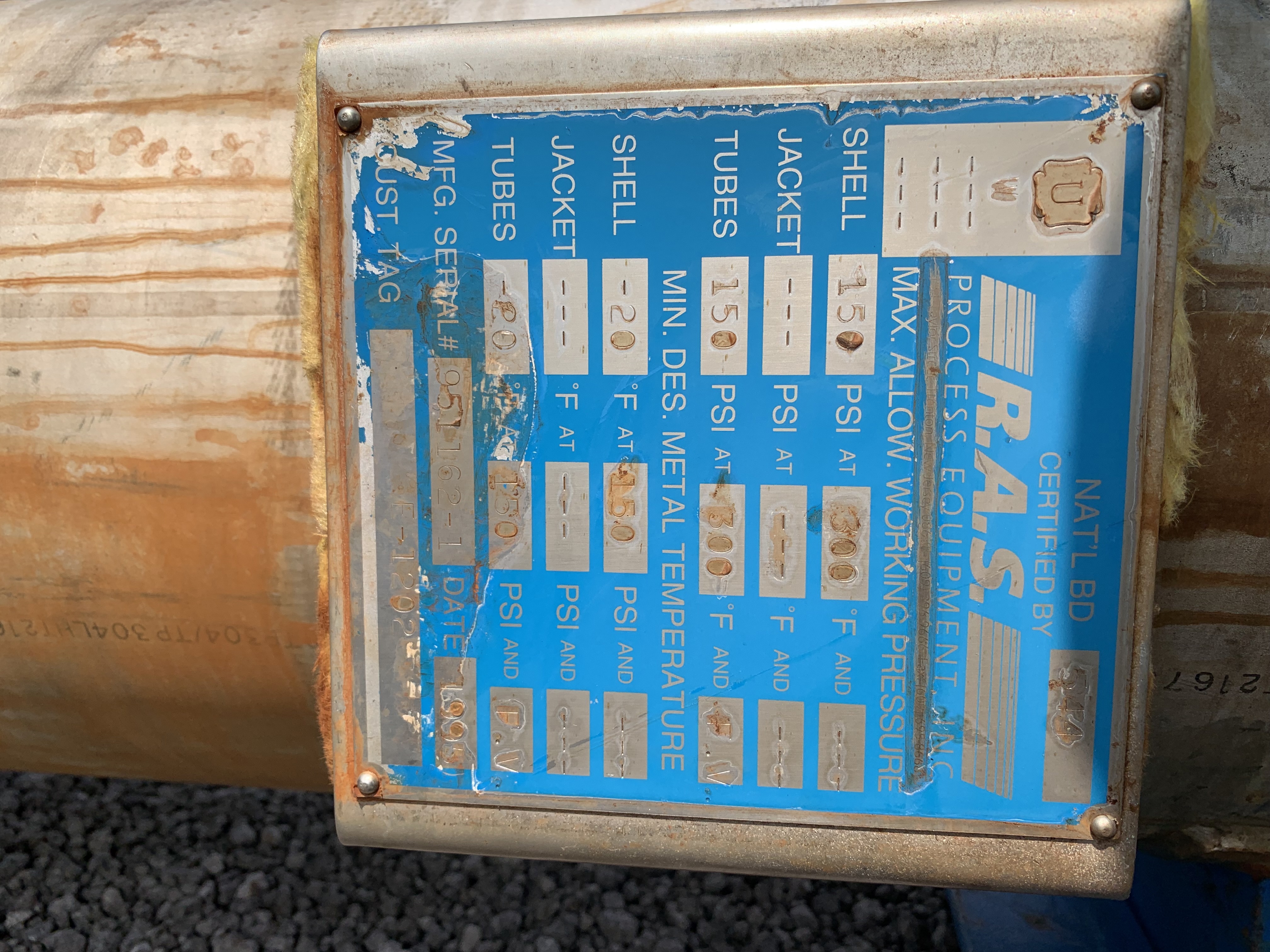

Manufacturer: RAS Process Equipment
Condition: Used
Material: Stainless Steel 316L
Heat Transfer Surface Area: 4 m² (43 ft²)
Orientation: Vertical
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 148.9 °C (300 °F). Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316. Shell Diameter: 304.8 mm (12 in). Head Material: Stainless Steel 316L. Length: 914 mm (36 in). Tube Type: Straight Tube. Tube Number: 31. Tube Diameter: 38.1 mm (1.5 in). Tube Length: 914 mm (36 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: (2) 3" nozzle. (2) 1 1/2" nozzle, (1) 3/4" vent nozzle.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Kimura Kakoki
Condition: Used
Material: Stainless Steel 304
Heat Transfer Surface Area: 149.9 m² (1,600 ft²)
Shell Pressure: 5 bar (72 psi)
(2) 304LSS cone heads
Shell Temperature: -5 °C (23 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: -8.9 °C (16 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,200 mm (48 in). Head Material: Stainless Steel 304. Length: 2,000 mm (78 in). Tube Number: 806. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 2,000 mm (78 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Openings: tube side 2-8"; shell side 2-4", 1-1", 1-1 1/2"..
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Kimura Kakoki
Condition: Used
Material: Stainless Steel 304
Clad: Yes
Heat Transfer Surface Area: 255.9 m² (2,750 ft²)
Orientation: Vertical
Shell rated 72 psi @ -19 deg F (5 Kg @ -10 deg C (5 Kg @ -10 deg C) tubes rated 145 psi @ 37 deg F (10 Kg @ 3 deg C) (2) 304LSS cone heads. Single pass design
Shell Pressure: 5 bar (72 psi). Shell Temperature: -28.3 °C (-19 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: 2.8 °C (37 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,500 mm (60 in). Head Material: Stainless Steel 304. Length: 2,450 mm (96 in). Tube Number: 1,078. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 2,450 mm (96 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings: tube side 1-6", 1-8"; shell side 2-4", 1-1", 1-1 1/2"..

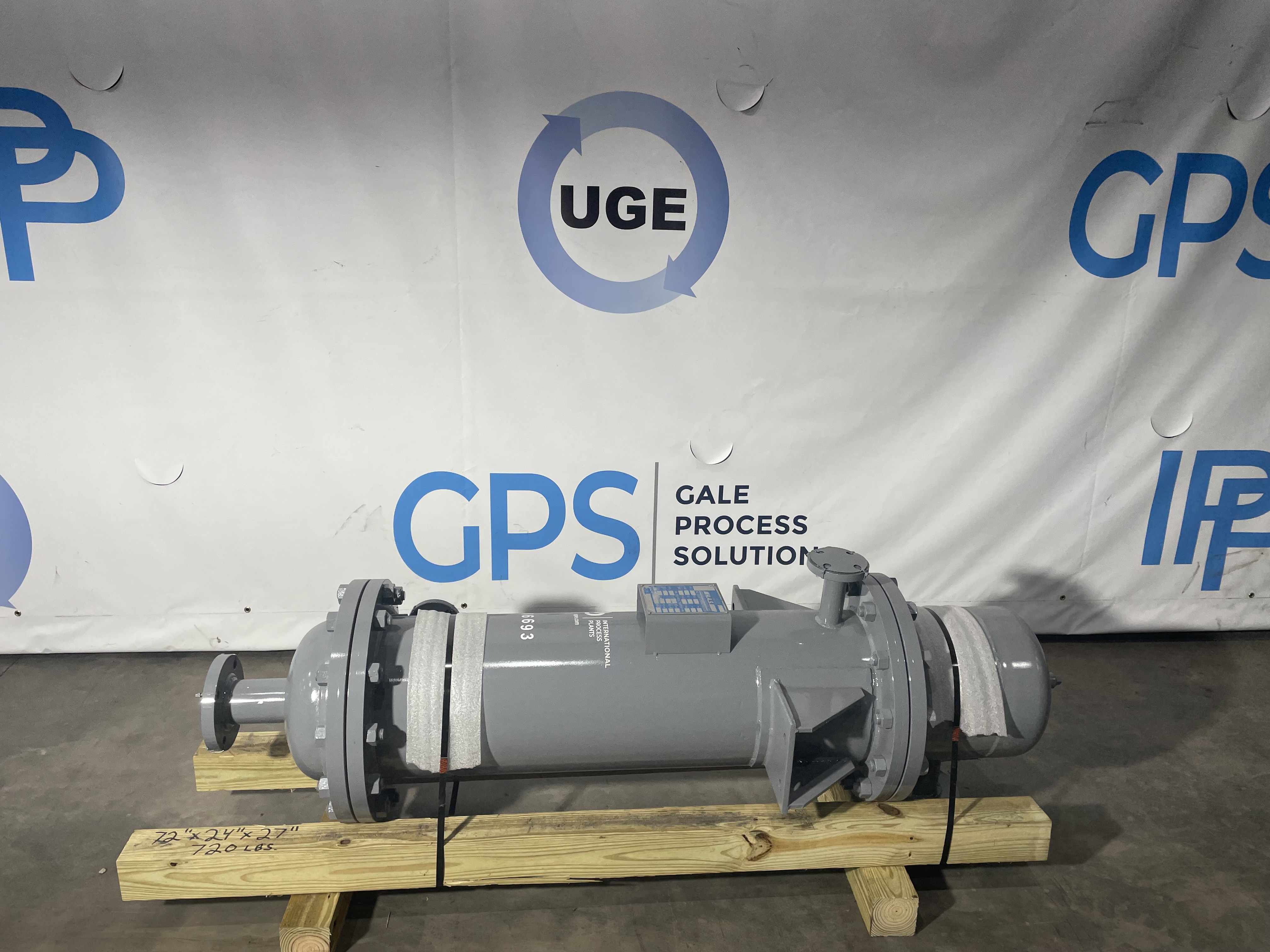

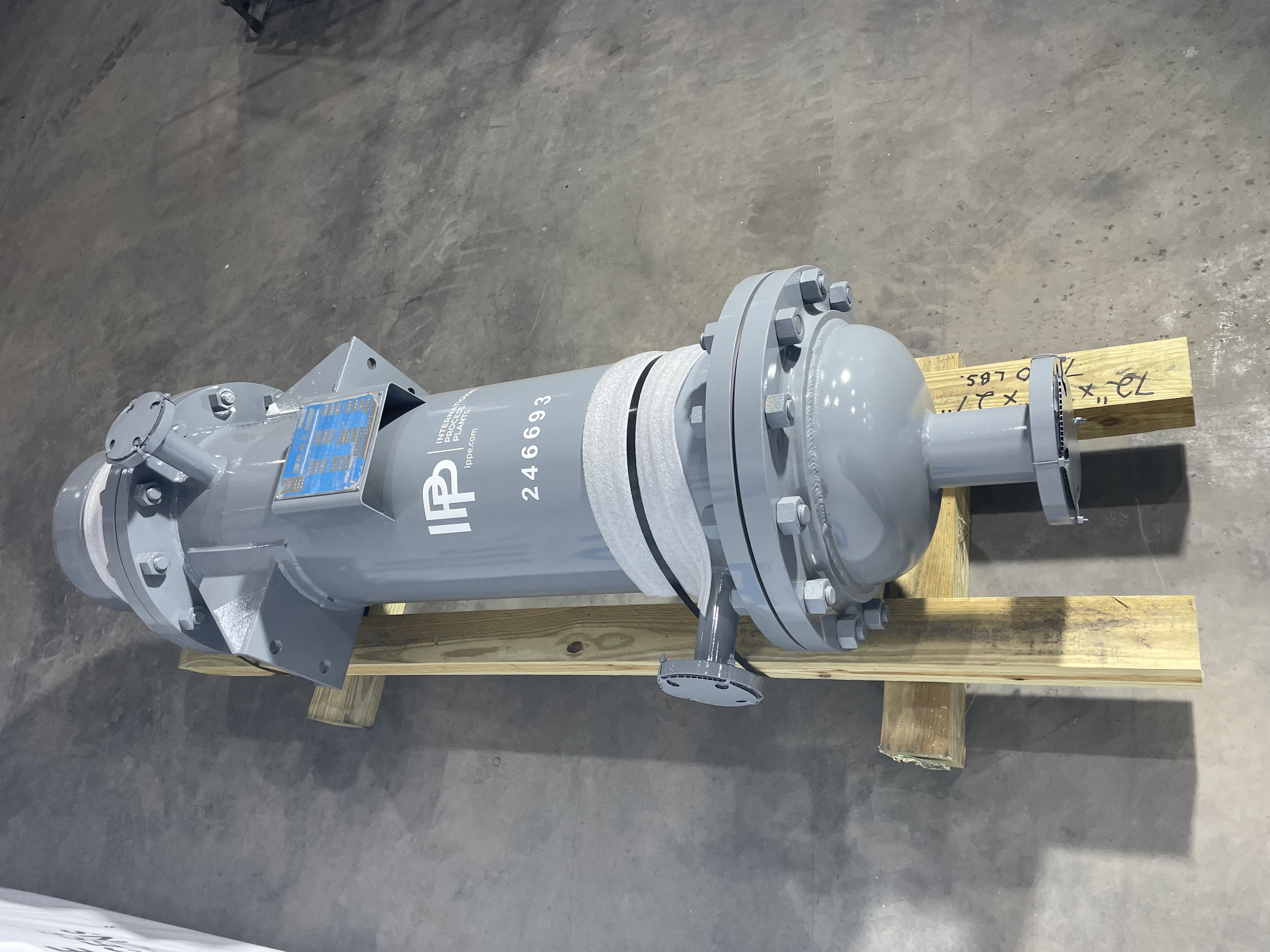

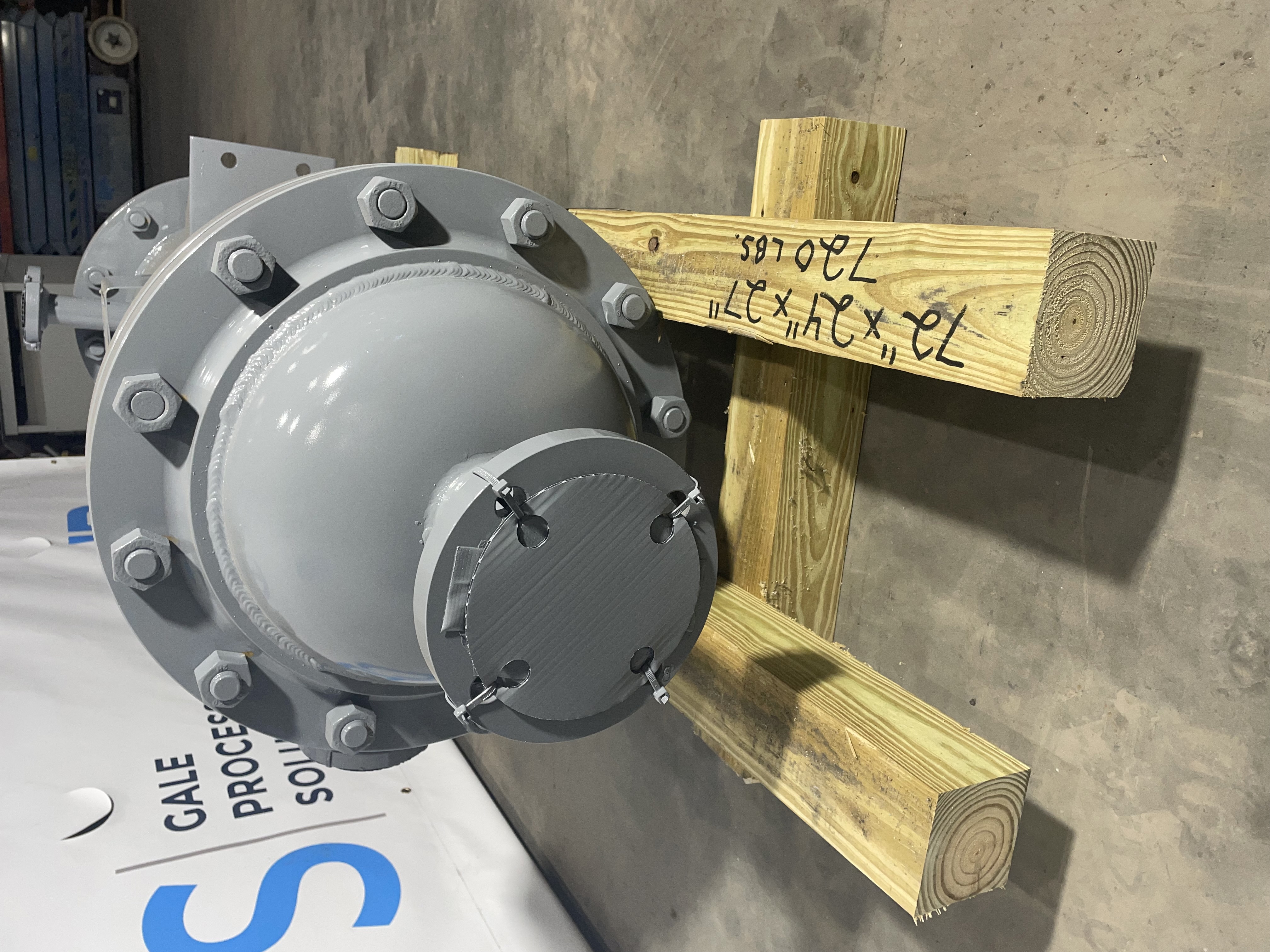

Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Graham Hart (Process Technology) Ltd
Condition: Used
Material: Stainless Steel 304
Heat Transfer Surface Area: 9.6 m² (103.3 ft²)
Orientation: Horizontal
('U' bend not included)
Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 330 °C (626 °F). Shell Material: Carbon Steel. Tube Pressure: 7 bar (101.5 psi). Tube Temperature: 330 °C (626 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304L. Shell Diameter: 450 mm (17.7 in). Head Material: Carbon Steel. Tube Type: U-Tube. Tube Number: 84. Tube Diameter: 19 mm (0.75 in). Tube Length: 1,850 mm (72 in). Nozzle Schedule: openings: 2-75mm - Shell side openings: 3-50mm, 1-25mm.
