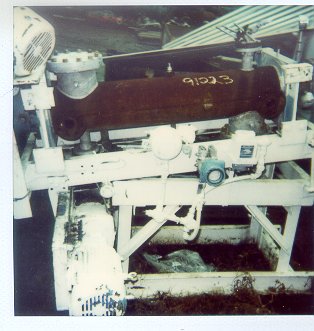

Stainless Steel 316 Artisan Wiped/Thin Film Evaporator - IPP# 91223

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Artisan

Model: R-49-3-1H-70

Condition: Used

Material: Stainless Steel 316

Evaporation Rate: 181.4 kg/h (400 lb/h)

Total Heat Transfer Surface Area: 7.4 m² (80 ft²)

Kontro wiped film evaporator shell rated 25 psi @ 750 deg F. Jacket rated 65 psi @ 750 degree F. Has removable 18" diameter rotor. Mechanical seal. Has 1/2 CS jacket with expansion joint. Has outboard bearings. Has 12" diameter inlet, 8" diameter outlet. Belt driven by 40 HP, 3/60/208/220/440 volt, 885 rpm motor, UL label.

Orientation: Horizontal. Diameter: 1,050 mm (42 in). Height: 2,150 mm (84 in). Pressure: 1.72 bar (25 psi). Temperature: 398.9 °C (750 °F). Mechanical Seal on Shaft: Yes.

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Artisan

Model: 63595A

Condition: Used

Material: Stainless Steel 316

Evaporation Rate: 45.4 kg/h (100 lb/h)

Total Heat Transfer Surface Area: 1.86 m² (20 ft²)

Consists of 20 sq ft Artisan horiz 316SS thin film evaporator. jkt rated 150 psi @ 400 deg F. 316SS rotor. Shell 2' dia x 5'6" long; btm head 2' dia x 2' long. Segmented. Mech seal. Belt driven by 7.5 HP, 1170 rpm, 3/60/230/460 volt motor. w/belt guard.

Orientation: Horizontal. Diameter: 610 mm (24 in). Height: 1,700 mm (66 in). Pressure: 1.03 bar (15 psi). Temperature: 204.4 °C (400 °F). Vacuum: Yes.

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Luwa

Model: DL-1000/6000/10

Condition: Used

Material: Stainless Steel 316

Total Heat Transfer Surface Area: 16 m² (172.2 ft²)

Orientation: Horizontal

3 sections jacket rated by 10bar @ 200 degrees C ( total volume 150liter).

Pressure: 0.5 bar (7.3 psi). Temperature: 200 °C (392 °F). Vacuum: Yes.

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Luwa SMS

Model: D-850/4700/10

Condition: Used

Material: Stainless Steel 316

Evaporation Rate: 267.6 kg/h (590 lb/h)

Total Heat Transfer Surface Area: 11 m² (118.4 ft²)

Jkt rated 13 bar @ 220 deg C Shell 850mm (34") dia x 4800mm (15.8') long, Rotor driven by 30 KW, 3/50/380 volt, 260 rpm output speed.

Orientation: Horizontal. Diameter: 850 mm (33.5 in). Height: 4,800 mm (189 in). Pressure: 0.5 bar (7.3 psi). Temperature: 220 °C (428 °F). Vacuum: Yes.
