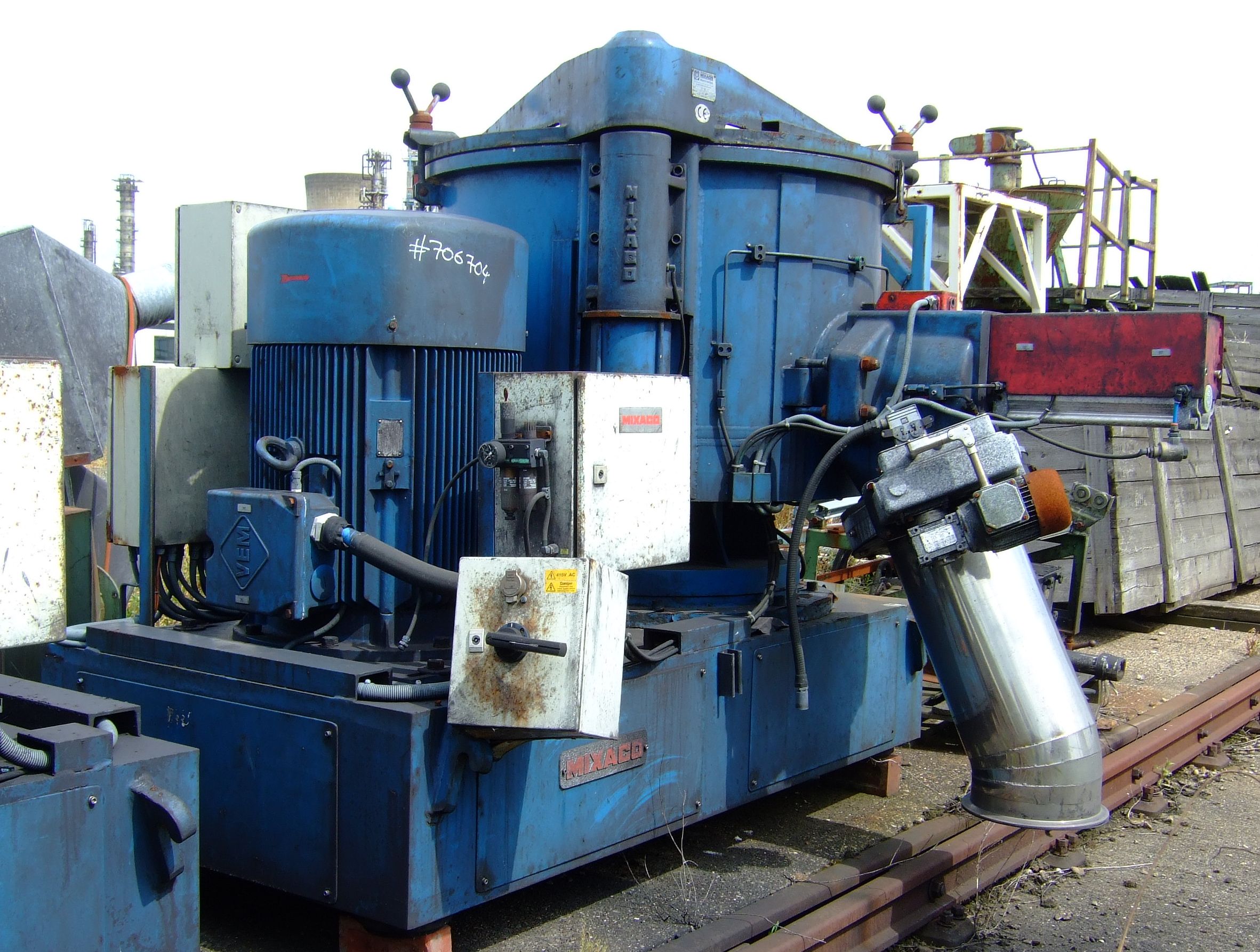

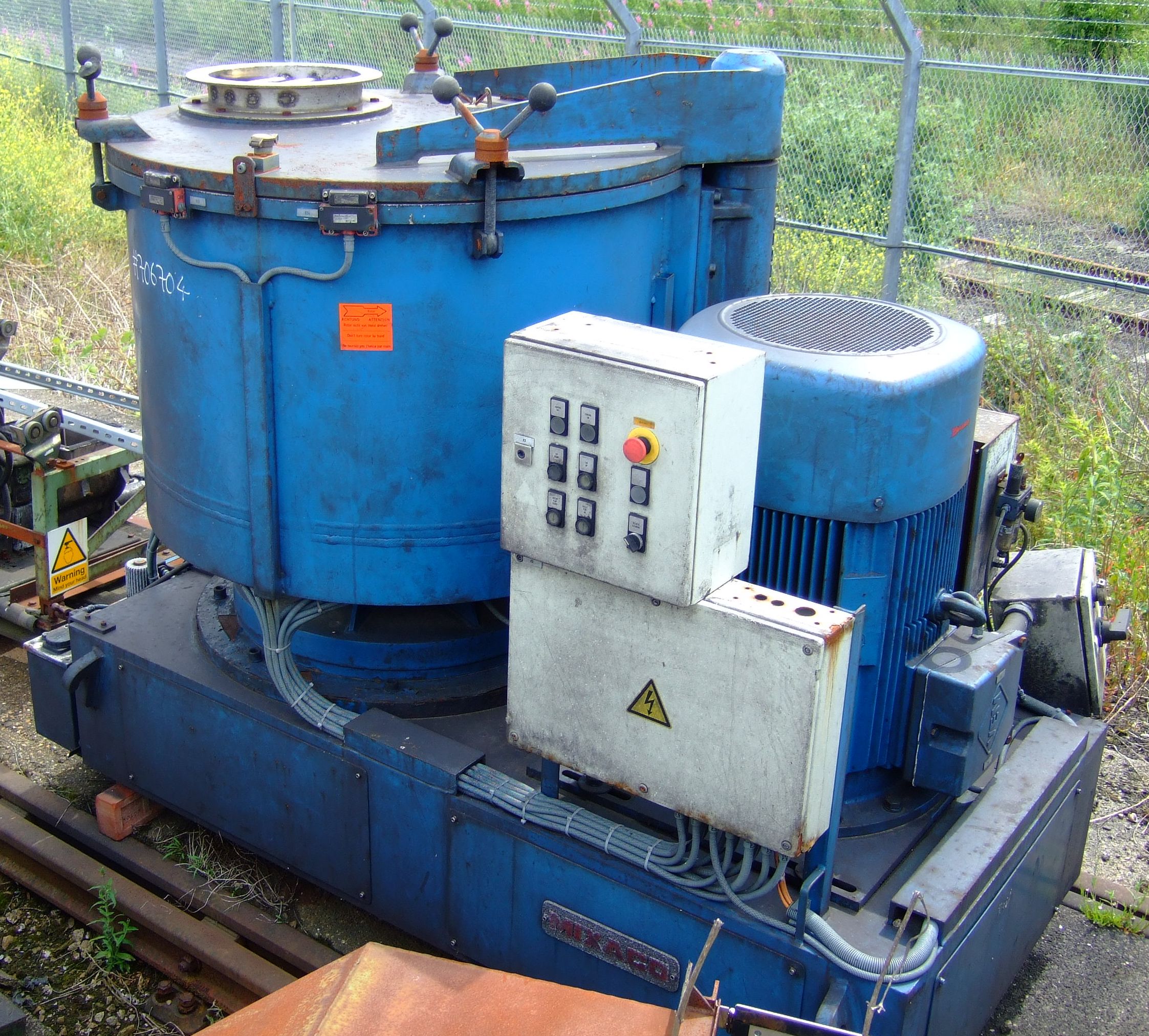

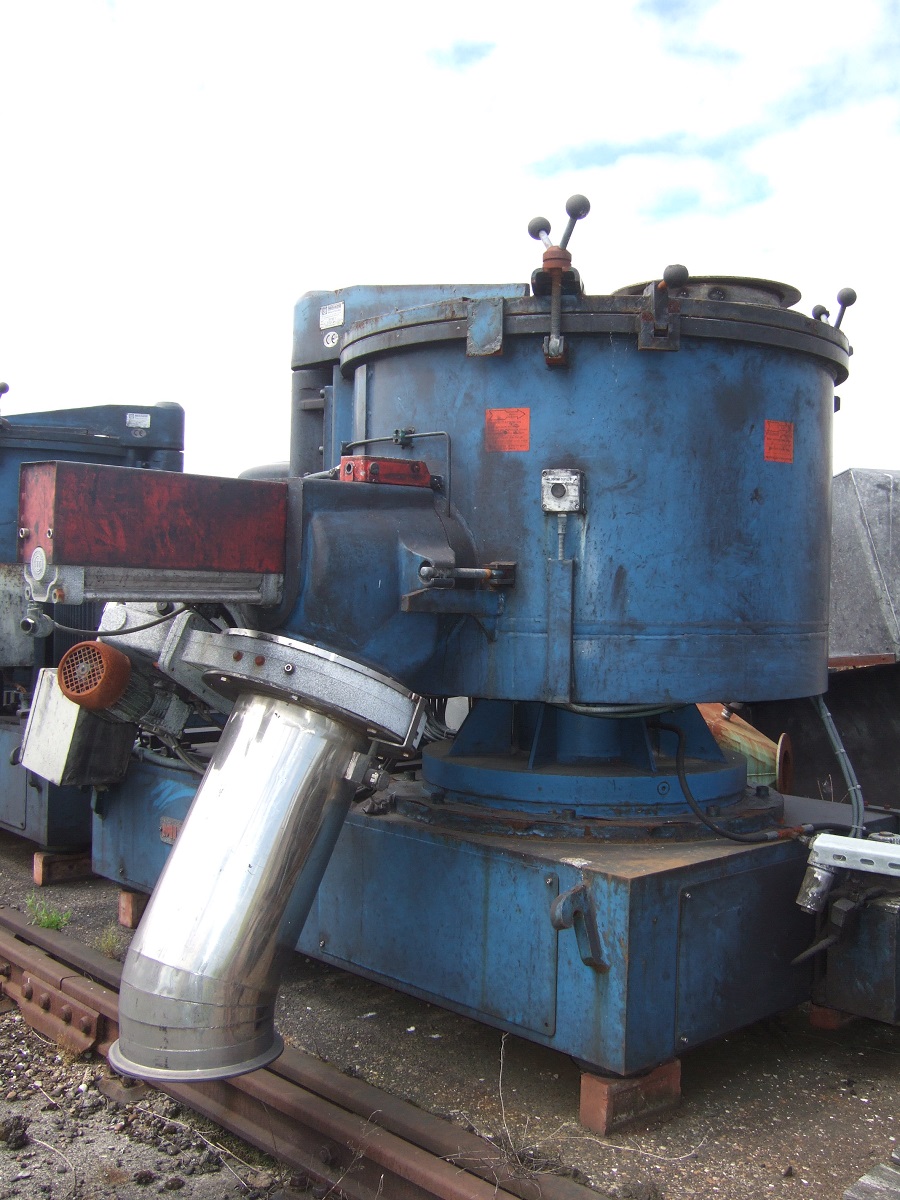

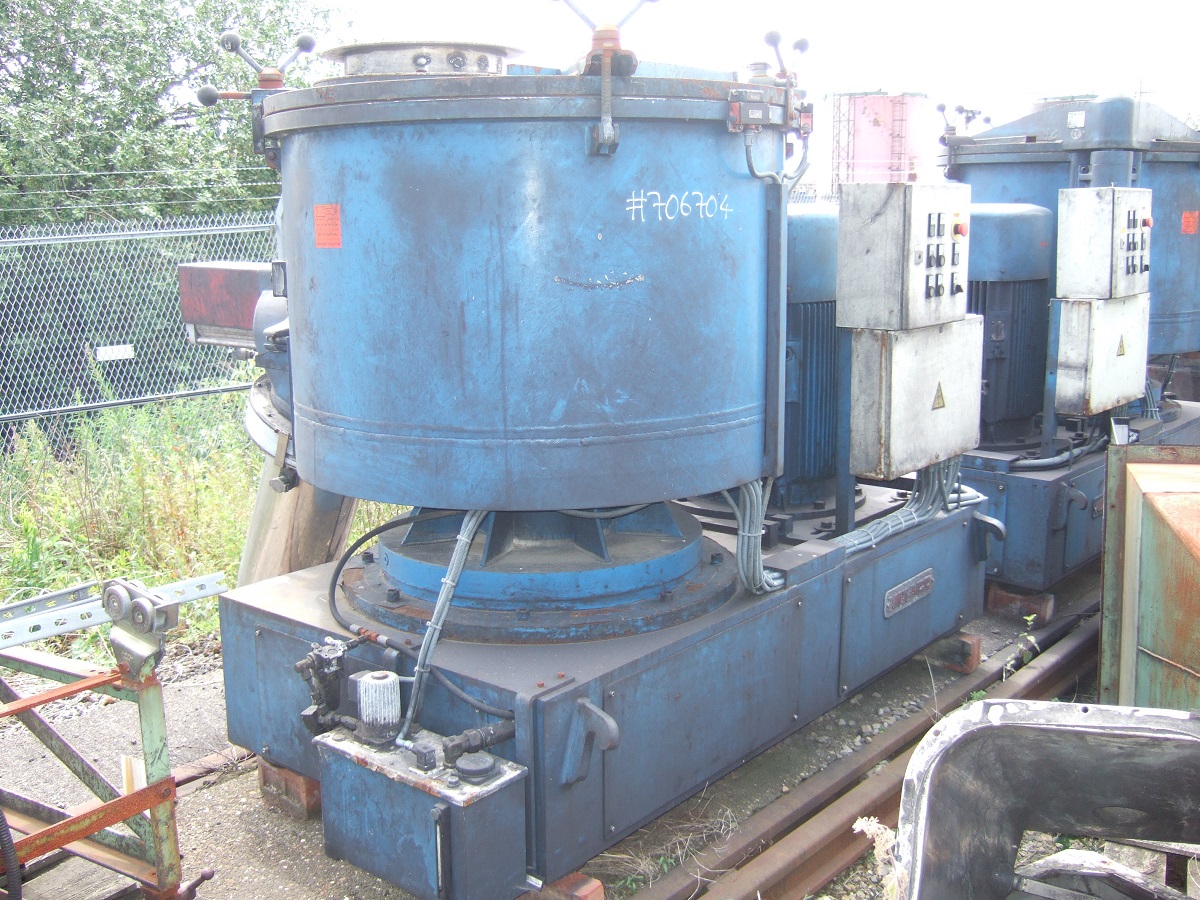

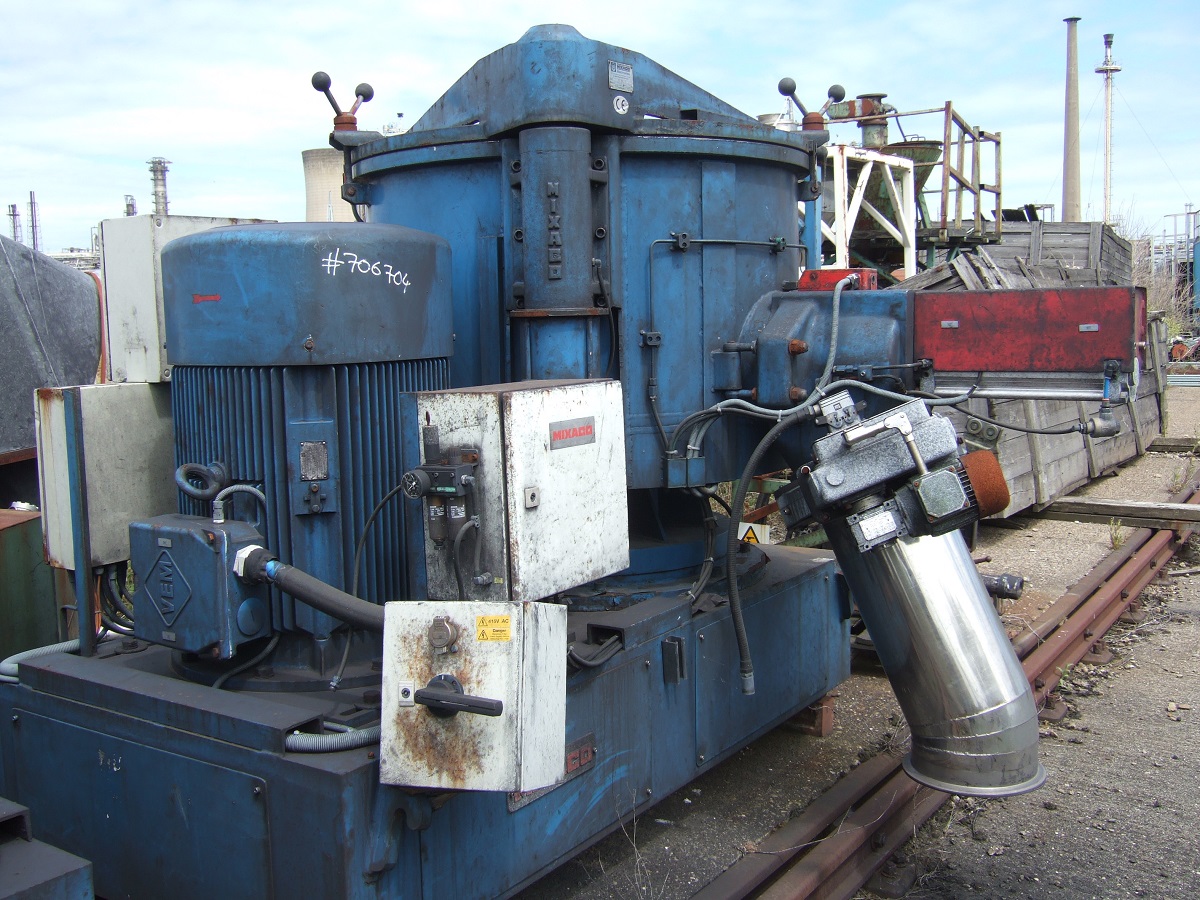

IPP# 706704 - Mixer-Intensive 750 L (198 gallons) Stainless Steel 304 For Sale

Type: Mixer-Intensive

Manufacturer: Mixaco

Model: SM-600-D

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 750 L (198 gallons)

Motor Power: 45 kW (60.3 HP)

Type: High intensity mixer
600 liter capacity
3/50/400/690 volt
air pressure 6 bar,
350mm feed,
300mm discharge with valve.

Bowl Diameter: 1,180 mm (46.5 in). Bowl Depth: 690 mm (27.2 in). Pressure: 6 bar (87 psi).

Type: Mixer-Intensive

Manufacturer: Plastechnik Greiz

Model: MSHK750/2000

Condition: Unused

Material: Stainless Steel 304

Capacity (Design): 780 L (206 gallons)

Motor Power: 105 kW (141 HP)

750/2000 liter
fluidizing intensive mixer/cooler system
Mixer Mdl 750-4
cooler mixer Mdl 2000-2
Mixer/heater is 780 liter total capacity, 600 liter working capacity.
Shell 1.0m dia.
Load 235 Kg.
W/200mm discharge valve.
W/double jkt for heating and cooling rated 0.05 MPa
mixer blades output speed 450/900 rpm.
Motor type AHR355-8/4.
Mixer/cooler is 2000 liter total capacity, 1600 liter working capacity.
Load 580 kg.
W/jkt for cooling.
Shell 1.8m dia.
W/300mm dia discharge valve.
Driven by 18.5 KW, 3/50/380 volt, 1460 rpm motor, 75 rpm output speed.
W/side entering chopper, driven by 11.0 KW, 3/50/380 volt, 1790 rpm motor.

Bowl Diameter: 1,000 mm (39.4 in). Blade Speed (RPM): 900. Bowl Jacket: Yes. Vacuum: Yes.

Type: Mixer-Intensive

Manufacturer: Plastechnik Greiz

Model: MSHK750/2000

Condition: Unused

Material: Stainless Steel 304

Capacity (Design): 780 L (206 gallons)

Motor Power: 105 kW (141 HP)

750/2000 liter
fluidizing intensive mixer/cooler system.
Mixer Mdl 750-4, cooler mixer Mdl 2000-2.
Mixer/heater is 780 liter total capacity,
Shell 1.0m dia.
Load 235 Kg.
W/200mm discharge valve.
W/double jkt for heating and cooling rated 0.05 MPa.
mixer blades output speed 450/900 rpm.
Motor type AHR355-8/4.
Mixer/cooler is 2000 liter total capacity,
1600 liter working capacity.
Load 580 kg.
W/jkt for cooling.
Shell 1.8m dia.
W/300mm dia discharge valve.
Driven by 18.5 KW, 3/50/380 volt, 1460 rpm motor, 75 rpm output speed.
W/side entering chopper, driven by 0.55 KW, 3/50/380 volt, 1790 rpm motor.

Bowl Diameter: 1,000 mm (39.4 in). Bowl Depth: 300 mm (11.8 in). Blade Speed (RPM): 900. Bowl Jacket: Yes. Vacuum: Yes.

Type: Mixer-Intensive

Manufacturer: Petzholdt

Model: PKM4800

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 4,800 L (1,268 gallons)

Motor Power: 55 kW (73.8 HP)

jacketed high intensity mixer/disperser/homogenizer/emulsifier
Double jacketed for heating and cooling
Underdriven
Top openings for liquid and powder feed
Cover opens with a pneumatic operated cylinder. 120mm side bottom discharge with pneumatic operated valve

Bowl Diameter: 2,500 mm (98.4 in). Bowl Depth: 1,410 mm (55.5 in). Bowl Jacket: Yes.
