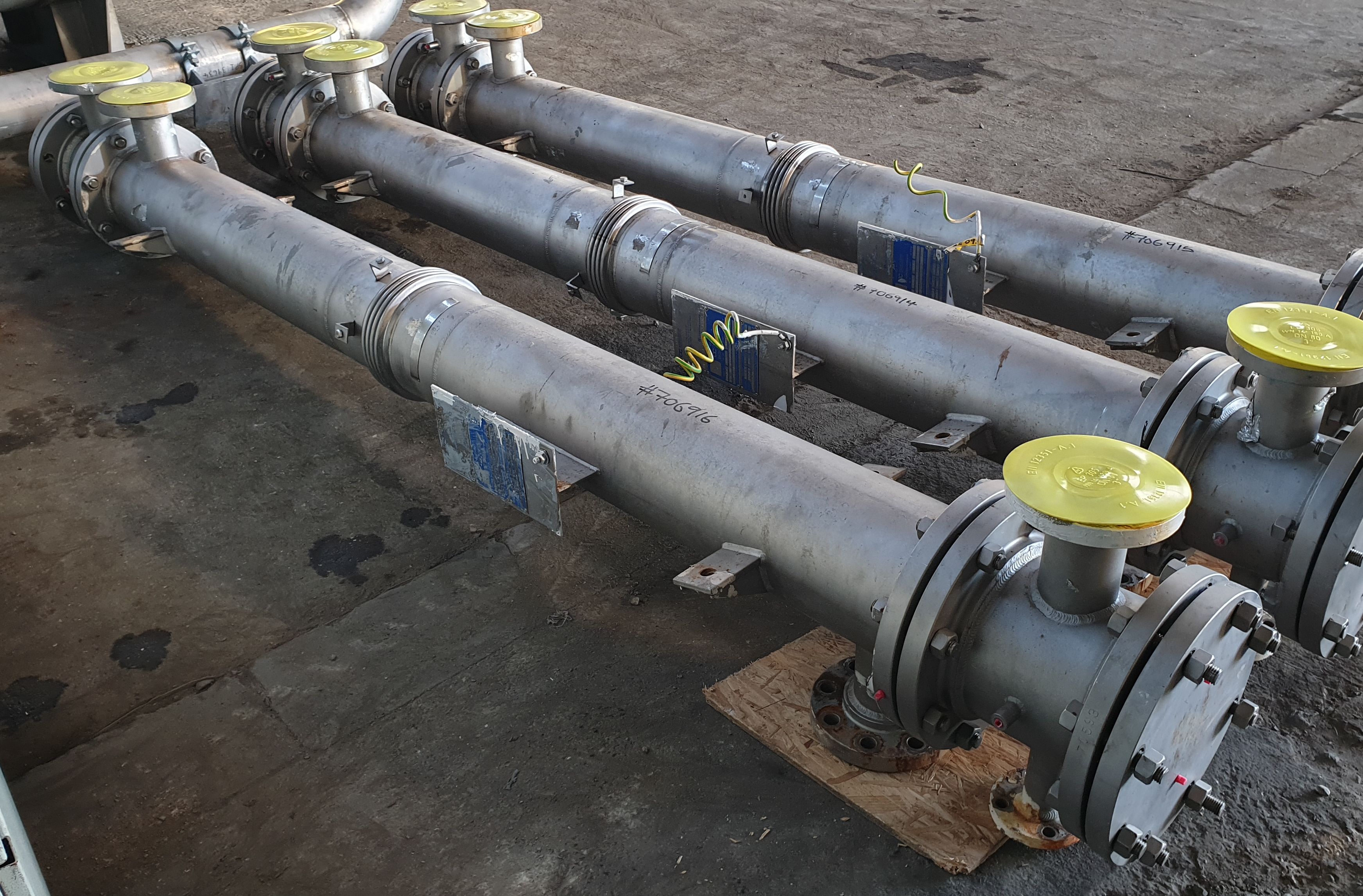

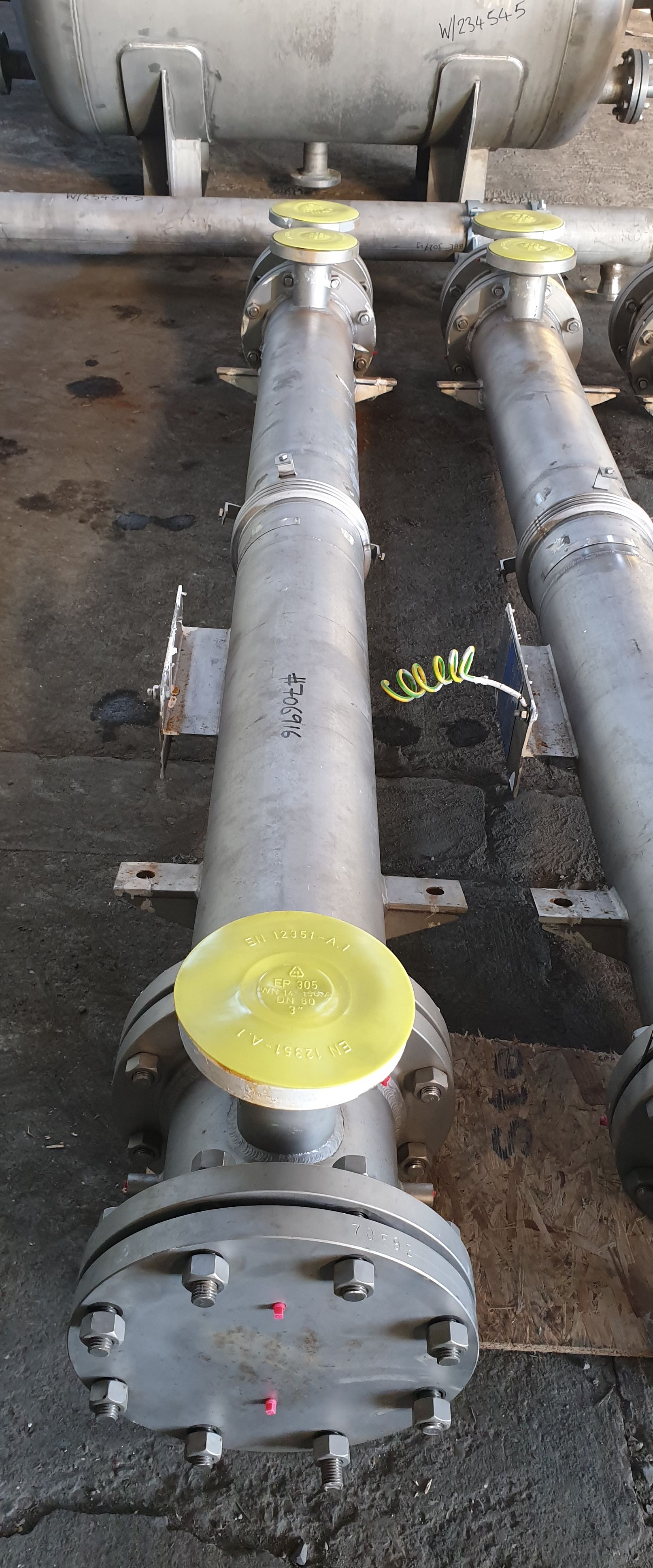

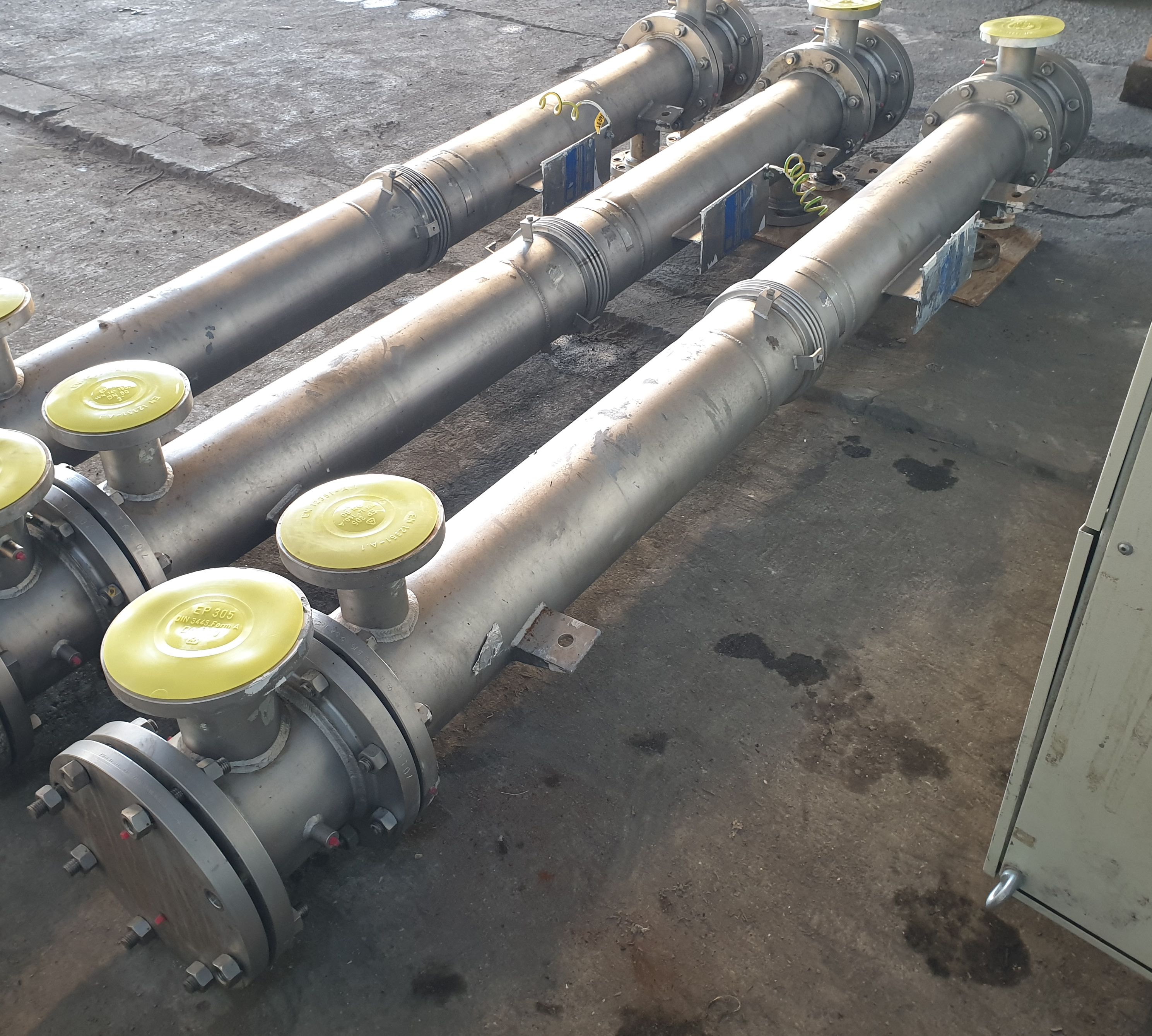

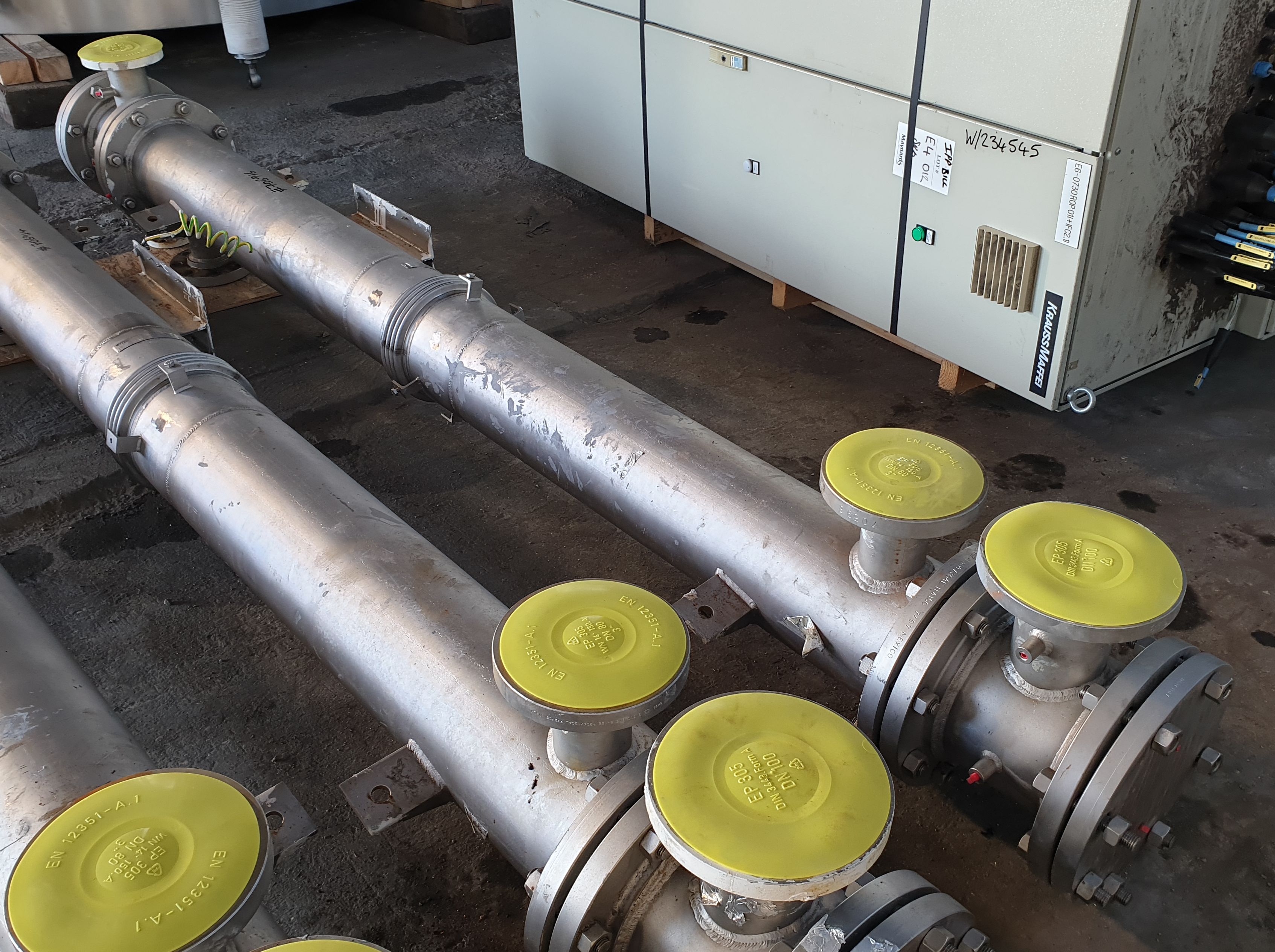

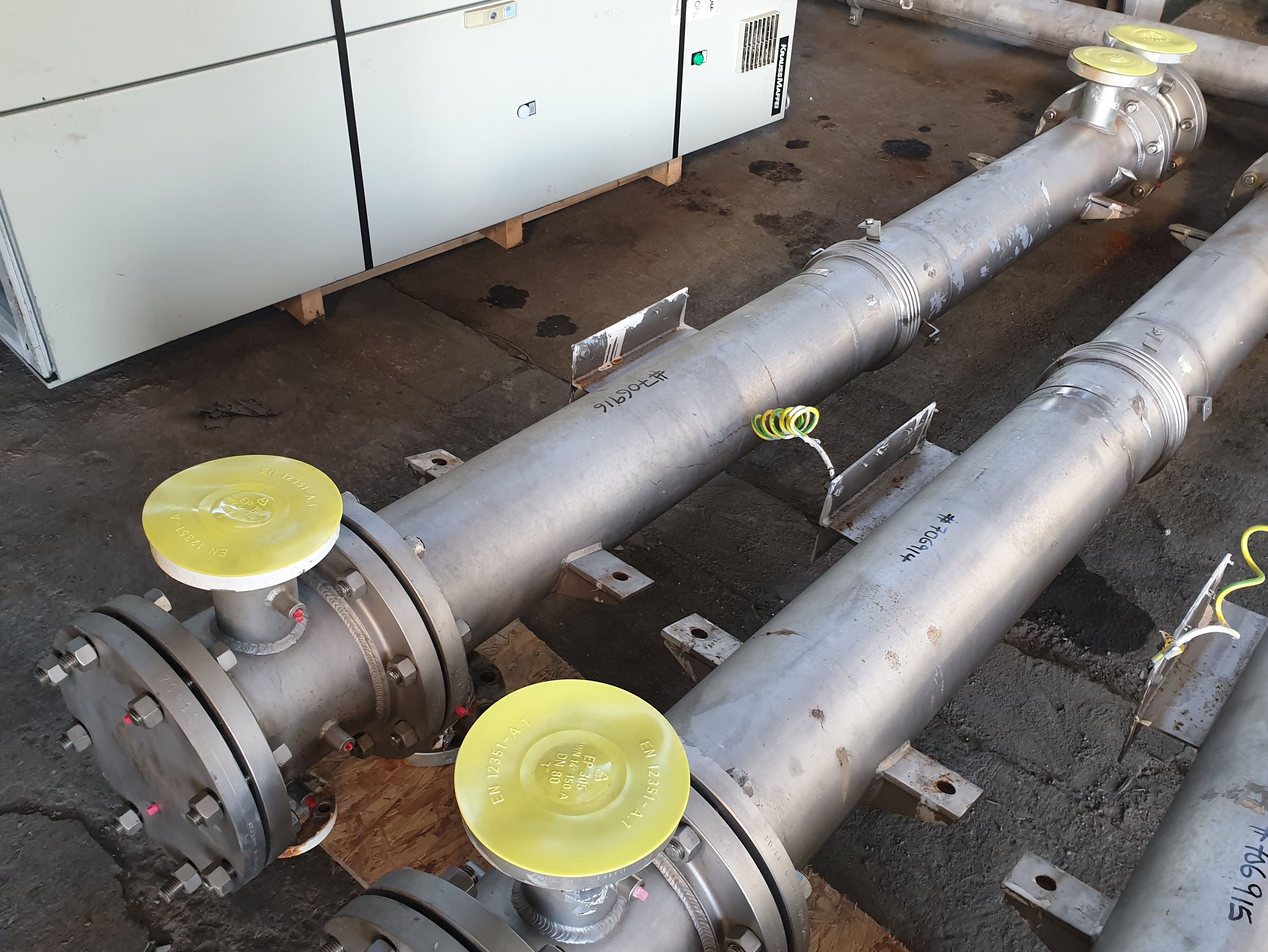

Tantalum/2.5%W (Tungsten) tube Design and fabricated per ASME SECT. V111. DIV. 1 1988 and 1998 ADDENDA TEMA “C” design pressure tube side 6.9 bar + full vacuum (100 psig + full vacuum) @ 204 degrees C (400 degrees F), shell side 6.9 bar + full vacuum (100 psig + full vacuum) @ 204 degrees C (400 degrees F) on a 28.6mm (1 1/8”) triangle pitch, double grooved roller expanded and seal welded tubes, (2) 304L stainless steel tube sheets with Tantalum/2.5% W (Tungsten) lining, (2) Tantalum/2.5%W (Tungsten) lined channel heads with a flat removeable end cover 304L stainless steel shell with expansion bellows (40) Teflon/PTFE internal baffle plates, 39 spaces @ 50.8mm (2”) 39 spaces @ 50.8mm (2”)
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Cosmos Metalurgical (Camarillo CA)
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 4.3 m² (46.3 ft²)
Orientation: Horizontal

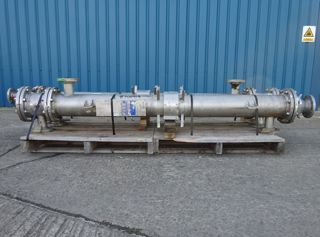

working pressure tube side 150 psi (10.3 bar) + full vacuum @ 400 degrees F (204 degrees C), shell side 150 psi (10.3 bar) + full vacuum @ 400 degrees F (204 degrees C) single pass 200mm I.D 304L stainless steel shell with expansion bellows (2) 304L stainless steel heads with Tantalum lining (1) flat channel head
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Tantalum. Vacuum: Yes. Shell Diameter: 200 mm (7.9 in). Head Material: Stainless Steel 304. Tube-side Passes: 1. Tube Number: 33. Tube Diameter: 19 mm (0.75 in). Tube Length: 2,280 mm (89.8 in). Nozzle Schedule: - Tube side openings: Coned head with 1-100mm, flat channel head with 1-50mm - Shell side openings: 2-80mm.
Type: Heat Exchanger
Subtype: Shell and Tube

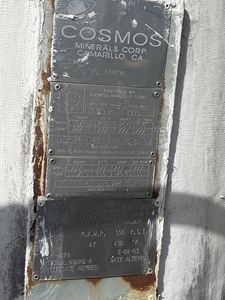

Manufacturer: Cosmos Metalurgical (Camarillo CA)
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 20.8 m² (224 ft²)

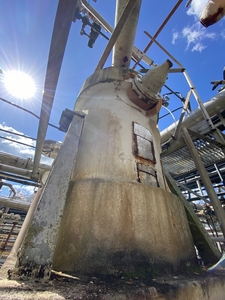

Orientation: Vertical
Shell rated 150psi FV @ 450 degF. Tubes rated. 150psi FV @ 450 degF
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Vacuum: Yes.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Cosmos Metalurgical (Camarillo CA)
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 29.5 m² (317 ft²)
Shell Pressure: 10.3 bar (150 psi)
CS shell rated 150psi FV @ 150 psi @450 deg F. Tantalum tubes rated 150psi FV@ 450 degF
Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Length: 1,829 mm (72 in). Tube Type: Straight Tube.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Cosmos Metalurgical (Camarillo CA)
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 29.5 m² (317 ft²)
Shell Pressure: 10.3 bar (150 psi)
shell rated 150psi FV @ 150 psi @450 deg F tubes rated 150psi FV@ 450 degF
Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Length: 1,829 mm (72 in).
