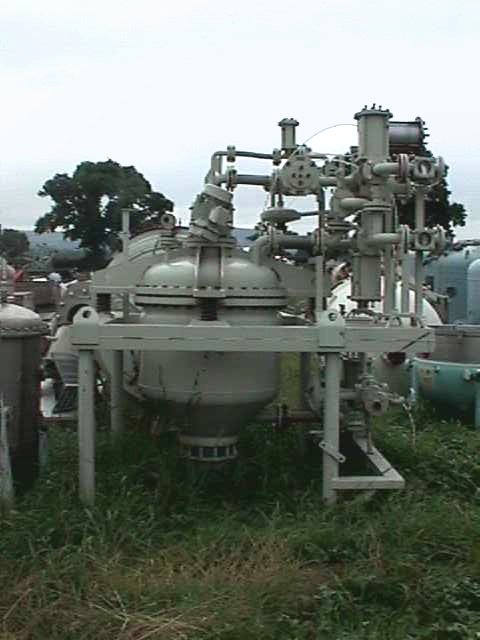

Filter body manufactured by R Stihler, serial #9018
Filter tank capacity 593 liter. with (2) vibratory motors
Motor: 3 phase
non-flameproof motors
and bottom cone
Type: Filter
Subtype: Pressure Leaf
Manufacturer: BHS (Germany)
Model: TDF760/60/8
Condition: Used
Material: Stainless Steel 316
Filtration Area: 3.3 m² (35.5 ft²)
Diameter: 914 mm (36 in)
21" cone
Filter vessel volume 496 liter
Each plate 760mm diameter
Cake is discharged by means of oscillation
Filter has (8) horizontal leaves
Orientation: Horizontal. Pressure: 8 bar (116 psi). Temperature: 80 °C (176 °F).
Type: Filter
Subtype: Pressure Leaf
Manufacturer: BHS (Germany)
Model: TDF760/60/8
Condition: Used
Material: Stainless Steel 316
Filtration Area: 3.3 m² (35.5 ft²)
Diameter: 914 mm (36 in)
21" cone
Filter vessel volume 496 liter
Each plate 760mm diameter
Cake is discharged by means of oscillation with 3.5 KW, 3/50/380 volt motor
Filter has (8) horizontal leaves
Pressure: 8 bar (116 psi). Temperature: 80 °C (176 °F). Overall Length: 533 mm (21 in).
Type: Filter
Subtype: Pressure Leaf
Manufacturer: Sparkler
Model: HRC-100
Condition: Used
Material: Stainless Steel 304
Filtration Area: 10.9 m² (117 ft²)
Diameter: 1,219 mm (48 in)
(12) 48" long horiz filter plates
rotate to vert position for discharge
Designed for dry cake discharge via screw conveyor (conveyor and conveyor drive missing)
Approx 560 gal volume
18 cu ft cake capacity (1/2" clearance)
Designed for pneumatic discharge and hydraulically rotating plates
(Vibrators and hydraulic rotating pump missing)
Orientation: Horizontal. Pressure: 5.17 bar (75 psi). Overall Length: 1,651 mm (65 in). Jacket: Yes. Jacket Pressure: 5.52 bar (80 psi). Jacket Type: Half Pipe/Limpet.
Type: Filter
Subtype: Pressure Leaf
Manufacturer: Padovan
Model: TU 5915.85
Condition: Used
Material: Stainless Steel 304
Filtration Area: 15 m² (161 ft²)
Orientation: Vertical
Filter type: Ecofilter
-10 to 50 deg C
Vertical tank,
horizontal leaf design with centrifugal cake discharge.
Includes feed pump.
built on control panel
Pressure: 8 bar (116 psi). Temperature: 50 °C (122 °F).
