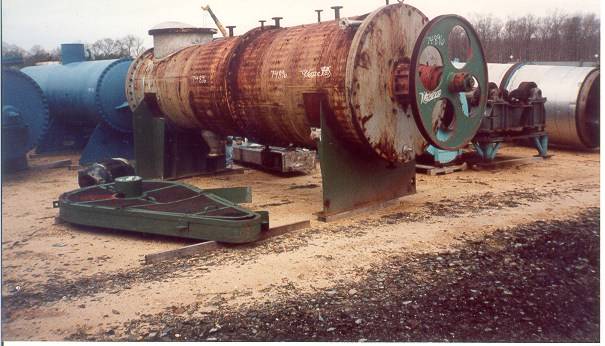

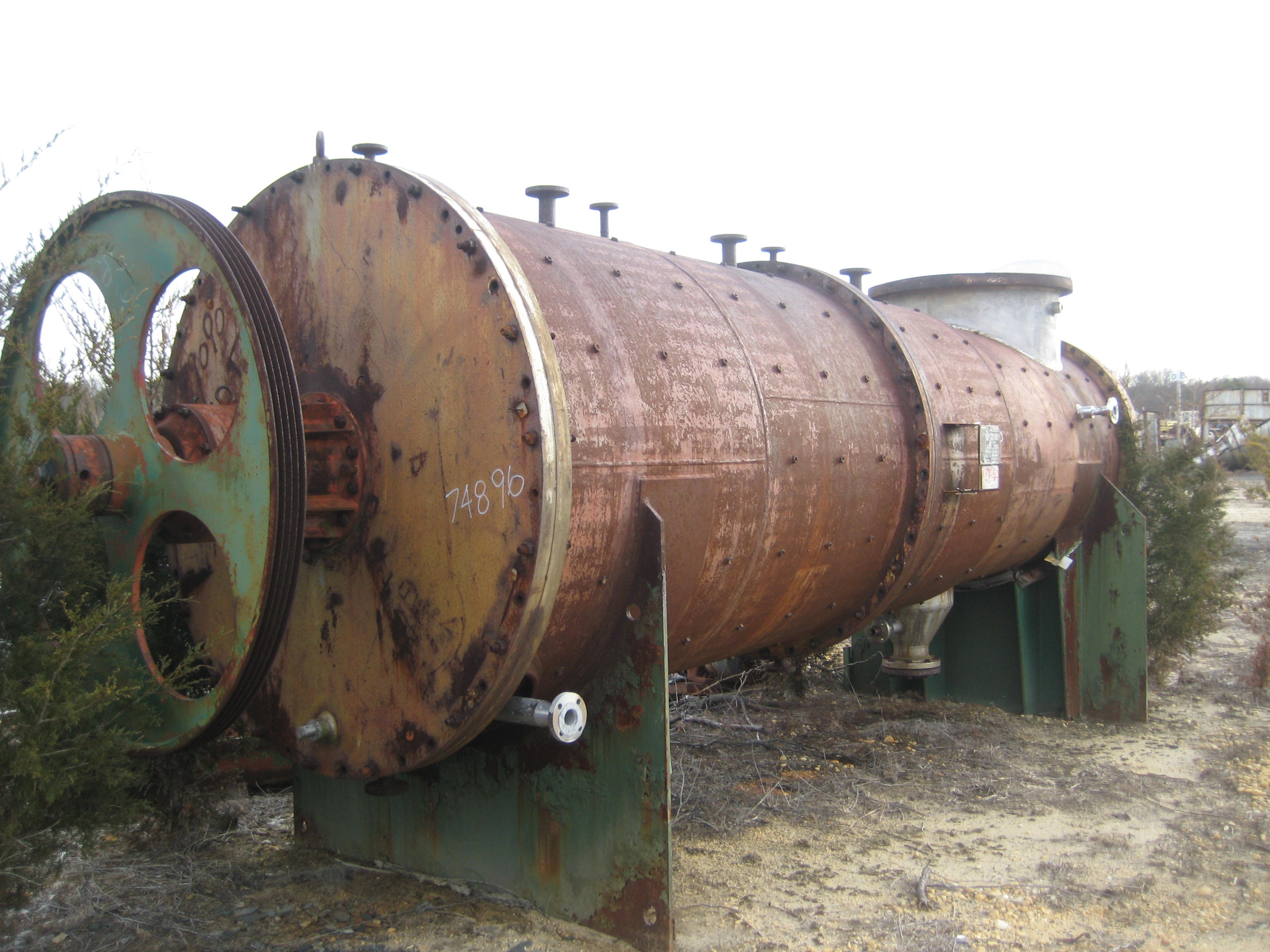

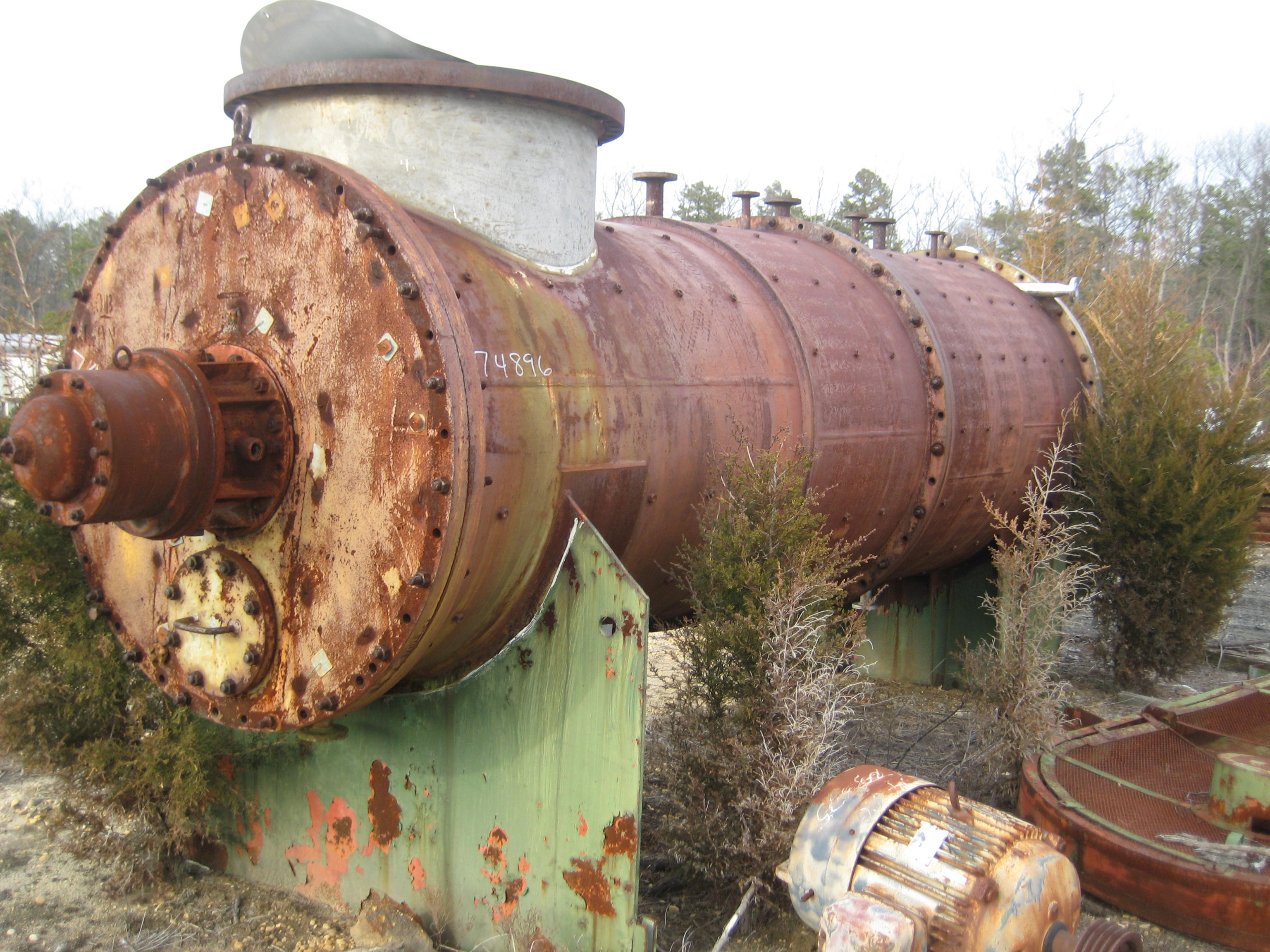

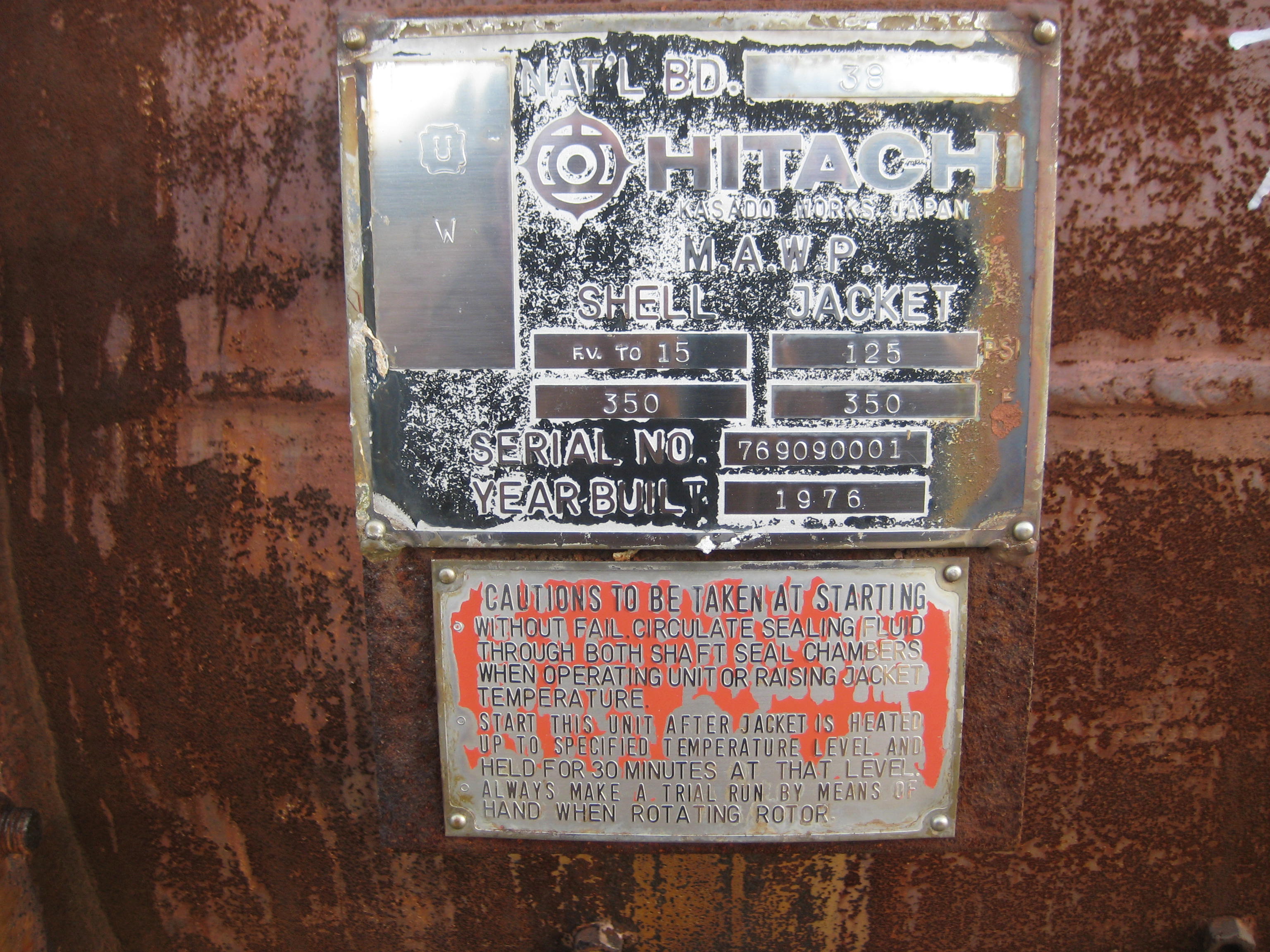

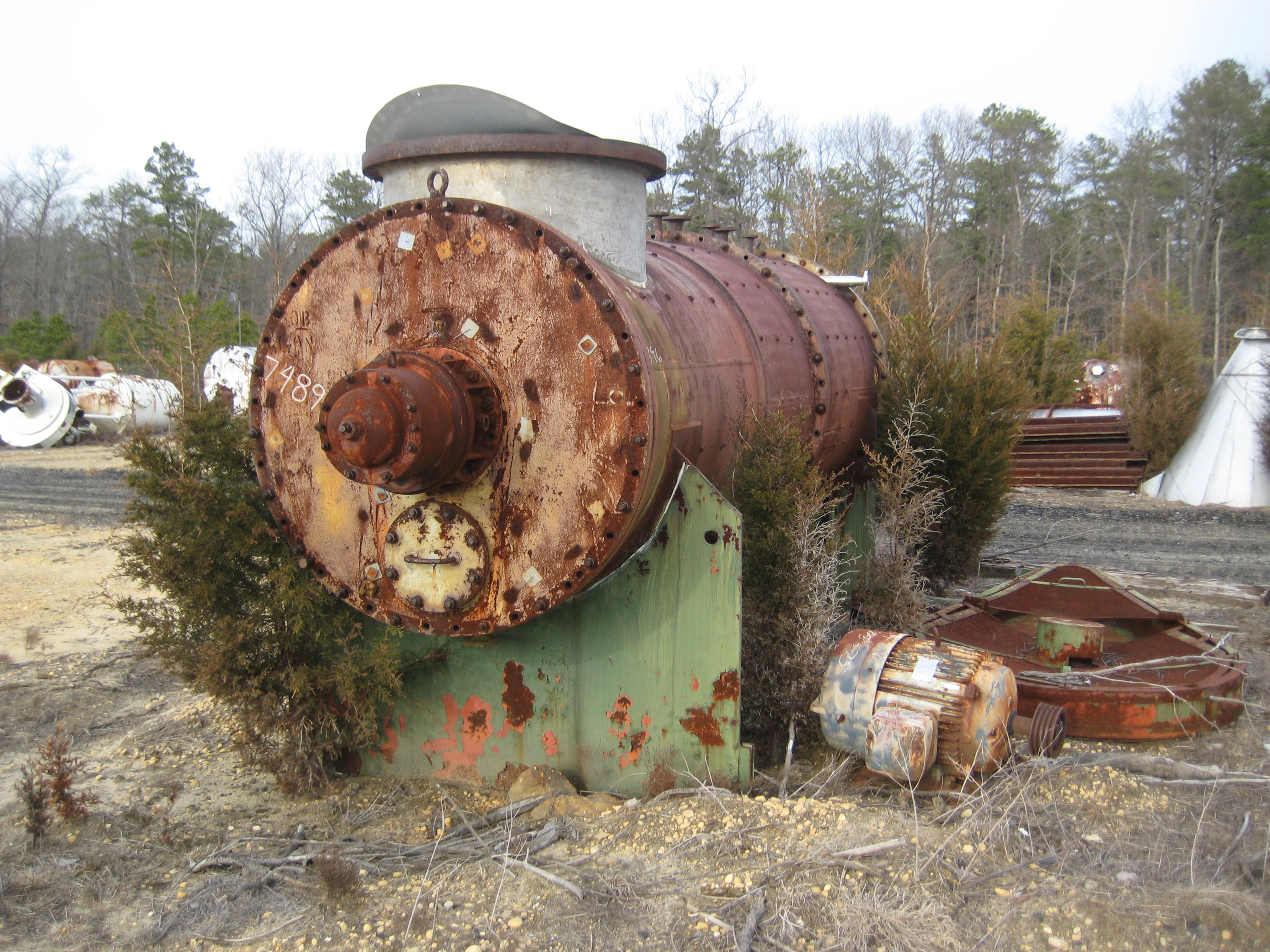

jkt rated 125 psi @ 350 deg F 2-zone CS jkt.
10' long evaporation section. 8-blade rotor,
mech seal on shaft.

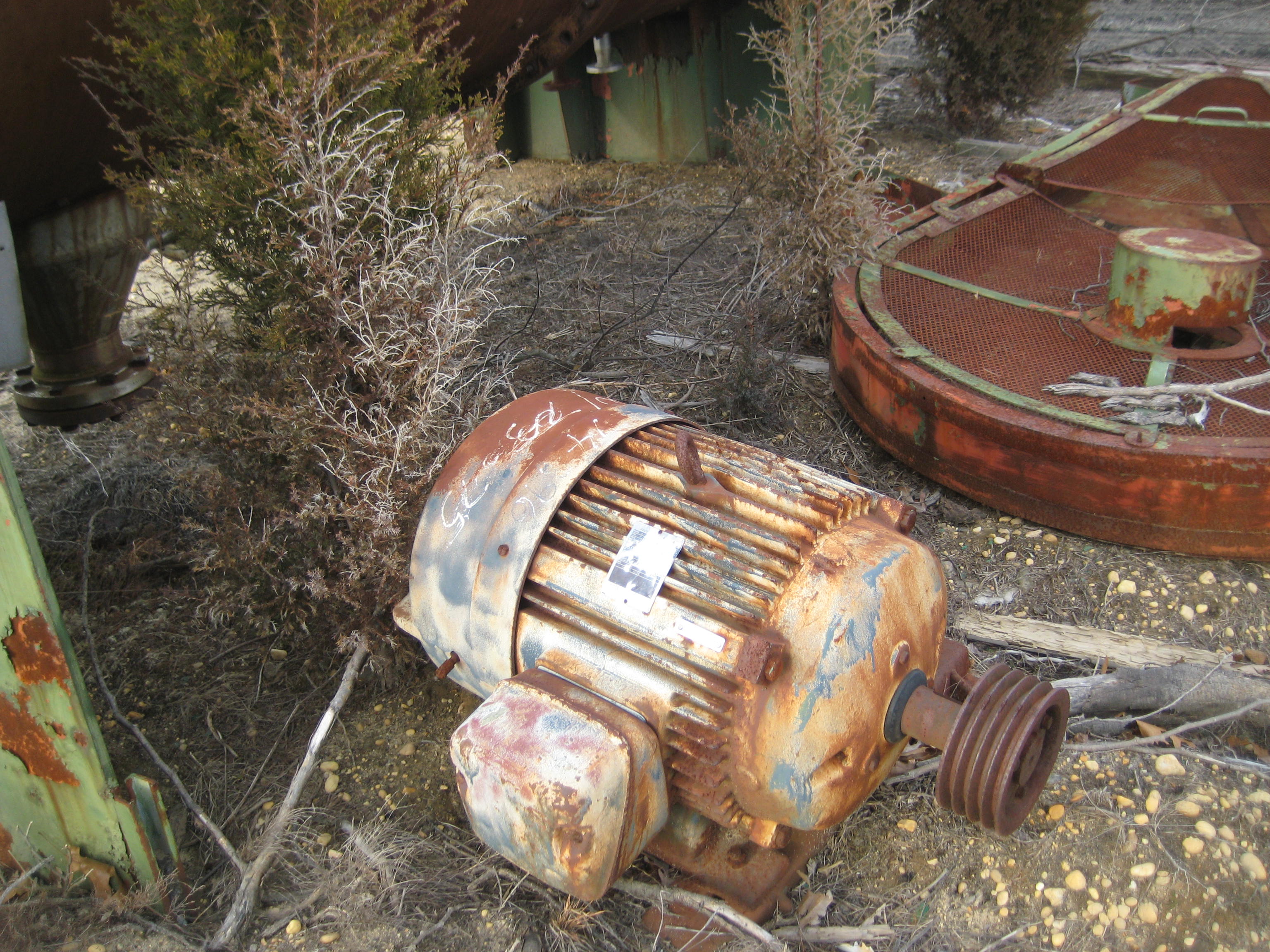

Belt driven by 30 HP, 3/60/460 volt, 890 rpm TEFC motor.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Hitachi
Model: Adjust-O-Film
Condition: Used
Material: Stainless Steel 304
Clad: Yes
Evaporation Rate: 122 kg/h (270 lb/h)
Total Heat Transfer Surface Area: 5.02 m² (54 ft²)

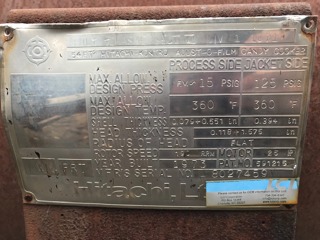

Orientation: Horizontal. Diameter: 1,219 mm (48 in). Height: 1,829 mm (72 in). Length: 4,013 mm (158 in). Pressure: 1.03 bar (15 psi). Temperature: 182 °C (360 °F). Jacket Pressure: 8.62 bar (125 psi). Jacket Temperature: 182 °C (360 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Electric.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa
Model: DL-1000/6000/10
Condition: Used
Material: Stainless Steel 316
Total Heat Transfer Surface Area: 16 m² (172 ft²)
Orientation: Horizontal
3 sections
jacket rated by 10bar @ 200 degrees C ( total volume 150liter).
Pressure: 0.5 bar (7.25 psi). Temperature: 200 °C (392 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Artisan
Model: R-49-3-1H-70
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 181 kg/h (400 lb/h)
Total Heat Transfer Surface Area: 7.43 m² (80 ft²)
Kontro wiped film evaporator
shell rated 25 psi @ 750 deg F. Jacket rated 65 psi @ 750 degree F.
Has removable 18" diameter rotor. Mechanical seal. Has 1/2 CS jacket with expansion joint. Has outboard bearings. Has 12" diameter inlet, 8" diameter outlet. Belt driven by 40 HP, 3/60/208/220/440 volt, 885 rpm motor, UL label.
Orientation: Horizontal. Diameter: 1,067 mm (42 in). Height: 2,134 mm (84 in). Pressure: 1.72 bar (25 psi). Temperature: 399 °C (750 °F). Mechanical Seal on Shaft: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: D-850/4700/10
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 268 kg/h (590 lb/h)
Total Heat Transfer Surface Area: 11 m² (118 ft²)
Jkt rated 13 bar @ 220 deg C
Shell 850mm (34") dia x 4800mm (15.8') long,
Rotor driven by 30 KW, 3/50/380 volt, 260 rpm output speed.
Orientation: Horizontal. Diameter: 850 mm (33.5 in). Height: 4,800 mm (189 in). Pressure: 0.5 bar (7.25 psi). Temperature: 220 °C (428 °F). Vacuum: Yes.
