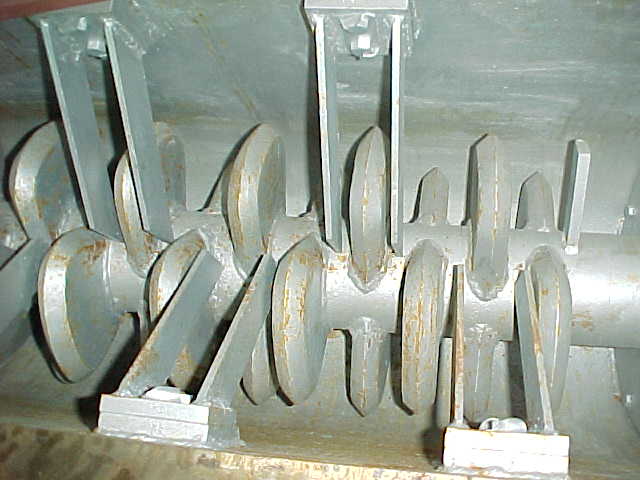

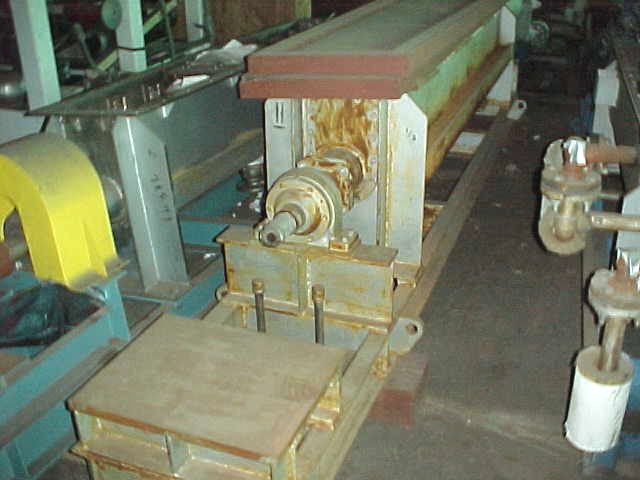

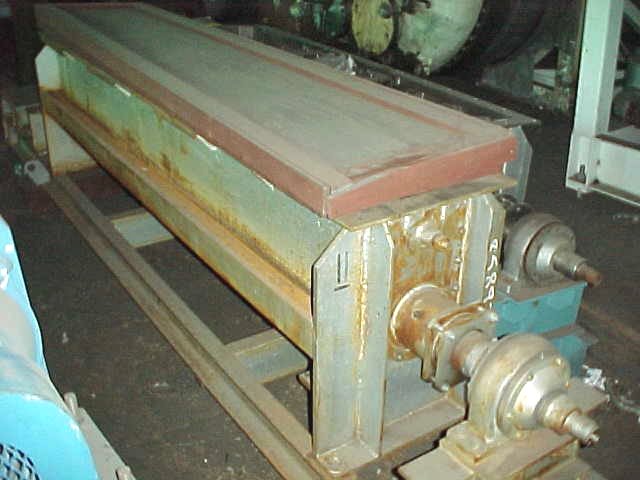

Unused Carbon Steel Gale Process Solutions 1P1208JTC Dryer-Porcupine - IPP# 85892

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1208JTC

Condition: Unused

Material: Stainless Steel 316L

Shell Configuration: Trough

Operational Mode: Continuous

• 12" diameter-ASME stamp for Jacket Only Link Belt HP rated 10’
• Vessel rated for 3psi +/- (vacuum)
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 2,438 mm (96 in). Number of Shafts: 1. Has Jacket: Yes. Porcupine Surface Area: 3.3 m² (35 ft²). Porcupine Operating Pressure: 0.21 bar (3 psi). Porcupine Operating Temperature: 148.9 °C (300 °F). Jacket Operating Pressure: 3.4 bar (50 psi). Jacket Operating Temperature: 148.9 °C (300 °F). Total Heat Transfer Surface Area: 8.4 m² (90 ft²). Size: 1208.

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1203JTB

Condition: Used

Material: Carbon Steel

Shell Configuration: Trough

Operational Mode: Batch

• Heating medium is hot oil or steam
• Vessel rated 20 psig and full vacuum
• Working volume 2.10 cubic feet
• Agitator 15 square feet of heating area and 9 square feet on the jacket
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 914.4 mm (36 in). Number of Shafts: 1. Jacket Surface Area: 0.84 m² (9 ft²). Porcupine Surface Area: 1.39 m² (15 ft²). Jacket Operating Pressure: 3.4 bar (50 psi). Jacket Operating Temperature: 343.3 °C (650 °F). Total Heat Transfer Surface Area: 2.2 m² (24 ft²).

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1203JT

Condition: Used

Material: Carbon Steel

Shell Configuration: Trough

Diameter: 304.8 mm (12 in)

• porcupine processor Unit has 2.10 cu ft operating volume
• 15 sq ft porcupine surface 9 sq ft jacket surface
• Should be a candidate for scrap
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Length: 914.4 mm (36 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 0.84 m² (9 ft²). Porcupine Surface Area: 1.39 m² (15 ft²). Jacket Operating Pressure: 3.4 bar (50 psi). Jacket Operating Temperature: 343.3 °C (650 °F). Total Heat Transfer Surface Area: 2.2 m² (24 ft²).

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P3018JTC

Condition: Used

Material: Carbon Steel

Shell Configuration: Trough

Operational Mode: Continuous

• This one probably requires a lot of work
• 223 sq. ft. of heat area on the agitator 102 square feet on the jacket
• Original design speed 10 rpm Pitch angle of agitator is 1 degree
• Trough width is 30"length is 218"with 62.1 cu ft of operating capacity
• product discharge is drive side bottom
• 30" high x 14" wide Plate coil jacket on exterior of trough manufactured by Dairy Equipment CS construction rated for 150 psi at 650 degrees F(SN # 15914-3 built 1991)Agitator is sealed by packing, has a rotary joint type SNH One lid is available, unit requires 4
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 762 mm (30 in). Length: 5,486 mm (216 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 9.5 m² (102 ft²). Porcupine Surface Area: 20.7 m² (223 ft²). Jacket Operating Pressure: 10.3 bar (150 psi). Jacket Operating Temperature: 343.3 °C (650 °F). Total Heat Transfer Surface Area: 50.9 m² (548 ft²).
