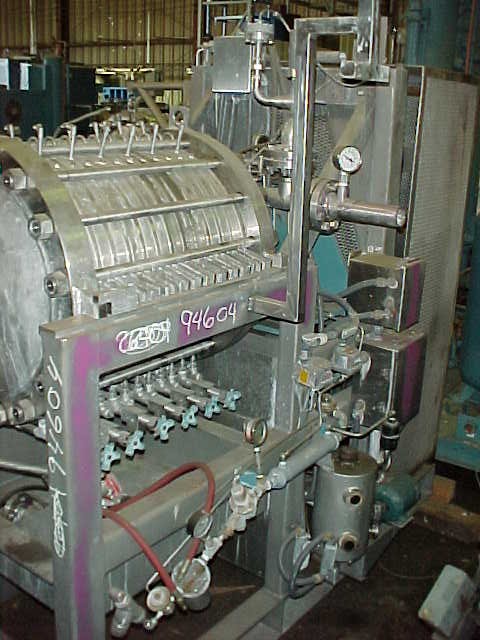

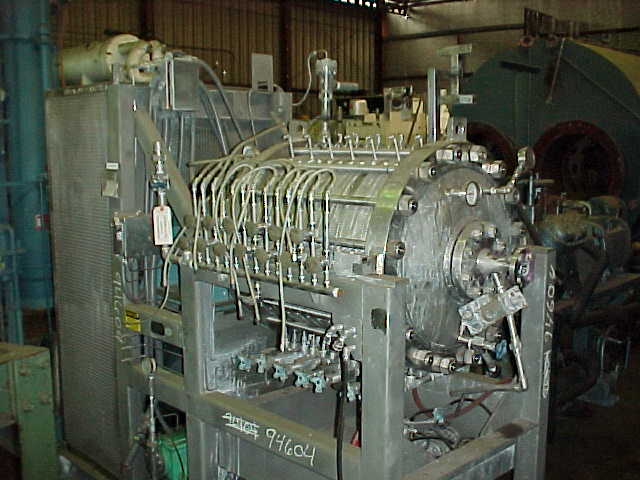

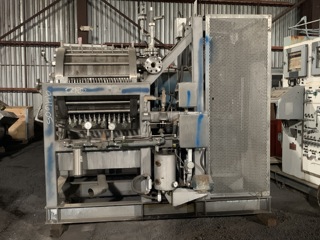

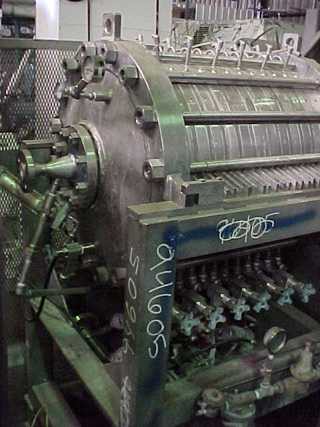

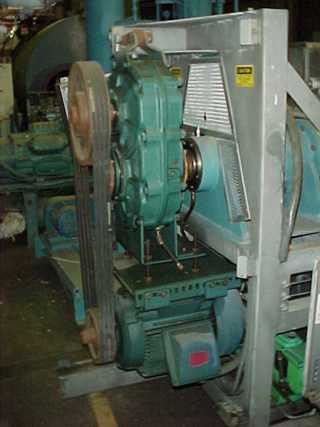

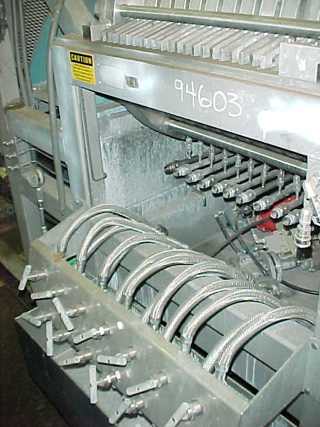

continuous filter/washer Filtration resistance due to cake build-up on stationary filter plates is limited to specific controlled thickness by the wiping action of the blades attached to rotating discs in each stage 12-stages, 24-rotating discs thru Dodge reducer 5.5:1 ratio W/control panel
Type: Filter
Subtype: Pressure Leaf
Manufacturer: Artisan
Condition: Used
Material: Stainless Steel 316
Filtration Area: 6 m² (65 ft²)
Pressure: 27.6 bar (400 psi)
Filtration resistance due to cake build-up on stationary filter plates is limited to specific controlled thickness by the wiping action of the blades attached to rotating discs in each stage 12-stages, 24-rotating discs thru Dodge reducer, 5.5:1 ratio. W/control panel.
Temperature: 93.3 °C (200 °F).
Type: Filter
Subtype: Pressure Leaf
Manufacturer: Artisan
Condition: Used
Material: Stainless Steel 316
Filtration Area: 6 m² (65 ft²)
Pressure: 27.6 bar (400 psi)
Filtration resistance due to cake build-up on stationary filter plates is limited to specific controlled thickness by the wiping action of the blades attached to rotating discs in each stage 12-stages, 24-rotating discs thru Dodge reducer, 5.5:1 ratio. W/control panel
Temperature: 93.3 °C (200 °F).
Type: Filter
Subtype: Pressure Leaf
Manufacturer: Artisan
Model: 3
Condition: Used
Material: Stainless Steel 304
Filtration Area: 0.28 m² (3 ft²)
Diameter: 152.4 mm (6 in)

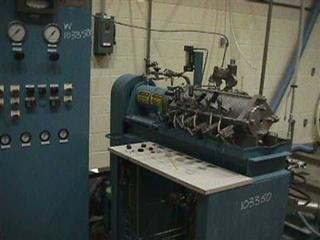

Continuous filter/washer Number of stationary filter plates: 11 Number of solid rotor discs with cake trimming vanes: 12 Drive: 3 HP adjustable speed drive Seal: Mechanical seal Sensor: Torque sensor Cake outlet size: 3/4" Filtrate outlet size: 2" Feed inlet size: 1/2" Mounting: On stand Control panel: Included 500 psi Pulsa diaphragm metering pump, Mdl 7120-S-E, driven by 1/2 HP motor.
Pressure: 27.6 bar (400 psi). Temperature: 93.3 °C (200 °F).
Type: Filter
Subtype: Pressure Leaf
Manufacturer: AMA (Holland)
Model: 48-2204ASC
Condition: Used
Material: Stainless Steel 316
Filtration Area: 18.5 m² (199.1 ft²)
Orientation: Vertical
Niagara 316 stainless steel horizontal tank vertical leaf pressure filter Rated 4.5 Kg/cm @ 120 degrees C Volume 2.555 cubic meter Chamber 1650mm long x 1150mm diameter Manual opening mechanism Pull plates out
Temperature: 120 °C (248 °F).
