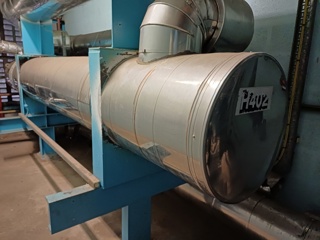

Shell and Tube Heat Exchanger 25.3 m² (272.3 ft²) Carbon Steel For Sale - IPP# 220502

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Johnson Hunt LTD

Model: BEU

Condition: Unused

Material: Carbon Steel

Heat Transfer Surface Area: 1.95 m² (21 ft²)

Orientation: Horizontal

Shell Pressure: 9 bar (131 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Carbon Steel. Tube Pressure: 21.6 bar (313 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 203.2 mm (8 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 2. Tube Number: 8. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,050 mm (120 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Johnson Hunt LTD

Model: BEU

Condition: Unused

Material: Carbon Steel

Heat Transfer Surface Area: 6.4 m² (69 ft²)

Orientation: Horizontal

Has (44) 3/4" diameter x 14 gauge x 8' long tubes. 2 heads.

Shell Pressure: 9 bar (131 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Carbon Steel. Tube Pressure: 9 bar (131 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 254 mm (10 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 2. Tube Number: 44. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,450 mm (96 in). Tube Thickness: 2 mm (0.08 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Allegheny Bradford Corp.

Model: BEU

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 3.1 m² (33 ft²)

Orientation: Horizontal

sanitary, horizontal "U" tube heat exchanger Heat transfer: 1,620,000 BTU/Hr Bundle: Removable, sanitary design, completely drainable Shell side nozzles: Two 3" 150# Tube side nozzles: 3" Tri Clover

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 1,450 mm (58 in). Tube Type: U-Tube. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,450 mm (57.6 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Shell side nozzles two 3" 150#, Tube side nozzles 3" Tri Clover..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Shell and Tube Incorporated

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 186.1 m² (2,000 ft²)

Orientation: Horizontal

TEMA type: BFM, size 26-288 Vent & Drain: Two 3/4"

Shell Pressure: 36.2 bar (525 psi). Shell Temperature: 76.7 °C (170 °F). Shell Material: Carbon Steel. Tube Pressure: 48.3 bar (700 psi). Tube Temperature: -45.6 °C (-50 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Head Material: Carbon Steel. Length: 8,300 mm (326.3 in). Shell-side Passes: 2. Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 360. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 7,300 mm (288 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Nozzles: 2-8" shell side nozzles, 2-4" tube side nozzles.
