Results 15 items found

Available equipment

Showing 15 of 15 matching equipment.

Featured

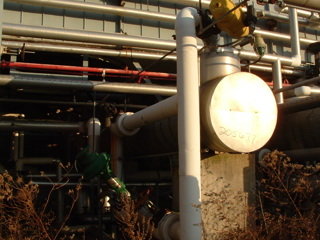

Stock Number: #216085
Heat Exchanger Shell and Tube Stainless Steel 304
Heat Transfer Surface Area: 1,300 ft²
Orientation: Vertical
Shell Pressure: 180 psi
Shell Temperature: 400 °F
Shell Material: Stainless Steel 304
Tube Pressure: 180 psi
Tube Temperature: 400 °F
Tube Material: Stainless Steel 304
Tubesheet Material: Stainless Steel 304
Vacuum: Yes
Head Material: Stainless Steel 304
Length: 243 in
Additional Information: • Cooling water lines: two 8" lines. 2 pass design Tube Type: Straight Tube. Tube Number: 250. Tube Diameter: 1.25 in. Tube Length: 192 in. Tube Thickness: 0.06 in. Nozzle Schedule: - Inlet: 18" vapor inlet - Outlet: 4" vapor outlet.
More Details ⟶
Stock Number: #207036
Stainless Steel 316 Graham GLP-18 Plate and Frame Heat Exchanger
Heat Transfer Surface Area: 207 ft²
Nozzle Schedule: - Inlet and outlet (cold side): Two, 3" flanges - Inlet and outlet (hot side): Two, # " flanges (size not specified)
Hot-side Pressure: 100 psi
Hot-side Temperature: 200 °F
Additional Information: • Inlet and outlet (cold side): Two, 3" flanges • Inlet and outlet (hot side): Two, # " flanges (size not specified)
More Details ⟶
Stock Number: #212495
12.4 m² (134 ft²) Stainless Steel 316 Plate and Frame Heat Exchanger
Heat Transfer Surface Area: 134 ft²
Nozzle Schedule: - Inlet/outlet size: 2.5" flanged
Cold-side Pressure: 100 psi
Cold-side Temperature: 320 °F
Hot-side Pressure: 100 psi
Hot-side Temperature: 320 °F
Additional Information: Tested to 150 psi Inlets and outlets are 2.5" flanged.
More Details ⟶
Stock Number: #216089
Stainless Steel 316 Miscellaneous
Additional Information: 125 psi, two stage ejector and intercondesnser, designed and built by Graham for Swenson Evaporator. Includes the following equipment, 1-6" shell ejector 316 SS, 125 psi motive force x 54" long; 1-2" shell ejector 316 SS, 125 psi motive force, 24" long,: 1- 100 Sq. ft. all 316 SS, horizontal shell and tube heat exchanger, manufactured by Graham, serial # 753723, NB # 17680. Shell rated for FV/20 psi at 300 degrees F, tubes rated for 75 psi at 200 degrees F. 10" diameter x 115" overall length with 3" cooling water nozzles.
More Details ⟶

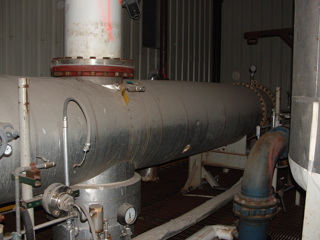

Stock Number: #205689
Stainless Steel 316 Graham Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 1,900 ft²
Orientation: Horizontal
Shell Pressure: 75 psi
Shell Temperature: 250 °F
Shell Material: Stainless Steel 316
Tube Pressure: 115 psi
Tube Temperature: 250 °F
Tube Material: Stainless Steel 316
Tubesheet Material: Stainless Steel 316
Vacuum: Yes
Shell Diameter: 30 in
Head Material: Stainless Steel 316
Additional Information: 316LSS Heads/316LSS Tubes/316L SS tube sheet/ 316LSS shell Shell thickness: 0.25" Length: 293 in. Tube Number: 484. Tube Diameter: 0.75 in. Tube Length: 240 in. Tube Thickness: 0.06 in. Nozzle Schedule: - Openings: One head (1) 12"; Shell - (2) 20"; Other Head - (1) 12" .
More Details ⟶
Stock Number: #205678
Stainless Steel 304 Graham Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 1,750 ft²
Orientation: Horizontal
Shell Pressure: 150 psi
Shell Temperature: 150 °F
Shell Material: Stainless Steel 304
Tube Pressure: 150 psi
Tube Temperature: 150 °F
Tube Material: Stainless Steel 304
Tubesheet Material: Stainless Steel 304
Vacuum: Yes
Shell Diameter: 30 in
Head Material: Carbon Steel
Additional Information: Tube sheets are 1 7/16" thick. Length: 191.8 in. Tube Type: Straight Tube. Tube Number: 561. Tube Diameter: 0.75 in. Tube Length: 191 in. Tube Thickness: 1.44 in. Nozzle Schedule: Channel in & out two are 8", one 6" vapor out, one 14" vapor inlet, two 3/4" Vent and drain.
More Details ⟶
Stock Number: #205677
Stainless Steel Other Graham Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 902 ft²
Orientation: Horizontal
Shell Pressure: 150 psi
Shell Temperature: 215 °F
Shell Material: Stainless Steel 321
Tube Pressure: 150 psi
Tube Temperature: 150 °F
Tube Material: Stainless Steel Other
Tubesheet Material: Stainless Steel Other
Vacuum: Yes
Head Material: Stainless Steel 321
Length: 221 in
Additional Information: 301 SS tubes, 301 SS tube sheet, 321 SS welded dish heads Tube-side Passes: 3. Tube Type: Straight Tube. Tube Number: 292. Tube Diameter: 0.75 in. Tube Length: 132.8 in. Tube Thickness: 0.06 in. Nozzle Schedule: Tube nozzles are 6", shell side nozzles are one 18" and two 2".
More Details ⟶
Stock Number: #216020
Stainless Steel 304 Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 735 ft²
Orientation: Horizontal
Shell Pressure: 50 psi
Shell Temperature: 525 °F
Shell Material: Stainless Steel 304
Tube Pressure: 50 psi
Tube Temperature: 525 °F
Tube Material: Stainless Steel 304
Tubesheet Material: Stainless Steel 304
Vacuum: Yes
Shell Diameter: 76 in
Head Material: Stainless Steel 304
Additional Information: Flash condenser • Duty: 2,957,440 BTU/hr • Shell wall thickness: 0.5" • Spare Unused Chanel Head with Tube Bundle available for additional cost, See IPP 216127 for more info with on bolted channel head, and one welded dished head. Length: 144 in. Tube Type: U-Tube. Tube Number: 156. Tube Diameter: 0.75 in. Tube Thickness: 0.06 in. Nozzle Schedule: - Nozzle schedule: One vapor in 66", One Vapor out 16", One condensate out 4", two vents 2", two water (inlet & Outlet) 4", Two 3/4 nozzles one vent & a drain.
More Details ⟶
Stock Number: #221322
Stainless Steel 304 Graham UF-60 Plate and Frame Heat Exchanger
Heat Transfer Surface Area: 910 ft²
Nozzle Schedule: Pass arrangement H.S.-1, C.S.-1Inlets and outlets are 8". Drain is 6".
Cold-side Pressure: 150 psi
Cold-side Temperature: 200 °F
Hot-side Pressure: 150 psi
Hot-side Temperature: 200 °F
Housing Material: Carbon Steel
Number of Plates: 153
Additional Information: pack with CS shell
More Details ⟶
Stock Number: #222017
Stainless Steel 304 Graham UF-60 Plate and Frame Heat Exchanger
Heat Transfer Surface Area: 910 ft²
Nozzle Schedule: Cold side inlet/outlet are 8", hot side inlet & outlet are 8". Six inch drain valve.
Cold-side Pressure: 150 psi
Cold-side Temperature: 200 °F
Hot-side Pressure: 150 psi
Hot-side Temperature: 200 °F
Housing Material: Carbon Steel
Number of Plates: 153
Additional Information: Pass Arrangement: H.S.-1, C.S.-1
More Details ⟶
Stock Number: #207095
Carbon Steel Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 180 ft²
Shell Pressure: 20 psi
Shell Temperature: 550 °F
Tube Pressure: 75 psi
Tube Temperature: 150 °F
Vacuum: Yes
Length: 132 in
Additional Information: Single Element Two Stage Condensing Ejector Package Shell side MAWP Tube side MAWP 8 ' high
More Details ⟶
Stock Number: #216127
Unused Stainless Steel 304 Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 735 ft²
Orientation: Horizontal
Tube Pressure: 50 psi
Tube Temperature: 525 °F
Tube Material: Stainless Steel 304
Tubesheet Material: Stainless Steel 304
Vacuum: Yes
Shell Diameter: 76 in
Head Material: Stainless Steel 304
Length: 144 in
Tube Type: U-Tube
Tube Number: 156
Additional Information: • Flash condenser for a column condenser (IPP # 216020) • Duty: 2,957,440 BTU/hr. Tube Diameter: 0.75 in. Tube Thickness: 0.06 in.
More Details ⟶
Stock Number: #221161
Stainless Steel 316 Graham Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 452 ft²
Orientation: Horizontal
Shell Pressure: 20 psi
Shell Temperature: 300 °F
Shell Material: Stainless Steel 304
Tube Pressure: 75 psi
Tube Temperature: 300 °F
Tube Material: Stainless Steel 316
Tubesheet Material: Stainless Steel 304
Head Material: Stainless Steel 304
Length: 141 in
Tube Type: Straight Tube
Additional Information: Overall length, 13' Tube Number: 196. Tube Diameter: 0.75 in. Tube Length: 141 in. Tube Thickness: 0.07 in. Nozzle Schedule: Nozzle schedule: One 10", One 4", one 3", one 2", one 1", two 3/4" nipples..
More Details ⟶
no image found
Stock Number: #233684
10.2 m² (110 ft²) Carbon Steel Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 110 ft²
Orientation: Horizontal
Shell Pressure: 20 psi
Shell Temperature: 200 °F
Shell Material: Carbon Steel
Tube Pressure: 75 psi
Tube Temperature: 200 °F
Tube Material: Carbon Steel
Tubesheet Material: Carbon Steel
Vacuum: Yes
Head Material: Carbon Steel
Length: 120 in
More Details ⟶
no image found
Stock Number: #233683
5.6 m² (60 ft²) Carbon Steel Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 60 ft²
Orientation: Horizontal
Shell Pressure: 20 psi
Shell Temperature: 200 °F
Shell Material: Carbon Steel
Tube Pressure: 75 psi
Tube Temperature: 200 °F
Tube Material: Carbon Steel
Tubesheet Material: Carbon Steel
Vacuum: Yes
Head Material: Carbon Steel
Length: 96 in
More Details ⟶
