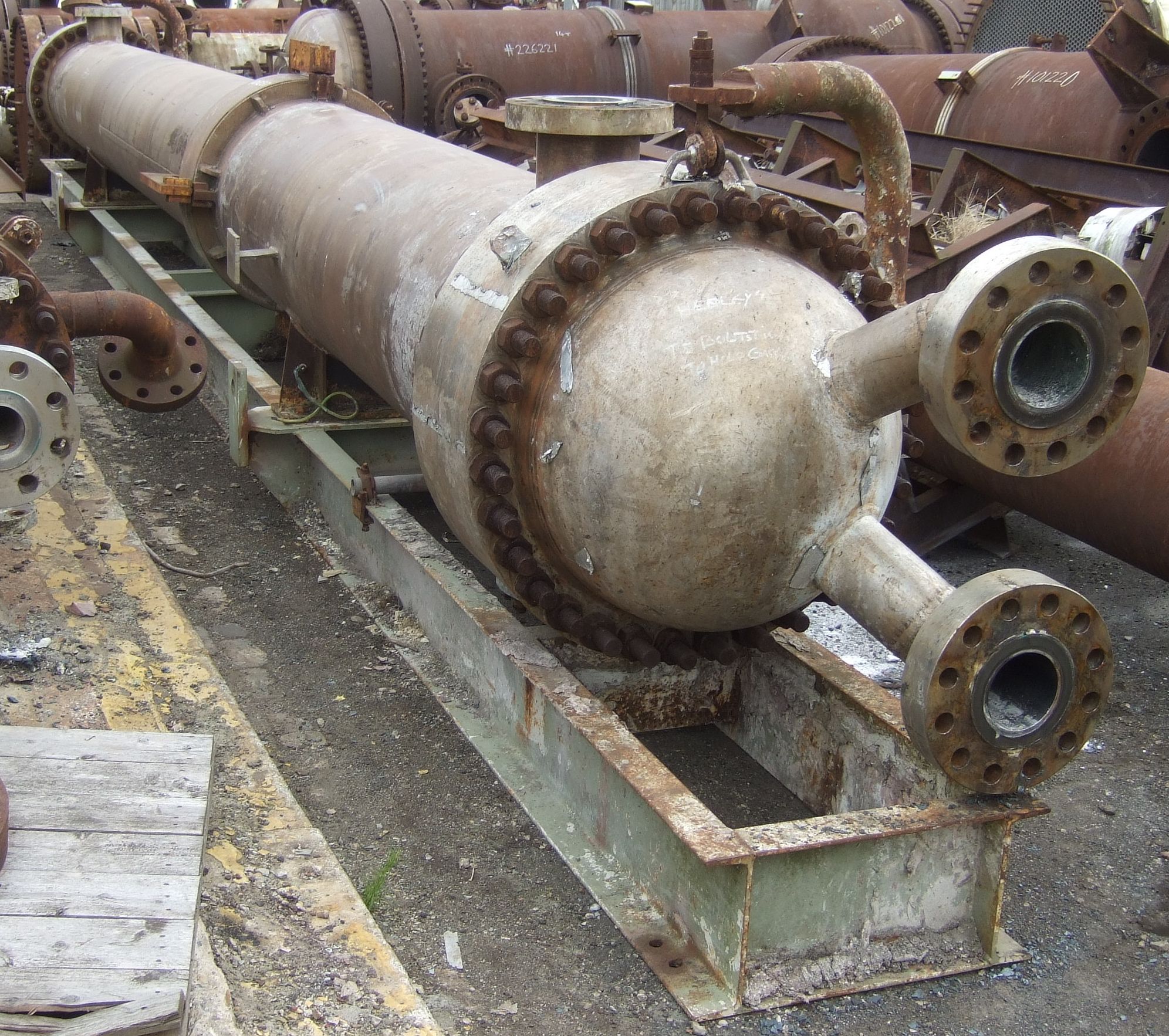

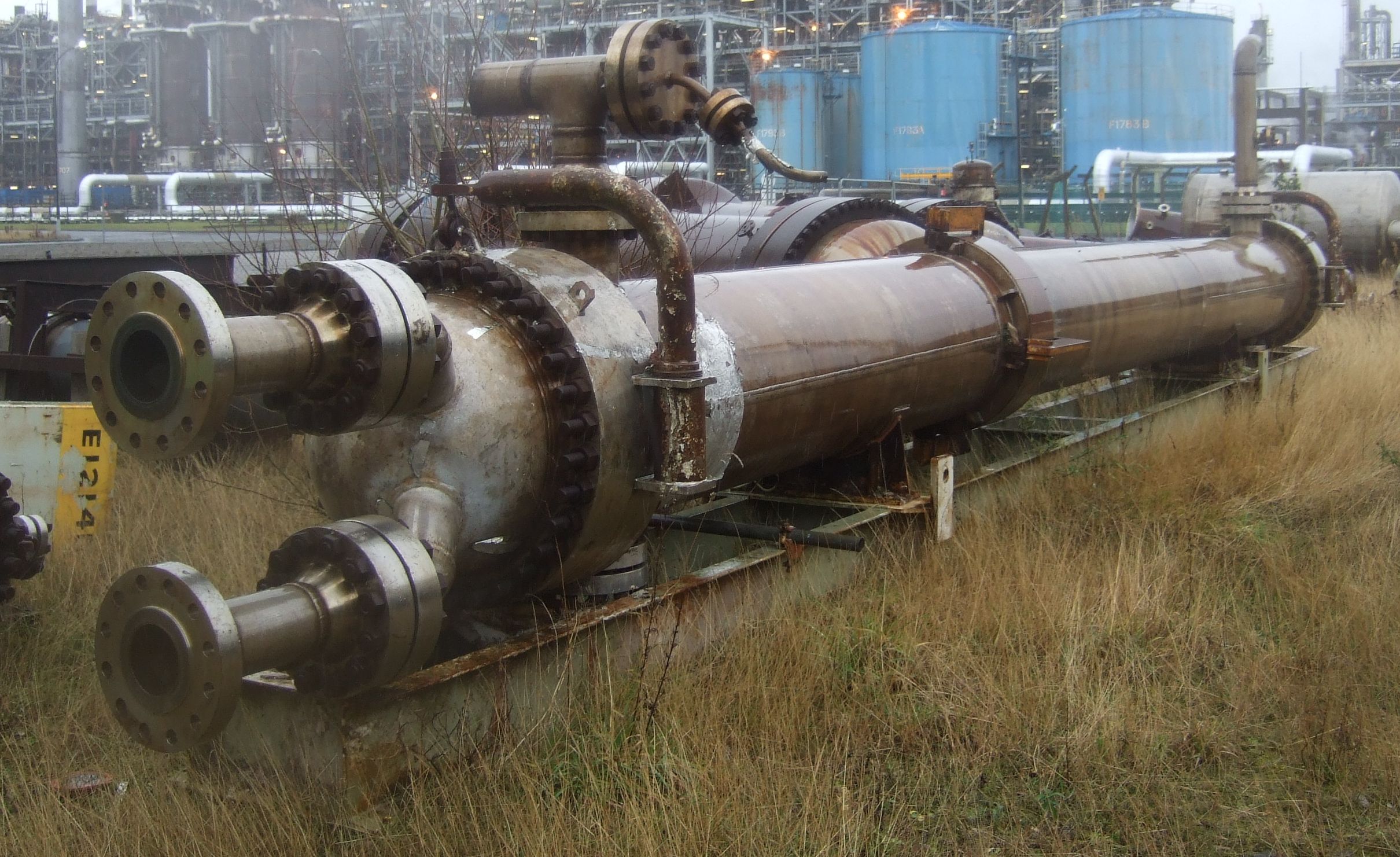

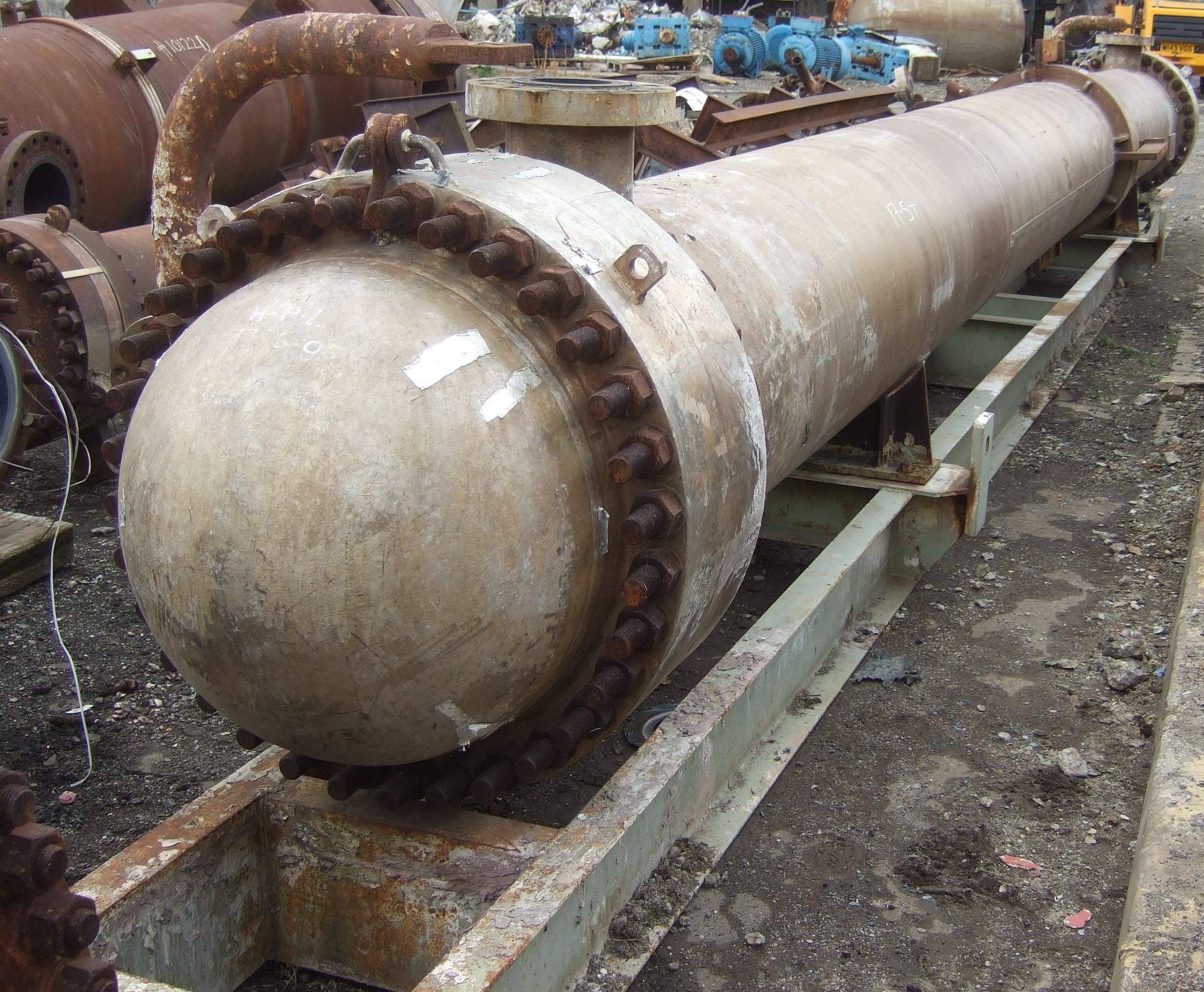

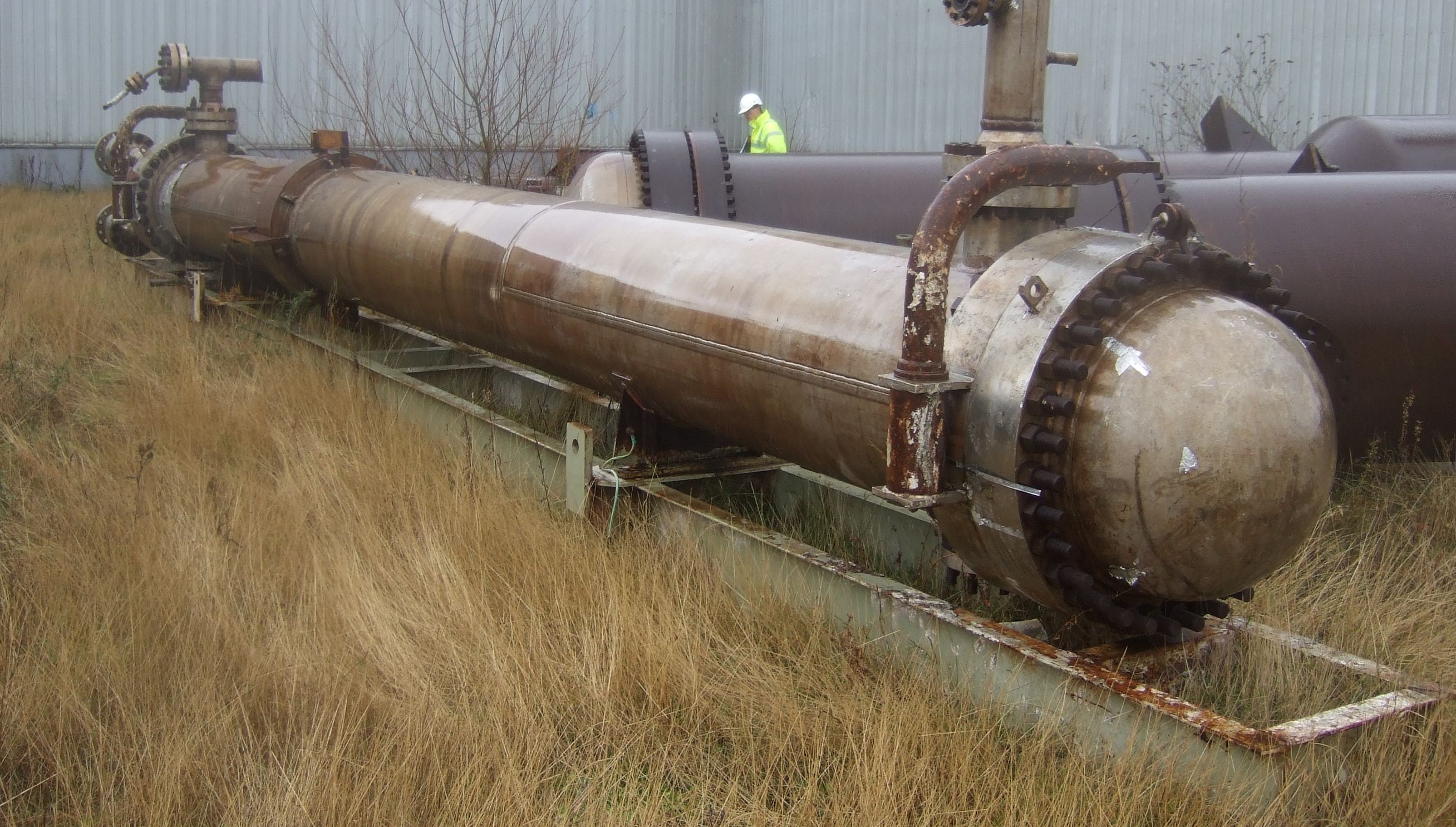

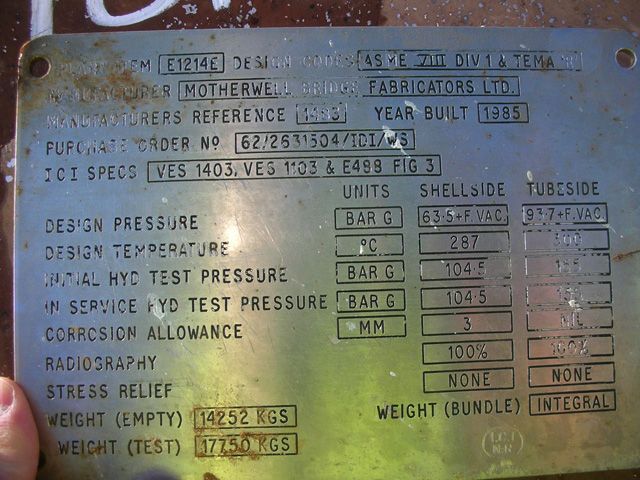

Stainless Steel 304 Motherwell Bridge Fabrications Ltd Shell and Tube Heat Exchanger - IPP# 226237

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Motherwell Bridge Thermal Ltd

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 213 m² (2,293 ft²)

Orientation: Vertical

Titanium floating/stationary tube sheets Head specifications: (1) titanium dished head, (1) titanium bonnet head

Shell Pressure: 6.8 bar (99 psi). Shell Temperature: 190 °C (374 °F). Shell Material: Carbon Steel. Tube Pressure: 13.5 bar (196 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Titanium. Tubesheet Material: Titanium. Shell Diameter: 812 mm (32 in). Head Material: Titanium. Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 586. Tube Diameter: 19 mm (0.75 in). Tube Length: 6,100 mm (240.2 in). Nozzle Schedule: openings tube side: dished head with 1-250mm, 1-25mm, bonnet head with 1-200mm, 2-75mm, shell side: 1-350mm, 1-200mm, 1-32mm, 2-25mm,.

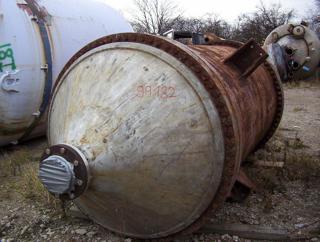

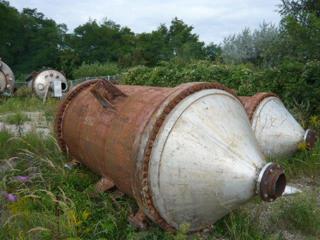

Type: Heat Exchanger

Subtype: Shell and Tube

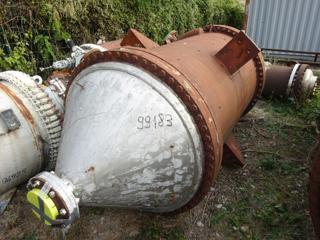

Manufacturer: Kimura Kakoki

Condition: Used

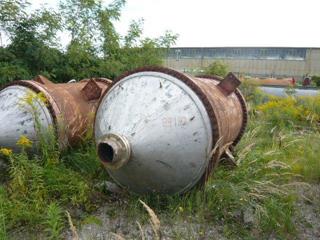

Material: Stainless Steel 304

Heat Transfer Surface Area: 149.9 m² (1,614 ft²)

Shell Pressure: 5 bar (72 psi)

(2) 304LSS cone heads

Shell Temperature: -5 °C (23 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: -8.9 °C (16 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,219 mm (48 in). Head Material: Stainless Steel 304. Length: 1,981 mm (78 in). Tube Number: 806. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 1,981 mm (78 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Openings: tube side 2-8"; shell side 2-4", 1-1", 1-1 1/2"..

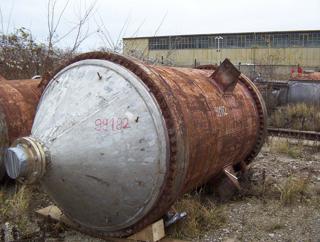

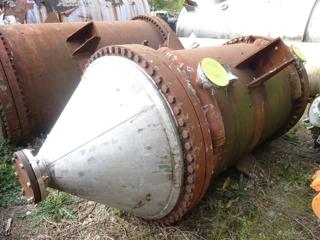

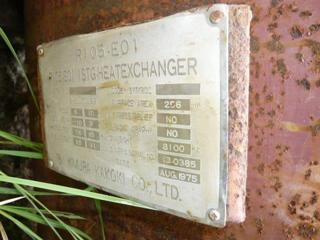

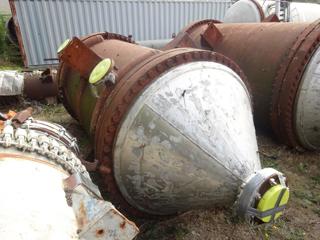

Type: Heat Exchanger

Subtype: Shell and Tube

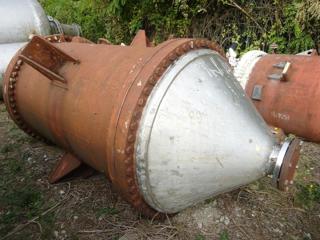

Manufacturer: Kimura Kakoki

Condition: Used

Material: Stainless Steel 304

Clad: Yes

Heat Transfer Surface Area: 255.9 m² (2,755 ft²)

Orientation: Vertical

Shell rated 72 psi @ -19 deg F (5 Kg @ -10 deg C (5 Kg @ -10 deg C) tubes rated 145 psi @ 37 deg F (10 Kg @ 3 deg C) (2) 304LSS cone heads. Single pass design

Shell Pressure: 5 bar (72 psi). Shell Temperature: -28.3 °C (-19 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: 2.8 °C (37 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,524 mm (60 in). Head Material: Stainless Steel 304. Length: 2,438 mm (96 in). Tube Number: 1,078. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 2,438 mm (96 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings: tube side 1-6", 1-8"; shell side 2-4", 1-1", 1-1 1/2"..

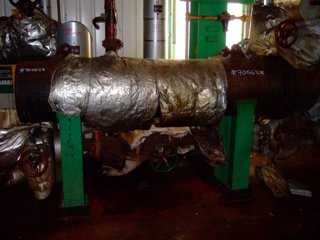

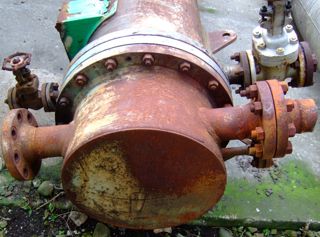

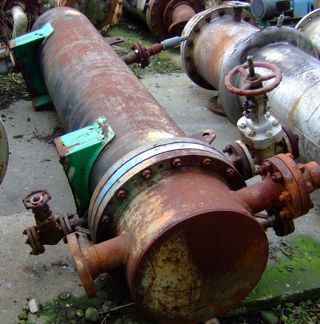

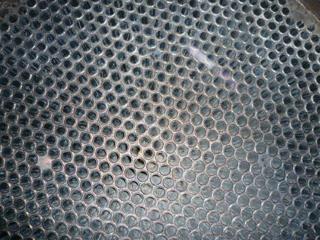

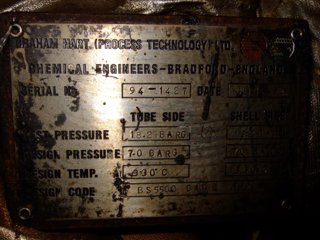

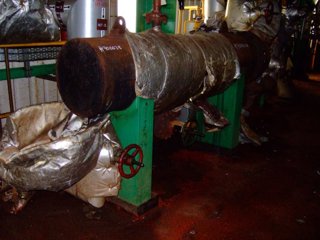

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Hart (Process Technology) Ltd

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 9.6 m² (103.3 ft²)

Orientation: Horizontal

('U' bend not included)

Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 330 °C (626 °F). Shell Material: Carbon Steel. Tube Pressure: 7 bar (101.5 psi). Tube Temperature: 330 °C (626 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304L. Shell Diameter: 450 mm (17.7 in). Head Material: Carbon Steel. Tube Type: U-Tube. Tube Number: 84. Tube Diameter: 19 mm (0.75 in). Tube Length: 1,830 mm (72 in). Nozzle Schedule: openings: 2-75mm - Shell side openings: 3-50mm, 1-25mm.
