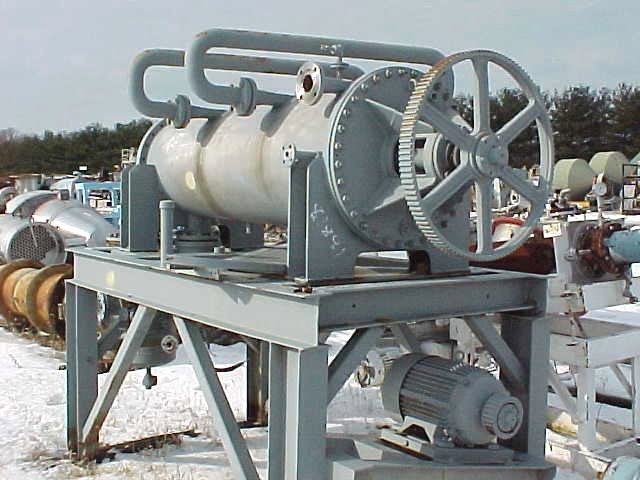

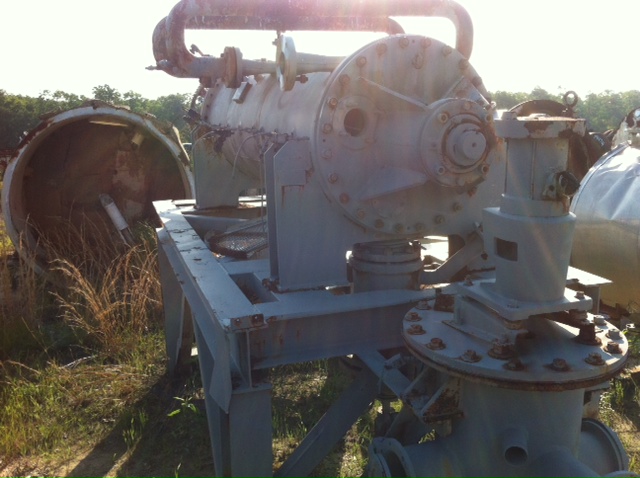

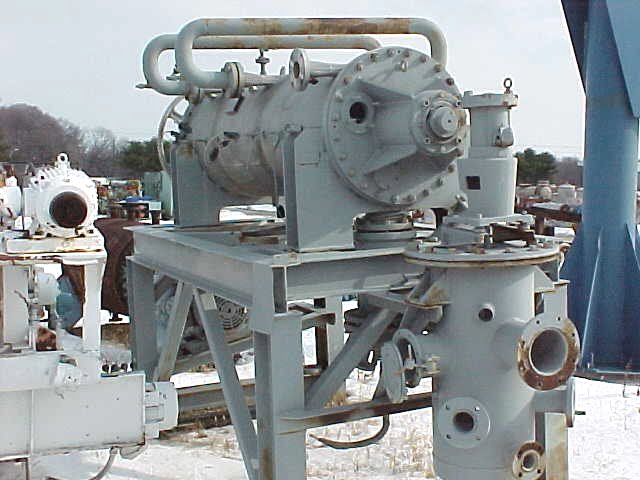

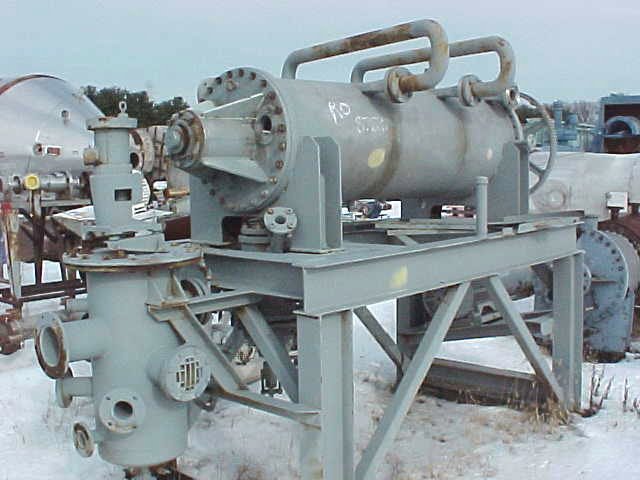

"Adjust-o-film" evaporator. jkt rated 50 psi @ 350 deg F. Belt driven by 20 HP, 3/60/230/460 volt motor.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa
Model: DL-1000/6000/10
Condition: Used
Material: Stainless Steel 316
Total Heat Transfer Surface Area: 16 m² (172.2 ft²)
Orientation: Horizontal
3 sections jacket rated by 10bar @ 200 degrees C ( total volume 150liter).
Pressure: 0.5 bar (7.3 psi). Temperature: 200 °C (392 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film

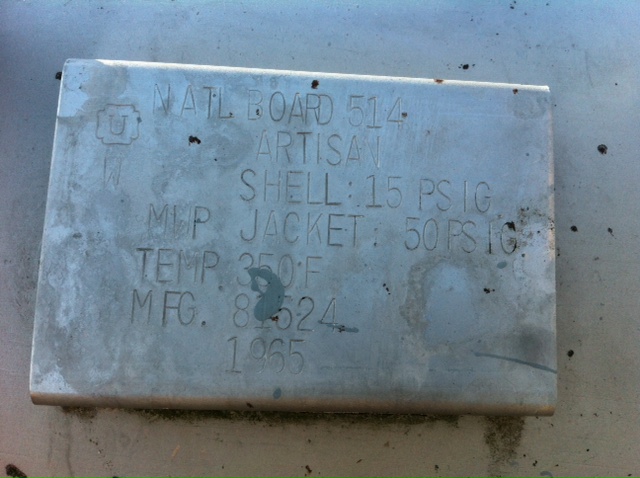

Manufacturer: Artisan
Model: R-49-3-1H-70
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 181.4 kg/h (400 lb/h)
Total Heat Transfer Surface Area: 7.4 m² (80 ft²)
Kontro wiped film evaporator shell rated 25 psi @ 750 deg F. Jacket rated 65 psi @ 750 degree F. Has removable 18" diameter rotor. Mechanical seal. Has 1/2 CS jacket with expansion joint. Has outboard bearings. Has 12" diameter inlet, 8" diameter outlet. Belt driven by 40 HP, 3/60/208/220/440 volt, 885 rpm motor, UL label.
Orientation: Horizontal. Diameter: 1,050 mm (42 in). Height: 2,150 mm (84 in). Pressure: 1.72 bar (25 psi). Temperature: 398.9 °C (750 °F). Mechanical Seal on Shaft: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: D-850/4700/10
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 267.6 kg/h (590 lb/h)
Total Heat Transfer Surface Area: 11 m² (118.4 ft²)
Jkt rated 13 bar @ 220 deg C Shell 850mm (34") dia x 4800mm (15.8') long, Rotor driven by 30 KW, 3/50/380 volt, 260 rpm output speed.
Orientation: Horizontal. Diameter: 850 mm (33.5 in). Height: 4,800 mm (189 in). Pressure: 0.5 bar (7.3 psi). Temperature: 220 °C (428 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 11.3 kg/h (25 lb/h)
Total Heat Transfer Surface Area: 0.5 m² (5.4 ft²)
wiped film evaporator/filmtruder body only.
jkt rated 227 psi @ 392 deg F.
Diameter: 152.4 mm (6 in). Height: 1,850 mm (72 in). Pressure: 6.9 bar (100 psi). Temperature: 350 °C (662 °F). Vacuum: Yes.
