Type: Extruder
Manufacturer: Reifenhausser Kg
Model: RH381-1-70
Condition: Used
Material: Stainless Steel 316
Diameter: 69.9 mm (2.8 in)
Feeder: Yes

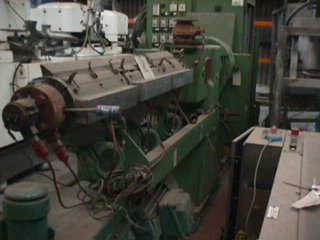

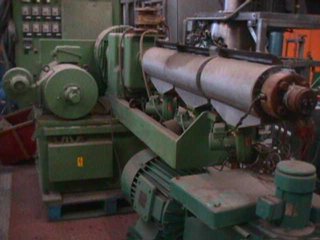

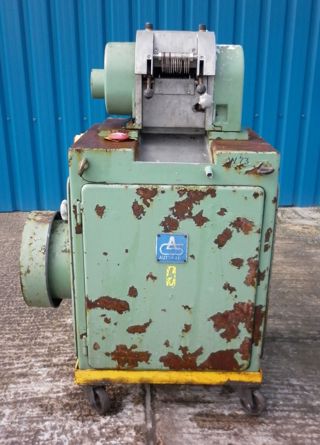

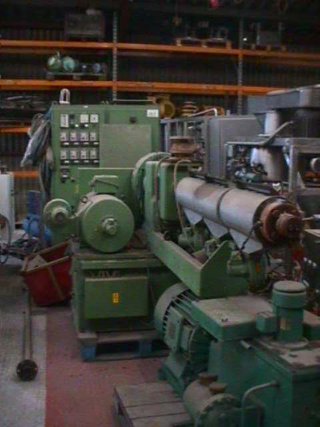

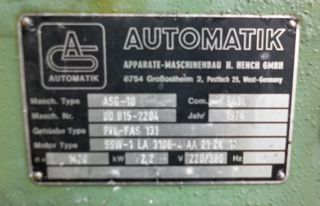

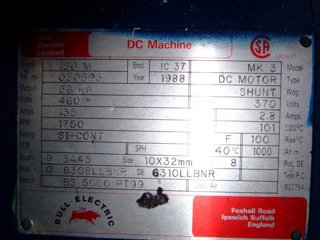

single screw extruder line General purpose screw and feed hopper. Production rate: 75 Kg/hr maximum polypropylene. Barrel has (8) heaters with (3) electric fans Extruder driven by a 60 HP (46 KW) DC motor. Line is complete with a15' long x 12" wide x 8" deep stainless steel cooling bath with air knife and (1) automatic 100mm granulator, Type ASG-10, serial #00-015-2204. Driven by 2.2 KW motor. Extruder is complete with control panels.
Heating type: Electric. L/D Ratio: 30:1.
Type: Extruder
Condition: Used
Material: Carbon Steel
Diameter: 63 mm (2.5 in)
Feeder: Yes
63mm, single screw extrusion line, approx 60 kg/hr of 800mm wide plastic sheet), line consists of: (1) Bone Brother 63mm x 2m long c/steel single screw extruder, motor with cooling fan, barrel with (5) fans driven by 0.33 kw, 3/50/415 volt, 2800 rpm motors, 126mm x 38mm feed opening with s/steel feed hopper, (1) 3-roll calender, rolls 300mm diameter x 800mm long, rolls with mirror finish, each roll is oil heated with its own oil heater, each roll gap adjuster has a hydraulic ram driven by 4 kw, 3/50/380-420 volt, 1435 rpm motor vai a Eurodrive gearbox, the calender is mounted on a moveable skid , skid has a hydraulic raise/lower mechanism, (1) end of line Gillard & Co sheet cutter, mounted on wheels, totally enclosed in a cabinet, system with control panels.
Type: Extruder
Manufacturer: SMS Buss
Model: TCS-100-16D Kneader
Condition: Used
Material: Carbon Steel
Diameter: 99.8 mm (3.9 in)
Number of Heating Zones: 5

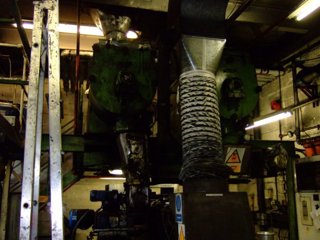

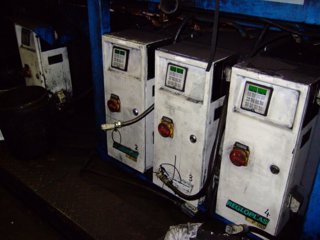

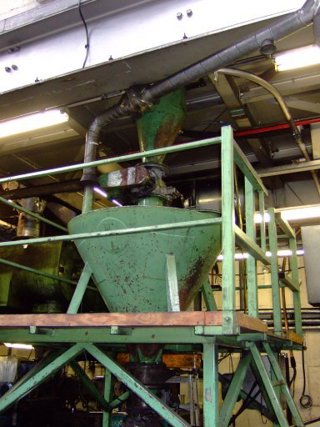

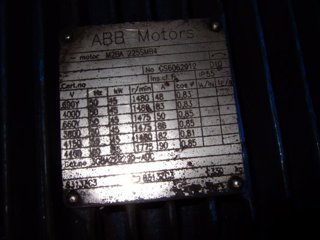

single screw Ko-Kneader system, processing length 16 L/D, carbon steel heated screw, 15mm screw oscillating stroke, screw root diameter 65mm, Theo. pitch in kneading zone (2-spirals) 60mm, pitch in infeed zone (1-spiral) 55mm, free volume (5 barrel section) 5.35 dm3, screw driven by a 2-speed motor, 90kw, 3/50/380/400/415/660/690 volt, 1481/1483/1485 rpm or 105kw, 3/60/440 volt, 1780 rpm, cast chrome steel barrel, barrel with special high nickel content carbon steel liner and kneading pins, barrels steam/water heated, (4) Regloplas type P160 water/steam heater temperature controllers for barrel heating, 6.5 liter volume, rated 6 bar @ 160 deg C, (1) 1m wide x 4m cooling length carbon steel chilled conveyor, manufactured by Bergerbachmann, belt driven by approx 1.1kw motor, 200mm diameter squeezing roll, 400mm diameter cooling roll, conveyor with Netzsch Condux carbon steel Granulator, type CS-300-800-11, serial # 6889, rotor speed 600 rpm, (2) Mixaco SM-600-D stainless steel high intensity mixers, 600ltr capacity, driven by 45kw, 3/50/400/690 volt 740 rpm motor, air pressure 6 bar, total volume 750 liter, 1180mm diameter x 690mm deep, 350mm feed, 300mm discharge with valve, each mixer with it own bag charging station
Screw Length: 1,900 mm (74.8 in). Barrel MOC: Stainless Steel Other. Heating type: Steam. L/D Ratio: 16:1. Number of Cooling Zones: 1.
Type: Extruder
Manufacturer: APV
Model: MP 2065 Kneader
Condition: Used
Material: Carbon Steel
Diameter: 65 mm (2.6 in)
Number of Heating Zones: 5
twin screw Ko-Kneader system, (1) Baker Perkins 800mm diameter chilled drum roll cooler, series 2000, serial #65712, drum with pre-breaker and Kibbler granulator, granulator driven by 10HP, 1500 rpm motor, pre-breaker driven by 1HP, 150 rpm motor, chill roll motor driven by 5 HP, 25 rpm motor, (2) 350 liter high intensive mixers, driven by 37kw, 3/50/415 volt, 1475 rpm motor, (1) chiller, (1) buffer hopper with bag filler
Screw Length: 1,600 mm (63 in). Feeder: Yes. Heating type: Electric.
Used extruders are continuous processing systems designed to shape, compound or blend materials by forcing them through a die under pressure. Whether you’re producing plastic pellets, food products, rubber compounds or chemical formulations, extruders deliver consistency, throughput and tight process control. With more than 47 years of expertise, IPP offers secondhand and surplus extruders from 20 complete plant sites and over 15,000 ready-to-ship process systems.
IPP stocks single-screw and twin-screw extruders from trusted manufacturers like Coperion, Baker Perkins, Werner & Pfleiderer and Davis-Standard, covering a wide range of materials and formulations.
Extruders are engineered to withstand high pressures, temperatures and corrosive additives:
Learn more about extrusion in polymer and process industries from PlasticsToday.
Search the IPP inventory or contact IPP’s equipment specialists to locate the right used, secondhand or surplus extruder for your line. Whether you’re compounding polymers or shaping food products, IPP helps you save time and money with equipment ready to go.
