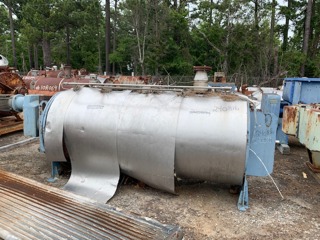

• Rotary Vacuum Paddle Dryer with heated shaft.
• Vessel rated for Full vacuum internally.
• With 316 stainless steel internals & stainless steel half-pipe coil jacket.
• One head bolted dished, one head welded dished.
• Unit has approx.12" diameter heated shaft with paddle agitator blades.
• Shaft is direct coupled to a gear reducer
• Openings include: (1) 18" Top, (1) 12" x 16" end port with hinged cover, Bottom center discharge.

Jacketed rotary vacuum batch paddle dryer with static chopper blades Patent and designed by List DTB manufacturing #3000.01.01.01.3000, working pressure internal -1/6 bar @ 260 degrees C (11000 liter), jacket 6 bar @ 260 degrees C (511 liter), shaft 6 bar @ 260 degrees C (560 liter), bolt flat ends, 316Ti stainless steel (1.4571) half pipe coil jacket on straight side and both ends, paddle driven by a 110/112w, 3 phase, 50/60 Hz, 400-690/460 volt, 1488/1791 rpm, IP 55 siemens CE motor via a Flender 906/9.4 rpm reduction gearbox paddle speed 9.4 rpm openings top: 1-800mm (filter), 4-250mm, 4-150mm (product inlet), 2-150mm, 2-50mm, 4-50mm (jacket), side: 8-50mm (jacket), bottom: 1-150mm (center discharge), 1-80mm, 4-50mm, both flat ends: 2-50mm (jacket) dryer with dust filter, cyclone Dust Collection: Yes. Jacket Material: Stainless Steel Austenitic. Jacket Pressure: 87 psi. Jacket Temperature: 500 °F. Jacket Type: Half Pipe/Limpet.

vacuum paddle dryer with dust filter and heated shaft Order number: 14.-235/24158/00000/2-2871/53 Internal pressure rating -1/+0,5 bar @ 151 degrees C operating temperature (total volume 11.000 liter) straight side jacket pressure rated 6 bar @ 151 degrees C (volume 340 liter) Serpentine (2) 1/2 pipe coil jackets each coil rated 6 bar @ 151 degrees C (volume 50 liter); heated shaft rated 6 bar @ 151 degrees C ( volume 1120 liter) (1) bolted for shaft removal; with 3 zone jacket on straight side and 1/2 pipe coil jacket on each head Agitator shaft is 600 mm diameter and has has paddle agitators with flat blades, mechanical seals, and a rotary joint on one end for heating the shaft. Driven through a shaft mounted gear reducer Bag filter mounted on top of dryer housing. Openings include: Top - (1) 1000 mm diameter opening for bag filter, (1) 600 mm feed opening, (1) 500 mm manway with cover; center bottom outlet, 340 mm ID / 420 mm OD With Titanium Grade 2 vertical jacketed dust filter, 10 m3 (353 cubic foot) and 18 cages for filters/ socks. 1000 mm diameter x 2400 mm high, with assist top cover for sock replacement Agitation Seal Type: Mechanical. Dust Collection: Yes. Jacket Pressure: 87 psi. Jacket Temperature: 303.8 °F. Jacket Type: Half Pipe/Limpet.

Drais Mannheim plow type Rotary Vacuum Dryer system with a dust collector Plow blades on mixing shaft and choppers mounted in side wallUnit has Carbon steel internalsWith an (6) choppers/homogenizers, each 7,5 Kw, 1500 rpm3/50/230/400 voltDryer includes: 42 square meter S316SS tube & Head, carbon steel shell horizontal vacuum condenser manufactured by Shin Meiwa Industry, Kobe Japan rated ).5 Bar @ 90 degrees C in the shell, 6 bar @ 42 degrees C in the tubes. A top mounted dust collector, a vacuum pump and control panel. Vertical dust collector has eight filters, each is 150mm diameter x 1500 mm long, estimate filter area at 46 m2 (504 sq.ft.). Jacket Temperature: 284 °F.

Vacuum dryer system internal pressure rated -1/+1bar @ -10/+165 degrees C (volume 250 liter), jacket pressure rated -1/+8bar @ -10/+165 degrees C (volume 35 liter) type CD180M-4 3~/50Hz/230-400V/1,460rpm CE confirm, EExdeIICT4, system including: (1) 3.1m² 1.4571 stainless steel tube and shell heat exchanger/condenser, (1) 8m³/h @ 3m head iron cast centrifugal pump, (1) 50 liter 1.4571 stainless steel condensate receiver, (1) 20 liter 1.4571 stainless steel gas separator, (1) 17.5 liter 1.4571 stainless steel jacketed pressure tank, (1) Frequency converter on pallet, (2) stainless steel guards on pallet, (2) Valves and (1) chain on pallet, Accessories on pallet Jacket Temperature: 329 °F.

jacketed rotary vacuum paddle dryer Internal design pressure: -1/6 bar @ -10/150 degrees C (10180 liter) Coil jacket: 6 bar @ -10/150 degrees C (500 liter) Rotor/paddle: 6 bar @ -10/150 degrees C (300 liter) (1) bolt flat end (drive), (1) clamped flat end, rotor/paddle with union joint and cored for steam heating, rotor/paddle driven by approx 100kw motor via a gearbox center bottom discharge Jacket Pressure: 87 psi. Jacket Temperature: 302 °F. Jacket Type: Half Pipe/Limpet.

jacketed rotary vacuum paddle dryer safe operating pressure of vessel atmospheric/vacuum 3000 liter with rotary union joint top mounted dust filter, bottom discharge with valve,

4' diameter x 10' long chamber. as 24" cored shaft with paddles and removable scrapers. No drive available. Unit has chain guards for drive. Top openings one 12", one 10 ". Jacket openings are 2" NPT. 12" bottom discharge.

Rotary vacuum dryer Vessel rated for Full vacuum 12.5" diameter cored shaft with 24 fixed plows. Outboard bearings with packing glands.

HSB # 3332A Shell rated full vacuum 4' diameter x 10' long chamber Has 24" diameter cored removable shaft with paddles and bolt-on scraper blades. 3" Johnson rotary joint. Has 12" diameter bottom outlet with hinged swing bolt cover. 2-12" feed ports.

304SS shell with CS jacket Openings: top 1-14", 1-12", 1-24" w/28" dia x 36" str side air receiver Center btm discharge 1-12" Rotor speed 6 rpm

Rotary vacuum dryer CRN # H 9634.5 shell thickness .500,material SA 240/304 head thickness 1.00, head material SA 516-70 Sigle ribbon carbon steel mixer Driven by a Baldor AC motor through a gearbox 230/460 v, UL listed class 1 group D Drum measures 120" long x 51" w x 51" h. Agitation Seal Type: Packing. Jacket Pressure: 60 psi. Jacket Temperature: 250 °F.

Littleford plow Mixer/Dryer system. National Board Serial number 12025 Rated for the following: Shell, Full Vacuum internal gear reducer Manufactured by Falk, model # 4207509, rated for 9.492:1 ratio Hostile Environment High Efficency AC but no chopper is installed with this blender. With mixer dryer is a vacuum system manufactured by Travani Pumps. Serial # A5934, Type: PLM3315C-A3. Vacuum system includes a water seal vacuum pump, controls, knock out pot and cooler for seal water. Jacket Temperature: 320 °F.

Rotary Vacuum Paddle Dryer with heated shaft. Vessel rated for Full vacuum internal 316SS internals, SS 1/2 pipe coil jacket. one head bolted dished, one head welded dished. Unit has approx. 12" diameter heated shaft with paddle agitator blades. Shaft is direct coupled to a gear reducer motor3/60/230/460 volt Openings inlcude: (1) 18" Top, (1) 12" x 16" end port with hinged cover, Bottom center discharge.

design pressure internal -1/2 bar @ 165 degrees C (3150 liter), jacket 6 bar @ 165 degrees C (105 liter), shaft 6 bar @ 165 degrees C (800 liter), motor is Ex CE II 2G Ex de IIC T4 Gb ATEX, 1-bolt dished end and 1-weld dished end, 1.2m diameter x 8195mm overall length, shaft cored for heating with rotary union joint, Jacket Material: Stainless Steel 304. Jacket Pressure: 87 psi. Jacket Temperature: 329 °F. Jacket Type: Half Pipe/Limpet.

Rotary vacuum dryer 54" dia x 10' long shell. 16" dia charge port w/cover 10" center btm outlet. Bolt flat heads w/2-4" end discharge. 16" x 22" end opening w/bolt cover. Approx 8" x 8" sq hollowshaft w/SS paddles, gear driven. No motor.

25 Liter Double Shaft Kneader Mixer with 1.4306 s/steel Double wall jacket internal -1/+0,5 bar hydraulic drive

jacketed vacuum Paddle Dryer with carbon steel jacket internal pressure -1/0.5bar @ 130 degrees C (8.300liter) jacket pressure 6 bar @ 200 degree C (280 liter) shaft cored for steam 18.5kW/3~/50Hz/230-400V/465rpm Motor Jacket Temperature: 392 °F.

• Pressure internal 2 bar + full vacuum @ 150 degrees C (5000 Liter), jacket 6 bar + full vacuum @ 150 degrees C (200 liter), paddle 6 bar + full vacuum @ 150 degrees C (985 liter), driven by 45kW motor which is de-rated to 37kW via an inverter, reduction gearbox, approx. 1.2m diameter x 3.5m straight side, heated shaft,
• (1) 390m3/hr 316 stainless steel vacuum pump, manufactured by Hargreaves, model HER 1390, suction pressure 30 mbar abs @ 100 degrees C, driven by 11kw, 1460 rpm motor,

jacketed rotary vacuum dryer 3/50/380 volt Cleveland 63-55:1 ratio 3.8 HP, 1750 rpm gearbox shaft cored for steam heating, no national board, rated 50 psi @ 300 degrees F (1-straight side and 1-each end) Rotary union joint, outboard bearings. Unit with dust collector. Openings: top (2) 3' x 18 1/2" hinged access covers with counter balanced mechanism, 2-12"; end 1-8"; bottom 1-10" with manual open/close mechanism; jacket 4-6", 4-2", 4-1", 4-3/4"; shaft 1-2", 1-1 1/2". Jacket Pressure: 50 psi. Jacket Temperature: 300 °F.

jacketed rotary vacuum dryer shaft 50 psi @ 300 degrees F (3) carbon steel jackets (1-straight side and 1-each end) Rotary union joint, outbaord bearings Openings: top (2) 3' x 18 1/2" hinged covers with counter balanced mechanism, 2-12"; end 1-8"; botttom 1-10" with manual open/close mechanism; jkt 4-6", 4-2", 4-1", 4-3/4"; shaft 1-2", 1-1 1/2" Jacket Pressure: 50 psi. Jacket Temperature: 300 °F.

1.4541 (321SS) vacuum paddle jacket dryer system TUV standards Dryer rated full vacuum internal shell 5 bar @ 250 degree C shaft and paddles 5 bar @ 250 degree C heads 5 bar @ 250 degree C, dome 5 bar @ 250 degree C. Shaft 440mm diameter 5.0 KW, 3/50/220/380 volt Cored for heating/cooling with (16) cored paddles @ 1195mm diameter. Dryer has end discharge 400mm x 400mm with discharge valve assembly gear driven Jacket Material: Carbon Steel. Jacket Pressure: 72.5 psi. Jacket Temperature: 482 °F.

wetted parts ST37 (CS jacket) jacketed vacuum paddle dryer DN 21792 internal pressure -1/3 bar @ 250 degrees C, 6000 liter; Jacket pressure 10 bar @ 250°C, c/steel jacket. 419 mm diameter Openings include: top 3-400mm; bottom 1-310mm. Jacket Material: Carbon Steel. Jacket Pressure: 145 psi. Jacket Temperature: 482 °F.

Designed to German TUV standards, With 1.4571 limpet coil jacket on straight side only, full vacuum internal, 20 bar on cored shaft Shaft volume 1000 liter. Shell 1600mm diameter x 4000mm long Shaft cored for heating/cooling Paddles are cored and equipped with scrapers. Openings: top 1-600mm, 1-400mm, 1-125mm, 2-40mm; 1-200mm center bottom outlet. With gear reducer Jacket Temperature: 392 °F. Jacket Type: Half Pipe/Limpet.

design pressure internal -1/2 bar @ 165 degrees C (3150 liter), jacket 6 bar @ 165 degrees C (105 liter), shaft 6 bar @ 165 degrees C (800 liter), motor is Ex CE II 2G Ex de IIC T4 Gb ATEX, 1-bolt dished end and 1-weld dished end, 1.2m diameter x 8195mm overall length, shaft cored for heating with rotary union joint, Jacket Pressure: 87 psi. Jacket Temperature: 329 °F. Jacket Type: Half Pipe/Limpet.
