Polymer filter continous rotary filtration system1220 SqCm active screen area9500 Cm/Hr capacity, 48000 watt oil/vapor heating capacity, with 2 heater zones. CS construction.RexRoth 11 KW power pack 3/50/500 volt 1460 Rpm. 2900 Kg Filter

diverter valve and screen changer masch #20004017,2- 110 cm2 screens screen dimensions 120mm x 0.5mm x 93mm (+0.5),230-600 kg/hr throughput, heating capacity of the 6-cartirdges is 6 x 1000 watt, Gebhard/HLP type cartridges, hydraulically driven by a Heusinger and Salmon powerpack, powerpack driven by a 11/12.7 kw,3/50/60/380/660/420/720/380/660/480/830 volt,1440/1465/1730/1755 rpm 2-speed motor, local control panel on a davit,

plastic 'Utiliser' dry granulator model 20-strand 321 stainless steel rotor with cutting blades motor : 50/60 Hz, 400/380/415 volt, 981/982/1184 rpm , IE2 CE motor aluminium chamber with hinged top inspection cover

type 20-48T Plastic 'Utiliser' dry granulator Model 20-strand 321 stainless steel rotor with cutting blade Aluminium chamber with hinged top inspection cover driven by 15 kw, 3 phase, 50/60 Hz, 400/380/415/460/660/690 volt, 970/975/1180 rpm

plastic 'Utiliser' dry granulator model 20-strand 321 stainless steel rotor with cutting blades motor : 50/60 Hz, 380/400/415/460/660/690 volt, 970/975/1180 rpm aluminium chamber with hinged top inspection cover

centrifugal dryer, for plastic pellets/granules rated 6500 Kg/H product throughput, 50 CuM/H water rate, approx 2,550 NM3/h

• Polished to a 180 Grit finish
• Modular Chromatography System
• Pump by Lewa Temperature Rating: 104 °F.

stainless steel fluid bed crystallizer used on PET pellets with heated nitrogen total pressure drop, ca.30 mbar, differential pressure ca 2 mbar, design pressure pe=90 mbar product thickness ca.200mm approximate bed with glass inspection hatches 1.6m wide x 3.3m long x 500mm deep with glass inspection hatches Openings include: product inlet 100mm diameter with rotary valve, hot air inlet 700mm diameter, hot air outlet 700mm diameter, product outlet 150mm x 185mm, chamber with hood,

Pfaudler Thermal fluid (oil) loop system, all mounted inside a cabinet with pressure gauges, system consists of (1) HMD Magnetic drive centrifugal pump, manufactured by HMD Sealless Pumps Ltd, driven by 5.5 kw, 3/50/415 volt, 2900 rpm motor, (1) 60 liter electric heated tank, manufactured by Pfaudler Balfour, serial #500019, design pressure 10 barg @ 20/200 degrees C, electric heater manufactured by Heatex Ltd, serial #991433, 50kw, 3 phase, 415 volt, EEx d 11C T3, (2) stainless steel plate and shell heat exchangers, manufactured by Vahterus Oy, type PSHE-3HH80/1/1-HE-101 & PSHE-3HH60/1/1-HE-100, serial #6532 & #6531, design pressure on both sides 25 bar @ 200 degrees C, (1) 325 liter horizontal header tank, manufactured by Pfaudler-Balfour, serial #500019, design pressure 10 barg @ 20/200 degrees C, (1) 20 liter vertical tank, manufactured by Pfaudler-Balfour, serial #500019, design pressure 10 barg @ 20/200 degrees C, all items insulated

• Polished to 180 grit finish, modular chromatography system, manufactured by Cytiva/GE- ATKA system # 6098
• Pump by LEWA Temperature Rating: 104 °F.

• 400 Liter/Hr.(1.7 GPM), 316 SS, polished to 180 grit finish, modular chromatography system, manufactured by Cytiva/GE
• Skid mounted on wheels for mobility. Pressure Rating: 72.5 psi. Temperature Rating: 104 °F.

• Polished to a 180 Grit finish.
• Pump by Lewa- see data sheet. Pressure Rating: 72.5 psi. Temperature Rating: 104 °F.

• 316 SS polished to a 180 grit finish.
• Pump by Lewa Pressure Rating: 87 psi. Temperature Rating: 104 °F.

• 316 SS polished to a 180 grit finish
• Pump by LEWA Pressure Rating: 72.5 psi. Temperature Rating: 104 °F.

• Automatik USG300/2 cutting system Including 2 cutters, 1 dryer and controls33-60 strands800/1200/1500mm strand guide length, 80-350 m/min draw in speed.230/460 VAutomatik Dryer Model GT400/2 – L0, Machine number 18.021-602, (Blower fan not available). Includes operating spare cutter.

450mm diameter Liquid/Liquid separator system, designed for separating oil and solvents manufactured by Ott AG, with a stainless steel cyclone separator, openings: on the top (1) 35mm, (1), 45mm, (1) 65mm, (1) DN 100, on the side (1) DN50, (1) DN150 with sight glass, with (2) horizontal stainless steel stripper tanks built 1978 manufactured by EDAK, first tank, serial number 2040/1 rated @ 2 bar by 200 degrees C, volume 200 liter, openings: (1) 35mm, (1) 65mm, (2) 100mm, (1) DN 150 with sight glass, second tank, serial number 2040/2 rated @ 2 bar by 200 degrees C, volume 250 liter, openings: (1) 35mm, (1) 65mm, (2) 100mm, (1) DN 200 with sight glass, with (3) Plate heat exchangers manufactured by Ott, first heat exchanger with 18 plates, second heat exchanger with 19 plates, third heat exchanger with 27 plates, with a centrifugal pump manufactured by Fristan, type FP732/155L, serial number 32121533 driven by a 4,6kW electrical motor manufactured by Loher, type EA132S1A-2, serial number 8475071, 3~/50Hz/380V @ 2915rpm. Originally used to seperate Heptane and Oil. All Stainless Steel construction.

• Polished to a 180 Grit
• Pump by Lewa Pressure Rating: 72.5 psi. Temperature Rating: 104 °F.

24" wide, wet cut, waterslide pelletizer Serial # not available Explosion proof controls, belt driven cutter head Pneumatic assist cover

Vibrating fluid bed with enclosed chamber rated pe=60 mbar total pressure drop, ca.30 mbar differential pressure ca 2 mbar design pressure pe=90 mbar @ 200 deg C, 400 deg C product thickness ca.200mm Openings include: product inlet 100mm diameter with rotary valve, hot air inlet 700mm diameter, hot air outlet 700mm diameter, product outlet 150mm x 185mm, chamber with hood

50m /h" radius curved screen 149 micron mesh, (1) 30 m3/hr @ 50m head KSB centrifugal pump, type Etachrom-BC, driven by 7.5 kw, 3/50/400/690 volt 2910 rpm motor, (1) 80 GPM stainless steel hot water tank, electric heated 700mm diameter x 700mm straight side,

Continous, plastic pellet heater Approximatly 4" diameter x 12" long chamber, 3/4" diameter jacketed discharge. Electrically heated chamber, with roatary gear pump on discharge.

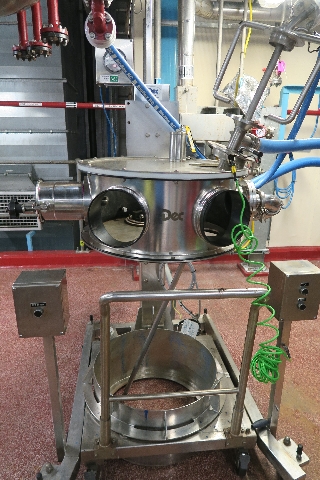

• glovebox & drum discharge unit,
• manufactured by DEC (Dietrich Engineering Consultants sa),
• 800 liter volume,
• pressure -500/+500 Pa,
• temperature 0/+60 degrees C,
• all rated CE Ex II 3G c IIB T4, II 3D c IIIB T 120 degrees C,
• hinged glass front with 2-handholes,
• rear mounted 316L stainless steel drum tipper, serial #LDV-403, 220kg dead weight, 80kg payload max,
• built on control panel,
• mounted on stainless steel legs,

(1) 300m3/hr oil lubricated rotary vane vacuum pump, manufactured by Busch, type RA 0305 D 5EB, serial #C1620000019, 0.1 hPa (mbar), direct driven by 7.5kW, 3/50/690/400/415 volt, 1463/1467 rpm Ex de IIB TA4 ATEX motor

continous Buhler Pulse bed crystalizer system With Gas to Gas heat exchanger, gas blower, and cyclone seperator Used as a crystallizer for Solid State Polymerization.

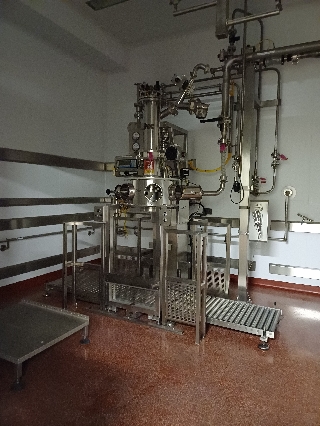

• 316L stainless steel (wetted parts) glovebox drum discharge unit with drum tipper
• manufactured by Dietrich Engineering Consultants SA (DEC)
• 730 liter max volume
• max pressure -500/+500 mbar @ 100 degrees C
• 2-glove holes,
• hinged front,
• mounted on stainless steel legs
• drum tipper manufactured by DEC, serial #LDV-105,
• 304 stainless steel,
• max load 50kg,

• Twin PTS
• pressure max -1/3.5 bar @ 160 degrees C,
• volume 2 x 19 liter
• internal finish Grit 320, Ra<0.5 micron
• external finish Electropolished
• bolt dished top
• bolt coned bottom
• mounted on a carbon steel frame
• design code: PED Group 1, Cat I, Module A
