Type: Pump-Vacuum

Manufacturer: Nash

Model: SC2SS

Condition: Unused

Material: Carbon Steel

Air Flow: 339.8 m3/h (200 CFM)

Discharge Pressure: 0.68 bar (9.8 psi)

Nash SC2SS Vacuum pump, with vapor recovery system Test # 90Y002 The system includes the following equipment; a vacuum pump, two heat exchangers, a separating tank, and seal pots. The direct drive vacuum pump, is manufactured by Nash, size SC2SS, Pos. 4 ,Vac, rated 200 cfm @ 5-20" Hg. The vapor exchanger is a 30 sq. ft., all 316 SS, horizontal heat exchanger manufactured by Industrial Process Equipment corp., Model # 2ST8-60, Serial # 105-641A National Board # 988 It’s shell and tubes are rated for 150/FV The condensate chiller is a 10 sq.ft., 316SS tube bundle, 316SS heads, with CS shell, horizontal heat exchanger and is also manufactured by Industrial Process Equipment Corporation. Serial # 1056413, and National Board # 989, Rated for 150/FV psi in the shell and tubes. The dual seal pot arrangement, with Nitrogen purge is provided by Duramettalic, Canada/Condex Heat Transfer Corp. Serial # 91-3-4146 & 4179, and rated for 400 psi at 400 degrees F. Both have level sight glasses and N2 purge line with regulator and Liquid make up valves. The units 316 SS separator, is manufactured by Jenco, Serial # 91-1327, National Board # 525, and rated for 30/FV at 350 psi. The separator tank also has a liquid level sight glass. The vapor inlet line is 4" flanged, and separator outlet is 1”. Automatic valves for liquid flow control are provided by Fisher and El-O-Matic, and the vapor contact piping is 316 SS. System includes all DP cells, RTD temperature probes, and pressure gauges. Designed to be used in a hazardous atmosphere, skid has a 60 amp Square D breaker, and explosion proof switches and controls.

Orientation: Horizontal. Seal Type: Liquid Ring. Temperature: 148.9 °C (300 °F).

Type: Pump-Vacuum

Manufacturer: SIHI

Model: LEMA 250AF9AA0B4

Condition: Used

Material: Carbon Steel

Air Flow: 140 m3/h (82.4 CFM)

Discharge Pressure: 3 bar (43.5 psi)

SIHI vacuum skid consisting of (1) 140m3/hour carbon steel liquid ring vacuum pump 3 bar (1) 4 liter carbon steel separator vessel, pressure -1/3 barg @ 120 degrees C 273mm diameter x 1020mm total height, (1) 9.9 square meter carbon steel condenser, pressure tube side 6 barg @ 250 degrees C, shell -1/3 barg @ 250 degrees C,

Orientation: Horizontal. Seal Type: Liquid Ring.

Type: Pump

Subtype: Centrifugal

Manufacturer: Flowserve

Model: 16FRBH183

Condition: Unused

Material: Stainless Steel 316

Flow Rate: 1,800 m3/h (7,900 GPM)

Orientation: Horizontal

• Ft./hd. (feet of head)

Motor Power: 149.1 kW (200 HP). Motor Speed (RPM): 880.

Type: Evaporator

Subtype: Rising/Falling Film

Manufacturer: APV

Condition: Used

Material: Stainless Steel 316

Pressure: 10 bar (145 psi)

Temperature: 104 °C (219.2 °F)

98.6% water evaporation4-effect falling film evaporator system Designed by Fritz Voltz sohn feed rate 3.4m3/hr, product 1.3 m3/hr Feed to 1st evaporator is 3.4 m3/hr @ 34.8% concentration and @ 104 deg C vacuum @ 4th evaporator 130 mbar Evaporator concentrations are: 1st = 42.1% @ 116 deg C2nd = 55.8% @ 107 deg C, 3rd = 91.3% @ 81 deg C, 4th = 98.6% @ 98 deg C System consists of:(3) 46 square meter 316 stainless steel tube, head and shell falling film evaporator (1st , 2nd, 3rd effects), manufactured by APV, design pressure tubeside 0.69 bar + full vacuum @ 130 degrees C, shell 3.10 bar + full vacuum @ 140 degrees C, working pressure tubeside 0.207 bar @ 120 degrees C, shell 2.07 bar @ 130 degrees C, (44) 50mm diameter x 18 SWG X 7m long 316 stainless steel tubes, 316 stainless steel tube sheets, 560mm diameter 316 stainless steel shell with expansion joint, (1) 316 stainless steel bonnet head, (1) bolt dished bottom head, mounted on a carbon steel skirt(1) 6 square meter 316 stainless steel tube, head and shell falling film evaporator (4th effect), manufactured by APV, design pressure tubeside 2.5 bar + full vacuum @ 150 degrees C, shell 2.5 bar + full vacuum @ 150 degrees C, (14) 44mm diameter x 16G x 3.5m long 316 stainless steel tubes, 323.9mm diameter 316 stainless steel shell with expansion joint, 4295mm overall height, (1) 316 stainless steel flat bonnet head, (1) weld coned bottom, effect attached on top of a 720 liter 316 stainless steel vertical pressure separator/tank, manufactured by APV, design pressure 2.5 bar + full vacuum @ 250 degrees C, 792mm diameter x 1.5m straight side, weld dished top and bottom, mounted on legs(3) approx 600 liter 316 stainless steel vertical separators, manufactured by APV, design pressure 10 psig + full vacuum @ 130 degrees C, 775mm diameter x 1219mm straight side, weld slight coned top, weld coned bottom,(1) 10.6 square meter 316 stainless steel tube and shell horizontal condenser (1st stage), manufactured by APV, design pressure tubeside 2.5 bar + full vacuum @ 150 degrees C, shell 2.5 bar + full vacuum @ 150 degrees C, (34) 25mm diameter x 16G x 4m long 316 stainless steel tubes, (2) 316 stainless steel flat heads, 406mm diameter 316 stainless steel shell, 4.5m overall length, mounted on saddles(1) 11 square meter 316 stainless steel tube and shell horizontal condenser (2nd stage), manufactured by APV, working pressure tubeside 2.07 bar @ 35 degrees C, shell -0.9 bar + full vacuum @ 50 degrees C, (76) ¾” x 18 swg x 4145mm long 316 stainless steel tubes, (2) 316 stainless steel flat heads, 300mm diameter 316 stainless steel shell, overall length 4523mm, mounted on saddles,(3) approx 132 liter 316 stainless steel vertical pressure tanks (flash vessel), manufactured by APV, design pressure 2.5 bar + full vacuum @ 150 degrees C, 400mm diameter x 750mm straight side, bolt dished bonnet head, weld dished bottom, mounted on legsProcess operationThe first 3 evaporators are falling film and tube (shell & tube) evaporators, where the product flows up and down through a series of tubes which are surrounded by a heating medium, steam @ 1.8 bar is used as the heating mediumThe hot liquid from each evaporator is fed to its associated “separator” in which the vapour separates from the liquid and is drawn off,The 4th evaporator uses a “once-through” falling film concentrator, the unit is similar to that of a shell & tube heat exchanger except that the product falls down the unit through a number of pipes which are surrounded by a heating medium, steam @ 1.8 bar is used as the heating medium, Vacuum @ 130mbar is applied to the 4th evaporator, which draws the vapour through the first 4 evaporators.After the 4th evaporator the product is fed through a heat exchanger, where it cools the product to between 50 deg C and 70 deg C, water is used as a cooling medium, from there the product goes to storage tanks (not available)

Vacuum: Yes.

Type: Tank

Manufacturer: Crepaco

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 94,650 L (25,000 gallons)

Orientation: Vertical

#4 inside with welds ground and polished Lifting eyes on top of the tank 3” Tri- Clamp connections Insulation - 1” cork with mild steel insulation

Diameter: 3,450 mm (136 in). Internal Pressure: 1.01 bar (14.7 psi). Jacket Type: Standard. Jacket Pressure: 3.4 bar (50 psi). Sanitary Contruction: Yes. Support: Base Mounted.

Type: Tank

Manufacturer: 3V Tech

Model: PL Type

Condition: New

Material: Glasslined

Capacity (Design): 18,950 L (5,000 gallons)

Orientation: Vertical

• Rated for lethal service.
• Nozzles with Inconel 625 inlay.
• Glasslined beavertail baffle with WIKA TR-10 & PT100 temperature probes.
• Mechanically sealed agitator: FlowServe MD-200 DN140.
• See sales comments for additional options.

Diameter: 2,600 mm (102 in). Straight-side Length: 3,350 mm (132 in). Internal Pressure: 6.2 bar (90 psi). Internal Temperature: 232.2 °C (450 °F). Does it have Agitation ?: Yes. Vacuum: Yes. Baffle Type: Beavertail. Support: Lugs.

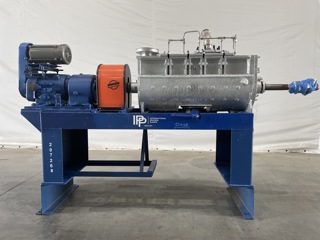

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P3018UTC

Condition: Unused

Material: Carbon Steel

Shell Configuration: Trough

Operational Mode: Continuous

• Single agitator design. Trough is not jacketed Agitator is hardfaced and rated 150 psig @ 650 degree F vessel rated atmospheric @ 650 degree F Trough contains approximately 62 cu. ft. of processing space Completely fabricated and assembled except for the following: Johnson rotary joint, panel coils, drive motor, gear reduction, chain and sprocket
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 762 mm (30 in). Length: 5,500 mm (216 in). Number of Shafts: 1. Porcupine Surface Area: 20.7 m² (223 ft²). Porcupine Operating Pressure: 10.3 bar (150 psi). Porcupine Operating Temperature: 343.3 °C (650 °F). Total Heat Transfer Surface Area: 25.7 m² (277 ft²).

Type: Dryer-Thermal Disc

Manufacturer: Bepex

Model: TD48-9

Condition: Unused

Material: Carbon Steel

Diameter: 1,200 mm (48 in)

Length: 2,750 mm (108 in)

Bepex Torus Disc Cooler U shaped trough, continuous design. Certified by Moorhead Machinery & Boiler Co Moorhead Serial number 605-2300.
Shell rated 15 psi @ 350 degrees. No jacket on trough.
U shaped trough, bolted flat top, with one end bolted for rotor removal. Inside dimensions 48” ID x 9’ long Nominal 106 cubic foot working capacity, approx.
Unit has a tubular rotor with hollow discs mounted on the rotor to allow heating/cooling media to flow through the rotor. The shaft is mounted on outboard bearings, rotary joint on one end, packing glands. Chain and sprocket drive with a gear reducer and 25 HP 3/60/230/460 volt motor. 15 RPM shaft speed. The residence time is adjustable by and overflow weir at the discharge end.

Height: 2,000 mm (78 in). Number of Disc Shafts: 1. Vessel Temperature: 176.7 °C (350 °F). Disc Temperature: 176.7 °C (350 °F). Vessel Pressure: 1.03 bar (15 psi). Disc Pressure: 6.9 bar (100 psi). Operational Mode: Continuous. Heat Transfer Surface Area: 42.7 m² (460 ft²).
