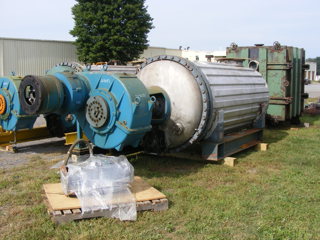

Type: Dryer-Rotary Vacuum

Manufacturer: Buss AG Basel Schwein

Condition: Used

Material: Stainless Steel 316

Capacity Design: 2.5 m3 (90 ft3)

Capacity Working: 1.7 m3 (60 ft3)

Rotary Vacuum Paddle Dryer with heated shaft. Vessel rated for Full vacuum internal 316SS internals SS 1/2 pipe coil jacket one head bolted dished, one head welded dished. Unit has approx. 12" diameter heated shaft with paddle agitator blades. Shaft is direct coupled to a gear reducer 3/60/230/460 volt Openings include: (1) 18" Top, (1) 12" x 16" end port with hinged cover, Bottom center discharge.

Diameter: 1,219 mm (48 in). Length: 3,658 mm (144 in). Height: 1,422 mm (56 in). Orientation: Horizontal. Agitation Seal Type: Packing. Jacket Material: Stainless Steel Other. Jacket Pressure: 4.1 bar (60 psi). Jacket Type: Half Pipe/Limpet.

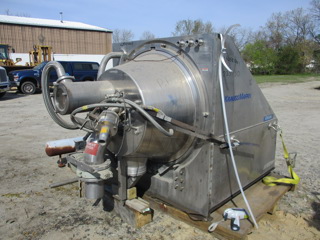

Type: Centrifuge-Peeler

Manufacturer: Krauss Maffei

Model: HZ630 PH

Condition: Used

Material: Hastelloy - C22

Basket Diameter: 630 mm (24.8 in)

Basket Depth: 315 mm (12.4 in)

• Pharmaceutical design. This centrifuge has a clear distinction between the process area/clean room and the drive area. The processing area is free of dead space and allows for complete inspection and sterilization.
• The filter medium is installed inside the cantilever mounted screen basket.
• This centrifuge is Gas tight (over -pressure) to 0.04 bar. With feed and wash pipes, hydraulic plow with pneumatic heel cake removal system and solids discharge chute, with door lock switch.
• Internal accessories are Hastelloy C-22, Gasketing is PTFE.

Filtration Area: 0.6 m² (6.5 ft²). Motor Power: 18 kW (24.1 HP). Speed-RPM Maximum: 2,365. G Force: 1,960. Load Weight: 54 kg (119 lb). Gas Tight: Yes.

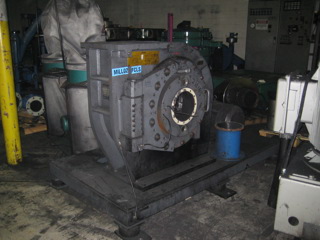

Type: Classifier

Manufacturer: NETZSCH-CODUX

Model: CSF 170 HD

Condition: Used

Material: Carbon Steel

Air Flow Rate: 2,600 m3/h (1,530 CFM)

Diameter: 304.8 mm (12 in)

inlet Carbon Steel skid mounted High Efficiency Fine classifier 3600 RPM rotor max speed.15kW. 460 vac 35 amps Inlet size is 9", outlet is 21" x 19 " square flange. Rejects line is 5" Particle wheel has hinged door for clean out and wheel access This classifier is rated for 2000-2600 m3h, and 200/2400 kG/h Finess is rated for 3.0-4.0 (c/37um).

Particle Size (microns): 37.

Type: Tank

Manufacturer: 3V Tech

Model: PL Type

Condition: New

Material: Glasslined

Capacity (Design): 21,164 L (5,591 gallons)

Orientation: Vertical

• Rated for lethal service.
• Nozzles with Inconel 625 inlay.
• Glasslined beavertail baffle with WIKA TR-10 & PT100 temperature probes.
• Mechanically sealed agitator: FlowServe MD-200 DN140.
• See sales comments for additional options.

Diameter: 2,591 mm (102 in). Straight-side Length: 3,353 mm (132 in). Internal Pressure: 6.2 bar (90 psi). Internal Temperature: 232.2 °C (450 °F). Does it have Agitation ?: Yes. Vacuum: Yes. Baffle Type: Beavertail. Support: Lugs.

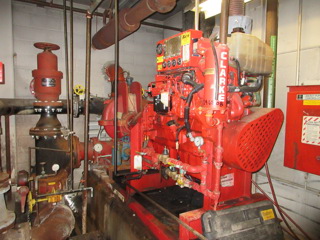

Type: Pump

Subtype: Centrifugal

Manufacturer: Allis Chalmers

Condition: Used

Material: Carbon Steel

Flow Rate: 567.8 m3/h (2,500 GPM)

Pump Head: 87.8 m (288 ft)

Fire pump Direct Driven by John Deere Diesel engine, with controller and fuel tank.

Pressure: 10.4 bar (151 psi). Orientation: Horizontal. Powered By: Engine. Motor Power: 194.6 kW (261 HP). Motor Speed (RPM): 1,785. Pump Notes: Single stage fire pump.

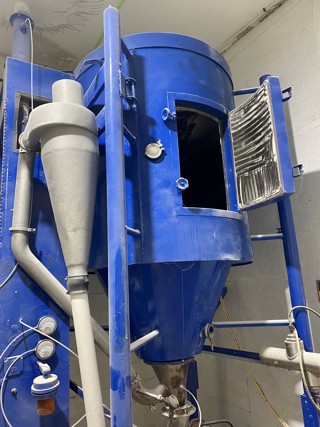

Type: Dryer-Spray

Manufacturer: APV Anhydro

Condition: Used

Material: Stainless Steel 316

Diameter: 1,245 mm (49 in)

Atomizer Type: Rotary Disc-Wheel

sanitary Two types of atomizers: (1x) Belt driven centrifugal atomizing disk & (1x) Down spraying, two fluid, external mixing, air atomizing nozzle APV Anhydro Compact Spray Dryer Air Inlet temperature 200 -300 degrees C (390-670 degrees F), Exhaust air temperature 90 degrees C (195 degrees F) Food grade construction Heat for hot air is natural gas fired by an Eclipse burner rated for 240,000 BTU This system has two forms of atomization, #1)Belt driven centrifugal atomizing disk, driven by a 1 HP motor. #2) Down spraying, two fluid, external mixing, air atomizing nozzle type. Dry product is separated in a SS cyclone, 12" top diameter x 48" high with a 4" cone bottom . Dust is collected in a CS bag house, 36" wide x 86" long x 14' high. 16 Bags with 4" diameter x 48" long socks, approximately 64 Sq. Ft. of filtration area TEFC Hi efficiency. Feed pump is driven by a 0.5 HP motor. Straight wall internal is 60".

Evaporation Rate: 31.8 kg/h (70 lb/h). Inlet Temperature: 354.4 °C (670 °F). Heating Type: Gas. Counter Current or Co Current: Co Current. Explosion-Shock Resistant: Yes.

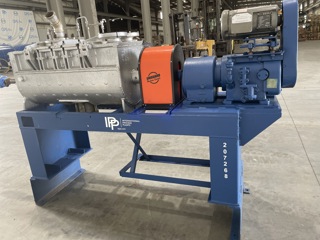

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1203

Condition: Used

Material: Stainless Steel 316

Shell Configuration: Trough

Operational Mode: Batch

• REBUILT 2.1 cu. ft. operating capacity Jacketed Porcupine Processor designed for batch operation manufactured by Bethlehem Foundry and Machine Company
• Shell is rated for MAWP 50 PSI
• Porcupine surface area is 15 sq. ft. jacket is 9.4 sq. ft. Head flats are 3/4" and 3 & 7/8"shell is 1/4" and jacket is 5/16"
• 230/460 volt motor with a Reynolds reduction gear
• with a 207:1 ratio Steam or hot oil inlets and outlets are all 1" NPT Process inlets an are two 3" and outlets are 3.5"
• Rebuilding included the following: Unit is stripped, cleaned, and shaft and jacket pressure tested Gearbox drained, cleaned, checked and refilled. Motor replaced, unit test run. Stuffing box gaskets replaced and new rotary joint installed. New top head cover gasket replaced, Test run and painted, new coupling guard installed.
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 914.4 mm (36 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 0.87 m² (9.4 ft²). Porcupine Surface Area: 1.39 m² (15 ft²). Porcupine Operating Pressure: 10.3 bar (150 psi). Porcupine Operating Temperature: 315.6 °C (600 °F). Jacket Operating Pressure: 10.3 bar (150 psi). Jacket Operating Temperature: 315.6 °C (600 °F). Total Heat Transfer Surface Area: 2.3 m² (24.4 ft²). Size: 1203.

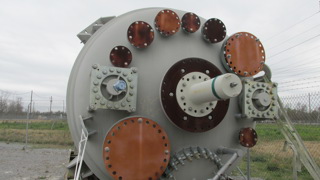

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: 3V Cogeim

Model: Filtodry FPP XD 400 FM

Condition: Used

Material: Hastelloy - C22

Filtration Area: 4.2 m² (44.7 ft²)

Diameter: 2,300 mm (90.6 in)

Alloy C22

Internal finish is a sanitary polish. 304SS sheathing. 304 stainless steel

18.35" Side discharge with discharge valve, 132 gallon Hastelloy C 22 side discharge valve. National Board # 287. rated FV/88 @392 degrees F.

Dryer Dimensions: 90" diameter x 76" length

hydraulic skid. Includes: integral Stock # 241013- Hastelloy C22 pulse jet Dust collector. 8.6" handhole, 4.33" site glass.

Pressure: 6.1 bar (88.5 psi). Temperature: 200 °C (392 °F). Jacket: Yes. Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Pressure: 10.5 bar (152 psi). Jacket Temperature: 200 °C (392 °F). Agitator Cored for Heating/Cooling: Yes.
