Top Agitator in stock

Highest-ranked available inventory for this selection.

Compare related Glass Lined Parts types

Refine Agitator

Specifications

Available Agitator

Showing 25 of 765 matching Agitator.

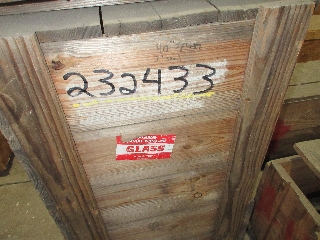

Stock Number: #232433
Diameter: 2.3 in
Length: 103 in
Span: 40 in
Vessel Size: 500 gallons
More Details ⟶
Stock Number: #240331
Diameter: 114.3 mm
Span: 1,050 mm
Vessel Size: 2,000 gallons
Glass Agitator Type: Cryo-Lock
Rotation: Clockwise
Additional Information: CBT blades. 114.25 mm (3.5" ) hub size Fits a 1500-2000 Gallon reactor.
More Details ⟶
Stock Number: #224367
Diameter: 31.5 in
Length: 143 in
Span: 44 in
Vessel Size: 2,000 gallons
Glass Agitator Type: 3 Blade Retreat Curve
Reglassed: Yes
Additional Information: with 5 DTW end
More Details ⟶
Stock Number: #226570
Diameter: 2.5 in
Length: 79 in
Span: 36 in
Vessel Size: 300 gallons
Glass Agitator Type: 3 Blade Retreat Curve
Reglassed: Yes
Additional Information: 3525 SRW drive end
More Details ⟶
Stock Number: #79285
Diameter: 3.5 in
Length: 101 in
Span: 36 in
Vessel Size: 500 gallons
Glass Agitator Type: 3 Blade Retreat Curve
Reglassed: Yes
Additional Information: • nucerite • W/3" dia seal area for packing gland • W/Hastelloy sleeve 3" x 7 1/4" • For 5TW drive • Fits 500 gal RA Series reactor.
More Details ⟶
Stock Number: #230387
Diameter: 5.5 in
Length: 198.5 in
Span: 54 in
Vessel Size: 4,000 gallons
Glass Agitator Type: 3 Blade Retreat Curve
Reglassed: Yes
Rotation: Counterclockwise
Glass Agitator Drive Model: RW
Additional Information: 7RW drive end. Designed to operate counter clockwise. Fits an RA 4000 Reactor.
More Details ⟶
Stock Number: #235531
Diameter: 4.5 in
Span: 48 in
Glass Agitator Type: Pitch Turbine
Reglassed: Yes
Rotation: Counterclockwise
Additional Information: One set of two PBT agitator blades CCW rotation
More Details ⟶
Stock Number: #238219
Diameter: 5.5 in
Length: 180.5 in
Vessel Size: 5,000 gallons
Hub size: 4.5
Glass Agitator Type: Cryo-Lock
Glass Agitator Drive Model: RW
Additional Information: Unused Cryo-Lock shaft for 7/8 RW & 7055SRW. With 4.5" hub. Has stainless steel inlay for mechanical seal.
More Details ⟶
Stock Number: #217531
Diameter: 90 mm
Length: 2,300 mm
Span: 900 mm
Vessel Size: 2,000 L
Glass Agitator Type: 3 Blade Retreat Curve
Additional Information: blue glass 70mm diameter seal area 350mm long stub shaft fits approx. 1800 to 2000 liter vessel
More Details ⟶
Stock Number: #706548
Diameter: 160 mm
Length: 6,200 mm
Span: 1.1 mm
Glass Agitator Type: 3 Blade Retreat Curve
Additional Information: 700mm long carbon steel stub end with a 110mm long Hastelloy sleeve Diameter: 152mm (seal) Material: Hastelloy blue glass 730mm from center of shaft to tip of finger
More Details ⟶
Stock Number: #104040
Diameter: 4 in
Length: 116 in
Span: 1,100 mm
Vessel Size: 3,800 L
Glass Agitator Type: 3 Blade Retreat Curve
Additional Information: white glass End shape: Tapered 100mm seal area Fits 3800 liter reactor.
More Details ⟶
Stock Number: #222264
Diameter: 2.5 in
Span: 22 in
Glass Agitator Type: Cryo-Lock
Reglassed: Yes
Additional Information: • Cryo-Lock turbine set • Complete set of (2) Cryo-Lock agitator blades. • Turbine PBT. • Each pieces has a (2) blade pitched paddle • with 2.5" ID center shaft opening
More Details ⟶
Stock Number: #238281
Diameter: 4.6 in
Span: 43 in
Vessel Size: 5,000 gallons
Glass Agitator Type: CBT
Additional Information: • Press Lock RCI bottom blade set For a 5000 gallon reactor
More Details ⟶

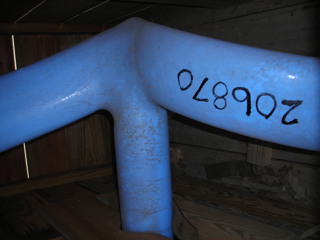

Stock Number: #206870
Diameter: 5 in
Length: 220 in
Span: 60 in
Vessel Size: 5,000 gallons
Glass Agitator Type: 3 Blade Retreat Curve
Additional Information: Drive end: Houdaille Rotapower RA series
More Details ⟶
Stock Number: #228016
Diameter: 3.5 in
Length: 127.5 in
Span: 44 in
Vessel Size: 1,000 gallons
Glass Agitator Type: 3 Blade Retreat Curve
Reglassed: Yes
Rotation: Counterclockwise
Glass Agitator Drive Model: RW
Additional Information: End for a 5 RW drive Light blue glass Fits a 1500/1000 gallon reactor. Fits a 1500/1000 gallon reactor
More Details ⟶
Stock Number: #706552
Diameter: 96 mm
Length: 2,700 mm
Span: 850 mm
Vessel Size: 1,000 gallons
Glass Agitator Type: 3 Blade Retreat Curve
Additional Information: R66 series Gland: High duty packed fits a 1,000 gal R66 series reactor 560mm from center of shaft to tip of finger
More Details ⟶
Stock Number: #706556
Diameter: 98 mm
Length: 2,400 mm
Span: 840 mm
Glass Agitator Type: 3 Blade Retreat Curve
Additional Information: Glass color: White Level markings color: Blue E-1200 liter Stub end length: 710mm Stub end key way: Yes Seal area diameter: 76.25mm Seal area face: 40mm Distance from center of shaft to blade tip: 400mm
More Details ⟶
Stock Number: #706572
Diameter: 110 mm
Length: 3,000 mm
Span: 900 mm
Vessel Size: 1,050 gallons
Glass Agitator Type: 3 Blade Retreat Curve
Additional Information: 101mm diameter x 20mm wide glass seal area 465mm long carbon steel stub end Blue glass 560mm from center of shaft to tip of finger fits approx. 4000 liter reactor
More Details ⟶
Stock Number: #220464
Diameter: 104 mm
Length: 2,550 mm
Vessel Size: 750 gallons
Glass Agitator Type: Cryo-Lock
Additional Information: 3-blade steel shaft 70mm diameter x 360mm 60mm diameter holes for blades no blades
More Details ⟶
Stock Number: #238282
Diameter: 4.3 in
Span: 33 in
Vessel Size: 2,000 gallons
Glass Agitator Type: CBT
Additional Information: • Press Lock RCI Blades bottom set only
More Details ⟶
Stock Number: #238283
Diameter: 2.8 in
Span: 33 in
Vessel Size: 2,000 gallons
Glass Agitator Type: CBT
Additional Information: • Press Lock RCI blades bottom set only
More Details ⟶
Stock Number: #235964
Diameter: 4 in
Length: 193 in
Span: 54 in
Glass Agitator Type: 3 Blade Retreat Curve
Additional Information: RCI agitator Drive end fits a Q12 Lightnin drive.
More Details ⟶
Stock Number: #224610
Diameter: 3.5 in
Length: 129.5 in
Span: 44 in
Vessel Size: 1,500 gallons
Glass Agitator Type: 3 Blade Retreat Curve
Reglassed: Yes
Rotation: Counterclockwise
Glass Agitator Drive Model: RW
Additional Information: 5RW drive end Seal area plated with stainless steel Counter clockwise rotation RA reactor
More Details ⟶
Stock Number: #224338
Diameter: 3.5 in
Span: 44 in
Glass Agitator Type: Cryo-Lock
Reglassed: Yes
Rotation: Counterclockwise
Additional Information: 2 piece blades Cryo-Lock 3 blade retreat curve hub 3.5" hub Counterclockwise rotation
More Details ⟶
Stock Number: #217529
Diameter: 140 mm
Length: 4,050 mm
Span: 1,400 mm
Vessel Size: 8,000 L
Glass Agitator Type: 3 Blade Retreat Curve
Additional Information: blue glass Stub shaft diameter: 110mm 110mm diameter x 490mm long steel stub shaft 120mm diameter seal area
More Details ⟶

Shop new, reglassed, and used secondhand glass lined parts from Universal Glasteel Equipment (UGE) – An IPP Group Company – in stock and trusted by pharmaceutical, chemical and specialty manufacturers globally

UGE-inc.com

UGE has THOUSANDS of ready-to-ship glass lined parts that reduce downtime and extend equipment life

Glass lined parts are critical components in industries that handle corrosive, high-purity or reactive materials. These parts—ranging from nozzles, valves, dip pipes, agitators, baffles, manway covers to main covers, valves, mechanical seals, drive systems, protection rings and gaskets—help preserve the integrity of reactors, vessels and dryers, and heat exchangers. With over 47 years of experience, UGE offers used, surplus and secondhand glass lined parts from 20 complete plant sites and maintains 15,000+ ready-to-ship systems and components across the globe.

All glass lined parts stocked by UGE are carefully inspected for integrity and compatibility and come from top-tier OEMs like De Dietrich, Pfaudler and Cerreactor.

Primary uses across industries

  • In pharmaceutical and biotech applications, for maintaining product purity and preventing contamination
  • In fine and specialty chemical processing, where parts are exposed to aggressive solvents or acids
  • In agrochemical manufacturing, for batch processing and storage of caustic materials
  • In flavor and fragrance production, where product integrity is critical

Types of parts available

  • Glass lined nozzles, dip tubes and spargers
  • Agitator shafts and blades with glass lining
  • Manways, covers, baffles and thermowells
  • Valves, fittings, and full jacketed piping assemblies
  • Drive systems and gearboxes for reactors and agitated tanks
  • Mechanical seals for glass lined reactors

Common materials of construction

These parts are manufactured with corrosion resistance and chemical compatibility in mind:

  • Carbon steel or stainless steel with fused glass enamel lining
  • High-performance gaskets and seals for glass lined equipment
  • Precision-machined interfaces for exact reactor or pipe fitting

Key features of glass lined parts

  • Chemically inert interior surface resists acids, bases and solvents
  • Smooth glass finish minimizes product hold-up and eases cleaning
  • OEM-matched designs for seamless integration with reactors and vessels
  • Ready-to-ship replacements reduce costly plant downtime
  • Compliant with cGMP and FDA standards for regulated production

Learn more about glass lined equipment and part specifications from Pfaudler, a global leader in glass lined equipment technologies.

Find your glass lined parts at IPP and UGE

Search the UGE inventory or contact UGE’s glass-lined equipment specialists to locate the right used, surplus or secondhand glass lined parts. Whether replacing worn components or retrofitting a full line, IPP helps you reduce costs and improve uptime with OEM-quality parts in stock.

Glass Lined Parts FAQ

Have questions about Glass Lined Parts or our services? Learn more about our products and why customers choose IPP.

Are used glass lined parts safe for pharmaceutical or food-grade use?
Yes – many of our parts meet cGMP and sanitary standards. Each part is inspected for integrity and compatibility before resale.
Can I match used parts to an existing De Dietrich or Pfaudler reactor?
Absolutely – IPP stocks OEM-compatible glass lined parts and can help ensure the right fit for your system.
How do I inspect or verify the quality of a used glass lined part?
IPP thoroughly inspects all glass lined components for cracks, chips, or wear, and we’re happy to walk you through the condition before purchase.
What are the benefits of buying used or secondhand process equipment from IPP?
You get faster access to critical parts, save significantly on replacement costs, and benefit from 47+ years of technical expertise.
