All Equipment Nauta Dryers / Conical Dryers

Nauta Dryers / Conical Dryers - Used and Surplus Inventory | IPP

Used Nauta dryers for sale: conical vacuum dryers for delicate and high-purity materials

Searching equipment…
Active Filters
Equipment
Dryer- Nauta / Conical
Clear all filters

Top Nauta Dryers / Conical Dryers in stock

Highest-ranked available inventory for this selection.

Viewing Dryer- Nauta / Conical

No subtypes are available.

Narrow these listings

Specifications

Available Nauta Dryers / Conical Dryers

Showing 12 of 12 matching Nauta Dryers / Conical Dryers.

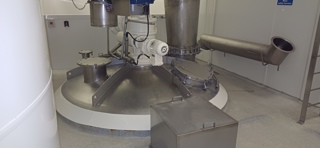

Stock Number: #231137
Capacity Solids: 116 ft3
Capacity Liqid: 871 gallons
Vessel Pressure: 29 psi
Vessel Temperature: 338 °F
Jacket Pressure: 7 bar
Jacket Temperature: 170 °C
Screw Heated: Yes
Screw Pressure: 101.5 psi
Screw Temperature: 302 °F
Additional Information: • Jacket conical screw mixer/dryer with top mounted filter, • screw 7 bar @ 150 degrees C . (18.5 liter), single internal 316L (1.4404) stainless steel screw which is cored for steam heating, screw bottom driven by 11kw 3/50/380 volt 1500 rpm Eex motor, carriage motor 1.1 kw, 3/50/380 volt 1500 rpm Ex motor. • Bottom discharge valve driven by 0.75kw, 3/50/380 volt 1400 rpm Ex motor, dished top with a 5.5 square meter 316L (1.4404) stainless steel jacketed reverse jet filter. • Manufactured by Kilsch Apparatebau Gmbh, fabrik #2184/2, pressure -1/2 bar @ 170 degrees C (750 liter),bolt dished top, (4) jets, TUV certified
More Details ⟶

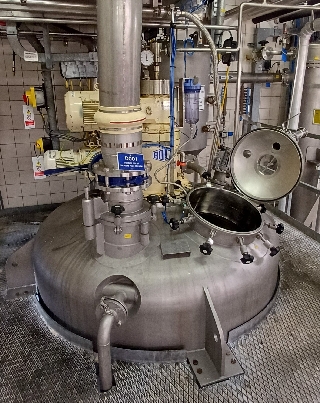

Stock Number: #246751
Capacity Solids: 105 ft3
Capacity Liqid: 792 gallons
Vessel Pressure: 130 psi
Vessel Temperature: 130 °F
Jacket Pressure: 50 psi
Jacket Temperature: 130 °F
Agitator Seal Type: Mechanical
Screw Heated: Yes
Screw Pressure: 50 psi
Screw Temperature: 130 °F
Dust Collection: Yes
Vacuum System: Yes
Additional Information: • Class 1 Group C & D, Class 2 Group F & G Div2
More Details ⟶
Stock Number: #241005
Capacity Solids: 105 ft3
Capacity Liqid: 792 gallons
Vessel Pressure: 88 psi
Vessel Temperature: 392 °F
Jacket Pressure: 150 psi
Jacket Temperature: 392 °F
Agitator Seal Type: Double Mechanical Seal
Dust Collection: Yes
Additional Information: • Alloy C276 Vacuum Conical Screw Dryer. • Coil jacket, Shell rated 88FV. • 103" diameter x 117" length. • Welded dished top head. • Orbital acting screw agitation. Johnson Joint attached to top.
More Details ⟶
Stock Number: #106168
Capacity Solids: 4.7 ft3
Capacity Liqid: 35 gallons
Vessel Pressure: -1 psi
Vessel Temperature: 353 °F
Jacket Pressure: 125 psi
Jacket Temperature: 353 °F
Additional Information: • 1.7 cubic foot working capacity • Mini-mixer dryer- Polished inside and out • U-stamp 30" diameter Single screw design. Arm rotates 2-4 rpm, a 6" diameter screw rotates 60 to 120 rpm230/460 volts. • Bottom with safety grid and manual butterfly valve. C • omplete with starter box Unit enclosed in SS shroud
More Details ⟶
Stock Number: #248271
Capacity Solids: 105.9 ft3
Capacity Liqid: 793 gallons
Vessel Pressure: 58 psi
Vessel Temperature: 248 °F
Jacket Pressure: 43.5 psi
Jacket Temperature: 248 °F
Agitator Seal Type: Mechanical
Screw Heated: Yes
Screw Pressure: 43.5 psi
Screw Temperature: 248 °F
Vessel Vacuum Rated: Yes
Dust Collection: Yes
Additional Information: • design pressure internal -1/4 bar @ -10/120 degrees C, • jacket -1/3 bar @ -10/120 degrees C (390 liter), • screw -1/3 bar @ -10/120 degrees C (20 liter), • 316L (1.4404) stainless steel jacket, • rotating arm driven by 11kW, 3/50-60/220-240/380-415/248-266/415-460 volt, 1500/1700 rpm Ex motor via a reduction gearbox, • screw driven by approx 5kW motor via a reduction gearbox, • weld dished top, weld coned bottom, • approx 1.8m diameter x 2m high cone section, • pneumatic ball valve on bottom of come, • mounted on lugs, • (1) 316L stainless steel discharge hopper with bottom screw conveyor, weld flat top, weld coned bottom approx 1.2m diameter x 1m straight side, approx 50mm diameter screw on conveyor, driven by approx 1.5kW motor via a reduction gearbox, Vacuum System: Yes.
More Details ⟶
Stock Number: #203543
Capacity Solids: 704 ft3
Capacity Liqid: 5,250 gallons
Vessel Pressure: 29 psi
Vessel Temperature: 302 °F
Jacket Pressure: 3 bar
Jacket Temperature: 150 °C
Dust Collection: Yes
Additional Information: • 20 Cubic Meter, (704 Cu.Ft.)Krauss Maffei/Titus Nauta type Blender/Dryer. • Internal has a 4 micron polished finish. • The Dryer has an internal rotating screw agitator, rated speed is 10 to 100 rpm • Screw carriage rated speed is rated .035-.35 rpm. • Vessel diameter is 3900mm External bottom mounted screw drive. • Pneumatically activated product discharge valve • Unit has a top mounted 6 sq. Meter 316Ti jacketed bag filter.
More Details ⟶
Stock Number: #231222
Capacity Solids: 353 ft3
Capacity Liqid: 2,650 gallons
Vessel Pressure: 46.4 psi
Vessel Temperature: 482 °F
Jacket Pressure: 43.5 psi
Jacket Temperature: 329 °F
Additional Information: • Single stainless steel screw, screw bottom driven. • Dished top with a 26 square meter 316Ti (1.4571) stainless steel reverse jet filter • Pressure -1/3 bar @ 165 degrees C. • Bolt dished top, (12) jets. • TUV certified, CE marked.
More Details ⟶
Stock Number: #231223
Capacity Solids: 353 ft3
Capacity Liqid: 2,650 gallons
Vessel Pressure: 46.4 psi
Vessel Temperature: 329 °F
Jacket Pressure: 3 bar
Jacket Temperature: 165 °C
Additional Information: • Pressure -1/3.2 bar @ 250 degrees C. • Single stainless steel screw, screw is bottom driven. • Dished top with a 316Ti (1.4571) stainless steel reverse jet filter, pressure -1/3 bar @ 165 degrees C (1220 liter). • Bolt dished top, (6) jets, • TUV certified, CE marked
More Details ⟶
Stock Number: #201391
Capacity Solids: 3.5 ft3
Capacity Liqid: 26 gallons
Vessel Pressure: -1 psi
Vessel Temperature: 350 °F
Jacket Pressure: 125 psi
Jacket Temperature: 353 °F
Vessel Vacuum Rated: Yes
Additional Information: • U stamped Jacket area: 12 square foot. • Dryer chamber 40" diameter x 42" cone. • Screw drive is a 230/460V Pacemaker motor with UL label, 1750 RPM input speed, 190 RPM output speed. • Bolted flat top.
More Details ⟶
Stock Number: #706888
Capacity Solids: 70 ft3
Capacity Liqid: 528 gallons
Vessel Pressure: 87 psi
Vessel Temperature: 212 °F
Jacket Pressure: 3 bar
Jacket Temperature: 100 °C
Additional Information: • Jacketed conical dryer fabrik #10861 • Protection class Ex-e-T3 Top driven screw orbital arm driven by 0.55 kW, 3/50/500 volt, 1370 rpm Ex e T3 IP44 motor via a 32 rpm reduction gearbox. • 2m top cone diameter, with a weld dished top, and a bottom discharge valve.
More Details ⟶
Stock Number: #247055
Capacity Solids: 353 ft3
Capacity Liqid: 2,650 gallons
Agitator Seal Type: Mechanical
Additional Information: • Approx 10,000 liter stainless steel (highly polished) conical screw nauta mixer system, system consists of (1) 10,000 liter highly polished stainless steel conical nauta mixer, weld dished top, weld coned bottom, approx. 3m diameter x 5m cone section, orbital arm driven by 11kW, 3/50/415 volt, 1470 rpm EExd IIB T4 motor via a reduction gearbox, screw driven by 0.75kW, 3/50/415 volt, 1435 rpm EExd IIB T4 motor via a 12.98:1 ratio reduction gearbox, bottom segmented ball valve, (1) approx. 3000 liter stainless steel vertical feed hopper, weld coned top and bottom, approx. 2.1m diameter x 500mm straight side x 400mm high top cone section x 700mm high bottom cone section, mounted on lugs, (1) stainless steel type 'The Comil' model 196S conical screen mill, manufactured by Quadro Engineering Incorporated, serial #19S-0359, driven by 7.5kW, 3/50/415 volt, 1440 rpm IP55 motor
More Details ⟶
Stock Number: #248077
Capacity Solids: 206 ft3
Capacity Liqid: 1,550 gallons
Vessel Pressure: 43.5 psi
Vessel Temperature: 248 °F
Jacket Pressure: 58 psi
Jacket Temperature: 248 °F
Vessel Vacuum Rated: Yes
Additional Information: • design pressure internal -1/3 bar @ 120 degrees C (5780 liter), jacket 4 bar @ 120 degrees C (750 liter) • bolt dished top, weld coned bottom • approx 2m diameter x 2.9m high cone section • rotating arm driven by 1.5kW, 3/50/220/380 volt, 1420 rpm IP55 motor via a reduction gearbox • Screw driven by 11kW, 3/50/380/660 volt, 1460 rpm IP55 motor via a reduction gearbox • bottom outlet with pneumatic ball valve
More Details ⟶

Shop IPP’s used, secondhand and surplus Nauta dryers – sanitary designs in stock and ready to ship

Save time and money with IPP’s in-stock Nauta dryers for pharmaceutical, food and specialty chemical use

For precision drying of heat-sensitive powders, slurries, and pastes, Nauta dryers offer efficient, low-shear mixing and moisture removal in a compact, conical design. With over 47 years of process equipment expertise, IPP gives you immediate access to used Nauta dryers sourced from 20 complete plant sites and included in our inventory of over 15,000 ready-to-ship pieces of equipment. Choosing a second-hand Nauta dryer from IPP allows manufacturers to reduce lead times, lower costs, and maintain high product integrity.

Nauta dryers, also known as conical screw dryers, use a rotating screw arm and orbital arm to gently lift and fold product while applying indirect heat and vacuum. This unique motion enables thorough, homogeneous drying with minimal mechanical impact, making them ideal for fragile or complex materials.

Primary uses across industries

  • In pharmaceutical manufacturing, Nauta dryers process APIs, excipients, and intermediates.
  • In chemical processing, they dry resins, pigments, and specialty powders.
  • In food and nutraceuticals, they handle protein powders, cocoa, and botanical extracts.
  • In cosmetics and personal care, Nauta dryers dry emulsions, clays, and natural additives.
  • In additive manufacturing, they dry specialty polymers and metal powders.

Types of materials processed

  • Fine powders and granules requiring uniform drying
  • Heat-sensitive, shear-sensitive, or hygroscopic materials
  • Slurries and pastes that can be dried under vacuum

Common materials of construction

Nauta dryers are built to meet high purity and durability standards:

  • Stainless steel for food, pharma, and chemical-grade drying
  • Hastelloy and other alloys for corrosive or high-purity applications
  • Carbon steel for general industrial use

Key features of Nauta dryers

  • Gentle mixing with low shear action for delicate materials
  • Conical shape promotes uniform drying and easy discharge
  • Jacketed for heating and vacuum operation to lower drying temperatures
  • Closed system minimizes contamination and solvent loss
  • Compact footprint ideal for batch processing

Learn more about conical screw drying technology from Pharma Manufacturing.

Find your Nauta dryer at IPP

Search the IPP inventory or contact IPP’s equipment experts to find a high-quality used Nauta dryer for your application. With ready-to-ship units and expert support, IPP helps you maintain product quality while controlling costs.

Dryer- Nauta / Conical FAQ

Have questions about Nauta Dryers / Conical Dryers or our services? Learn more about our products and why customers choose IPP.

What industries rely most on Nauta dryers?
Pharmaceutical, chemical, food, cosmetics, and advanced materials industries use Nauta dryers for drying fragile or high-value materials under precise conditions.
How do Nauta dryers compare to paddle or ribbon dryers?
Nauta dryers offer gentler, more uniform mixing with vacuum drying, making them ideal for sensitive materials. Paddle and ribbon dryers are more suited to faster, more aggressive drying of robust materials.
What maintenance is required for Nauta dryers?
Routine maintenance includes inspecting seals, bearings, and drive systems, checking vacuum integrity, cleaning product contact surfaces, and monitoring heat transfer systems.
What are the benefits of buying used or secondhand process equipment from IPP?
Buying used from IPP saves up to 70% compared to new, allows faster implementation, promotes sustainability, and provides access to over 47 years of global equipment expertise.
