Used ribbon and paddle dryers for sale: efficient mixing and drying for powders and pastes
Highest-ranked available inventory for this selection.
Used ribbon and paddle dryers for sale: efficient mixing and drying for powders and pastes
Select one or more values to narrow the current listings.
Select one or more values to narrow the current listings.
Use this setting to include or exclude equipment with this feature.
Select one or more values to narrow the current listings.
Select one or more values to narrow the current listings.
Select one or more values to narrow the current listings.
Showing 16 of 16 matching Ribbon & Paddle Dryers.
Twin Shaft Nara paddle Shell WO Number DS-220, Jacket Serial Number D-258, National Board Number 1102. Heat Transfer area: Jacket 107 Sq Ft, Agitator 293 Sq Ft, total 400 Square Foot. twin shaft with discontinous wedge shaped staggard paddles. Both jacket and agitator rated for 165 psi at 425 degrees F. Indirect heat, by saturated steam heat; rotary joints on shafts with quick disconnects and zero speed switch on end of shaft. Shaft seals are Meco Systems self-aligning externally adjstable, fully split elastomer seal, with purge port. With a 316LSS dome type covered trough rated for 5 psi pressure. With a chain and sprocket drive, SEW Sanasaio Parallel shaft speed reducer and a 75 HP Reliance motor. Motor data, ID # OIMAN 79345 G001 BC Frame 365 T, rated for 1780 rpm, Volts 230/460 amps 172/86 3 ph, Hz 60. Shaft speed approximately 12 RPM. Openings include: 15" x 36" feed opening, (1) 12" diamter vapor opening, (3) 18" x 24" explosion vent openings, (1) 6" Sweep Gas Inlet, (1) 20" x 20" Access hatch with bolted cover, (2) 6" view ports; trough has (1) 12" x 58" flanged discharg opening, (2) externally adjustable weir gates.
Internals polished---Shaft Not cored. Packing on shaft, No dust collectors.
manufactured to a Nara style, Similar to a 5RW, this dryer/cooler contains twin paddles to process the material inside the trough. The paddle heating surface area is 136.7 Sq.ft. and the jacket heating surface area is 52 sq. ft. This dryer is manufactured for a continuous operation, and has been constructed to ASME code, The two agitators are 15” diameter x 10’ long. The trough internally measures 131”long x 39” wide. The processor has a flat top vapor hood cover, and the unit is belt driven by a 10 HP AC motor, 3 phase, 60 Hz, 230/460 volt.
10" diameter Shell 12" diameter x 95" long
Removable 2" plow design rotor w/adjustable pitch & clearance paddles
Outboard bearings, Telon - Viton double lip seals with purge connection
Shell 3/8" thick, jacket 1/4" thick
Openings: Shell 1-6" feed, 1-6" discharge; jacket 2-2", 1-1"Mounted on base. With pulley
Strong Scott Solidaire dryer Material of construction SS, with CS outer Jacket. 188" thick. Removable rotor. Outboard bearings.

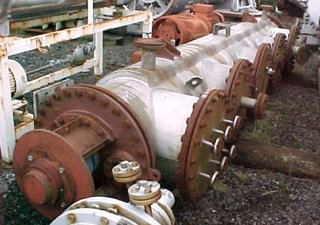

jacketed 'Turbo' continuous paddle dryer CE 600mm inside diameter x 3820mm straight side, bolt flat ends 3 x 304 stainless steel (1.4307) jacket sections on straight side only each jacket is 711mm outside diameter x 1246mm long
2060mm diameter, jacketed Turbulent Paddle mixer/reactor, 16000 liter internal capacity, Fabrik #54279, Herst #4628, 2060mm diameter x 4.1m straight side, weld dished ends, Paddle speed 15-45 rpm, belt driven by 200 kw, 3/50/380/660 volt, 1486 rpm motor via a reduction gearbox, removeable plough blades, mechanical seals with lubricator pots, (2- 320 liter on straight side, each dished end with 180 liter ), openings: top: 1-600mm manway (no cover), 1-300mm, 2-200mm, 1-100mm, 1-80mm, 6-65mm (liquid sprayers), 2-50mm, 6-50mm (jacket), side: 1-80mm (with sample device), bottom: 1-250mm (with valve), 2-65mm, 6-50mm (jacket), 2-12mm, mounted on saddles, (11) spare blades and (1) spare mechanical seal
Continuator, Trough inside dimensions 69" diameter x 195" long, 214 Square foot heating surface. with a dome top cover, 25% of the dome cover has panel coils. The rotor is 18" diameter with 8" stub shafts, packing glands on shaft. outboard bearings. The rotor paddles are hard-faced. The rotor has a chain & sprocket drive, with a Foote Jones gear reducer, 38.7:1 ratio. 12 rpm screw speed, driven by 75 HP, 3/60/460 volt motor. Continuous design with an adjustable discharge weir. Designed for steam heat. If used as a hydrotreator for sludge, machine is rated 5.8 short tons.hr.
Bepex Continuator 214 Square foot heating surface. with a dome top cover, 159.5 overall all height. 25% of the dome cover has panel coils. The rotor is 18" diameter with 8" stub shafts, packing glands on shaft. outboard bearings. The rotor paddles are hard-faced. The rotor has a chain & sprocket drive12 rpm screw speed. Continuous design with an adjustable discharge weir. Designed for steam heat. If used as a hydrotreater for sludge, machine is rated 5.8 short tons.hr.
Agitator is 24" diameter and 14' long vessel rated 0.065 MPA @ 95 degree C Adjustable paddles on the 125mm diameter shaft. Vessel capacity 1420 liters, jacket capacity 220 liters Design for 60-160 rpm Openings: top 5-500mm, (1-with 250mm product inlet, 150mm condensate outlet; 1-80mm sight glass); 200mm x 300mm end discharge
manufactured to a Nara style Similar to a 5RW, this dryer/cooler contains twin paddles to process the material inside the trough The total heating surface is 188.7 Sq.Ft. The paddle heating surface area is 136.7 Sq.ft. and the jacket heating surface area is 52 sq. ft. This dryer is manufactured for a continuous operation, and has been constructed to ASME code, The two agitators are 15” diameter x 10’ long The trough internally measures 131”long x 39” wide The processor has a dome top vapor hood cover, and the unit is belt driven by a 10 HP AC motor, 3 phase, 60 Hz, 230/460 volt
24" diameter x 15' long jacketed Solidaire dryer Rotor has adjustable pitch paddles and was Openings: top 1-6" feed end, 1-6" and 1-6" discharge
For efficient drying of slurries, pastes, and fine powders, ribbon and paddle dryers offer robust performance and gentle handling across a wide range of industrial processes. With over 47 years of process equipment expertise, IPP provides immediate access to used ribbon and paddle dryers sourced from 20 complete plant sites and included in our inventory of over 15,000 ready-to-ship pieces of equipment. Choosing a used ribbon or paddle dryer from IPP allows manufacturers to cut costs, avoid long lead times, and maintain reliable process control.
Ribbon and paddle dryers are horizontal dryers that use internal agitators—either ribbon-shaped or paddle-type—to move and mix the material while applying heat. This design enables uniform drying and heat transfer, making them ideal for materials that require careful processing without degradation.
Ribbon Dryers and Paddle Dryers are both types of industrial drying equipment, often used in chemical, pharmaceutical, and food processing industries. Each serves to remove moisture from solids by introducing heat through a mechanical agitation process. Here is how they work, their common applications, and materials of construction, along with some major manufacturers for each type. IPP stocks dozens of used ribbon and paddle dryers available for immediate delivery.
Both types of dryers are crucial in industries where precise moisture content is critical for product quality and where heat sensitivity of materials requires careful handling. The choice between a ribbon and paddle dryer often depends on the specific drying needs of the material, including its consistency and how it reacts to heat and mechanical stress.
If you are looking for a used Ribbon or Paddle Dryer, search our inventory or contact International Process Plants for more information.
