Results 24 items found

Available Flaker Drum and Belt Dryers

Showing 24 of 24 matching Flaker Drum and Belt Dryers.

Featured
Stock Number: #215236
Dryer-Flaker Drum and Belt R.Simon Dryers Stearine acid Stainless Steel 316
Flaker Width: 60.6 in
Area of Flaker: 2,450 ft²
Orientation: Horizontal
Additional Information: single drum flaker, with dip tray working pressure 6.9 bar max, design pressure 6.9 bar @ 170 degrees C steam heated drum with rotary unions drum speed variable from 0.7 to 7 rpm, adjustable knife discharge with removeable plastic blades (missing)
More Details ⟶
Featured
Stock Number: #201241
Dryer Flaker Drum and Belt North American Process Systems N-86-639 Stainless Steel 316
Flaker Width: 47.2 in
For Belt: Length of Flaker: 78.7 in
Area of Flaker: 25.8 ft²
Orientation: Horizontal
Single Belt or Double Belt ?: Single
Additional Information: Pharmaceutical grade Top of belt is steam heated bottom is chilled water cooled variable speed, 0.75 kW 3/50/220/380V System equipped with SIHI cooling water vacuum pump driven by 2.5 kW 3/50/380V, 1430 RPM motor.
More Details ⟶
Featured
Stock Number: #228257
Dryer Flaker Drum and Belt Berndorf Belt Systems 924MDT Stainless Steel
Flaker Width: 60 in
For Belt: Length of Flaker: 792 in
Area of Flaker: 330 ft²
Orientation: Horizontal
Single Belt or Double Belt ?: Single
Flaker Feed Type: Heated Refeed Pastillator
Additional Information: belt flaker, with Accu-Drop Pastillator and Variable Speed Drive Belt system is 60" wide x 75 feet long. With six (138" x 59" x 5'5") water collectors 190 Gallons rated for 55 degrees F. Six water spray systems, 116" x 2" OD. Hot melt is feed through a rotoform, with steam to keep hot melt in a liquid state. Shell side (Product side) rated for 400 degrees F, tube side, (steam) rated for 300-350 degrees F. Rotoform is 59" long x 3.25" diameter Main Belt is driven by a Euro drive variable-speed, with a helical reducer 3 HP gear ratio 34.26:1 Overall belt speed is from 25 FPM up to 125 FPM. (This can also be adjusted with different sprockets.) 1750 rpm. 2.77 HP, service factor 1 with output torque 892. The rated temperature range is 51-110 degrees F. Driven by a 1 hp AC motor, continuous duty TEFC. Model # DF26DT1001.54, serial # 88075 1570.07.
More Details ⟶
Featured
Stock Number: #702508
Escher Wyss Dryer-Flaker Drum and Belt
Flaker Width: 31.5 in
For Belt: Length of Flaker: 39.4 in
Area of Flaker: 5.4 ft²
Orientation: Horizontal
Additional Information: 30" (800mm) dia x 40" (1000mm) long long chrome plate cast iron single drum flaker Totally enclosed in SS casing w/MS ribbing (not vac rated) Roll surface area: 0.5026 sq meter Fitted w/an unused replacement drum. New main roll bearings made in phosphor bronze in half bush arrangement. Applicator roll re-ground and re-chromed to original dia and Ra surface. Complete w/applicator tray. No motor or gearboxes w/this unit.
More Details ⟶
Stock Number: #706652
1,500 mm (59.1 in) Stainless Steel Other Dryer-Flaker Drum and Belt
Flaker Width: 59.1 in
For Belt: Length of Flaker: 978 in
Area of Flaker: 398.3 ft²
Orientation: Horizontal
Single Belt or Double Belt ?: Single
Flaker Feed Type: Standard Drop Pastillator
Number of Cooling Zones for Belt: 4
Nozzles per Cooling Zone: 49
Scraper: Yes
Scraper Details: Discharge scraper - Brass MOC
Additional Information: 1.5m wide x 24.85m long rotoform cooling conveyor/belt Drawing Number 6530. 5m long hot water section 17.5m cooling water section Cooling water capacity: 185 GPM @ 30 psi, Hot water zone has 16 sprays x 4 runs x 0.71 gpm (45.4 gpm), Cold water zone has 49 sprays x 4 runs x 0.71 gpm (139.1 gpm), 900mm diameter tension drum, 900mm diameter drive drum andvik Dropformer feed unit with hot oil heated weir, chain driven by 0.75 KW, 3/50/415 volt motor via varispeed gearbox. brass knife discharge, carbon steel support frame with sump tanks mounted under the belt, Flaker includes a discharge vibratory shaker for size classifacation, (3) Sihi Centrifugal cooling water pumps, Russel Finex inline water filter,
More Details ⟶
Stock Number: #203808
1,200 mm (47.2 in) Stainless Steel Other Dryer-Flaker Drum and Belt
Flaker Width: 47.2 in
For Belt: Length of Flaker: 157.5 in
Area of Flaker: 51.7 ft²
Orientation: Horizontal
Single Belt or Double Belt ?: Single
Additional Information: Pastillator with type: ZN stainless steel dosing system (tube needle system) can be heated, rated: 100 to 200 kg/hr, unit has an endless belt 1.2 meter wide, 1 mm thick x 11.14 meter total length 4 meter working area, with 1.4541 s/steel (321s/steel) spray nozzles for belt cooling Unit has a c/steel frame covered with aluminum.
More Details ⟶
Stock Number: #203809
1,200 mm (47.2 in) Stainless Steel Other Dryer-Flaker Drum and Belt
Flaker Width: 47.2 in
For Belt: Length of Flaker: 157.5 in
Area of Flaker: 51.7 ft²
Orientation: Horizontal
Single Belt or Double Belt ?: Single
Additional Information: with Type ZN stainless steel dosing system (tube needle system) can be heated rated 100 to 200 KG/Hr Unit has an endless belt 1.2 meter wide, 1mm thick,x 11.14 meter total length, 4 Meter working area with 1.4541SS (321SS) spray nozzles for belt cooling Unit has a CS frame covered with aluminum
More Details ⟶
Stock Number: #203810
1,200 mm (47.2 in) Stainless Steel Other Dryer-Flaker Drum and Belt
Flaker Width: 47.2 in
For Belt: Length of Flaker: 157.5 in
Area of Flaker: 51.7 ft²
Orientation: Horizontal
Single Belt or Double Belt ?: Single
Additional Information: ZN stainless steel dosing system (tube needle system) can be heated, rated 100 to 200 KG/Hr. Unit has an endless belt Unit has an endless belt, 1.2 meter wide, 1mm thick,x 11.14 meter total length, 4 Meter working area with 1.4541SS (321SS) spray nozzles for belt cooling Unit has a CS frame covered with aluminum.
More Details ⟶
Stock Number: #210305
Stainless Steel 304 Dryer-Flaker Drum and Belt
Flaker Width: 24 in
For Belt: Length of Flaker: 168 in
Area of Flaker: 28 ft²
Orientation: Inclined
Single Belt or Double Belt ?: Single
Additional Information: with (2) 20” wide water cooled chrome plated calender rolls on the belt feed end to smooth out the hot product dropping onto the chill belt Rolls are driven by a varispeed drive, one roll is 7" diameter, the other is 16" diameter Material drops onto a stainless steel water cooled belt (similar to a Sandvick). With lump breaker on the discharge end of belt to break up cooled product Chipped product drops into a 6" SS rotary airlock valve then is pneumatically conveyed to a pre-breaker.
More Details ⟶
Stock Number: #239473
Carbon Steel Dryer-Flaker Drum and Belt
Flaker Width: 12 in
For Belt: Length of Flaker: 8 in
Area of Flaker: 2.1 ft²
Orientation: Horizontal
Flaker Feed Type: Submerged Feed Roll
Scraper: Yes
Scraper Details: Knife type Nip
Additional Information: Universal Twin Cylinder 12" x 8" lab sized dryer, flaker.
More Details ⟶
Stock Number: #229478
Stainless Steel 304 Steel Belt Systems Dryer-Flaker Drum and Belt
Flaker Width: 59.1 in
For Belt: Length of Flaker: 709 in
Area of Flaker: 310 ft²
Orientation: Horizontal
Single Belt or Double Belt ?: Single
Flaker Feed Type: Standard Drop Pastillator
Number of Cooling Zones for Belt: 3
Nozzles per Cooling Zone: 60
Scraper: Yes
Scraper Details: bakelized fiber
Additional Information: approx 28.8 square meter 301 (NICRO 12.1)/304 stainless steel enclosed horizontal belt flaker with Pastillator, 1.5m wide x 18000mm cooling length 301 (NICRO 12.1) stainless steel belt, 19250mm belt length between center of rolls, 38500mm total length of belt, 1mm belt thickness, (3) cooling zones, zone 1 = 5.5m long (3 bar @ 5-9 degrees C), zone 2 = 6m long (3 bar @ 5-9 degrees C), zone 3 = 6.5m long (3 bar @ 5-9 degrees C), (179) plastic cooling nozzles, (2) 800mm wide 304 stainless steel drums, belt enclosed in a 304 stainless steel housing, pneumatic operated belt tensioner, belt with bakelized fiber scraper blades, (1) 120mm diameter x 1.4m wide 304 stainless steel RollDrop pastillator for distributing the liquid drops onto the cooling belt, 8mm toothed rotor pitch, type 3 x 1mm, comb material TEKAPEEK, 105 degrees C, Pastillator with pneumatic operated raise/lower mechanism, belt with pneumatic operated knife discharge with a brass blade, 304 stainless steel water trays, built on controls, Thermo Scientific model MINI-11-101F weight integrator, emergency stop button and pull cord, all mounted on a Galvanised carbon steel frame, approx 20600mm total length of flaker, (1) discharge belt conveyor, Pastillator description: The product is fed at controlled temperature onto a roller rotor, whose rim is designed with teeth having regular shape and pitch. The liquid product slips constantly between the teeth pattern; drops are gathering on the back of every tooth, thanks to the complementary comb in touch with the toothed rotor. The formed drops are then deposited on the cooled steel belt, thanks to the centrifugal and gravitational force, generating simultaneously pastilles form.
More Details ⟶
Stock Number: #210324
610 mm (24 in) Stainless Steel 304 Dryer-Flaker Drum and Belt
Flaker Width: 24 in
For Belt: Length of Flaker: 168 in
Area of Flaker: 28 ft²
Orientation: Inclined
Single Belt or Double Belt ?: Single
Additional Information: (2) 20” wide water cooled Rolls are driven by a varispeed drive, one roll is 7" diameter, the other is 16" diameter Material drops onto a stainless steel water cooled belt (similar to a Sandvick). With lump breaker on the discharge end of belt to break up cooled product
More Details ⟶
Stock Number: #228256
Stainless Steel Other Dryer-Flaker Drum and Belt
Flaker Width: 60 in
For Belt: Length of Flaker: 792 in
Area of Flaker: 330 ft²
Orientation: Horizontal
Single Belt or Double Belt ?: Single
Flaker Feed Type: Heated Refeed Pastillator
Additional Information: belt flaker, with Accu-Drop Pastillator and Variable Speed Drive Belt system is 60" wide x 75 feet long. With six (138" x 59" x 5'5") water collectors 190 Gallon rated for 55 degrees F Six water spray systems, 116" x 2" OD. Hot melt is feed through a rotoform with steam to keep wax in a liquid state. Shell side(product side) rated for 400 degrees F, tube side, (steam) rated for 300-350 degrees F. Rotoform is 59" long x 3.25" diameter Main Belt is driven by a Euro drive variable-speed with a helical reducer 3 HP gear ratio 34.26:1 Overall belt speed is from 25 FPM up to 125 FPM. (This can also be adjusted with different sprockets.) Overall shipping dimensions are 75" wide x 66" tall (to top of mounted pastillator) x 75' long. Belt thickness is 0.040", belt height is 48".
More Details ⟶
Stock Number: #704988
600 mm (23.6 in) Stainless Steel 316 Dryer-Flaker Drum and Belt
Flaker Width: 23.6 in
Area of Flaker: 30.4 ft²
Orientation: Horizontal
Scraper: Yes
Scraper Details: 316 stainless steel knife discharge with pneumatic adjustment
Additional Information: drum flaker/dryer Single drum design Drum and applicator roll cored for steam heating Drum driven by Carter gearbox, Size MF14/100340 2.71 KW @ 960 rpm belt driven by 3 KW, 3/50/415 volt, 700 rpm flameproof motor Applicator roll driven by Croft varispeed drive 316 stainless steel knife discharge with pneumatic adjustment 316 stainless steel drip tray with 316 stainless steel fume hood Openings: hood (2) 52" x 14" plastic inspection doors, 1-8"; tray 3-1".
More Details ⟶
Stock Number: #70983
28 mm (1.1 in) Dryer-Flaker Drum and Belt
Flaker Width: 1.1 in
Area of Flaker: 279.9 ft²
Orientation: Horizontal
Scraper: Yes
Scraper Details: manual adjustable, made of carbon steel
Additional Information: chrome plated single drum flaker Drum pressure 0.42 bar DC thyristor controlled varispeed drive. Roll speed 10-100 rpm. Heating low pressure steam system of 0.1 bar. Doctor manual adjustable knife made of carbon steel. Drum gear driven by 4 KW, 3/50/380 volt 1440 rpm flameproof motor Drum speed 2-18 rpm. Drum and applicator roll cored for steam/cooling
More Details ⟶
Stock Number: #703637
Unused Dryer-Flaker Drum and Belt
Additional Information: chrome plate drum only For use with Gouda drum flaker
More Details ⟶

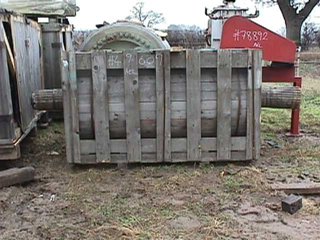

Stock Number: #28792
1,500 mm (60 in) Carbon Steel Dryer-Flaker Drum and Belt
Flaker Width: 60 in
Area of Flaker: 228 ft²
Orientation: Horizontal
Additional Information: Single drum flaker Grooved drums, 1/8" groove every 1" 316SS vac chamber housing. W/spare drum Roll face is grooved on 1' spacings
More Details ⟶
Stock Number: #706870
300 mm (11.8 in) Stainless Steel 316 Dryer-Flaker Drum and Belt
Flaker Width: 11.8 in
For Belt: Length of Flaker: 157.5 in
Area of Flaker: 43.1 ft²
Orientation: Horizontal
Single Belt or Double Belt ?: Single
Flaker Feed Type: Standard Drop Pastillator
Number of Cooling Zones for Belt: 1
Nozzles per Cooling Zone: 6
Scraper: Yes
Scraper Details: manually adjustable
Additional Information: 301/321/316 stainless steel pilot scale horizontal belt flaker system with a pastillator size 300 x 4000mm fabrik #02.331 CE #2.02032, 321 stainless steel belt is driven by a 2.2kw motor via a 1.35kw 316 stainless steel top housing, belt tension mechanism, manually adjustable discharge scraper, belt with a 1.8 m3/hour 321 stainless steel cooling water system with 6-spray nozzles mounted on a carbon steel frame and is a stand alone unit, system also includes: (1) top mounted 321 stainless steel pastillator (drop former) with extension device for lateral retraction mechanism for cleaning 15-nozzles (1-row of 8, 1-row of 7), (1) electrically heated distribution tray (1) 0.06 m3/hour @ 80 to 100 degrees C product feed pump • 60 liter electric heated reservoir/tank, (1) 2.4 m3/hour cooling water centrifugal pump, driven by 1.1kw, 3/50/230/400 volt, 2845 rpm motor brief overview: used for the solidification and cooling of melts, product is fed onto the water cooled belt by the Pastillator (drop former), the cooled and solidified product adheres easily to the cooled stainless steel belt and is scraped off by a manually adjustable scraper and then collected in suitable containers
More Details ⟶
Stock Number: #94347
762 mm (30 in) Stainless Steel 304 Dryer-Flaker Drum and Belt
Flaker Width: 30 in
For Belt: Length of Flaker: 192 in
Area of Flaker: 40 ft²
Orientation: Horizontal
Single Belt or Double Belt ?: Single
Additional Information: belt flaker 16' long drying section
More Details ⟶
Stock Number: #34426
Stokes 214-501 Dryer-Flaker Drum and Belt
Flaker Width: 8 in
Area of Flaker: 7 ft²
Scraper: Yes
Additional Information: Stokes 2-roll chrome plated flaker Has cored rollers for heating and cooling Has knife discharge Fixed roll spacing Masters gearhead varispeed motor UL labelled motor
More Details ⟶
Stock Number: #704614
300 mm (11.8 in) Dryer-Flaker Drum and Belt
Flaker Width: 11.8 in
Area of Flaker: 10.8 ft²
Orientation: Horizontal
Additional Information: face chrome plated single drum flaker/dryer Drum working pressure 5.5 bar, speed 3 to 21 rpm, cored for steam/hot oil heating
More Details ⟶
Stock Number: #232579
508 mm (20 in) Stainless Steel 316 Dryer-Flaker Drum and Belt
Flaker Width: 20 in
Scraper: Yes
Scraper Details: Carbon steel with copper replaceable blade and manual adjustment
Additional Information: 508mm diameter x 508mm face pilot size 316 stainless steel drum flaker 316 stainless steel jacketed feed pan with manual raise/lower mechanism carbon steel knife with a copper replaceable blade and manual adjustment 304 stainless steel discharge chute, drum openings: 2-40mm, feed pan openings: 2-25mm
More Details ⟶
Stock Number: #49609
1,050 mm (42 in) Dryer-Flaker Drum and Belt
Flaker Width: 42 in
Area of Flaker: 85 ft²
Orientation: Horizontal
Additional Information: chrome plated drum only Cast iron construction
More Details ⟶
no image found
Stock Number: #239474
Dryer-Flaker Drum and Belt
More Details ⟶
Request a Quote

Find secondhand and surplus flaker drum and belt dryers from IPP – precision-engineered and ready to ship

Save time and money with IPP’s in-stock flaker dryers for waxes, resins, and other specialty products

Searching for reliable flaker drums and belts? With over 47 years of experience, 20 complete process plant sites, and 15,000+ pieces of process equipment ready to ship, IPP delivers cost-effective solutions that help manufacturers meet demanding production timelines and budgets.

Flaker drums and belts are essential drying and solidification tools used across industries including chemicals, food processing, pharmaceuticals, and specialty materials. These systems are ideal for converting wet feedstocks into dry, uniform flakes ready for further processing or packaging.

Flaker drums apply a thin film of liquid product onto a heated rotating drum, where moisture evaporates, and the dried product is scraped off into consistent flakes. Flaker belts operate similarly, using a heated conveyor belt to achieve uniform drying and flaking for products that require a gentler process.

These dryers handle materials such as:

  • Food products like starches, dairy concentrates, and protein slurries
  • Specialty chemicals including resins and adhesives
  • Pharmaceutical pastes and intermediates
  • Polymers and engineered materials

Common materials of construction for flaker drums and belts include:

  • Stainless steel: Preferred for food, pharma, and sanitary processes
  • Carbon steel: A cost-effective option for general industrial uses
  • Specialty alloys: Selected for highly corrosive or abrasive materials

Key features of flaker drums and belts:

  • Efficient drying and size reduction in one step
  • Thin film drying minimizes energy consumption
  • Consistent flake size enhances downstream processing
  • Versatile handling of pastes, slurries, and viscous feeds
  • Built for high-volume, continuous production
  • Learn more about flaker drying technology in this technical guide from Process Heating.

Find your flaker drum or belt at IPP

Browse the IPP inventory or contact IPP for expert advice and pricing to secure your flaker drum or belt today. With immediate availability, you can avoid costly production delays.

Did you know? The IPP family of companies is the world's largest seller of used process plants and equipment

FAQ

Dryer-Flaker Drum and Belt FAQ

Have questions about Flaker Drum and Belt Dryers or our services? Learn more about our products and why customers choose IPP.

What industries rely most on flaker dryers?
Chemical, food, pharmaceutical, cosmetics, and agricultural sectors all use flaker dryers to convert molten or sticky materials into solid flakes for easier handling and further processing.
How do drum and belt flaker dryers compare?
Drum flakers offer compact, high-throughput operation with uniform flake size, while belt flakers are better suited for larger-scale or multi-product processes needing extended cooling zones.
What maintenance is required for flaker dryers?
Routine maintenance includes checking drum or belt surface condition, cooling system performance, scraper blade alignment, and drive components for wear or buildup.
What are the benefits of buying used or secondhand process equipment from IPP?
Buying used from IPP can save up to 70% over new equipment, accelerate implementation timelines, support sustainability, and ensure proven reliability backed by 47 years of industry knowledge.
