Used mills for sale: particle size reduction equipment for powders, slurries and solids
Highest-ranked available inventory for this selection.
Used mills for sale: particle size reduction equipment for powders, slurries and solids
Set a numeric threshold to narrow the matching listings.
Select one or more values to narrow the current listings.
Use this setting to include or exclude equipment with this feature.
Select one or more values to narrow the current listings.
Enter a keyword to match this specification.
Enter a keyword to match this specification.
Showing 25 of 33 matching Shot And Sand.
attritor Size 100S 30" deep tank, with 2 1/2" dia shaft, (6) cross bars. Canter lever tilt mechanism 7 1/2 HP Class I, Div II drive.
Wet Grinding Media Mill water cooled grinding chamber Batch size 200 to 1000 liter capacity closed design grinding chamber,axial flow. Mechanical Seal on shaft, with Teflon grinding discs for agitating the grinding media 50 HP motor, 3/60/230/460 volt Class1 Groupd D
Dyno Mill bead mill 1.4 ltr grinding chamber 8-40 kg production rate weight 90 kg. 2 x clamps to remove chamber
15 liter horiz jkt (disintegrator) mill system Rotor deviding plate 1.4435. (8) agitation discs are polyurethane clad (Bayer Vulkolan). Double jkt 304SS. Shaft seal: double lip (teflon), mfd by Garlock. Milling cylinder 15 liter volume Suspension inlet 25mm, suspension outlet 25mm. Cooling medium inlet 12mm, cooling medium outlet 12mm. Max operating pressure in milling chamber 4 bar. Max operating pressure in double jkt 2 bar Mill motor: 15 KW Loher Type eA180MA-4, 3/50/500 volt, 1455 rpm Ex-e-G3 motor
Dyno-bead mill 3x500 volt
coBall mill
This production size stirrer-bead mill is designed for the finest grinding of suspensions and high viscous products down to Nano- Range.
This mill has the following specifications: Throughput; 0.7-2.2 gpm, Pressure resistance; 58 psi, Grinding chamber volume; 2 Gallons, Rotor driving capacity; 49-73 hp, weight 3850 lbs.
Controls are 110 volt, Machine 460 volt.
Air humidity from 0-80%, Ambient air; As dust free as possible.
Mechanical seal on grinding chamber
barrel internal chrome plated horizontal jacketed pearl mill mechanical seal (10) 260mm diameter blades on shaft hinged front cover, built on controls, chamber on rollers for cleaning/maintenance,
4-station Premier type small-media sandmill system. Consists of (4) 6 1/2" ID x 12" 304SS closed head horiz chambers mtd on common unit. Each chamber has rotary gear pump mtd underneath. W/controls and gauges.
lower vari drive assembly Fits 100 system only.
Wet Grinding media mill water cooled grinding chamber Batch size 50 to 250 liter capacity closed design grinding chamber,axial flow. Mechanical Seal on shaft, with Teflon grinding discs for agitating the grinding media
This lab size stirrer-bead mill is designed for the finest grinding of suspensions and high viscous products down to Nano- Range
This mill has the following specifications: Throughput; 0.044-0.132 gpm, Pressure resistance;29 psi, Grinding chamber volume; 0.13 Gallons,
Rotor driving capacity; 4 hp, weight 353 lbs.
Controls are 110volt, Machine 460 volt.
Operating conditions: Temperature; from 0-90 degrees C.
Air humidity from 0-80%, Ambient air; As dust free as possible.
Mechanical seal on grinding chamber
Intermittent type Attritor Szegvari Attritor System Size 1S Bench top size, with a Reeves Vari -drive rated for 276 through 2000 rpm Mixing shaft belt driven chrome plated mixing pot for 0.8 gallons working capacity with jacket for cooling or heating This mixer is designed for media size of 1/8” through 3/8” Hardened 304 SS tool steel mixing shaft Standard mixing arm pinned to shaft which means this machine is designed for ease of shaft or arm change Multiple options for mixing shafts, types of mixing chambers, lids, etc
4-station small media sandmill system, that provides continuous wet milling for aqueous and solvent slurries of all viscosities The system consists of (4) closed head, 7" dia x 17" long sandmills mounted on common base. (2) mills have CS bodies w/304SS discs, (1) mill has 304SS body and 304SS discs, (1) mill has 304SS body w/teflon discs. Each mill chamber has a water jacket designed to carry heat away so product doesn't over heat. Specs include: gross volume (gal) 5.5, 35-75 gallons per hour. Media load based on: 1.5 mm glass=40 lbs., 1.0 mm steel=80 lbs.
bead mill
Type 574-04-21, Order #201869.
Full load 14.7 amp. Currently set up as a disk agitator, but can also be used with a peg agitator.
Nylon coated concentric disc arrangement; nylon coated SS shaft.
Has water cooled chamber w/1 HP Viking CS rotary pump
Polished grinding chamber 6" dia x 18" long.
On board explosion proof controls
jacketed horizontal disc mill, designed for wet ginding With a jacketed grinding chamber V-belt through a Voith fluid coupling.
bead mill mechanical seal on shaft cooling water pressure max 3 bar, milling vessel pressure max 3 bar, max temp. 70°C, vessel rubber lined

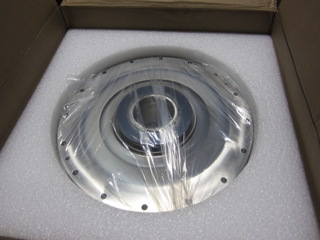

Rebuilt 80MM mechanical seal Part #630598U, Ref. assembly #639183, Ref. dwg. # C-2115381X. Rebuilt by Netzsch June 2008.
Rebuilt

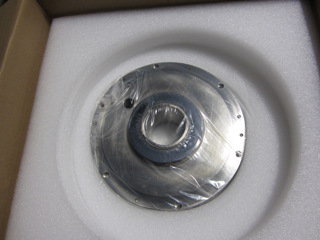

70MM mechanical seal
Part #630597U,
Ref. assembly #638208, Ref. dwg #C-2121191X.
Rebuilt by Netzsch May 2008.

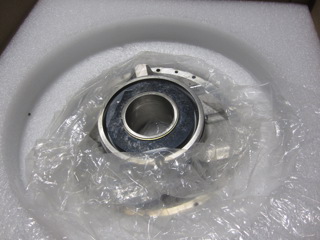

Rebuilt 70MM mechanical seal Part #630597U Ref. assembly #638208, Ref. dwg #C-2121191X. Rebuilt by Netzsch May 2008.

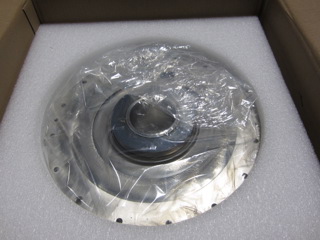

Rebuilt 70MM mechanical seal Part #630597U, Ref. assembly #638208, Ref. dwg. # C-2121191X. Rebuilt by Netzsch May 2007.

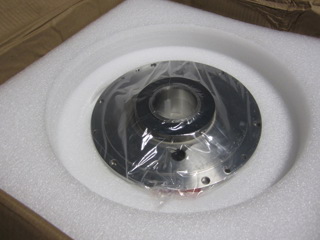

Rebuilt 80MM mechanical seal Part #630598U, Ref. assembly #630971, Ref. dwg. #C-2115381X. Rebuilt by Netzsch July 2008.
jacketed, Mecha Gaper grain mill
motor with UL label.
Closed design suitable for solvent based coatings. Chamber is has a SS cooling jacket
Disks are UHMW (non metalic high wear material).
Bottom inlet, top discharge, with top sample port, all with sanitary style fittings.
Intermittent type Attritor. Szegvari Size 1, Bench top size. Electronic variable speed control.
220 liter (60 gallon) jacketed, Mecha Gaper grain mill.
with UL label.
Closed design suitable for solvent based coatings.
Chamber has a SS cooling jacket
Disks are UHMW (non metalic high wear material).
Bottom inlet, top discharge, with top sample port, all with sanitary style fittings.
Dual Mounted
jacketed, Mecha Gaper grain mills
The design is two seperated complete mill mounted on a common stand.
with UL label
Closed design suitable for solvent based coatings
Each chamber has a SS cooling jacket and a SS internal liner designed for easy replacement/maintenance
Disks are UHMW (non metalic high wear material).
Bottom inlet, top discharge, with top sample port, all with sanitary style fittings.
Used mills are essential in industries where reducing solid materials to fine powders or controlled particle sizes is critical. Whether you’re grinding active pharmaceutical ingredients, pulverizing pigments, or micronizing mineral fillers, mills offer the precision and flexibility needed for modern process demands. With more than 47 years of experience, IPP provides used, surplus and secondhand milling systems from 20 global plant sites and maintains a ready-to-ship inventory of 15,000+ systems.
IPP stocks a wide range of industrial mills, including hammer mills, jet mills, ball mills, colloid mills, attrition mills, and roller mills from leading brands like Hosokawa, Fitzpatrick, Netzsch, Pallmann and WAB.
Mills must be built to handle abrasive, corrosive or sanitary materials:
Explore how to select the right mill for your process from Chemical Processing.
Search the IPP inventory or contact IPP’s grinding and milling specialists to find the right used, surplus or secondhand mill for your operation. Whether upgrading, scaling up or replacing worn systems, IPP delivers cost-effective solutions with minimal downtime.
Have questions about Mills or our services? Learn more about our products and why customers choose IPP.
