Used filters for sale: industrial solid-liquid separation for consistent, high-purity output
Highest-ranked available inventory for this selection.
Used filters for sale: industrial solid-liquid separation for consistent, high-purity output
Select one or more values to narrow the current listings.
Showing 9 of 9 matching Horizontal Belt.
Vaccum belt filter Pneumatically operated hood 4-2", 2-1" inlets. 1-2" vacuum opening no belt with filter
1500 liter/min water tank system Ribbon motor specifications: 3~/50Hz/290-500V/1370rpm,
horizontal belt filter 1000 kg/hour solids, 7600 liter/hour suspension, 3500 liter/hour wash water Driven by motor via a gearbox (1) vacuum pump skid (2) seperator vessels
System includes Sulzer Burckhardt 316 stainless steel water seal vac pump, Type PMZF-3817-C9/X3-1986 Pump rated 56 liter/min. Driven by 20 KW, 3/50/500 volt, 975 rpm motor. (1) rubber lined receiver. (1) 600 liter plastic tanks, 1000mm diameter x 900mm straight side, bolt top, weld dish bottom. Openings: top 1-250mm, 2-200mm, 4-80mm; 1-80mm center bottom outlet Haug oil free air compressor Type BO-75-D4-ASW driven by 2.2 KW 3/50/500 volt 1400 rpm motor
fully enclosed with clam shell type closure. (Top half lifts off bottom half for cleaning) Discharge via a vibratory conveyor With Filter is (1) 589 cfm, vac 0.5 torr, Busch Huckepak vacuum pump, type 445-001, serial # 1006,driven by 30 kW, 3/50/415 volt, 730 rpm motor; (1) 590 cfm, vac 0.5 torr, Busch Huckepak vacuum pump, type 445-001, serial # 205, driven by 30 kW, 3/50/415 volt, 730 rpm motor (1) 588 cfm (1000 cu.m/hr), vac. 0.5 mbar; max discharge pressure 0.2 bar, Busch Huckapak vacuum pump, type H0-0445-A-DO1-XXAX, serial # OHO1530101, driven by 30 kW, 3/50/415 volt, 730 rpm motor.

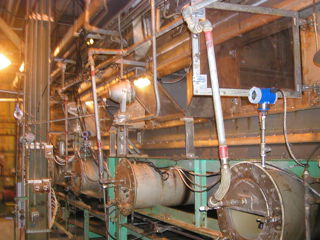

8' wide x 24' center to center horizontal belt filter/dryer with a 304SS pan This unit is capable of accepting 16,000 SCFM of hot air flow for drying product. 4 zone filter design, with pan wash. Two rubber drainage belts with knife blade discharge. Manual belt tension guides for the cloth filter.. Variable speed belt drive, by a SM Cyclo horizontal gearbox, driven by a Reliance 7.5 hp motor With two 304SS hood enclosures equipped for hot air circulation with pressure relief panels, bolts to the top of the belts frame The original design had one hot air fan with filter banks that pushed steam heated hot air to the top of the product cake. Vacuum for the bottom of the pans was provided by Sutorbuilt rotary blowers,(available at additional cost) These blowers are rated for 13000 cfm and are driven by a 350 HP AC motor. (Motors not available) Blower stock numbers are 206782, 206774, 206775, 206773, 206771, 206772, 206784, and 206781.

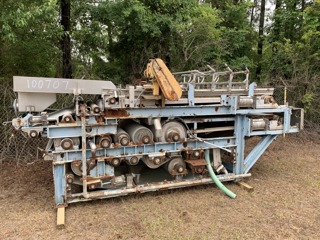

SS drainage trough, product feed uniformity screw and SS feed distribution box. Dewatering belt is gear driven by approx 5 HP motor thru gear reducer Gravity drainage zone is about 15' long, is supported by plastic support, and also has (4) rows of plows to enhance the sludge dewatering process. After the wedge section, there is 20" dia perforated SS drum, followed by (8) SS "S" wrap rolls Cake discharge via scraper blade system. Each belt is equipped w/high press wash header and enclosed wash box Unit has pneumatic belt tensioning and pneumatic belt tracking. Control panel is required.
Belt sludge press, With Lime addition system and discharge conveyor.
This unit is capable of accepting 16,000 SCFM of hot air flow for drying product. 4 zone filter design, with pan wash Two rubber drainage belts with knife blade discharge Manual belt tension guides for the cloth filter Variable speed belt drive With two 304SS hood enclosures equipped for hot air circulation with pressure relief panels, bolts to the top of the belts frame The original design had one hot air fan with filter banks that pushed steam heated hot air to the top of the product cake Vacuum for the bottom of the pans was provided by Sutorbuilt rotary blowers,(available at additional cost) These blowers are rated for 13000 cfm and are driven by a 350 HP AC motor. (Motors not available) Blower stock numbers are 206782, 206774, 206775, 206773, 206771, 206772, 206784, and 206781.
Used filters are essential components in countless process operations where solids must be separated from liquids. Whether you’re removing fine particulates, clarifying solutions, or recovering valuable materials, industrial filters play a critical role in improving product quality, protecting downstream equipment, and maintaining compliance. With more than 47 years of experience, IPP supplies used, secondhand, and surplus filters from 20 global plant sites and maintains an extensive inventory of 15,000+ process systems.
IPP stocks a wide range of filter types—pressure leaf, plate and frame, cartridge, vacuum drum, nutsche, and candle filters—from leading brands like Sparkler, Pall, Funda, and Millipore.
Industrial filters are built to resist corrosion, handle pressure, and maintain hygiene:
Learn more about industrial filtration technologies and applications from Chemical Processing.
Search the IPP inventory or contact IPP’s filter experts to locate the right used, surplus, or secondhand filter for your process. With trusted manufacturers, quality systems, and rapid delivery, IPP helps you reduce downtime and improve filtration efficiency.
Have questions about Filters or our services? Learn more about our products and why customers choose IPP.
